Summary of Contents for InfiRay IX Series

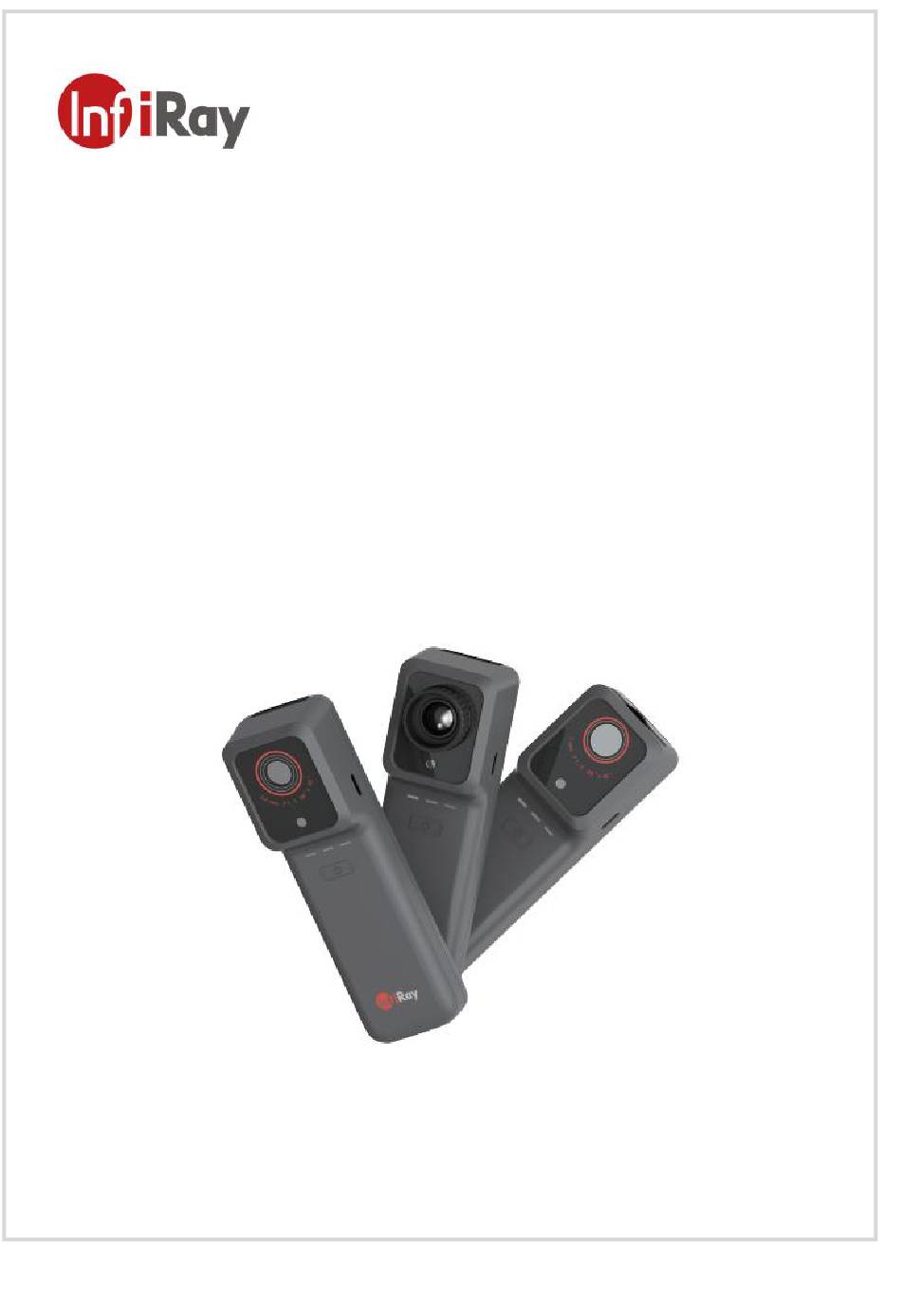

- Page 1 IX Series Thermal Camera with Wireless Connectivity for Smartphones User Manual V1.0.0 IRay Technology Co., Ltd.
- Page 2 www.infiray.com...
- Page 3 With 2000+ employees and R&D personnel accounts for 48% of all employees, 2030 intellectual property projects in terms of InfiRay® have been authorized and accepted, including those for integrated circuit chips, MEMS sensors design and manufacture, Matrix IV Image Algorithms, and AI-Temp Intelligent Accurate Temperature Measurement Algorithms.（The statistic data is up to April,2023）...
-
Page 4: Table Of Contents
Table of Contents 1 Legal Disclaimer ........................ 1 1.1 Legal Disclaimer ...................... 1 1.2 Copyright ......................... 1 1.3 Quality Assurance ....................1 2 Safety Information ......................2 3 Notice to user ........................4 3.1 Calibration ........................4 3.2 Accuracy ........................4 3.3 Video Teaching ......................4 3.4 Documentation Updates ..................4 3.5 Scope of Application ....................4 4 Customer Help ........................ - Page 5 7 Structural Drawings ......................14 8 Download Software and Update Firmware ..............15 8.1 Download IR Discovery for Android and iOS ............15 8.2 Download PC Software ..................15 8.3 Update Firmware ....................15 9 Cleaning Thermal Camera ....................16 9.1 Cleaning Camera Housing, Cables and Other Items ........... 16 9.2 Cleaning Infrared Lens ..................17...
-
Page 6: Legal Disclaimer
1 Legal Disclaimer 1.1 Legal Disclaimer The thermal cameras manufactured by IRAY TECHNOLOGY are warranted for a period of two-year and the accessories are warranted for a period of three-month form the delivery date of the original purchase, provided such products have been under normal storage, use and maintenance. -
Page 7: Safety Information
2 Safety Information WARNING Applicability: Class B digital devices. 1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 8 It is recommended to charge the device at room temperature and while it is powered off. Charging the device in high-temperature environments exceeding 40°C or low-temperature environments below 0°C is prohibited. The device supports charging while in operation. The device is prohibited from operating in environments exceeding 50°C or below -10°C. The relative humidity for device use is 10% to 95%, non-condensing.
-
Page 9: Notice To User
For very accurate results, we recommended that you wait 5 minutes after you have started the camera before measuring a temperature. 3.3 Video Teaching You can search for mount and use videos from our website: www.infiray.com. 3.4 Documentation Updates Our manuals are updated several times per year, and we also issue product-critical notifications of changes on a regular basis. -
Page 10: Customer Help
4 Customer Help 4.1 FAQ You can find answers to FAQ about this model on the service support page of our official website. 4.2 Download You can download the following contents from our website: www.infiray.com Product Documentation Client Software ... -
Page 11: Camera Overview
5 Camera Overview 5.1 Front View Name Infrared lens Digital camera LED indicator Power button Table 5.1 Component Introduction... -
Page 12: Rear View
5.2 Rear View Name Function Description Back clip Stretchable, attaches to the smart device Table 5.2 Component Introduction... -
Page 13: Side View
5.3 Side View Name Function Description USB port Charge using a USB cable connected to a power adapter. Table 5.3 Connector... -
Page 14: Quick Start Guide
"IR Discovery" is a secondary analysis app designed by IRay Technology for thermal imaging devices. It is also compatible with the IX series of products. This app allows you to view images in four different modes, including infrared, visible light, dual-spectral fusion, and PIP on your smartphone screen. -
Page 15: Home Screen Introduction
connection. 6.3 Home Screen Introduction... - Page 16 Name Description Click Return to return to Device Connection Return Interface. Model Show device models You can click to perform temperature range settings, network configurations, and view the Settings remaining device battery level and product information. Click to customize drawing spots, lines, or boxes Preset Template Settings or to perform deletions.
-
Page 17: Settings
6.4 Settings The settings interface is as follows: Measurement Range: low-temperature mode and high-temperature mode. It supports automatic switching of temperature modes. Network Setup: Supports customizing the network name. Auto Power Off: Supports customizing options for Off, 10 minutes, and 20 ... - Page 18 Factory Reset: Click to perform a factory reset, and after the factory reset, device information will be cleared. Language Option: 13 languages such as English, Russian, Polish, etc. Battery Capacity: Display of remaining battery capacity. Device Information: You can view the device model, PN, SN, and firmware ...
-
Page 19: Structural Drawings
7 Structural Drawings... -
Page 20: Download Software And Update Firmware
Center, select IndustrialThermal Cameras in the Quick Search, choose Handheld Thermal Camera, locate the IX Series, find the corresponding model, click to enter the Client, and you can download the PC client “IR Discovery.exe”, then follow the instructions to install IR Discovery. -
Page 21: Cleaning Thermal Camera
9 Cleaning Thermal Camera 9.1 Cleaning Camera Housing, Cables and Other Items Camera Housing, Cables and Other Items One of the following liquids can be used. Liquids 1.Warm water 2. Weak detergent solution Cleaning Tools A soft cloth Please follow this procedure: 1.Soak a soft cloth in the liquid. -
Page 22: Cleaning Infrared Lens
9.2 Cleaning Infrared Lens Cleaning Infrared Lens One of the following liquids can be used. 1.Commercial lens cleaning liquid with more than 30% is Liquids opropyl alcohol. 2.96% ethyl alcohol(C OH). Cleaning Tools Absorbent cotton Please follow this procedure 1.Soak the absorbent cotton in the liquid. 2. -
Page 23: Customer Service
Worth comes from Service Customer Service: +86-400-883-0800 24H Hotline: +86-400-998-3088 Customized Services Visit official website http://www.infiray.com for more information...
