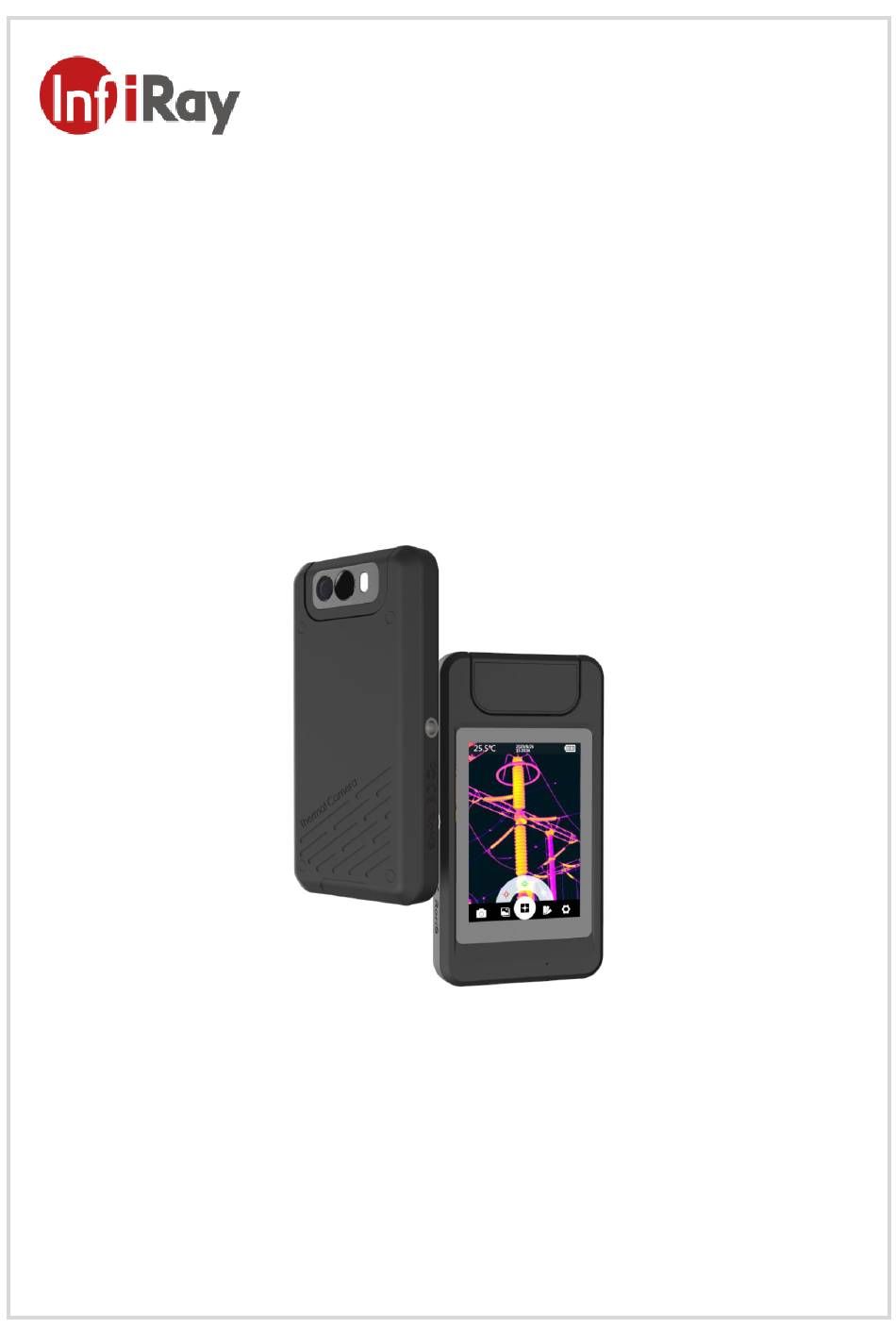

- Page 1 P Series Pocket Thermal Camera User Manual V1.0.0 IRay Technology Co., Ltd. www.infiray.com...
- Page 2 Introduction to IRay Technology IRay Technology Co., Ltd. concentrates on developing infrared thermal imaging technologies and manufacturing relevant products, with completely independent intellectual property rights. IRay is committed to providing global customers with professional and competitive infrared thermal imaging products and solutions. The main products include IRFPA detectors, thermal imaging modules, and terminal thermal imaging products.
- Page 3 P Series Pocket Thermal Camera User Manual ©2021 IRay Technology Co.,Ltd. All rights reserved worldwide. All contents in this manual, including words, pictures, images, etc., belong to IRAY TECHNOLOGY CO., LTD. (Hereinafter referred to as “THE COMPANY” or “IRAY TECHNOLOGY”). No part of the manual, in whole or in parts, may be copied, photocopied, translated, or transmitted without the prior written permission of IRAY TECHNOLOGY.
-
Page 4: Table Of Contents
P Series Pocket Thermal Camera User Manual Table of Contents 1.Notice to Users ............................1 1.1 Manual Updates ..........................1 1.2 Scope of Application ........................1 2.Quick Start Guide ............................ 1 2.1 Packaging ............................1 2.2 Steps for Quick Start ........................1 3.Overview of Thermal Camera and Application .................. - Page 5 P Series Pocket Thermal Camera User Manual 6.1 Data Acquisition and Saving ......................13 6.1.1 Manual Acquisition ......................13 6.1.2 Auto Image Capture ......................13 6.1.3 Save Data ........................... 13 6.2 Gallery Search and Data Upload ....................14 7.Alarm ..............................15 7.1 Alarm Settings ..........................
-
Page 6: Notice To Users
P Series Pocket Thermal Camera User Manual 1.Notice to Users 1.1 Manual Updates Our manuals are updated several times per year. Please contact us to get the latest manuals. 1.2 Scope of Application This manual is applicable to all models in P-Series, which means that some functions described in this manual may not be applicable to a specific model. -
Page 7: Overview Of Thermal Camera And Application
P Series Pocket Thermal Camera User Manual 3.Overview of Thermal Camera and Application The black design with the frosted texture offers a handy sense of comfort. The flexible rotating optical block can meet the requirements of special spaces for more convenient and comfortable shooting. The automatically rotated touch screen can display the menu cyclically, which is like experiencing a mobile game. -
Page 8: Rotating Optical Block
3.4 Applications The P series thermal camera is portable in pockets without affecting the daily work of engineers. Fuse overheating, air leakage, pipe blockage and other problems can be found during work at any time. Once potential risks are found, data can be collected, uploaded, shared and countermeasures can be taken in time to prevent problems before they occur, which is convenient and efficient. -
Page 9: Equipment Detecting In Narrow Space
The leak of water supply pipeline, drain pipe or heating pipe can lead to wall dampness, and even worse wall mildew. P series pocket thermal camera can detect the wall dampness which is invisible for the human eyes and assist in locating the leak position. -
Page 10: Detection Of Air Conditioner Vent
3.4.4 Detection of Air Conditioner Vent Air conditioners are widely used in shopping malls and office buildings. The P series pocket thermal camera can quickly detect the operation condition of the air conditioner vent. There is no need to climb... -
Page 11: How To Get High-Quality Images
4.1 Image Mode The P series thermal cameras can capture infrared images and visible light images at the same time. Four different images can be displayed on the screen by selecting the image mode function: thermal imaging, dual-light fusion, picture-in-picture and visible light. Each image mode has a different emphasis on displaying information for different applications. -
Page 12: Color Palette
P Series Pocket Thermal Camera User Manual 3.PIP: visible light and infrared overlay image. Because of the heat transfer effect, the infrared image can not distinguish the details of objects closely arranged in one dimension, such as multiple heating pipes, so it is difficult to identify the pipes. The picture-in-picture... -
Page 13: Alignment Distance
P Series Pocket Thermal Camera User Manual target to screen can be adjusted by electronic zoom function, and the +,- icons in the lower left corner of the main interface in each mode can adjust the magnification of the image, so that the ratio of target to screen can achieve the best effect. -
Page 14: Fill Light
P Series Pocket Thermal Camera User Manual 4.6 Fill Light In case of applying visible light mode in dark scenes, fill light is needed to achieve the ideal image effect. The secondary menu icon or icon in the main menu can set the turn-on and turn-off of fill light, which can also be used for lighting. -
Page 15: Set Measuring Gear
P Series Pocket Thermal Camera User Manual distance between the target and the thermal camera will have different effects on the measurement results. The farther the distance, the lower the temperature. In order to ensure the accuracy of the temperature measurement, the thermal camera will compensate the result according to the distance of the object. -
Page 16: Hot Spot Tracking
P Series Pocket Thermal Camera User Manual 5.2.3 Hot Spot Tracking The max. temperature of the whole frame will be displayed on the top left corner of the screen when the hot spot tracking is chosen. You can turn on or turn off the hot spot tracking by clicking the icon in the sub menu. -
Page 17: Custom Region
P Series Pocket Thermal Camera User Manual Function Introduction By clicking the line center you can drag the line to other positions. By Edit and Move clicking the end of line, you can extend the measurement line or change its direction. -
Page 18: Data Acquisition And Saving
6.1 Data Acquisition and Saving P series thermal camera will generate .ipg and .irg files for each image capture. The data saving mode for manual image capture, timed image capture and auto alarm image capture is the same, which is applicable for second analysis. -
Page 19: Gallery Search And Data Upload
P Series Pocket Thermal Camera User Manual Function Introduction month/day/hour/minute/second by default. The data saving mode is auto under auto image capture mode. See chapter 8.6 for detailed operation procedures. 6.2 Gallery Search and Data Upload Call up the secondary fan-shaped menu by clicking the icon button... -
Page 20: Alarm
7.Alarm P series can not only get accurate temperature data but achieve smart alarm function compared with other ordinary thermal cameras. Smart alarm can not only detect alarm event automatically but give prompt message and collect data. The alarm functions of P series can automatically select temperature information on the screen, detect abnormal temperature, give prompt alarm and collect data automatically, which is easy, fast, effective and exhaustive compared with human eye detections. -
Page 21: Camera Settings And Maintenance
P Series Pocket Thermal Camera User Manual 8.Camera Settings and Maintenance 8.1 Thermographic Parameters To enter into the setting interface by clicking the icon button in the main interface via touch screen, then click the “thermographic parameters setting” to perform parameter settings, click save to quit. -
Page 22: Auto Power Off
P Series Pocket Thermal Camera User Manual 8.7 Auto Power Off To enter into the setting interface by clicking the icon button in the main interface via touch screen, four modes can ben selected:5 minutes, 10 minutes, 20 minutes and off. -
Page 23: Format Sd Card
P Series Pocket Thermal Camera User Manual 8.9.6 Format SD Card You can perform the operation of formatting the SD card. 8.9.7 USB Mode USB flash disk and USB camera can be chosen in USB mode settings interface. The USB flash disk should be chosen if the thermal camera is connecting with PC software for secondary analysis. -
Page 24: Cleaning The Camera
P Series Pocket Thermal Camera User Manual 10.Cleaning the camera 10.1Camera housing, cables, and other items Camera housing, cables, and other items Use one of these liquids: Liquids 1. Warm water 2. A weak detergent solution Equipment A soft cloth... -
Page 25: Infrared Lens
P Series Pocket Thermal Camera User Manual 10.2 Infrared lens Infrared lens Use one of these liquids: 1.A commercial lens cleaning liquid with more than Liquids 30% isopropyl alcohol. 2. 96% ethyl alcohol（C OH） cotton wool Equipment Follow this procedure: 1.Soak the cotton wool in the liquid. -
Page 26: Important Notices
System training can be carried out for users' technical staff and operators. 12.2 After-sales Services P series handheld thermal cameras are developed by our company, which are guaranteed for good after-sales service. If you have any request, please contact us. -
Page 27: Appendix: Emissivity Of Common Materials
P Series Pocket Thermal Camera User Manual Appendix: Emissivity of Common Materials Material Emissivity Human Skin 0.98 Printed Circuit Board 0.91 Cement Concrete 0.92 Ceramics 0.92 Rubber 0.95 Wood 0.90 Pitch 0.96 Brick 0.93 Sand 0.90 Soil 0.92 Cardboard 0.90 White Sticky Membrane Paper 0.93... - Page 28 P Series Pocket Thermal Camera User Manual Worth comes from Service Technical Support Hotline： 24h Hotline: 400-883-0800 400-998-3088 Customized Services...
