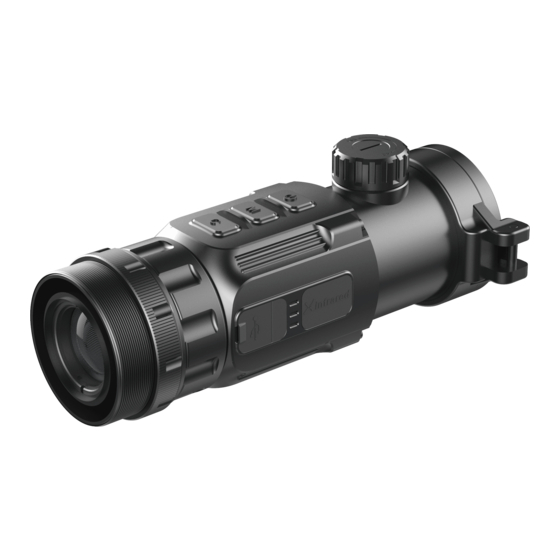

- Page 1 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Clip CH50 V2 Thermal Imaging Attachment User Manual V1.1 IRay Technology Co., Ltd. All rights reserved and shall not be copied and distributed in any form without written permission.
-
Page 2: Table Of Contents
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Contents 1. Description ......................4 2. Components and Controls ..................5 2.1 Components ..................... 5 2.2 Controls ......................6 3. Menu/Status Bar Icons ....................7 4. Specifications ......................8 5. System Function ......................9 6. - Page 3 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 10.1 User Interface Description ................24 10.2 Product Dimensions ..................24 10.2.1 Boundary Dimension ................ 24 10.2.2 Bottom Mounting Hole Size ............. 25 All rights reserved and shall not be copied and distributed in any form without written permission.
-
Page 4: Description
+86-400-998-3088 1. Description Clip CH50 V2 is a front attachment designed as the infrared expansion device of the day-light sight. Different from the night vision device based on image enhancement, Clip CH50 V2 doesn’t need external light source and isn’t influenced by strong light exposure. -
Page 5: Components And Controls
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 2. Components and Controls Fig. 2-1 Function introduction 2.1 Components Name Function description Lens Cap Protecting the lens and using for background correction ① Objective Lens —— ② Used to adjust the focal length of objective lens to make the Lens Focus knob ③... -
Page 6: Controls
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 2.2 Controls Operation in normal display mode Operation in menu mode/calibration interface Short Press Long Press Short Press Long Press Standby/ Power on / P (4) Adjust parameter P (4) Button ——... -
Page 7: Menu/Status Bar Icons
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Menu/Status Bar Icons Screen lightness setup—four levels Image mode: B (Black hot), W (White hot), R (Red hot), C (Pseudo Color) Image Sharpness: levels 1-4 E-zoom (Only for Monocular: ×1, ×2, ×4) Ultraclear mode Bluetooth option Bluetooth connected... -
Page 8: Specifications
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 4. Specifications Model Clip CH50 V2 Detector Parameters Detector Type Vox Uncooled Resolution 640*512 Pixel Size 12um NETD ≤40mk Frame Rate 50Hz Optics Parameters Objective Lens 50mm Field of View 8.8°×7.0°... -
Page 9: System Function
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Digital Compass √ Motion Sensor √ Remote Control Bluetooth Physic Parameters IP Rating IP66 Weight (without batteries) ＜570g Dimension 175mm×74mm×68mm Adapter Ring M52×0.75 5. Product Characteristics and Function ⚫ 12μm thermal imaging detector ⚫... -
Page 10: Operation System
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 6. Operation System 6.1 Power on / Power off Press and hold down P (4) button for 3s to start up the device, the image appears on the display screen. After 6s, the device is turned on. Press and hold down P (4) button for about five seconds to shut down the device. -
Page 11: Advanced Menu
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 ⚫ Image sharpness: 1-4 levels of sharpness. ⚫ E-zoom: ×1/×2/×4. 6.5 Advanced Menu Press and hold down the M (5) button for three seconds to enter the advanced menu interface (fig. 6-2). The six functional options from top to bottom are Ultraclear mode, Bluetooth, video out, auto shutter calibration, image calibration type, battery type and more. - Page 12 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 weather conditions When Bluetooth is on, it can be operated with the Bluetooth remote controller or mobile phone APP The icon Bluetooth ON/OFF (please search for displays at the connection by mobile phone status bar.
-
Page 13: Calibration The Sensor
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 location 6-3) Enter the E-zoom center E-zoom Shift the zooming center to E-zoom center adjustment center align with day riflescope’s adjustment interface (fig. adjustment reticle interface 6-4) Bad pixel Calibrate the Bad Pixel calibration bad pixels on... -
Page 14: Image Calibration
➢ Please calibrate the day light sight before mounting Clip CH50 V2. ➢ Installing Clip CH50 V2 on the day light sight and repeat the calibration steps above. Then aiming at the target at 100 meters and shoot. Measure the horizontal distance and vertical distance between the bullet hitting point and the aiming point afterwards. -
Page 15: E-Zoom Center Adjustment
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Note: Before zeroing function performs, please confirm the storage location, i.e., selection of the type of zeroing. (Refer to 6.5 for details) 6.7 E-Zoom center adjustment ➢ Please calibrate the image before adjusting E-zoom center. ➢... -
Page 16: Compass Calibration
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 calibrate the bad pixels. ➢ Repeat the above operations to continue selecting bad pixel, and the status bar at the bottom of the screen will display the number of calibrated bad pixels. ➢... -
Page 17: Stadiametric Rangefinder
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 Fig. 6-6 Compass calibration interface 6.10 Stadiametric Rangefinder Stadiametric rangefinder is only for monocular mode that can estimate approximate distance to an object of known size. Fig. 6-7 Stadiametric rangefinder interface ➢... - Page 18 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 entirely between the two measurement lines. P (4) button is used to increase the distance and C (6) button to reduce the distance. ➢ The distance to the target is automatically recalculated while moving the measurement lines and displayed on the left of the three reference objects.
-
Page 19: Accessory Equipment
7. Accessory Equipment Fig. 7-1 Remote controller Clip CH50 V2 is equipped with external devices that can be connected via bluetooth. The button layout of the bluetooth remote controller and mobile phone APP is consistent with the device, including Power button, menu button and correction button. -
Page 20: Mobile App
➢ And at the same time, the bluetooth icon on the device turns to ➢ Click the remote icon on the APP to enter the operation interface (fig.7-2), then operate the Clip CH50 V2 with the mobile phone. Fig. 7-2 App interface... -
Page 21: Preventative Maintenance
⚫ The Clip C series also supports the extended use of 16650 batteries with the InfiRay’s extra battery accessory, to increase the working time of the product up to All rights reserved and shall not be copied and distributed in any form without written permission. -
Page 22: Product Cleaning And Maintenance
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 7 hours, referring to the fig.8-2. Fig. 8-2 Installed diagram of the 16650 batteries 8.2 Product Cleaning and Maintenance ➢ It is prohibited to clean the device with the cleaning tool which may corrode or scratch optical glass. -
Page 23: General Trouble Shooting
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 9. General Trouble Shooting Table 9-1 General trouble shooting Description Probable cause Trouble shooting Adjust the focal length of The focal length of the objective lens until the image objective lens does not suit. becomes clear. -
Page 24: Appendix
11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 10.Appendix 10.1 User Interface Description ⚫ Custom interface and data cable are adopted to support type-c power supply, serial port and PAL video. ⚫ Support type-c and battery power supply, support over-voltage and under-voltage reverse connection protection. - Page 25 11th Guiyang Street, YEDA, Yantai 264006, P.R. China +86-400-998-3088 10.2.2 Bottom Mounting Hole Size All rights reserved and shall not be copied and distributed in any form without written permission.
