Kostal PIKO CI Operating Manual

Kostal PIKO CI Operating Manual

100 kw solar inverter
Hide thumbs Also See for PIKO CI:
Table of Contents

Advertisement

Quick Links

Download this manual
PIKO CI
100 kW solar inverter
Operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIKO CI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kostal PIKO CI

Summary of Contents for Kostal PIKO CI

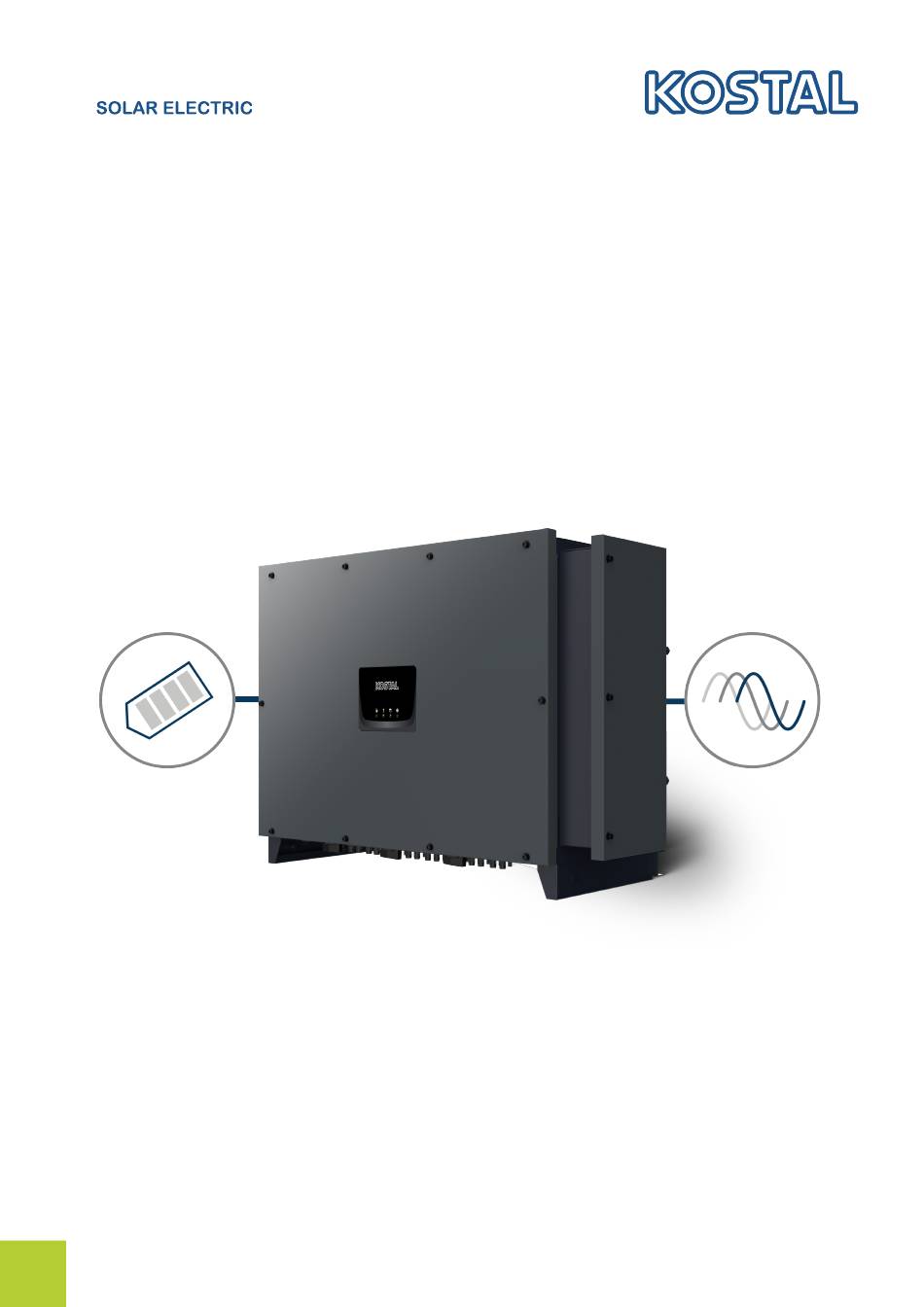

  • Page 1 PIKO CI 100 kW solar inverter Operating manual...

  • Page 2: Legal Notice

    All names, trademarks, product names and other designations used in this manual may be legally pro- tected even if not indicated as such (e.g. as a trademark). KOSTAL Solar Electric GmbH assumes no li- ability for their free usage. The illustrations and texts have been compiled with great care. However, the possibility of errors cannot be ruled out.

  • Page 3: Table Of Contents

    Communication via RS485 ....................4.10 Communication via WiFi ...................... 4.11 Communication via Bluetooth ....................4.12 Connecting the KOSTAL Smart Energy Meter ..............4.13 Connecting central grid and system protection..............4.14 Connecting ripple control receiver ..................4.15 Connecting PV modules ......................
  • Page 4 KOSTAL PIKO CI app......................KOSTAL PIKO CI App ......................Installation of the KOSTAL PIKO CI app................Connecting inverters with KOSTAL PIKO CI app ..............Logging in as an installer ..................... KOSTAL PIKO CI app - menu structure................KOSTAL PIKO CI app - menu description ................

  • Page 5: General Information

    Meaning of the warnings .................. 1.2.2 Meaning of symbols in warnings ..............1.2.3 Meaning of symbols in information notes............1.3 Further information......................10 1.3.1 Open Source licence..................10 1.3.2 EU Declaration of Conformity ................10 © 2024 KOSTAL Solar Electric GmbH...

  • Page 6: About This Manual

    1. General information 1.1 About this manual Thank you for choosing a device from KOSTAL Solar Electric GmbH. The manual contains information about to use the product safely. Read this manual in full and be sure to follow the safety notices before working with the product.

  • Page 7: Notes In This Manual

    1. General information 1.2 Notes in this manual A distinction is made in this manual between warnings and information notes. All notes are identified in the text line with an icon. © 2024 KOSTAL Solar Electric GmbH...

  • Page 8: Meaning Of The Warnings

    Contains important instructions for installation and for trouble-free device operation in or- der to avoid damage to property and financial damages. 1.2.2 Meaning of symbols in warnings Danger Danger due to electrical shock and discharge Danger due to burns © 2024 KOSTAL Solar Electric GmbH...

  • Page 9: Meaning Of Symbols In Information Notes

    1. General information 1.2.3 Meaning of symbols in information notes The symbol indicates activities that may only be carried out by an electrician. Information or tip Important information Damage to property possible © 2024 KOSTAL Solar Electric GmbH...

  • Page 10: Further Information

    ■ Compatible partners Alongside its own functions, with its inverters KOSTAL also provides the option of using a whole host of different companies to run external data visualisation and energy man- agement or to connect up module optimisers. The list contains the compatible partners.

  • Page 11: Safety

    2.2 The operator's obligations....................13 2.3 Qualification of the staff....................14 2.4 Exclusion of liability ......................15 2.5 Important safety instructions ................... 16 2.5.1 Danger of injury ....................16 2.6 Labels on the device ....................... 17 © 2024 KOSTAL Solar Electric GmbH...

  • Page 12: Proper Use

    ■ it may only be used in the intended power ranges and under the permissible ambient conditions. © 2024 KOSTAL Solar Electric GmbH...

  • Page 13: The Operator's Obligations

    ■ ensuring that the product manual is accessible to all users. ■ only using qualified staff for work on and with the product. ■ instructing other product users. © 2024 KOSTAL Solar Electric GmbH...

  • Page 14: Qualification Of The Staff

    Servicing The qualified electrician must have basic knowledge and knowledge of the associated spe- cialist electrical terminology (trained according to DIN VDE 1000-10, BVG A3 accident pre- vention regulations or an internationally comparable standard). © 2024 KOSTAL Solar Electric GmbH...

  • Page 15: Exclusion Of Liability

    Only a qualified electrician may open the device. The device must be installed by a trained electrician (according to DIN VDE 1000-10 or BGV A3 accident prevention regulations or an internationally comparable standard) who is responsible for observing the applicable stand- ards and regulations. © 2024 KOSTAL Solar Electric GmbH...

  • Page 16: Important Safety Instructions

    Wear suitable protective equipment during all work on the product. CAUTION Danger of burns from hot housing parts Housing parts can become hot during operation. Touching hot housing parts can cause burns. ■ During operation, only touch the inverter's housing cover. © 2024 KOSTAL Solar Electric GmbH...

  • Page 17: Labels On The Device

    Danger due to electrical shock and discharge. Wait five minutes (discharge time of the capacitors) after shutdown 5 min Device must not be disposed of with household waste. Observe the local application of disposal requirements. CE marking The product satisfies the applicable EU requirements. © 2024 KOSTAL Solar Electric GmbH...
  • Page 18 2. Safety Symbol Explanation Additional earth connection © 2024 KOSTAL Solar Electric GmbH...

  • Page 19: Device And System Description

    3. Device and system description 3. Device and system description 3.1 System overview......................20 3.2 Device overview ......................21 3.2.1 PIKO CI 100 inverter ..................21 3.2.2 Status LED....................... 21 3.3 Functional overview......................22 3.3.1 Three-phase alternating current ............... 22 3.3.2 Wireless commissioning ...................

  • Page 20: System Overview

    3. Device and system description 3.1 System overview Slave Slave Master PV strings Inverter AC line circuit breaker Energy meter Distributor Public grid Communication connection (optional) Router, PC connection Internet © 2024 KOSTAL Solar Electric GmbH...

  • Page 21: Device Overview

    3. Device and system description 3.2 Device overview 3.2.1 PIKO CI 100 inverter Status LED Cover WiFi antenna AC terminal compartment Cable opening for mains cable Connection panel (RS485, RSE, NAS) Connection (LAN) Connections for PV modules DC switch 3.2.2 Status LED...

  • Page 22: Functional Overview

    All data is transmitted encrypted. For local access to the inverter: ■ Bluetooth connection Examples of what can be achieved via the KOSTAL PIKO CI and Bluetooth connection in- clude initial commissioning or configuring the inverter. © 2024 KOSTAL Solar Electric GmbH...

  • Page 23: Central Grid And System Protection

    3.3.7 App functions The KOSTAL PIKO CI app, which is available free of charge, provides a graphical user inter- face. The app is used to commission and configure the inverter and to display its status: ■...

  • Page 24: Kostal Solar Portal

    3. Device and system description 3.3.8 KOSTAL Solar Portal The KOSTAL Solar Portal allows operation of the inverters to be monitored via the Internet. This protects your investment in a PV system against yield losses, e.g. through active e-mail alerts if events occur.

  • Page 25: Event Codes

    Event codes, Page 120. 3.3.10 Service concept For service purposes the event codes can be read out via the KOSTAL PIKO CI app or the KOSTAL Solar Portal. Your installer or service partner can then decide what action to take before on-site deployment. In this way, multiple on-site deployment can be avoided.

  • Page 26: Kostal Solar Plan Configuration Software

    Just enter the system data and individual customer data and receive a recommendation for a KOSTAL solar inverter tailored to the planned solar system. All KOSTAL solar inverters are considered for this. In addition, the customer's electricity consumption is considered and the possible self-consumption and potential self-sufficiency quotas are displayed using standard load profiles.

  • Page 27: Installation

    4.11 Communication via Bluetooth ..................50 4.12 Connecting the KOSTAL Smart Energy Meter ..............51 4.12.1 Communication connection for KOSTAL Smart Energy Meter via LAN ..... 51 4.12.2 Communication connection for KOSTAL Smart Energy Meter via RS485 ..54 4.13 Connecting central grid and system protection ............... 57 4.14 Connecting ripple control receiver ...................
  • Page 28 Selecting PV inputs ..................66 4.15.5 Connecting PV modules to the inverter ............68 4.16 Initial commissioning ....................... 70 4.16.1 Installing KOSTAL PIKO CI app ................ 70 4.16.2 Connecting inverter to app ................70 4.16.3 Procedure for initial commissioning ..............71...

  • Page 29: Transport And Storage

    Do not tip the inverter onto its side. Avoid tilted positions. ■ Only place the inverter down on its back. ■ Do not place the inverter down on its side or on the top. © 2024 KOSTAL Solar Electric GmbH...

  • Page 30: Scope Of Delivery

    2 x M8 lock screw 1 x communication plug 2 x caps for LAN Removal tool for DC plug connectors WiFi antenna DC plug connector (each DC input: 1× plug, socket) Quick start guide © 2024 KOSTAL Solar Electric GmbH...

  • Page 31: Installation

    Protect the inverter from coarse soiling, e.g. leaves. Protect the inverter against dust, contamination and ammonia gases. Rooms and areas containing livestock are not permitted as installation sites. Do not install the inverter in potentially explosive areas. © 2024 KOSTAL Solar Electric GmbH...
  • Page 32 Select the installation site in accordance with the informa- tion provided in these instructions. Always keep the ventilation open- ings clear. Install the inverter vertically. Tilted position up to 15° is permitted. Maintain minimum distances and the necessary clearance. © 2024 KOSTAL Solar Electric GmbH...
  • Page 33 The inverter must be easily accessible and the status LED must be easy to read. Install the inverter out of reach of children or other unauthorised persons. Lay cables with UV protection or use UV-resistant cables. © 2024 KOSTAL Solar Electric GmbH...

  • Page 34: Installation Dimensions

    Multiple inverters next to each other – spacing IMPORTANT INFORMATION The values given are minimum distances. Increase the distances if the thermal conditions in the installation environment require it, e.g. in case of unfavourable ventilation or strong sunlight. © 2024 KOSTAL Solar Electric GmbH...
  • Page 35 4. Installation ≥1000 ≥1000 ≥1000 © 2024 KOSTAL Solar Electric GmbH...

  • Page 36: Installing The Inverter

    Do not lift or transport the inverter alone. To prevent injury, get another person to help you. Make sure that the inverter is correctly seated and cannot slip off the bracket. Install the lock screws. ✔ The inverter is installed. © 2024 KOSTAL Solar Electric GmbH...

  • Page 37: Electrical Connection

    RS485 communication connections LAN communication connections AC connection Line circuit breaker Energy meters (e.g. KOSTAL Smart Energy Meter) Public grid 4.4.2 Cable specification AC grid connection Select the conductor cross-section according to the rated output current and the type of routing.

  • Page 38: Connecting Mains Cable

    Correctly lay the mains cable from the power distributor to the inverter. IMPORTANT INFORMATION Whenever working on the inverter, only ever use insulated tools to prevent short-circuits. Install the necessary safety devices – line circuit breakers, residual current circuit breakers – in the mains cable. © 2024 KOSTAL Solar Electric GmbH...
  • Page 39 Use cable gland to suit the cable type. Strip insulation off mains cable. Fit suitable heat-shrinkable sleeves onto the wires. Strip insulation off ends of con- ductors and crimp the cable ring lug onto the ends of conductors. © 2024 KOSTAL Solar Electric GmbH...
  • Page 40 20-30 Nm Close the AC terminal compartment and screw the cover tight. Tightening torque: 3–4 Nm. In countries in which a second PE connection is required, connect this at the marked place on the housing (outside). © 2024 KOSTAL Solar Electric GmbH...
  • Page 41 4. Installation L1 + 2 mm 7 Nm A = 0,5 x B mm² min. 35 mm² B = 70...240 mm² ✔ Mains cable connected © 2024 KOSTAL Solar Electric GmbH...

  • Page 42: Overview Of Communication Connections

    D|2 (ripple control receiver) D|3 (ripple control receiver) D|4 (ripple control receiver) GND_S (ripple control receiver) Remote: Central system protection GND_S (central system protection) RS485_B2 (reserved) RS485_B2 (reserved) RS485_B_OUT RS485_A_OUT GND_S (RS485) RS485_B_IN RS485_A_IN © 2024 KOSTAL Solar Electric GmbH...

  • Page 43: Mounting Wifi Antenna

    4. Installation 4.6 Mounting WiFi antenna 3 Nm Remove protective cap from connection thread on inverter. Screw the supplied WiFi antenna onto the stud bolt. Tightening torque: 3 Nm ✔ WiFi antenna mounted. © 2024 KOSTAL Solar Electric GmbH...

  • Page 44: Types Of Communication

    RS485 RS485 Bluetooth The PIKO CI inverter has interfaces for LAN, RS485 Modbus and WiFi. There are therefore various possibilities for networking one or more inverters with each other and controlling them. You can also combine different types of connections with each other. In a solar power...

  • Page 45: Rs485 Modbus

    The Bluetooth interface is used primarily to configure the inverter on site or for initial com- missioning. This is done by using the KOSTAL PIKO CI app and connecting the inverter via Bluetooth. Communication via Bluetooth, Page 50 © 2024 KOSTAL Solar Electric GmbH...

  • Page 46: Communication Via Lan

    This includes, for example, the setting for IP mode, in which acquisition of an automatic IP address can be set. The inverter is set as Master LAN or slave using the KOSTAL PIKO CI app on each inverter. To do this, go to Settings > Communication settings > Master/Slave set- tings >...

  • Page 47: Communication Via Rs485

    0,34...1,0 mm² Fit RS485 cable on plug. RS485 out is used to continue the network connection to further inverters. Assemble plug and tighten union nut to the prescribed tightening torque. Tightening torque: 3 Nm. © 2024 KOSTAL Solar Electric GmbH...
  • Page 48 This includes, for example, setting the transmission speed. The inverter is set as Master RS485 or slave using the KOSTAL PIKO CI app on each inverter. To do this, go to Settings > Communication settings > Master/Slave set- tings > Master/Slave settings and then select Master RS485 or Slave. The master forwards data to the slave inverters.

  • Page 49: Communication Via Wifi

    The WiFi settings must be configured for each inverter in the KOSTAL PIKO CI app. INFO If you have forgotten the WLAN password, it can be reset via the KOSTAL PIKO CI app. The default password is:12345678. To do this, go to the following menu item and configure the settings: Settings >...

  • Page 50: Communication Via Bluetooth

    If the inverter is not yet included in the list, go to Scan for new device and scan the serial number on the type plate ✔ When the app displays the message Connect, the inverter is connected. © 2024 KOSTAL Solar Electric GmbH...

  • Page 51: Connecting The Kostal Smart Energy Meter

    In addition, the KOSTAL Smart Energy Meter can send data to the KOSTAL Solar Portal. To do this, the KOSTAL Smart Energy Meter must be set up in addition to the PIKO CI in the same system in the KOSTAL Solar Portal.
  • Page 52 Risk of death due to electrical shock and discharge! De-energise all devices and secure them against being switched on again. Install the KOSTAL Smart Energy Meter as shown in the illustrations at the grid con- nection point in the house grid.

  • Page 53: After Commissioning

    4. Installation In this variant, the KOSTAL Smart Energy Meter works as a slave and sends data to the inverter. In the KOSTAL Smart Energy Meter, set Modbus settings > Modbus TCP > Slave (Enable TCP Slave) to ON. To make the home consumption visible in the KOSTAL Solar Portal, in the KOSTAL Smart Energy Meter set Inverter >...

  • Page 54: Communication Connection For Kostal Smart Energy Meter Via Rs485

    Public grid Read the operating manual for the KOSTAL Smart Energy Meter Set RS485 termination in KOSTAL PIKO CI app to ON Use a current transformer for currents above 63 A. Read the operating manual for the KOSTAL Smart Energy Meter Connecting the KOSTAL Smart Energy Meter De-energise the mains cable.
  • Page 55 In this variant, the KOSTAL Smart Energy Meter works as a slave and sends data to the inverter. In the KOSTAL Smart Energy Meter, select the KOSTAL PIKO CI for the RS485 A in- terface. Please refer to the operating manual of the KOSTAL Smart Energy Meter.
  • Page 56 This includes, for example, setting the transmission speed. The usage and installation position of the KOSTAL Smart Energy Meter (KSEM) has to be set in the KOSTAL PIKO CI app on the master inverter. This can be set under Settings > Inverter settings > Power adaptation/controls >...

  • Page 57: Connecting Central Grid And System Protection

    Grid and system protection - Switch closed: Feed-in, Switch open: Feed-in pre- vented Activation of grid and system protection via KOSTAL PIKO CI app Central grid and system protection is required in some countries. This monitors the voltage and frequency in the grid and in the event of a fault, shuts down the photovoltaic systems by means of a circuit breaker.
  • Page 58 Connect plug to interface in COM5 connection panel. After commissioning After commissioning, the function must be activated in each inverter via the KOSTAL PIKO CI app. This can be activated under Settings > Basic settings > External shutdown > ON.

  • Page 59: Connecting Ripple Control Receiver

    Ask your energy supply company or installer what application rule applies to you or whether there is an alternative (e.g. smart meter) better suited to you. If a ripple control receiver is already connected to another KOSTAL inverter in your home network, you can use the control signals of this ripple control receiver.
  • Page 60 Fit the communication cable on the inverter plug. COM5 Click 100% 100% Click 10 11 Functions / Funktion Assemble plug and tighten union nut to the prescribed tightening torque. Tightening torque: 3 Nm. Connect plug to interface in COM5 connection panel. © 2024 KOSTAL Solar Electric GmbH...
  • Page 61 4. Installation After commissioning Open the KOSTAL PIKO CI app and connect to the inverter to which the ripple control receiver is connected. Activate the ripple control receiver in the KOSTAL PIKO CI app under Settings > In- verter settings > Power adaptation/controls > Ripple control receiver (RCR)>...

  • Page 62: Connecting Pv Modules

    4.15 Connecting PV modules √ MPP-Tracker √ Connectable solar modules When selecting the PV modules to be connected to PIKO CI series inverters, note the fol- lowing: ■ Only connect PV modules according to IEC 61730 Class A. ■ Do not ground the PV cables.

  • Page 63: Solar Module Connections

    Comply with the maximum input current per string for the inverter as stated in the technical data. ■ The maximum input current must not be exceeded, even when using Y or T plugs. Please note the following points before connecting the PV modules: © 2024 KOSTAL Solar Electric GmbH...

  • Page 64: Preparing Pv Connector

    4. Installation ■ Our planning tool KOSTAL Solar Plan should be used to optimally configure the solar modules and achieve the highest possible yields. ■ Check the planning and the wiring of the modules for plausibility. ■ Measure and record the DC idling voltage and polarity of the PV modules. The idling...

  • Page 65: Installing Pv Plug Connectors

    Crimp the contact with a suitable crimping tool. Insert contact into plug connector until the contact clicks into place tangibly and aud- ibly. INFO Once snapped into the housing, the contact cannot be removed from the plug con- nector. © 2024 KOSTAL Solar Electric GmbH...

  • Page 66: Selecting Pv Inputs

    ) are not exceeded in the process: Stringmax INFO Only connect PV modules of the same type to an MPP tracker, i.e.: ■ same manufacturer, ■ same type, ■ same performance, ■ same size. © 2024 KOSTAL Solar Electric GmbH...
  • Page 67 MPPT 7: 32 A DC 13-14: ≤ 20 A* MPPT 8: 32 A DC 15-16: ≤ 20 A* * With 2 DC strings connected, I ≤ 16 A. Stringmax DC connection assignment PIKO CI 100 Connected PV MPP trackers strings Used DC input 1, 2 1, 2...

  • Page 68: Connecting Pv Modules To The Inverter

    DCmax 1100 INFO Observe national regulations! In France, in particular, the inverter and the supply lines must be labelled, for example. The installer is responsible for obtaining and affixing the prescribed markings. – – © 2024 KOSTAL Solar Electric GmbH...
  • Page 69 Keep the protective caps of the PV connections for future use. Fit plug connectors of the individual PV strings into the DC inputs PV+ and PV- in pairs until they engage tangibly and audibly. – ✔ The PV modules are connected. © 2024 KOSTAL Solar Electric GmbH...

  • Page 70: Initial Commissioning

    Turn on the Bluetooth function on your tablet or smartphone. Launch the KOSTAL PIKO CI app. Permit access to locations, camera and data storage on the smartphone. Select the Bluetooth connection in the KOSTAL PIKO CI app to connect with the in- verter. DOWNLOAD UPDATE FILES...

  • Page 71: Procedure For Initial Commissioning

    INFO The installation process may vary depending upon the software version of the inverter. Information about the menus: KOSTAL PIKO CI app - menu structure, Page 86 In the app, select the Settings page. ➔ On the Settings page, the app shows you various menus where you can configure settings.
  • Page 72 The following settings still need to be configured after initial commissioning: ■ Inverter settings made by the installer ■ Prescribed settings for grid feed-in by the energy supply company ■ Change the password or update the inverter software. © 2024 KOSTAL Solar Electric GmbH...

  • Page 73: Operation And Operating The Device

    5.3 De-energising the inverter ....................76 5.3.1 Disconnecting inverter on the AC side.............. 76 5.3.2 Disconnecting DC cables ................. 76 5.4 Operational statuses of inverter ..................78 5.5 Status LEDs........................79 5.6 Status display via app ..................... 80 © 2024 KOSTAL Solar Electric GmbH...

  • Page 74: Switching On The Inverter

    After startup, the LEDs indicate the operational status of the inverter. INFO When the inverter is commissioned for the first time, it goes into the Off (Shutdown) status. When this happens, first carry out initial commissioning. ✔ The inverter is in operation. © 2024 KOSTAL Solar Electric GmbH...

  • Page 75: Switching Off The Inverter

    Switch off line circuit breaker. Switch the DC switch on the inverter to OFF. DC SWITSCH 1-6 DC SWITSCH 7-12 DC SWITSCH 13-16 ✔ The inverter is switched off. The inverter remains energised and monitoring is still performed. © 2024 KOSTAL Solar Electric GmbH...

  • Page 76: Energising The Inverter

    5.3.2 Disconnecting DC cables The inverter must first be de-energised on the AC side. Then all DC connections on the in- verter can be disconnected. You will need the disassembly tool supplied with the device. © 2024 KOSTAL Solar Electric GmbH...
  • Page 77 Wait at least 10 minutes before carrying out any further work on the inverter so that the capacitors contained in it can discharge. ✔ The inverter is isolated on the DC side and voltage-free. © 2024 KOSTAL Solar Electric GmbH...

  • Page 78: Operational Statuses Of Inverter

    The inverter is switched off due to a switch- off command or an error that has occurred. As soon as the inverter receives a power-up command or the error is corrected, the in- verter switches to the Standby status. © 2024 KOSTAL Solar Electric GmbH...

  • Page 79: Status Leds

    5.5 Status LEDs The LEDs on the front indicate the current operational status. Further status information can be read with the help of the KOSTAL PIKO CI app or via the KOSTAL Solar Portal. Measures to rectify events can be found in the chapter Event codes, Page 120.

  • Page 80: Status Display Via App

    5. Operation and operating the device 5.6 Status display via app The smartphone app KOSTAL PIKO CI displays the current operational status, the power output and the current measuring values from inverter operation. INFO The user interface in the app depends on the installed firmware (FW) and version of the app used and may differ from the description here.

  • Page 81: Kostal Piko Ci App

    6. KOSTAL PIKO CI app 6. KOSTAL PIKO CI app 6.1 KOSTAL PIKO CI App..................... 82 6.2 Installation of the KOSTAL PIKO CI app ................83 6.3 Connecting inverters with KOSTAL PIKO CI app ............. 84 6.4 Logging in as an installer....................85 6.5 KOSTAL PIKO CI app - menu structure ................

  • Page 82: Kostal Piko Ci App

    6. KOSTAL PIKO CI app 6.1 KOSTAL PIKO CI App The KOSTAL PIKO CI app, which is available free of charge, provides a graphical user inter- face. The app is used to commission and configure the inverter and to display its status: ■...

  • Page 83: Installation Of The Kostal Piko Ci App

    6.2 Installation of the KOSTAL PIKO CI app KOSTAL PIKO CI App Download the KOSTAL PIKO CI app from the Apple App Store or Google Play Store onto your tablet or smartphone and install it. © 2024 KOSTAL Solar Electric GmbH...

  • Page 84: Connecting Inverters With Kostal Piko Ci App

    6. KOSTAL PIKO CI app 6.3 Connecting inverters with KOSTAL PIKO CI The KOSTAL PIKO CI app is opened and launched via a smartphone or tablet. To do this, the smartphone or tablet must be within range of the inverter. Enable the Bluetooth function on your tablet or smartphone.

  • Page 85: Logging In As An Installer

    6. KOSTAL PIKO CI app 6.4 Logging in as an installer Once the KOSTAL PIKO CI app is connected to an inverter, you can see all the values. However, some settings can only be changed by an installer/administrator. This requires a change of user.

  • Page 86: Kostal Piko Ci App - Menu Structure

    6. KOSTAL PIKO CI app 6.5 KOSTAL PIKO CI app - menu structure Deviations due to software versions are possible. Event messages Level 1 Event messages information Generation Level 1 Day/month/year energy Basic settings Level 1 Basic information Type Serial number...
  • Page 87 Auto DNS DNS server 1 DNS server 2 Last time of communication Last status of communication RS485 settings Baud rate Data bit Stop bit Parity bit Terminating resistor Modbus address Master/slave settings Master/slave settings © 2024 KOSTAL Solar Electric GmbH...

  • Page 88: Inverter Settings

    Overvoltage switch-off time x time (s) Undervoltage switch-off time x time (s) Max. grid start voltage (V) Min. grid start voltage (V) Max. grid start frequency (Hz) Min. grid start frequency (Hz) Moving average © 2024 KOSTAL Solar Electric GmbH...
  • Page 89 Modbus address of energy meter Limitation of the active power to (W) IP address of energy meter L1-3 grid power Total energy Total feed-in energy L1-3 consumer power Total consumption L1-3 inverter output Total inverter output © 2024 KOSTAL Solar Electric GmbH...
  • Page 90 = Fault Ride Through) Negative sequence K factor Monitoring of supply voltage Undervoltage ride through (V) UVRT Overvoltage ride through (V) OVRT Grid support mode Limited grid support (%) Irregular voltage change (%) Overvoltage protection monitoring © 2024 KOSTAL Solar Electric GmbH...

  • Page 91: Kostal Piko Ci App - Menu Description

    6. KOSTAL PIKO CI app 6.6 KOSTAL PIKO CI app - menu description The following menus are available to the user in the KOSTAL PIKO CI app. Parameter Explanation START Connect the smartphone/tablet to the inverter's WLAN. DOWNLOAD UPDATE FILES Download the update files from the server. These are stored on the smartphone/tablet in the KOSTAL PIKO CI folder.

  • Page 92: Home Page

    Grid frequency Output frequency of the alternating current currently be- ing generated Active power Measuring value of the active power currently being gen- erated Reactive power Measuring value of the reactive power currently being generated © 2024 KOSTAL Solar Electric GmbH...

  • Page 93: Settings

    Event messages information Display of events in the inverter. Further information about the events and possible error rectification: Event codes, Page 120. 6.6.4 Generation Parameter Explanation Day/month/year energy Indication of energy generated in diagram form for day/ month/year. © 2024 KOSTAL Solar Electric GmbH...

  • Page 94: Basic Settings

    Export log data (event messages/generation data/con- figuration data of the inverter) Retrieving log Export generation data data, Page 105. These are stored in the root directory Export configuration on the smartphone. Configuration import Import configuration data of inverter. © 2024 KOSTAL Solar Electric GmbH...
  • Page 95 6. KOSTAL PIKO CI app About Explanation App version Version of the KOSTAL PIKO CI app. See also 2 Retrieving log data [} 105] 2 KOSTAL PIKO CI App [} 82] © 2024 KOSTAL Solar Electric GmbH...

  • Page 96: User Management

    IP address. For this purpose, the IP addresses of the DNS servers must be entered. DNS server 1 Enter the IP address of the DNS server (Domain Name System) © 2024 KOSTAL Solar Electric GmbH...
  • Page 97 Master/slave settings Select whether the inverter should act as a master (LAN or RS485) or slave. If set as master inverter, information or setting parameters (e.g. during power reduction) are sent to the slave inverters. © 2024 KOSTAL Solar Electric GmbH...

  • Page 98: Inverter Settings

    Set undervoltage protection limit value Overfrequency switch-off time Set overfrequency switch-off time x time (s) Underfrequency switch-off Set underfrequency shut-off time time x time (s) Overvoltage switch-off time x Set overvoltage switch-off time time (s) © 2024 KOSTAL Solar Electric GmbH...
  • Page 99 Maximum feed-in capa- Set the inverter's maximum active power city (W) Maximum active power Setting for maximum output power of the inverter Reactive power control Reactive power control © 2024 KOSTAL Solar Electric GmbH...
  • Page 100 Power limitation External sensor Deactivated: No energy meter connected to the in- verter. KSEM: A KOSTAL Smart Energy Meter is connected to the inverter. Sensor position Installation position of energy meter (grid connection point or consumer) Connecting the KOSTAL Smart En-...
  • Page 101 Dynamic grid support (FRT = Fault Ride Through) Positive sequence K Settings for uninterrupted cycling through grid faults factor FRT (Fault Ride Through) Negative sequence K factor Monitoring of supply voltage Undervoltage ride through (V) UVRT © 2024 KOSTAL Solar Electric GmbH...
  • Page 102 Other settings Explanation Overvoltage ride through (V) OVRT Grid support mode Limited grid support (%) Irregular voltage change Overvoltage protection monit- Activate/deactivate monitoring of the internal overvoltage oring protection modules (SPD - Surge Protective Device). © 2024 KOSTAL Solar Electric GmbH...

  • Page 103: System Monitoring

    7.1 The log data........................104 7.2 Retrieving log data ......................105 7.2.1 Option 1: Download and display log data via the KOSTAL PIKO CI app ... 105 7.2.2 Option 2: Transfer log data to the KOSTAL Solar Portal and display it ....106 7.3 The KOSTAL Solar Portal....................

  • Page 104: The Log Data

    The inverter is equipped with a data logger, which regularly records data from the system. The log data can be used for the following purposes: ■ Check operating characteristics of the system ■ Determine and analyse errors ■ Download and graphically depict yield data © 2024 KOSTAL Solar Electric GmbH...

  • Page 105: Retrieving Log Data

    Event messages ■ Generation data ■ Inverter configuration data In the KOSTAL PIKO CI app, go to Settings > Basic settings > Export event mes- sages. KOSTAL PIKO CI app - menu structure, Page 86 Confirm the download. ✔ The log data can be saved to a computer and displayed and further processed with any common spreadsheet program (e.g.

  • Page 106: Option 2: Transfer Log Data To The Kostal Solar Portal And Display It

    With a solar portal it is possible to monitor the PV system and performance data via the In- ternet. The KOSTAL Solar Portal has the following functions, which, however, may differ depend- ing upon the portal: ■...

  • Page 107: The Kostal Solar Portal

    The inverter sends the PV system's yield data and event messages to the KOSTAL Solar Portal via the Internet. The information is stored in the KOSTAL Solar Portal. You can view and call up this inform- ation via the Internet.

  • Page 108: Park Control

    Set to 2 by going to Settings> Inverter settings> Power adaptation/controls > Act- ive power control > Power gradient (%/s). ■ Activate P(f) control (control is handled by the inverter). ■ Deactivate P(U) control (control is handled centrally by the park controller). © 2024 KOSTAL Solar Electric GmbH...
  • Page 109 In the PGS park controller, the delay time should be set to at least 200 ms. Other settings, which are required in the external PGS park controller / park controller, are described in the manuals for the respective PGS park controller / park controller. © 2024 KOSTAL Solar Electric GmbH...

  • Page 110: Maintenance

    8.3 Housing cleaning ......................113 8.4 Housing cleaning ......................114 8.5 Replacing AC / DC overvoltage protection modules ............115 8.6 Updating software......................118 8.7 Event codes........................120 8.7.1 Event messages....................121 8.7.2 Troubleshooting ....................123 © 2024 KOSTAL Solar Electric GmbH...

  • Page 111: During Operation

    For proper operation in a larger solar system, the normal measures of regular system monit- oring are fully sufficient. In particular, tracking the energy obtained via data loggers, the KOSTAL Solar Portal or en- ergy meters will quickly indicate irregularities. Events during operation are also logged.

  • Page 112: Maintenance And Cleaning

    Use maintenance lists in which the work undertaken is logged. If no maintenance work is carried out, this will result in an exclusion of warranty (see 'Exclu- sion of warranty' in our service and warranty conditions). © 2024 KOSTAL Solar Electric GmbH...

  • Page 113: Housing Cleaning

    Only clean the housing with a damp cloth. Do not use any harsh cleaning agents. Do not use devices that produce a spray or water jet. In particular, check the condition of the ventilation ducts and the function of the fans. © 2024 KOSTAL Solar Electric GmbH...

  • Page 114: Housing Cleaning

    Only clean the housing with a damp cloth. Do not use any harsh cleaning agents. Do not use devices that produce a spray or water jet. In particular, check the condition of the ventilation ducts and the function of the fans. © 2024 KOSTAL Solar Electric GmbH...

  • Page 115: Replacing Ac / Dc Overvoltage Protection Modules

    Risk of death due to electrical shock and discharge! De-energise device and secure against being switched on again. Secure AC connection against being switched on again. Switch the DC switch on the inverter to OFF. © 2024 KOSTAL Solar Electric GmbH...
  • Page 116 Wait at least 10 minutes after disconnecting the unit until the internal capacitors have discharged. Remove the inverter's cover and open the inverter. Remove defective overvoltage protection modules and replace with new ones. Defective modules can be recognised by a red mark in the module housing. © 2024 KOSTAL Solar Electric GmbH...
  • Page 117 500 V 500 V 500 V 670 V 670 V DC-SPD Module all 670 V Install cover and screw it tight (3 Nm). Switch on the inverter again. ✔ The PV fuses have been replaced. © 2024 KOSTAL Solar Electric GmbH...

  • Page 118: Updating Software

    KOSTAL PIKO CI app. Procedure Use a smartphone or tablet with the KOSTAL PIKO CI app installed. Proceed as follows: Enable the Bluetooth function on your tablet or smartphone. Launch the app.
  • Page 119 Shows the safety firmware version. Internal code: Shows the control board (CB) firmware version, e.g. 010808 = V1.8.8 Communication board version: Shows the communication board (CSB) firmware version, e.g. 010806 = V1.8.6 ✔ The update has been installed. © 2024 KOSTAL Solar Electric GmbH...

  • Page 120: Event Codes

    Operational statuses and error causes are reported as a combination of LED display and event code. The event code is shown in the KOSTAL PIKO CI app or in the KOSTAL Solar Portal. Determine the type of event using the table below ( Event messages, Page 121).

  • Page 121: Event Messages

    WLAN / WiFi / RS485 communication PV normal 30001 Grid overvoltage 30002 Grid undervoltage 30003 Grid missing 30004 Grid overfrequency 30005 Grid underfrequency 30006 PV overvoltage 30007 PV insulation fault 30008 Leakage current error © 2024 KOSTAL Solar Electric GmbH...
  • Page 122 Reverse polarity strings 30023 System error 30024 Fan blocked 30025 DC link unbalance 30026 Overvoltage of intermediate circuit 30027 Internal communication error 30028 Software incompatible 30029 EEPROM error 30030 Persistent warning 30031 Inverter error © 2024 KOSTAL Solar Electric GmbH...

  • Page 123: Troubleshooting

    PV overvoltage The input voltage of the Check the number of PV modules and PV modules exceeds adjust them if necessary. the permissible range of the inverter. © 2024 KOSTAL Solar Electric GmbH...
  • Page 124 KOSTAL PIKO CI app. Weak PV irradiation PV strings have been Check whether the PV string is covered for a long time.
  • Page 125 Remote monitoring sys- Communication failure If a data logger is being used, modern tem indicates zero power or otherwise, please restart the data generation logger. If the error still occurs, contact your support team. © 2024 KOSTAL Solar Electric GmbH...
  • Page 126 If the error still occurs, contact your support team. Check the communication settings in the KOSTAL PIKO CI app. Meter connection lost Communication con- Check whether the communication nection to energy meter line between the master inverter and...

  • Page 127: Technical Information

    9. Technical information 9. Technical information 9.1 Technical data ........................ 128 9.2 Block diagram......................... 131 © 2024 KOSTAL Solar Electric GmbH...

  • Page 128: Technical Data

    9. Technical information 9.1 Technical data Subject to technical changes. Errors excepted. You can find current information at www.kostal-solar-electric.com. Input side (DC) PIKO CI Unit PIKO CI 100 Max. PV power (cos φ = 1) Nominal DC power 101.6 Rated input voltage (Udc,r) Start input voltage (Udc,start) Max.

  • Page 129: System Data

    Cooling principle – regulated fans Max. air throughput m³/h Noise emission (typical) dB(A) Ambient temperature °C -25…60 Max. operating altitude above sea level 4000 Relative humidity 0…100 Connection technology, DC side Amphenol plug H4 Connection technology, AC side © 2024 KOSTAL Solar Electric GmbH...
  • Page 130 PV system may make lightning protection or surge protection equipment ne- cessary. Degree of contamination 4: Contamination results in continuous conductivity, e.g. due to conductive dust, rain or snow; in- doors or outdoors. © 2024 KOSTAL Solar Electric GmbH...

  • Page 131: Block Diagram

    DC regulator Intermediate circuit Inverter bridge circuit Grid monitoring and shutdown EMC filter (AC side) AC connection Connection panels for communication interfaces Voltage and current measurement Control system and communication Status LED DC switch © 2024 KOSTAL Solar Electric GmbH...

  • Page 132: Accessories

    10. Accessories 10. Accessories 10.1 KOSTAL Solar App ......................133 10.2 PIKO CI app........................134 10.3 KOSTAL Solar Portal....................... 135 © 2024 KOSTAL Solar Electric GmbH...

  • Page 133: Kostal Solar App

    To set up and use the app, you will need access to the KOSTAL Solar Portal and to have an inverter set up there. To log in to the app, you will need to use the same access data as for the KOSTAL Solar Portal.

  • Page 134: Piko Ci App

    10. Accessories 10.2 PIKO CI app In order to operate and configure the PIKO CI inverter, you will need the PIKO CI app. KOSTAL PIKO CI App Download the KOSTAL PIKO CI app from the Apple App Store or Google Play Store onto your tablet or smartphone and install it.

  • Page 135: Kostal Solar Portal

    10. Accessories 10.3 KOSTAL Solar Portal The KOSTAL Solar Portal allows operation of the inverters to be monitored via the Internet. This protects your investment in a PV system against yield losses, e.g. through active e-mail alerts if events occur. Registering for the KOSTAL Solar Portal is free of charge at www.kostal-solar-portal.com.

  • Page 136: Appendix

    11. Appendix 11. Appendix 11.1 Warranty and service ...................... 137 11.2 Type plate........................138 11.3 Handover to the operator....................139 11.4 Decommissioning and disposal..................140 © 2024 KOSTAL Solar Electric GmbH...

  • Page 137: Warranty And Service

    ■ Spain, Portugal (language: Spanish, English): +34 961 824 927 Spare parts If spare parts or accessories are required for troubleshooting, use only original spare parts and accessories manufactured and/or approved by the manufacturer. © 2024 KOSTAL Solar Electric GmbH...

  • Page 138: Type Plate

    Protective class in accordance with IEC 62103, protection class, ambient temper- ature range, overvoltage category, requirements with which the integrated grid monitoring complies Warning symbols CE mark © 2024 KOSTAL Solar Electric GmbH...

  • Page 139: Handover To The Operator

    As the installer and commissioning engineer, have the operator confirm the proper han- dover with their signature. As the operator, have the installer and commissioning engineer confirm that the installation of the inverter and the PV system is safe and complies with standards with their signature. © 2024 KOSTAL Solar Electric GmbH...

  • Page 140: Decommissioning And Disposal

    This equipment can be handed in to waste collection points free of charge. Find out about the local requirements for the separate collection of electrical and electronic equipment in your country. © 2024 KOSTAL Solar Electric GmbH...
  • Page 141 www.kostal-solar-electric.com...
