Summary of Contents for KingSlim O3 PRO

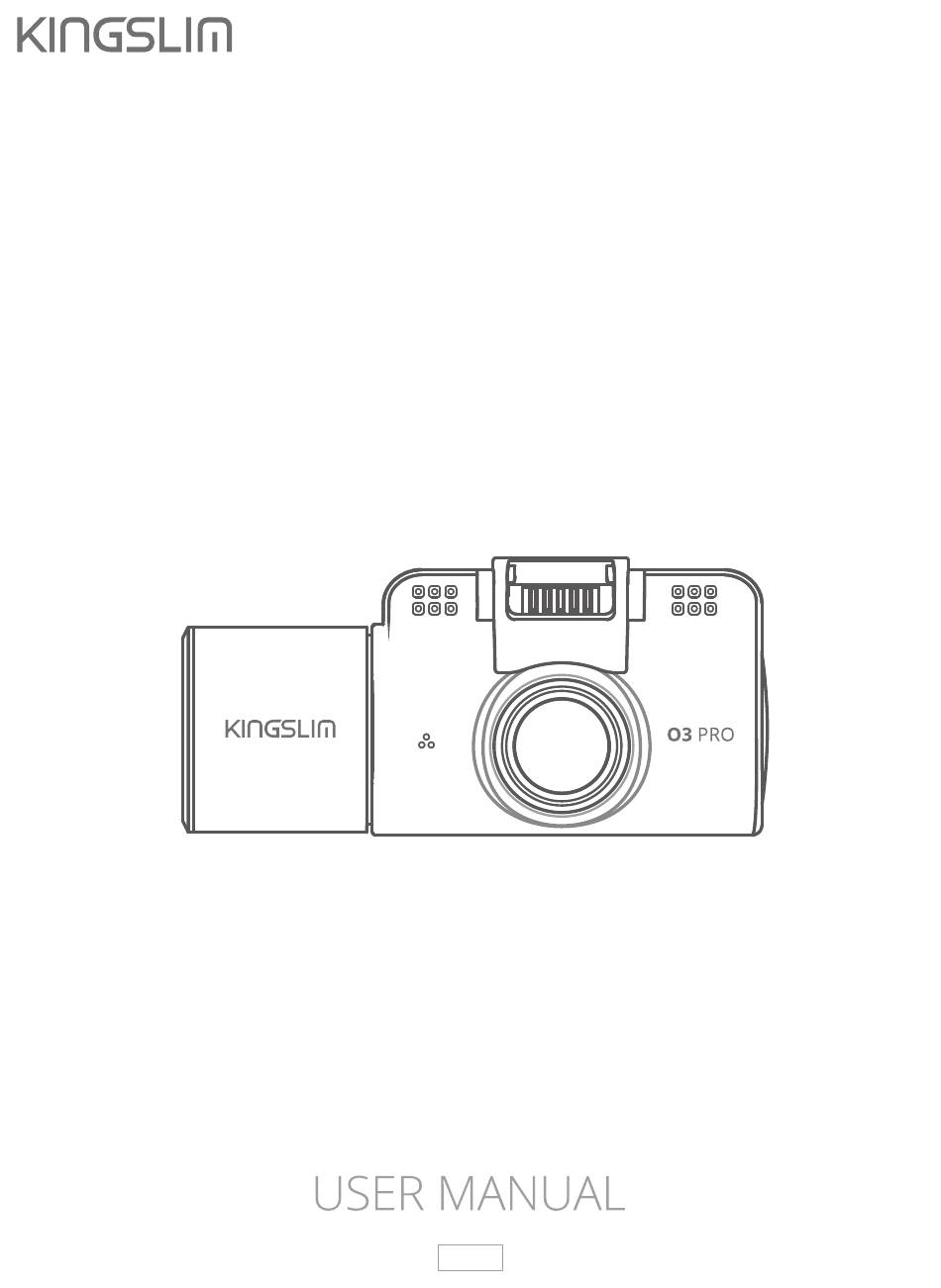

  • Page 1 O3 PRO D A S H C A M V2.0...
  • Page 2: Table Of Contents

    (5) Playback videos on the app. --------------------------------------------------------------- 21 (6) Download videos from the app. ---------------------------------------------------------- 22 7. Customizing Your O3 Pro Dash Cam------------------------------------------------------ 24 8. Hardwiring Your O3 Pro Dash Cam ------------------------------------------------------- 30 9. FAQ ---------------------------------------------------------------------------------------------------- 35 10. Contact US ---------------------------------------------------------------------------------------- 37...
  • Page 3: User Agreement

    User Agreement By purchasing Kingslim dash cams, you agree to Kingslim's terms and conditions, which include precautions, user warnings, and warranty coverage. If you do not agree to any of these terms mentioned in this manual for any reason, you may return the product unused and in its original packaging within the stated return window for a full refund.
  • Page 4: Warnings

    Warnings 1. Please take note of safety warnings and regulations as failure to comply may result in serious injury or death. 2. Avoid placing the camera on top of the instrument panel or in front of the airbag as it may fall and cause harm. 3.
  • Page 5: Overheating Protection

    Overheating Protection Dash cams are electronic devices that contain various components, including a processor, memory, camera lens, and other circuitry. When it's in use, it generates heat due to the power consumption and operation of these components. The heat generated during operation can cause the camera to heat up. Rest assured that our dash cams are equipped with radiators and vents to dissipate heat, and they operate within a temperature range of -4°F (-20°C) to 158°F (70°C).
  • Page 6: Specifications

    1. Specifications Video Resolution 2.5K+1080P (Front+Rear) 2.5K+1080P+1080P (Front+Inside+Rear) Lens Aperture F/1.4, F/2.0, F/2.2 Screen 2” IPS LCD Screen Support ( Note: The GPS module is sold separately. Wifi Bulit-in 5G Wifi Video Format Memory Card Class 10 U3 or higher, capacity up to 256GB G-sensor Bulit-in 3-axis gyroscope Light Source Frequency...
  • Page 7: What's In The Box

    2. What’s in the Box O3 Pro Dash Cam Bracket Electrostatic Sticker Waterproof × 1 × 1 × 2 Rear Camera × 1 Double-Sided Adhesive 6m Rear Camera Car Charger with Cable Clip Tape for Rear Cam × 2 Extension Cable × 1 3.5m Power Cable ×...
  • Page 8: Camera Overview

    3. Camera Overview Vents Power Button Microphone Memory Card Slot Front Lens Speaker Rear Camera Port Display Screen Inside Camera Indicator Setup/Return Button Playback/Up Button Switch/Down Button OK/Capture Button Inside Lens Reset Hole Type-C Power Port Bracket ��...
  • Page 9: Icon Overview

    (1) Icon Overview Current Video Resolution Video Time 00:34 2.5K + Parking Mode Audio Recording Memory Card Status 2024-08-08 00:00:34 000 km/h Wifi (Off) Battery Level Unlock Video Date & Time Audio Recording Snapshot Pause Recording Speed Recording Screen 00:34 2.5K + 2.5K + 2024-08-08...
  • Page 10: Playback Screen

    Playback Screen Front Videos Access Playback Front Locked Videos Access Videos_Front Front Photos Access Locked Videos_Front Back Photos_Front Up Button Down Button Confirm Settings Screen Back System Settings Up Button Video Resolution Down Button Loop Recording Confirm Power Frequency (2) Indicator Blue remains on: charging.
  • Page 11: First Use

    4. First Use (1) Inserting Memory Card To record video, you will need to insert a memory card, and complete the formatting process. We recommend you use a Class 10 U3 or higher memory card of well-known brands at a maximum of 256GB. Kind reminder: (1) Please format the memory card on the computer and then in the camera for better compatibility.
  • Page 12: Recording Video

    (4) Recording Video KINGSLIM O3 Pro dash cam is programmed to turn on and start recording automatically the instant it receives power. It will also start recording after you finish changing settings. To pause recording, please press the capture button. When unplugged, this dash cam will also automatically stop recording, safely save the last video, and shut down within 3 seconds.
  • Page 13: Getting Started

    5. Getting Started Welcome to your Kingslim O3 Pro dash cam. To capture videos and photos, you will need a memory card (sold separately). (1) Using memory cards. Use brand name memory cards that meet these requirements: • U3 Class 10 or above •...
  • Page 14: Format The Memory Card

    (3) Format the memory card. Before recording videos, please format the memory card in the camera. In case you have not yet done so, an error message will appear prompting you to insert the memory card. Follow the steps below to complete the formatting progress. ➀...
  • Page 15: Install The Dash Cam Onto The Windshield

    (4) Install the dash cam onto the windshield. ➀ Prepare the area. Clean the area thoroughly with a microfiber cloth to remove any dust, dirt, or oil that could affect the bracket's grip. After doing so, carefully peel off one film of the electrostatic sticker and affix it to the clean area.
  • Page 16: Charge The Camera

    Car Charger (6) Power on or off. Power on: The KINGSLIM E4 dash cam is designed to turn on and record automatically as soon as it receives power, i.e. when the car engine is started. Power off: The camera is also pre-configured to turn off automatically as soon as the power gets disconnected, i.e.
  • Page 17: Install The Rear Camera Onto The License Plate

    (7) Install the rear camera onto the license plate. It is advised to install the rear camera above the license plate. This placement ensures a clear and sharp image for both rear viewing and reversing guidance. For this method, please follow these steps to install the rear camera and route the cables: Step 1: Connect the rear camera to the extension cable, and insert it into the dash cam.
  • Page 18: Toggle Screen Display Modes

    ➂ For optimal performance and avoid any damage to the dash cam, use only Kingslim rear camera and extension cable. (8) Toggle screen display modes. When on the preview screen, press the Switch button to quickly toggle among display modes: full-screen views of the front, inside, or rear camera, picture-in-picture views of the front and inside cameras, front and rear cameras, or all three cameras (front, inside, and rear).
  • Page 19: Using The Kingslim App

    Power button twice to get the QR code for downloading the Kingslim app. ➁ Access all app features by registering and logging into your Kingslim account. (2) Create an account for the Kingslim app. ➀ Open the Kingslim app, then tap “Experience Now” at the bottom to enter the registration page. ��...
  • Page 20: Connect To The App

    Kingslim app without registration by tapping “Skip”. (3) Connect to the Kingslim app. Step 1: Plug in your O3 Pro dash cam and enter its system settings screen to turn on Wifi. Tip: Do not turn off Wifi or quit the Wifi screen during connection.
  • Page 21 Step 3: Open the Kingslim app on your phone, tap “Device” at the bottom, then tap "Add Recorder" to add your camera model. Step 4: Wait for a few seconds till the app loads past the Connecting screen to enter the Preview screen. Upon accessing the camera's preview, your O3 Pro dash cam is successfully connected to the Kingslim app.
  • Page 22: Capture Videos Using The App

    (5) Playback videos on the Kingslim app. ➀ Connect your O3 Pro dash cam to the Kingslim app. ➁ Tap on the “Video set” icon to view all the video files stored on the memory card. Kingslim_ ******** ➂...
  • Page 23: Download Videos From The App

    (6) Download videos from the Kingslim app. ➀ Tap on the “Video set” icon to view all the video files stored on the memory card. Kingslim_ ******** ➁ Tap on the icon in the upper right corner, and select the video you want to download.
  • Page 24 ➂ Tap on the “Download” icon in the bottom left corner, then tap “OK” to confirm the download. ➃ Wait for the completion of the download progress, the video will be saved to your phone's album. You can tap on it for playback or share it on social media. ��...
  • Page 25: Customizing Your O3 Pro Dash Cam

    7. Customizing Your O3 Pro Dash Cam To customize your O3 Pro dash cam, first enter the camera’s system settings screen by pressing the Setup button from the preview camera. System Settings 2.5K + Video Resolution Loop Recording Power Frequency...
  • Page 26 (2) Loop Recording 1 Minute (default)/2 Minutes/3 Minutes The camera is designed to record video and save the content every minute by default. When the memory is full, new video files will overwrite the old ones to ensure continuous recording. To change the video length, simply access the loop recording settings screen to select your desired loop recording time.
  • Page 27 higher sensitivity level, your dash cam will be more likely to detect smaller impacts and trigger emergency recording. Note: This setting is available only when the dash cam is properly hardwired. (6) Time Lapse Off (default), 1 fps/s , 2 fps/s, 5 fps/s. Set the interval at which the camera captures a frame of video.
  • Page 28 (11) HDR Off/On (default) Choose to turn this feature on or off. HDR (High Dynamic Range) can bring out details and colors in both highlights and shadows, allowing for lifelike and stunning shots. (12) Infrared Light Off/On/Auto (default) Choose to turn this feature on or off. With this setting enabled, more light will be filled in when in low-light conditions.
  • Page 29 (18) Speed Unit km/h (default)/mph You can choose your desired speed unit. Note: To use this feature, you will need to plug in a GPS module (sold separately). (19) Select Time Zone GMT-Off/GMT 0:00 (default) Choose the time zone manually. The dash cam will then display the date and time of the selected time zone.
  • Page 30 Manually set your camera’s date and time. Tip: The camera’s date and time will sync with your phone when it’s connected to the Kingslim app. (25) Disk Formatting Format the memory card. Before capturing, you will need to complete the formatting process.
  • Page 31: Hardwiring Your O3 Pro Dash Cam

    Pro tip: We highly recommend the professional installation of the dashcam hardwire kit. If you choose to install it yourself, please note that KingSlim cannot take responsibility or liability for any product or vehicle damage, or personal injuries that may occur due to improper operation during the process. It is crucial to ensure that all necessary preparations are made and that the installation process is carried out with a strong emphasis on safety.
  • Page 32 Step 2: Secure the wiring: After connecting the hardwire kit's output cable to the dash cam's power port, use the installation tool and zip ties to neatly secure the wiring on the windshield edge and prevent any potential hazards or distractions while driving.
  • Page 33 Step 4: Connect the fuse tap: After finding the constant fuse slot, first remove the original fuse, connect it to the lower part of the connector, then connect the yellow wire from the hardwire kit to the upper part of the connector. Second, insert yellow wire into the fuse tap.
  • Page 34 Step 5: Connect the red wire to the ACC fuse slot. To do this, turn on the vehicle's ignition, then use the circuit tester to examine the fuse slots. If the tester lights up while testing, it indicates that the slot has the appropriate amperage rating. You can proceed by inserting the red wire into this slot.
  • Page 35 Step 7: Low voltage protection: The dash cam is equipped with a low voltage protection feature. When the hardwire kit detects that the voltage drops below 11.8V/23.8V (this may vary depending on your car), the dash cam will automatically power off within 5 seconds. Tips: ➀...
  • Page 36: Faq

    ➂ If your issue remains, kindly contact customer service for further help. 4. What to do if you can't connect the King app to your dash cam? ➀ Make sure you have installed the up-to-date Kingslim app on your phone. ➁ Make sure you have successfully connected the camera’s Wifi.
  • Page 37 ➀ Use the correct memory card according to the user manual, such as a U3 memory card or above. ➁ Remember to format the card on the computer first and then on the Kingslim app before capturing. ➂ If your issue remains, kindly contact customer service for further help.
  • Page 38: Contact Us

    In the unlikely event that we can’t help, we’re always happy to provide a full, and hassle-free refund under the warranty. We sincerely hope our customers are happy and proud to use KINGSLIM dash cameras! There is no perfect product, however, we will do our best.
