Summary of Contents for KingSlim E2 Pro

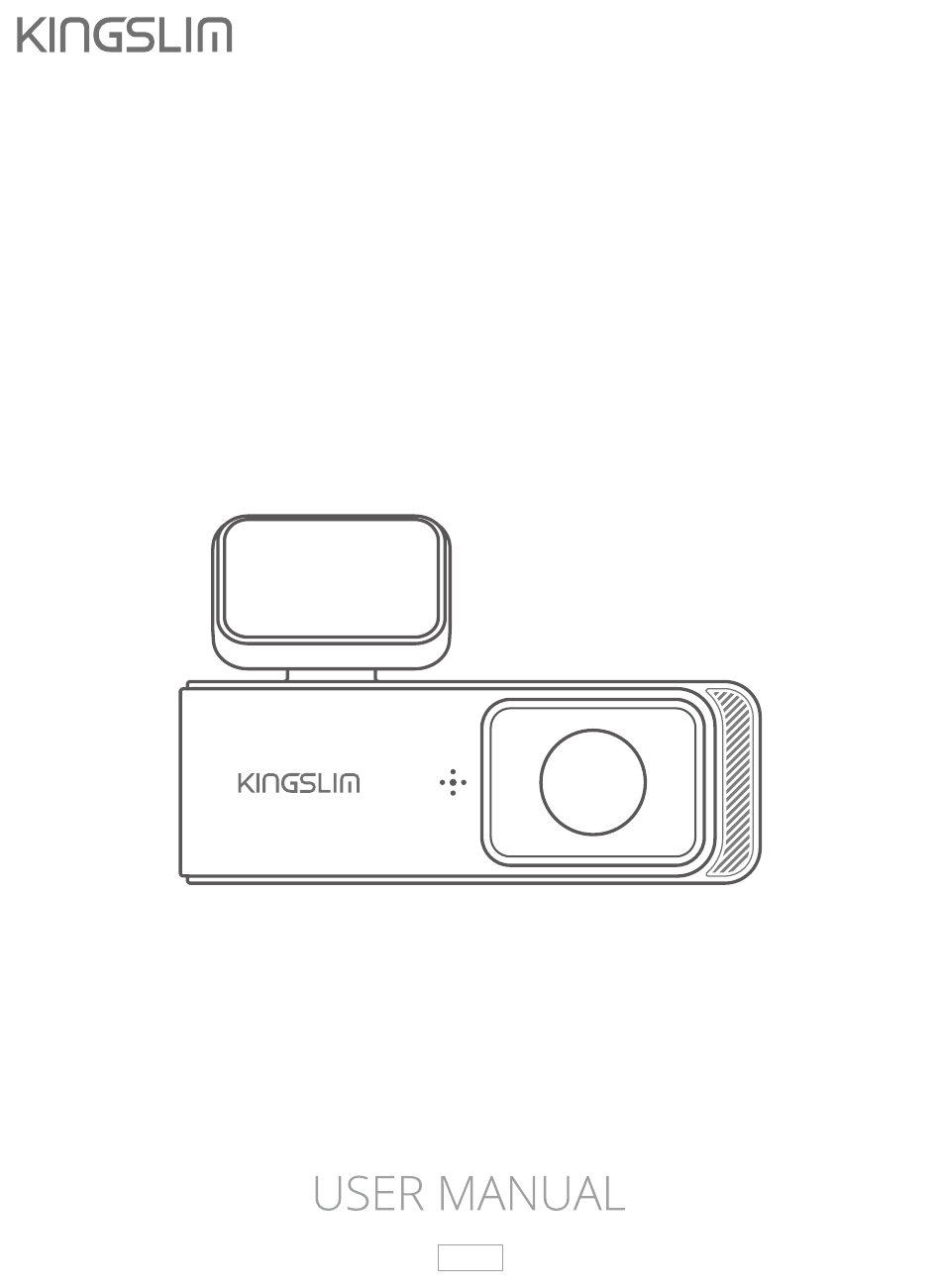

- Page 1 E2 Pro D A S H C A M V1.0...
-
Page 2: Table Of Contents
(6) Install the rear camera onto the license plate. ------------------------------------ 12 5. Using the Kingslim App------------------------------------------------------------------------ 14 (1) Download the Kingslim app. ------------------------------------------------------------- 14 (2) Create an account for the Kingslim app. -------------------------------------------- 14 (3) Connect to the Kingslim app. ------------------------------------------------------------ 15 (4) Capture videos using the app. ---------------------------------------------------------- 17 (5) Playback videos on the Kingslim app. -
Page 3: User Agreement
User Agreement By purchasing Kingslim dash cams, you agree to Kingslim's terms and conditions, which include precautions, user warnings, and warranty coverage. If you do not agree to any of these terms mentioned in this manual for any reason, you may return the product unused and in its original packaging within the stated return window for a full refund. -
Page 4: Warnings
Warnings 1. Please take note of safety warnings and regulations as failure to comply may result in serious injury or death. 2. Avoid placing the camera on top of the instrument panel or in front of the airbag as it may fall and cause harm. 3. -
Page 5: Overheating Protection
14. Lastly, please be advised that the company is not liable for any loss of data or content during operation or under any circumstances. Overheating Protection Dash cams are electronic devices that contain various components, including a processor, memory, camera lens, and other circuitry. When it's in use, it generates heat due to the power consumption and operation of these components. -
Page 6: Specifications
1. Specifications Memory Card Support up to 256GB (sold separately) Resolution (Front) Resolution (Rear) 1080P Video Format Photo Format Storage Temperature -22°F (-30°C) ~ +185°F (85°C) Operating Temperature -4°F (-20°C)~ +140°F (60°C) ��... -
Page 7: What's In The Box
2. What’s in the Box E2 Pro Dash Cam Double-Sided Adhesive Electrostatic Sticker Rear Camera × 1 Tape for Dash Cam × 1 × 2 × 1 Double-Sided Adhesive 6m Rear Camera Car Charger with Cable Clip Tape for Rear Cam × 2 Extension Cable ×... -
Page 8: Camera Overview
3. Camera Overview Bracket Type-C Power Port Memory Card Slot Rear Camera Port Indicator LCD Display Vents Power Button Lens Speaker Vents Note: The bracket is non-detachable, please do not attempt to dismantle it. ��... -
Page 9: Preview Screen
Remains on: connected to the app. (3) Button Operation Introduction The E2 Pro dash cam comes equipped with only one button which is primarily for basic operation. For details, see the table below: Press this button once to view the live feed of the rear camera. -
Page 10: Getting Started
4. Getting Started Welcome to your Kingslim E2 Pro dash cam. To capture videos and photos, you will need a memory card (sold separately). (1) Using memory cards. Use brand name memory cards that meet these requirements: • U3 Class 10 or above •... -
Page 11: Install The Dash Cam Onto The Windshield
(3) Install the dash cam onto the windshield. ➀ Prepare the area. Clean the area thoroughly with a microfiber cloth to remove any dust, dirt, or oil that could affect the bracket's grip. After doing so, carefully peel off one film of the electrostatic sticker and affix it to the clean area. -
Page 12: Charge The Camera
Car Charger (5) Power on or off. Power on: The KINGSLIM E2 Pro dash cam is designed to turn on and record automatically as soon as it receives power, i.e. when the car engine is started. Power off: The camera is also pre-configured to turn off automatically as soon as the power gets disconnected, i.e. -
Page 13: Install The Rear Camera Onto The License Plate
(6) Install the rear camera onto the license plate. It is advised to install the rear camera above the license plate. This placement ensures a clear and sharp image for rear viewing. For this method, please follow these steps to install the rear camera and route the cables: Step 1: Connect the rear camera to the extension cable, and insert it into the dash cam. - Page 14 ➁ To maintain cleanliness in your car, securely fasten the car charger's power cable or the rear camera extension cable to the roof of your car using the provided cable clip. ➂ For optimal performance and avoid any damage to the dash cam, use only Kingslim rear camera and extension cable. ��...
-
Page 15: Using The Kingslim App
The dash cam's Power button is primarily for basic operation. To view the camera's status, capture videos or adjust settings, you will need to connect your E2 Pro dash cam to the Kingslim app via its built-in Wifi. Once you have successfully connected your dash cam to the app, you will be able to access its live feed, change settings, remotely control your shots, and download videos using your phone. -
Page 16: Connect To The Kingslim App
“Skip”. (3) Connect to the Kingslim app. Step 1: Plug in your E2 Pro dash cam. It will then power on with Wifi enabled. Step 2: Connect the camera’s Wifi. Go to your smartphone's Wifi settings page, search for the Wifi... - Page 17 “Weak Security” notice since the 4G signal of your phone is blocked, but you can ignore it and continue the app connection. Step 3: Open the Kingslim app on your phone, tap “Device” at the bottom, then tap "Add Recorder" to add your camera model.
-
Page 18: Capture Videos Using The App
(5) Playback videos on the Kingslim app. ➀ Connect your E2 Pro dash cam to the Kingslim app. ➁ Tap on the “Video set” icon to view all the video files stored on the memory card. Kingslim_ ******** ➂... -
Page 19: Download Videos From The Kingslim App
(6) Download videos from the Kingslim app. ➀ Tap on the “Video set” icon to view all the video files stored on the memory card. Kingslim_ ******** ➁ Tap on the icon in the upper right corner, and select the video you want to download. - Page 20 ➂ Tap on the “Download” icon in the bottom left corner, then tap “OK” to confirm the download. ➃ Wait for the completion of the download progress, the video will be saved to your phone's album. You can tap on it for playback or share it on social media. ��...
-
Page 21: Customizing Your E2 Pro Dash Cam
6. Customizing Your E2 Pro Dash Cam To customize your E2 Pro dash cam, you will need to connect it to the Kingslim app. Kingslim_ ******** To access the camera’s settings, first stop recording by tapping the Power icon at the bottom, then tap the Settings icon in the upper right corner. - Page 22 Set the length of each video. For instance, if you set “Cycle Record Time” to "1 Minute", the dash cam will save videos every minute. When the memory is full, the camera will automatically delete the earliest videos for continuous recording. (5) Time-Lapse Off...
- Page 23 (9) Date Stamp On (default)/Off With Date Stamp enabled, a date and time watermark will be added to your captured videos, and vice versa. (10) Image Mirror On/Off (default) Turn Image Mirror on or off. With this setting enabled, the rear camera is flipped horizontally and its screen layout is reversed left and right.
-
Page 24: Hardwiring Your E2 Pro Dash Cam
Pro tip: We highly recommend the professional installation of the dashcam hardwire kit. If you choose to install it yourself, please note that KingSlim cannot take responsibility or liability for any product or vehicle damage, or personal injuries that may occur due to improper operation during the process. It is crucial to ensure that all necessary preparations are made and that the installation process is carried out with a strong emphasis on safety. - Page 25 Step 2: Secure the wiring: After connecting the hardwire kit's output cable to the dash cam's power port, use the installation tool and zip ties to neatly secure the wiring on the windshield edge and prevent any potential hazards or distractions while driving.
- Page 26 Step 4: Connect the fuse tap: After finding the constant fuse slot, first remove the original fuse, connect it to the lower part of the connector, then connect the yellow wire from the hardwire kit to the upper part of the connector. Second, insert yellow wire into the fuse tap.
- Page 27 Step 5: Connect the red wire to the ACC fuse slot. To do this, turn on the vehicle's ignition, then use the circuit tester to examine the fuse slots. If the tester lights up while testing, it indicates that the slot has the appropriate amperage rating. You can proceed by inserting the red wire into this slot.
- Page 28 Step 7: Low voltage protection: The dash cam is equipped with a low voltage protection feature. When the hardwire kit detects that the voltage drops below 11.8V/23.8V (this may vary depending on your car), the dash cam will automatically power off within 5 seconds. Tips: ➀...
-
Page 29: Faq
➂ If your issue remains, kindly contact customer service for further help. 4. What to do if you can't connect the King app to your dash cam? ➀ Make sure you have installed the up-to-date Kingslim app on your phone. ➁ Make sure you have successfully connected the camera’s Wifi. - Page 30 ➀ Use the correct memory card according to the user manual, such as a U3 memory card or above. ➁ Remember to format the card on the computer first and then on the Kingslim app before capturing. ➂ If your issue remains, kindly contact customer service for further help.
-
Page 31: Contact Us
9. Contact US For any inquiries about KINGSLIM products, please feel free to contact us. We will respond within 24 hours. ��... -
Page 32: A Big Thank You
In the unlikely event that we can’t help, we’re always happy to provide a full, and hassle-free refund under the warranty. We sincerely hope our customers are happy and proud to use KINGSLIM dash cameras! There is no perfect product, however, we will do our best.
