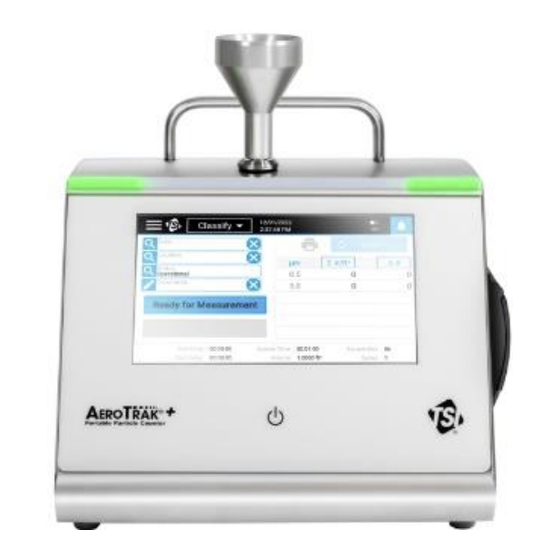

TSI Instruments AeroTrak+ A100-31 Quick Start Manual

TSI Instruments AeroTrak+ A100-31 Quick Start Manual

Portable airborne particle counter

Advertisement

Quick Links

AeroTrak
Portable Airborne
Particle Counter
Models A100-31/31A/35/35A/
50/50A/51/51A/55/55A
Quick Start Guide
Thank you for purchasing the TSI
(APC). This guide will familiarize you with your particle counter and guide you on taking
a measurement.
Refer to the manual for more detailed information on how to utilize a wide range of additional
functionality to facilitate testing for a variety of applications. Additional information is also
available at tsi.com/portables.
Safety
Please review the information below prior to use to assure safe and proper handling of the AeroTrak™+ A100
Portable Airborne Particle Counter.
I M P O R T A N T
There are no user-serviceable parts inside the
instrument. Refer all repair and maintenance to a
qualified factory-authorized technician. All
maintenance and repair information in this
manual is included for use by a qualified factory-
authorized technician.
L A S E R W A R N I N G
The AeroTrak™
Particle Counter is a Class I laser-based
instrument. During normal operation, you
will not be exposed to laser radiation.
However, precaution should be taken to avoid
exposure to hazardous radiation in the form of
intense, focused, visible light. Exposure to this light
may cause blindness. DO NOT remove any parts
from the particle counter unless you are specifically
told to do so in this manual. DO NOT remove the
housing or covers. There are no user-serviceable
components inside the housing.
www.tsi.com
+
®
®
AeroTrak
A100 Portable Airborne Particle Counter
+
Portable Airborne
+
W A R N I N G
The use of controls, adjustments, or
procedures other than those specified
in this manual may result in exposure to
hazardous optical radiation.
A T T E N T I O N
L'utilisation de commandes, de
réglages ou de procédures autres que
ceux specifies dans ce manuel peut
une exposition à un rayonnement
optique dangereux.
W A R N I N G
The battery supplied by TSI
built-in protection against explosion and fire hazard.
DO NOT use a substitute. DO NOT use non-
rechargeable batteries in this instrument. Fire,
explosions, or other hazards may result.
®
(BAT-A100) has

Advertisement

loading
Need help?

Need help?

Do you have a question about the AeroTrak+ A100-31 and is the answer not in the manual?

Questions and answers

Summary of Contents for TSI Instruments AeroTrak+ A100-31

  • Page 1 ™ AeroTrak Portable Airborne Particle Counter Models A100-31/31A/35/35A/ 50/50A/51/51A/55/55A Quick Start Guide ® ® Thank you for purchasing the TSI AeroTrak A100 Portable Airborne Particle Counter (APC). This guide will familiarize you with your particle counter and guide you on taking a measurement.
  • Page 2 Unpacking 1. Carefully unpack the particle counter from the shipping container and verify that all the items listed in the following table are present. 2. Contact TSI ® immediately if items are missing or broken. 3. Additional items may be included if you ordered accessories or spare parts. Item Reference Item...
  • Page 3: Instrument Features

    Instrument Features To use battery: 1. Loosen the thumbscrew and slide up the battery Front door on the back of the instrument. 2. Slide the battery into one of the slots (it does not matter which one) until it is flush with the back panel (note the orientation of the tabs).
  • Page 4: Data Review

    8. Once sampling is complete, the pump will turn off and the STOP button will turn back into the START button. Results can be printed by pressing the Print icon Data Review The data collected is stored in the data buffer of the instrument.
  • Page 5 Shutdown Press the On/Off button on the front. A box with three buttons, SHUTDOWN, SLEEP, and CANCEL, will appear. Pressing SHUTDOWN will completely power down the instrument and require a full startup to use the instrument again. Pressing SLEEP will not completely power down the instrument, only certain components like the display, to allow for a fast startup.
