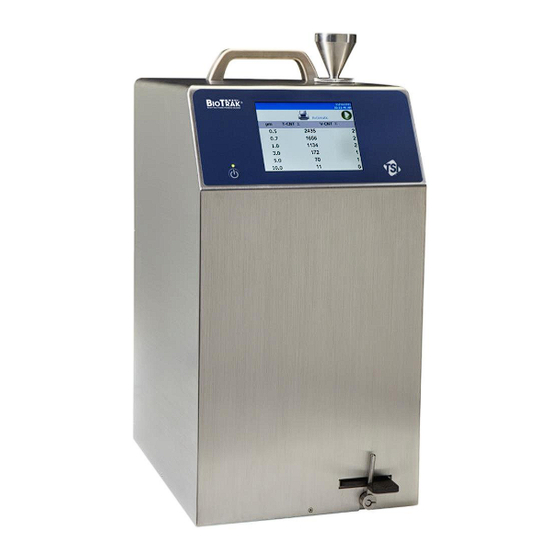

- Page 1 BIOTRAK ® REAL-TIME VIABLE PARTICLE COUNTER MODELS 9510-BD & 9510-BD-P QUICK START GUIDE P/N 6005482, REVISION F FEBRUARY 2016...
- Page 2 ® Thank you for purchasing a TSI BioTrak Real-Time Labels Viable Particle Counter. This guide will help you quickly begin using your particle counter. Advisory labels and identification labels are attached to the outside of the particle counter housing and to the More detailed information is in the Operation Manual optics housing on the inside of the instrument.
- Page 3 Item Reference Item Reference Qty. Description Part/Model Picture Qty. Description Part/Model Picture BioTrak Real- 9510-BD TrakPro™ Lite 7001901 Time Viable Secure Particle software CD Detector for 21 CFR Part 11 compliant data downloading (includes manuals) Power Supply 700125 24 VDC 6.24A Operation 6005481 Included on...
- Page 4 3. The instrument is ready for operation when the Running the Particle Counter main screen appears. 1. The portable particle counters are controlled using a 4. To turn the power off, press the On/Off button and touch screen display. Use the plastic stylus or your select the Turn Off icon.
- Page 5 Use the Data screen to review data that has Set up Time/Date and Language been collected. Use the Reports screen to select various 1. Select the Setup | Device Setup | Date and Time. standard reports for viewing and printing. 2.
- Page 6 2. When conducting classifications, the type of and also specific locations within the areas classification can be selected and guidance is (Zones:Locations). provided in terms of the sampling strategy required 7. The Recipe selection allows the sampling strategy to meet the regulatory requirements in terms of to be configured.
- Page 7 Data Screen Labels and Controls Reviewing Data Field Description 1. Use the Data screen to review data that has been Inst Operational Status of the instrument. collected. Use the scroll bar control on the right to Indications are OK or SRVC. SRVC indicates scroll though the records.
- Page 8 You can adjust the sensitivity of the viability algorithm Software by tapping the System button on the Setup tab page ™ and then tapping the Configuration button on the 1. The TrakPro Lite Secure Data Transfer utility and user manuals come on a CD that was packaged with System screen.
