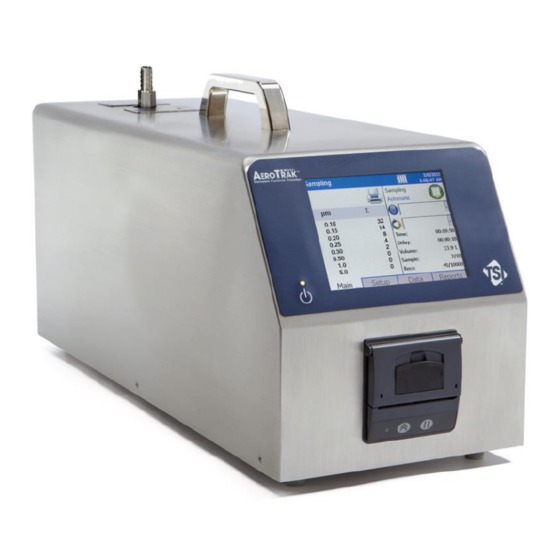

Summary of Contents for TSI Instruments AeroTrak 9110 Series
- Page 1 AEROTRAK ® PORTABLE AIRBORNE PARTICLE COUNTER MODEL 9110 QUICK START GUIDE P/N 6004346, REVISION K MARCH 2018...
- Page 2 ® Thank you for purchasing a TSI AeroTrak Model 9110 Labels Portable Airborne Particle Counter (particle counter). Advisory labels and identification labels are attached to This guide will help you quickly begin using your particle the outside of the particle counter housing and to the counter.
- Page 3 Item Part/ Item Part/ Description Model Reference Picture Description Model Reference Picture ® AeroTrak 9110-01 Quick Start 6004346 Airborne Guide Particle Counter Calibration certificate Power 700230 Supply 24 VDC 3.0A (Power cord included is Power country dependent) 1. Before connecting power, please make sure that Country- 700057 the top inlet has a HEPA filter attached (especially...
- Page 4 Touch Screen Sample Inlet Power Switch Printer 7. Use the Setup screen to set up parameters for the particle counter (including data display, system Cooling configuration, device, sampling, and Recipes). Service Access 8. Use the Data screen to review data that has been collected.
- Page 5 Select Language 2. Select the appropriate Zone and Location within the Zone. Recall, the sampling setup is 1. From the Main tab, select Setup | Device | configured within the Recipe associated with that Regional. Zone. The sampling setup is displayed. 3.
- Page 6 data collection period (time resolution is determined 8. The Recipe selection allows the sampling strategy by sample time) and the length of data collection is to be configured. The individual sample length as determined by number of cycles. well as the number of samples for each data collection period is chosen.
- Page 7 Reviewing Data Data Screen Labels and Controls Field Description 1. Use the Data screen to review data that has been collected. Use the scroll bar (slide) on the right to Humidity level at the end of the time the data scroll though the records.
- Page 8 Information Screen Software ™ On the Setup tab page tap the Info button to get to the 1. The TrakPro Lite Secure Data Transfer utility and Information screen. Use this screen to view the user manuals come on a CD that was packaged with system’s model, serial number, copyright, manufacture your particle counter.
