Detention Push Button & Basin Outlet
Assembly - Spring Action Right Angle Valve
Installation and Maintenance Instructions
DET687
technical data
Inlet Connection
Recommended Working Pressure
Recommended Temperature Range
Operating Temperature Range
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00610_20 Jan 2024
1300 369 273 | info@enware.com.au | enware.com.au
1/2" BSP (15mm)
100 - 500 kPa
5 - 30 °C
0 - 50 °C
Advertisement
Table of Contents
Related Manuals for Watts ENWARE DET687
Summary of Contents for Watts ENWARE DET687

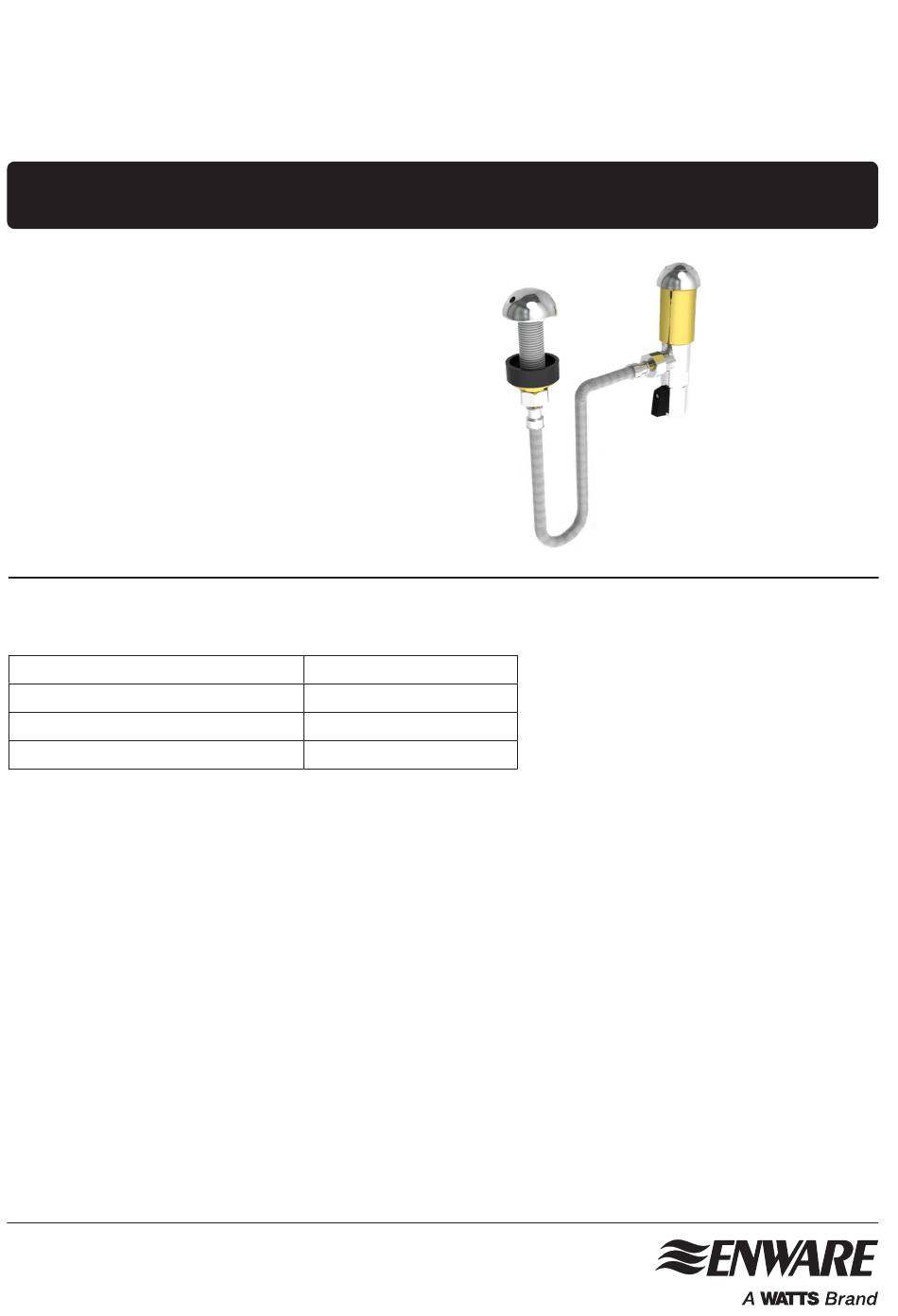

- Page 1 Detention Push Button & Basin Outlet Assembly - Spring Action Right Angle Valve Installation and Maintenance Instructions DET687 technical data Inlet Connection 1/2” BSP (15mm) Recommended Working Pressure 100 - 500 kPa Recommended Temperature Range 5 - 30 °C Operating Temperature Range 0 - 50 °C Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
- Page 2 Push button Circlip Base Connector Grub screw -socket 10- 24UNCx3/16 SS304 Mini ball valve 1/2" MF Tap body 1/2" 11 Flexible hose 1/2" 500mm 12 Back nut 1/2" 13 Spacer 14 Anti-rotation pin 16 Outlet www.enware.com.au Page 2 © Enware Pty Ltd...
-
Page 3: Installation
installation • All supply lines must be flushed thoroughly to remove debris prior to the installation of this product, as per AS/NZS 3500.1. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements. - Page 4 8. The flexible hose (11) is used to make the connection from the valve to the drinking bubbler/basin outlet. Ensure that the internal seals are located in each flexible connector nut and tighten accordingly. 9. Complete the inlet water connection to the valve (8) including the installation of an isolation valve prior to the valve assembly.
-
Page 5: Maintenance
maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface. - Page 6 SERVICING THE SBA WITH SERVICE KIT 1. Pull the piston assembly out from the SBA and remove the 2 piston o-rings. SBA SPRING 2. Use a spanner to unscrew bottom inlet port, STAINLESS STEEL BALL remove spring and stainless steel ball in the BALL SEATING WASHER port.
-
Page 7: Troubleshooting
troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet Push button assembly Re-Adjust connector as per top screwed too tightly into assembly installation instructions Water dripping and does connector. not shut off SBA spindle has debris Remove SBA and inspect. caught in the mechanism. Remove debris and/or replace Water runs constantly from SBA if damaged. -
Page 8: Product Warranty Statement
- WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
