Daewoo Daema DWC-1018JD User Manual

Daewoo Daema DWC-1018JD User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
DWC-1018JD

Advertisement

loading
Need help?

Need help?

Do you have a question about the Daema DWC-1018JD and is the answer not in the manual?

Questions and answers

Related Manuals for Daewoo Daema DWC-1018JD

Summary of Contents for Daewoo Daema DWC-1018JD

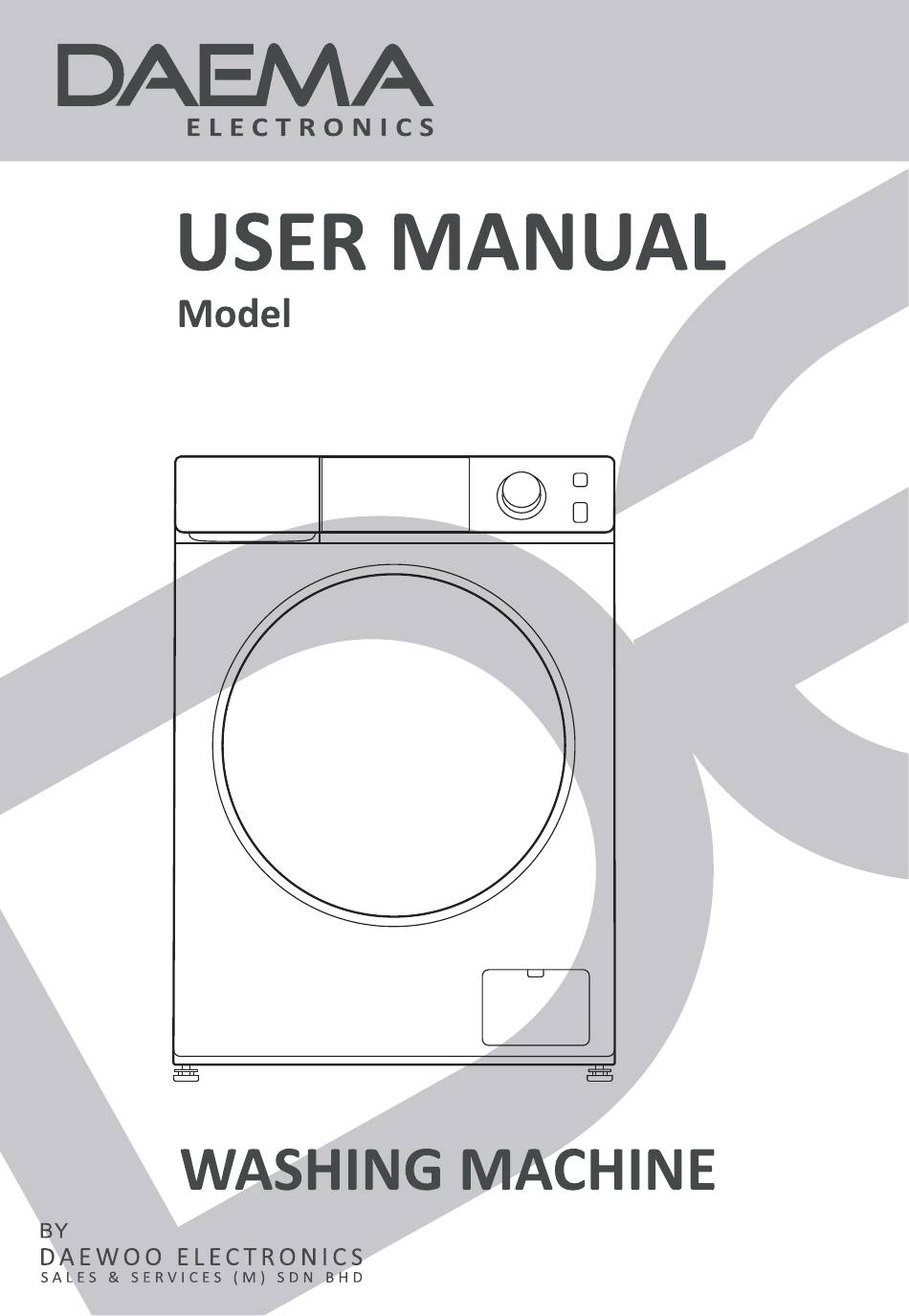

  • Page 1 DWC-1018JD...
  • Page 2 Contents Safety Precautions Important Safety Symbols and Precautions ��������� 2 Installing the Washing Machine Unpacking the washing machine ������������� 7 Accessories ���������������������� 7 Installation requirements ���������������� 8 Removing the shipping bolts ��������������� 9 Adjusting the levelling feet ���������������� 9 Connecting the water supply hose ������������ 10 Positioning the hose drain ���������������...
  • Page 3 Safety Precautions Please read the instructions carefully before using the product,please keep this manual for future reference. Throughout this you will see "Warning" and "Caution" notes. These warnings,cautions and subsequent prompts of important safety instructions do not cover all possible conditions and situations that may occur. Please read the instructions carefully and perform operation with caution and care when installing,maintaining and operating your washing machine to make the most of functions and extend the service life of the machine.
  • Page 4 Safety Precautions Read the manual carefully and perform operation with caution and care. There exists potential hazard when an electric appliance is being operated. Read the manual carefully and perform operation with caution and care when operating the wash machine in order to guarantee safety.
  • Page 5 Safety Precautions Do not place the washing machine in damp places such as the bathroom or rainy area, since it may cause electric shock or fire. Do not plug in / out with wet hands, since this may cause electric shock hazard. Children or the elderly and the weak can only use this product under the guidance or help of the guardian.
  • Page 6 Safety Precautions Wipe the washing machine enclosure, including the control panel, with a soft cloth and nonabrasive household detergents. Pets and children may climb into the washing machine.Keep children away from the washing machine while it is in use. This appliances is not intended for use by persons (including children)with reduced physical sensory or mental capabilities, or lack of experience and knowledge，...
  • Page 7 Safety Precautions If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.The plug attached to the washing machine cannot be transformed. If the plug cannot match the socket, a suited one should be installed by the manufacturer, product and service agent or qualified person.
  • Page 8 Installing the Washing Machine Strictly observe the relevant installation procedures in the manual to ensure that you use the washing machine safely. Unpacking the washing machine Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all items shown below. If the washing machine was damaged during shipping or you do not have all items,contact your dealer immediately.
  • Page 9 Installing the Washing Machine Installation requirements Power supply ◆ To avoid the unnecessary risk of fire, electric shock or personal injury, all electrical circuit and grounding must be set as per the national electrical standard. ◆ Do not overload the wall power socket. ◆...
  • Page 10 Installing the Washing Machine Removing the shipping bolts Adjusting the adjustable feet Before using the washing machine, you If the floor is uneven,adjust the adjustable must remove all shipping bolts from the feet of the washing machine.Do not insert back of the washing machine. To remove pieces of wood or any other objects under the shipping bolts: the leg.
  • Page 11 Installing the Washing Machine Connecting the water supply hose Connecting base Remove the joint from the water supply hose. Cramp ring Water supply hose Loosen four screws on the joint with a cross screwdriver, and rotate the part (b) in the direction of arrow until there is a clearance of 5mm.
  • Page 12 Installing the Washing Machine Connecting the water supply hose For models with additional hot water inlet: Connect the red end of the hot water supply hose to the hot water inlet on the back of the washing machine. Connect the other end of the hot water supply hose to the hot water faucet.
  • Page 13 Using the Washing Machine Overview of the control panel Description on functions of all parts: Power Turn on/off the washing machine by pressing this button. If the washing machine is kept unused for 5 minutes after power on, the power supply will be shut off automatically. Start/Pause Start or pause the washing program by pressing this button.
  • Page 14 Using the Washing Machine Mix - This washing machine is applicable for cotton and linen, chemical fiber and similar materials clothes mix washing. Quick wash - Suitable for washing slightly soiled clothing that is worn only once or needs washing a little, with a special smell. Wool - Suitable for washing machine-washable woolen fabrics.
  • Page 15 Using the Washing Machine Delay time of 4 hours means the washing programs will come to an end after 4 hours. Cancellation method: The maximum delay time is 24:00. If select 24:00, press “Delay” button again and press “Power” button or choose other program to cancel this function. Note: delay function is not applicable to the clothing easily to produce static electricity.
  • Page 16 Using the Washing Machine Temp. Temperature display area shows set temperature; select proper water temperature according to the clothing to be washed. It indicates no heating when all temperature indicator lights turn off /on (no flashing). My cycle After selecting this function, any common or special washing program can be designed and will be memorized.
  • Page 17 Using the Washing Machine Cautions for drying Please carefully check the laundry care label on the clothes before drying! Can be dried No drying Note Do not dry any clothes Do not dry any clothes with marked with any of the above lace, printing and other easy labels, which may damage to stain, cracking clothing.
  • Page 18 Using the Washing Machine Cautions for drying ◆ For the area with bad inflow or low water pressure, the drying effect is not very good. ◆ When the drying process is in progress, the remaining time displayed is approximate, the washing machine shall extend or shorten the drying time according to the different clothing texture and degree of drying.
  • Page 19 Using the Washing Machine Inspection and preparation before washing To prevent the fault of washing machine and the damage to laundry,you have to pay attention to the following items. 1. Take objects out from the pocket. ● Please check and empty the pockets of the laundry. Hard objects such as decorations and coins may damage the washing machine or result in abnormal fault.
  • Page 20 Using the Washing Machine Inspection and preparation before washing 5. Clean dust,sludge and hairs of the pet attached on the laundry. ● Friction of dust and sludge with the laundry may damage the clothes and affect washing results. 6. Before washing the laundry,take off the metal decorations and zip up the laundry,buckle the collar,then turn the laundry inside out.
  • Page 21 Using the Washing Machine Using methods of detergents and additives Softener drawer—Softener ● During the last rinsing, softeners in the Main wash drawer detergent drawer will poured automatically. Softener drawer ● The amount of liquid detergents shall Prewash drawer not exceed “MAX” base line. ●...
  • Page 22 Maintaining the washing machine Cleaning the detergent dispenser Cleaning the enclosure Keep the washing machine clean to enhance Clean the detergent dispenser when performance, avoid unnecessary detergent and softener accumulate. maintenance and increase the service 1. Press the release lever on the inside of life.
  • Page 23 Maintaining the washing machine Cleaning the drain pump filter Before cleaning and maintenance, please pull the power cord out from the socket. Clean the drain pump filter 5 to 6 times a year is recommended; or when you see the "_F" error message on the display clean the filter. 1.
  • Page 24 Maintaining the washing machine Cleaning the water supply valve filter You should clean the supply valve filter at least 3 from time to time 4 times per year,or when you see "SF" error message on the display: 1. Pull out the power plug and turn off 4.
  • Page 25 Maintaining the washing machine Handling a frozen washing machine If the temperature drops below 0℃ and your washing machine is frozen,you can: 1.Wrap up the faucet with the towel soaked 2. Remove the water supply hose and in warm water and pour warm water on it soak it in warm water.
  • Page 26 Troubleshooting Problems and Solutions Phenomenon Solution ● Check if the water pressure is sufficient when washing. Detergent is left in the ● Check if the detergents are put in the injection port of the detergent box after a detergent box. program is finished.
  • Page 27 Troubleshooting Error messages description Error code Code description Solution ● Check wiring harness, drying board and computer board. Drying board ● Please contact after-sales service department to repair or communication replace parts. is abnormal ● Check whether the water tap for water supply is opened. ●...
  • Page 28 Troubleshooting Error messages description Error code Code description Solution Abnormal ● Check whether the harness terminal is connected securely. communication ● Contact with the after-sales service department to replace the between computer computer board or other parts and components. board and motor ●...
  • Page 29 Program Control Board WASHING MOTOR 1 2 3 PRESSURE SENSOR INVENTER PCB 10 5 TOUCH KEY DISPLAY PART 4 5 6 7 9 8 7 6 5 4 2 3 WHITE[10P] BLACK[8P] WHITE[10P] WHITE[9P] WHITE[5P] MAIN PCB WHITE[4P] WHITE[5P] BLACK[4P] WHITE[4P] 1 2 3 Cap.
