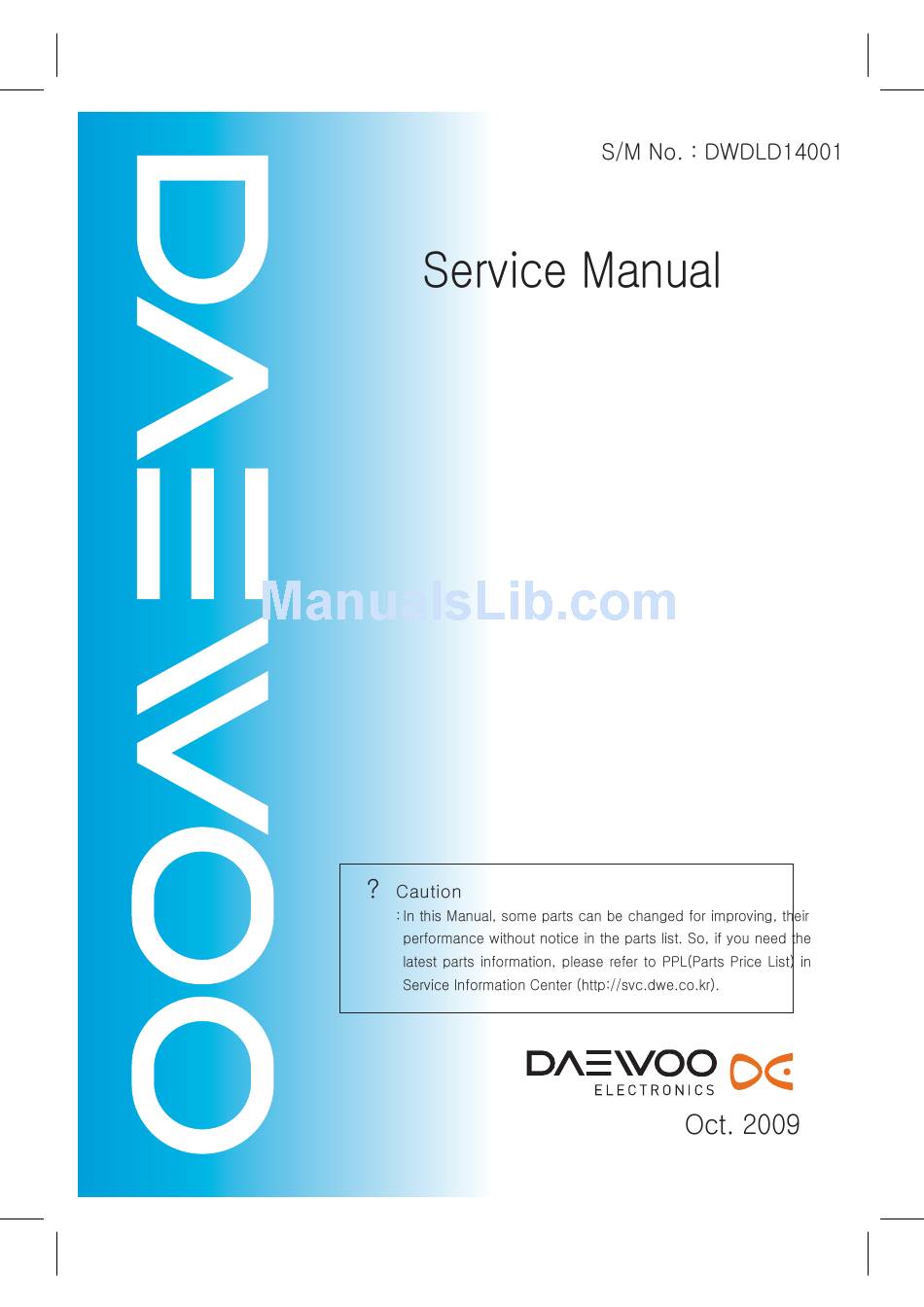

- Page 1 Drum Washing Machine Model: DWD-L100 Series...
-
Page 2: Service Manual
DRUM WASHING MACHINE SERVICE MANUAL 1. WHAT IS DRUM WASHING MACHINE?........1 2. WASHER SPECIFICATION ............2 3. PARTS LIST BY ASS'Y..............4 4. CONTROL PART FUNCTION SPECIFICATION ......23 5. ELECTRONIC FIELD PARTS LIST AND SPECIFICATION ..38 6. WIRING DIAGRAM ..............39... -
Page 3: What Is Drum Washing Machine
1. WHAT IS DRUM WASHING MACHINE? 1. Drum Washing Machine Water consumption is reduced by using the power of the laundry falling (free-fall) created when rotating the drum. With temperature control system, this drum washing machine saves energy and improves washing performance at the same time. -
Page 5: Washer Specification
2. WASHER SPECIFICATION 1st Model 2st Model MODEL DWC-LU1011/1211 DWD-LU1011/1211 DWC-LD1411/1611 DWD-LD1411/1611 Dimension (mm) 600 X 645 X 850 Maximum mass of textile (kg) 9 Kg Unit Weight (net/gross) 78/82 71/75 76/80 69/73 Standard Water Consumption DWC(DWD)-LU10XX : MAX 1000... - Page 6 3. PARTS LIST BY ASS'Y 1. PANEL AS A 1 6 A 1 5 A 1 8 A 0 9 A 2 0 A 1 7 A 1 1 A 1 2 A 1 4 A 1 9 A 1 0 A 1 3 A 0 1 A 0 2...
- Page 7 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK A01 PANEL *F 36142T2000 A02 DECORATOR WINDOW COURSE 3611696000 A03 WINDOW COURSE 3615509200 A04 DECORATOR WINDOW DISPLAY 3611696100 A05 BUTTON FUNCTION 3616644000 A06 BUTTON PS 3616644100 A07 WINDOW DISPLAY 3615509300 A08 BUTTON LED 3616644200 A09 PCB BOARD 3614347000 L SERIES FRONT PCB BOARD...
- Page 8 2. PANEL F AS...
- Page 9 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK PANEL FRONT 36142T2100 4x16 SUS 430 BUTTON FUNCTION 3616644400 BUTTON OPTION 3616644700 HOLDER LED FUNCTION 3613058500 HIPS PCB F AS PRPSSWL050 LD10/LU10,STANDBY 1W PCB F AS PRPSSWL051 LD12/LU12,STANDBY 1W PCB F AS PRPSSWL052 LD14,STANDBY 1W PCB F AS PRPSSWL053 LD16,STANDBY 1W PCB F AS...
- Page 10 3. INLET BOX AS B 1 0 B 1 2 B 0 6 B 1 4 B 1 3 B 0 9 B 0 7 B 0 1 B 0 8 B 1 1 B 0 4 B 0 2 B 0 5 B 0 3...
- Page 11 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK NOZZLE *T 3618111100 NOZZLE *U 3618111000 BOX INLET 3610526500 HOSE INLET 3613274600 EPDM CLAMP AS 3611203200 ID=60, WIRE+GUIDE+BOLT+NUT VALVE INLET 3615416821 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, WASHING HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, PRE.WASH CLAMP HOSE 3611205800 100H, ID=13.8 W=10.0 0.9T...
- Page 12 4. CABINET F ASSY C 0 3 C 0 2 C 1 0 C 0 1 C 1 1 C 1 2 C 1 4 C 1 5 C 1 3 C 0 6 C 0 7 C 0 5 C 0 8 C 0 9 C 0 4...
- Page 13 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK CABINET *F 3610814000 SECD 0.8T SWITCH DOOR LOCK 3619047200 PLATE HINGE SUPPORT 3614539800 FRAME DOOR *O 36122UD800 PROTECTOR GLASS 3618345500 DECORATOR DOOR *O 3611695900 HOOK DOOR 3613100900 ZNDC SPRING HOOK 3615115400 SUS304, HOOK SHAFT 3613101000 SUS, D=3.0 FRAME DOOR *I...
- Page 14 5. DOOR AS C 0 1 C 0 2 C 0 3 C 0 4 C 0 5 C 1 2 C 1 1 C 0 6 C 1 0 C 0 7 C 0 9 C 0 8...
- Page 15 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK FRAME DOOR 0 36122UDC00 PROTECTOR GLASS 3618345600 DOOR GLASS 361A113300 GLASS FRAME DOOR 1 36122UDD00 HINGE DOOR 3612903800 ALDC CAP HINGE DOOR 3610916500 SCREW TAPPING 7115402029 T1S FLT 4*20 STS430 NATURE HOOK DOOR 3613100900 ZNDC SPRING HOOK 3615115400...
- Page 16 6. TUB ASSY(UNIVERSAL)
- Page 17 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK BALANCER WEIGHT L 3616110600 SPECIAL SCREW 3616029400 SWCH 8.5X30 BALANCER WEIGHT R 3616110500 CLAMP GASKET AS 3611207000 GASKET 3612325300 FOR WASH GASKET 3612325400 FOR DRY NOZZLE SHOWER 3618111200 CLAMP GASKET BUSHING 3611206800 GI 1.2T FOR DRY SPECIAL SCREW 3616029810...
- Page 18 7. TUB ASSY(DD MOTOR)
- Page 19 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK BALANCER WEIGHT L 3616110600 SPECIAL SCREW 3616029400 SWCH 8.5X30 BALANCER WEIGHT R 3616110500 CLAMP GASKET AS 3611207000 GASKET 3612325300 FOR WASH GASKET 3612325400 FOR DRY NOZZLE SHOWER 3618111200 CLAMP GASKET BUSHING 3611206800 GI 1.2T FOR DRY SPECIAL SCREW 3616029810...
- Page 21 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK DUCT B UPPER 361A202400 ALCOSTA SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN SCREW TAPPING 7112401208 T1 TRS 4X12 SUS HEATER DRY 3612801400 230V 2.1KW 25.19OHM 6.1W/SQ INCOLOY800 1R1A034002 PACKING THERMOSTAT 3614009900 SWITCH THERMOSTAT 3619046500 ON120°C OFF150°C 230V 15A VDE DUCT B LOWER 361A202500...
- Page 22 9. CABINET AS F 0 7 F 0 3 F 0 8 F 1 3 F 0 6 F 0 1 F 1 1 F 0 9 F 1 0 F 0 2 F 1 2 F 0 4 F 0 5...
- Page 23 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK CABINET 3610813300 SGCC 0.8T,L'S FRAME LOWER 36122UD700 SGCC 1.2T FRAME TOP *L 36122UDA00 SGCC 1.6T FRAME TOP *R 36122UDB00 SGCC 1.6T BASE U L 3610393800 SGCC T2.0 BASE U R 3610393900 SGCC T2.0 LEG ADJUST AS 3617703811 MAIN PCB AS 3610PCBL00...
- Page 24 PARTS NAME CODE SPECIFICATIONS Q’TY REMARK MAIN PCB AS 361MPDLD01 MAIN PCB AS 361MPDLD02 MAIN PCB AS 361MPDLD03 MAIN PCB AS 361MPDLD04 MAIN PCB AS 361MPDLD05 MAIN PCB AS 361MPDLD50 MAIN PCB AS 361MPDLD51 MAIN PCB AS 361MPDLD52 MAIN PCB AS 361MPDLD53 MAIN PCB AS 361MPDLD54...
