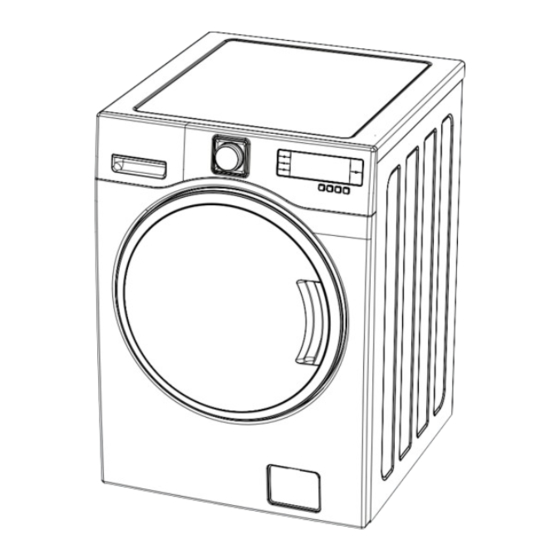

Washing Machine Instruction Manual
INSTRUCTION MANUAL
■ Economic wash system
Using artificial intelligence, the washer uses minimum energy and water by selecting optimal water level and
washing time.
■ Low noise system
The washer minimizes the washing and spinning noises by sensing the amount of laundry.
■ Child-Lock
The Child-Lock system has been used to prevent children from pressing any button to change the program
during operation.
■ Air bubble washing
T
his is an advanced technology that generates millions of air bubbles inside the drum on washing sequence,
and the bubbles dissolve the detergent particles completely and cleanse all the soil in clothes gently and neatly.
■ Self-Cleaning Course of Drum
Enable to Self-Cleaning of Drum.
■ Digital Condensing Dry System.
Condensing Dry System with saveing energy.(for dry model)
Downloaded From WashingMachine-Manual.com Manuals
DWC-LD141X, DWD-LD141X
Advertisement
Table of Contents
Related Manuals for Daewoo DWC-LD141X
Summary of Contents for Daewoo DWC-LD141X
-
Page 1: Instruction Manual
Washing Machine Instruction Manual DWC-LD141X, DWD-LD141X INSTRUCTION MANUAL ■ Economic wash system Using artificial intelligence, the washer uses minimum energy and water by selecting optimal water level and washing time. ■ Low noise system The washer minimizes the washing and spinning noises by sensing the amount of laundry. -
Page 2: Table Of Contents
A NOTE TO YOU Thank you for buying a DAEWOO appliance. DAEWOO washers are easy to use, save time, and help you manage your home better. This manual contains valuable information about how to operate and maintain your washer properly and safely. -
Page 3: Parts And Features
El Parts and features The parts and features of your washer are illustrated on the page. Become familiar with all parts and features before using your washer. NOTE The drawings in the book may vary from your washer model. They are designed to show the different features of all models coverd by this book. Your model may not include all features. -
Page 4: Washer Safety
Washer safety Save these instructions Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the following basic precautions. Read all instructions before using your washer Please ... •... -
Page 5: Installation Instructions
El Installation instructions Removing transit bolts 1. Before operating the washer, remove the transit 2. Unscrew the 4 bolts with the 10mm hex wrench bolts(4ea) along with the rubber. or spanner or cross-tip screwdriver. Keep the 4 • If the bolts are not removed, it may cause bolts for a later time. -
Page 6: Inlet Hose Connection
Inlet hose connection The washer should be connected to the water mains using new hose sets and old hose sets should not be reused. In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water inlet valve. -
Page 7: Electrical Requirements
Electrical requirements Electrical shock hazard Failure to follow these instructions could result in death or serious injury. WARNING • Electrical earth is required on this washer • Don’t earth to a gas pipe. • If it does not fit the outlet, have a proper outlet •... -
Page 8: Operating Your Washer
Electrical requirements (cont.) Adjust the level of washer using adjustable legs. • Please check if there is any gap between the four adjustable legs and the floor. • Adjust the level of washer by turning adjustable legs. And make it sure that there is no swaying of washer. -
Page 9: Adding Detergent
Operating your washer (cont.) Sorting • Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together. • Separate dark colors from light colors, colorfast items from non-colorfast item. Soil (Heavy, Normal, Light) Separate clothes according to amount of soil. Color (White, Lights, Darks) Separate white clothes from colored clothes. -
Page 10: The Functions Of The Control Panel
Option Steam(option) Water +(option) The functions of the control panel ■ DWC-LD141X Option Low Temp Iron Cupboard Very Time Steam(option) Water +(option) Press this switch to turn the power on or off. Option Operation and temporary stop is repeated as it is pressed. - Page 11 The functions of the control panel (cont.) ■ DWD-LD141X Option Steam(option) Water +(option) Press this switch to turn the power on or off. Option Operation and temporary stop is repeated as it is pressed. When you want to change program in operating; Option press the “Start/Pause”...
-
Page 12: Washing Procedure And Program Selection
Washing procedure and program selection 1. Cotton is automatically selected upon power on • Press the Power button to start. • Press the Start/Hold button • Initial condition - Program : Cotton - Wash : main wash - Rinse : 3 times - Spin : 800 - Water temperature : 40°C 2. - Page 13 Washing procedure and program selection (cont.) 4. FUNCTION • Recommended programs according to the laundry type Fabric Proper Maximum Program Option Type Temp. Load First check if laundry is machine 60°C Pre Wash washable.(white cotton, linen (Cold, 30°C, Rating Rinse+ towel and sheets..) 40°C, 95°C) Cotton/Normal...
- Page 14 Washing procedure and program selection (cont.) * COTTON/NORMAL PROGRAM Put the laundry in to the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
- Page 15 Washing procedure and program selection (cont.) * SYNTHETIC PROGRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
- Page 16 Washing procedure and program selection (cont.) * DELICATE / HANDWASH PROGRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash compartments in the detergent case. Softener should be below the ‘MAX’...
- Page 17 Washing procedure and program selection (cont.) * INTENSIVE PROGRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
- Page 18 Washing procedure and program selection (cont.) * QUICK 20 Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash compartments in the detergent case. Softener should be below the ‘MAX’...
- Page 19 Washing procedure and program selection (cont.) * SPORTS WEAR PROGRAM Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door. • Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’...
- Page 20 Washing procedure and program selection (cont.) * TUB CLEAN PROGRAM Press the Power button. • The LED shows only ‘---’ signal. Select the ‘Tub Clean’ program using program selection dial. • ‘Soak’ and spin ‘400’ rpm and ‘Cold’ water temperature. Press Start/Pause button.
- Page 21 Washing procedure and program selection (cont.) * DRAIN PROGRAM Press the Power button. • The LED shows only ‘---’ signal. Select the ‘Drain’ program using program selection dial. Press Start/Pause button. • Drain program will start. NOTE • All programs are not selectable. E-21 Downloaded From WashingMachine-Manual.com Manuals...
-
Page 22: Guide For Other Useful Programs
Guide for other useful programs * DELAY START(RESERVED WASHING) Put the laundry into the Drum and put the detergent and softerner into the detergent case. Then close the Door. • Put the detergent into the main wash room(I I marking) and prewash room(I marking) in the detergent case. - Page 23 Guide for other useful programs (cont.) * ONLY WASH Put the laundry into the Drum and put the detergent and softerner into the detergent case. Then close the Door. Press the Power button. • The LED shows only ‘- --' signal. Select the ‘WASH COURSE' you want by pressing ‘Wash' button.
- Page 24 Guide for other useful programs (cont.) * DRY (FOR DWC-LD141X) Put the laundry into the Drum and close the Door. Press the Power button. • The LED shows only ‘- --' signal. Select the ‘DRY CONDITION' you want by pressing ‘DRY' button.
- Page 25 Guide for other useful programs (cont.) * RINSE+SPIN (FOR DWD-LD141X) Put the laundry into the Drum and put softerner into the detergent case. Then close the Door. • Softener should be below ‘MAX’ level. Press the Power button. • The LED shows only ‘- --’ signal. Press the ‘RINSE+SPIN’...
-
Page 26: Maintenance
Maintenance Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely. Cleaning your washer Exterior Interior Wipe up detergent, bleach, and other spills with a Clean interior with 250ml of chlorine bleach soft, damp cloth or sponge as they occur. -
Page 27: How To Clean The Filter
How to clean the filter Lint Filter Filter Frame Filter Frame Lint Filter Lint Filter Filter Frame Cleaning the water inlet filter Clean the filter when water leaks from the water inlet. Pull the power plug Turn off the water Pull the inlet filter out. -
Page 28: Removing Stains
Removing stains Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk or grass. Prewashing helps loosen soil before washing. Stain removal rules • Use warm water for soaking or prewashing stained laundry. Hot water can set stains. •... -
Page 29: Trouble Shoting
Trouble shooting Trouble shooting Most problems are easily solved if you understand the cause. Check the following list for problem before calling for service. If the error mode such as IE, OE, UE were displayed on the control part, in order to solve these problem, first turn off the power of the washing machine and then turn on the power pressing Power button. -
Page 30: Specification
Specification MODEL DWC-LD141X DWD-LD141X Dimension (mm) 600 X 645 X 850 Maximum mass of textile (kg) 8.5Kg Unit Weight (net/gross) 76/80 69/73 67 ℓ Standard Water Consumption Spin Speed (RPM) MAX 1400 Operating Water Pressure 0.03MPa ~ 0.8MPa (0.3kgf/cm ~ 8kgf/cm E-30 Downloaded From WashingMachine-Manual.com Manuals... -
Page 31: Wiring Diagram
Wiring diagram ■ DWC-LD'S (OPTION) (OPTION) (OPTION) ■ DWD-LD'S (OPTION) (OPTION) (OPTION) E-31 Downloaded From WashingMachine-Manual.com Manuals... - Page 32 6번지 이룸빌딩 4층 담 당 윤태원 님 WASH ONLY : D-LD1411EFA F.MODEL BUYER CASTEL COMBO : C-LD1412EFA WASH ONLY : DWD-LD1411(DWD-LD121X) B.MODEL BRAND 대우일렉 COMBO : DWC-LD1412(DWC-LD141X) 언 어 영어 COUNTRY 호주 1차 2차 일 정 3차 4차 5차 제...
