Valcom VIP-9815A Quick Start Manual

IP PoE CORRIDOR SPEAKER
INTRODUCTION

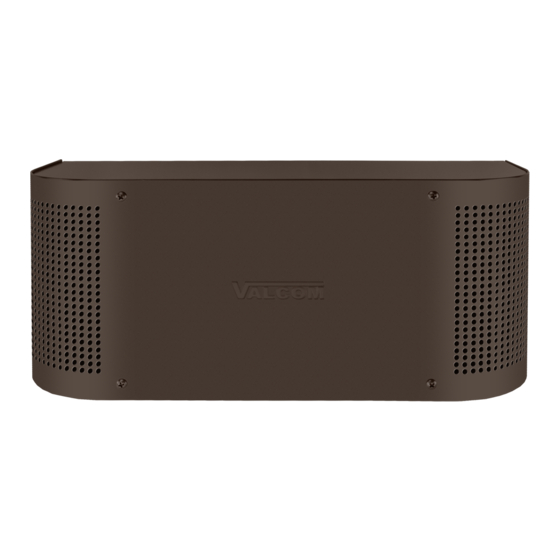

The VIP-9815A IP PoE Corridor Speaker
enables voice paging over an IP network.
The VIP-9815A consists of a high efficiency
speaker in an unobtrusive, stylish enclosure
allowing standalone capability when used with a
SIP telephone system or can be accessed from
a variety of Valcom managed VoIP products.
SPECIFICATIONS
Access Methods

SIP – enabled telephone system

PBX, FXO Port via Valcom Enhanced
Network Station Port

POTS telephone set via Valcom
Enhanced Network Station Port

PBX, FXS Port via Valcom Enhanced
Network Trunk Port

Valcom Multicast Page Group
Features

RJ-45 network connection

Network activity LEDs

Power over Ethernet (PoE) 802.3af
Compatible
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
PSE: (Power Sourcing Equipment) to be
compliant to IEEE 802.3af
Dimensions & Weight

6.75 "H x 15.75 "W x 6.75 "D
(17.1 cm x 40.0 cm x 17.1 cm)

Weight: 5.2 lbs (2.35 kg)
VIP-9815A
Environment
Temperature:
Humidity:
Indoor Installation only
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Precautionary Designations

WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
•
AVERTISSEMENT - Afin
risques d'incendie ou de décharge
électrique, évitez d'exposer le
système à la pluie ou à l'humidité.
Class 3
• Apparatus shall not be exposed to
dripping or splashing and no
objects filled with liquids, such as
vases, shall be placed on the
apparatus.
• L'appareil ne doit pas être exposé
à des égouttements et
éclaboussures et aucun Objet
Rempli de liquide, comme vase, ne
doit être placé sur l'appareil.
1
Issue 1
0 to +40° C
0 to 85% non-precipitating
de réduire les
947837
