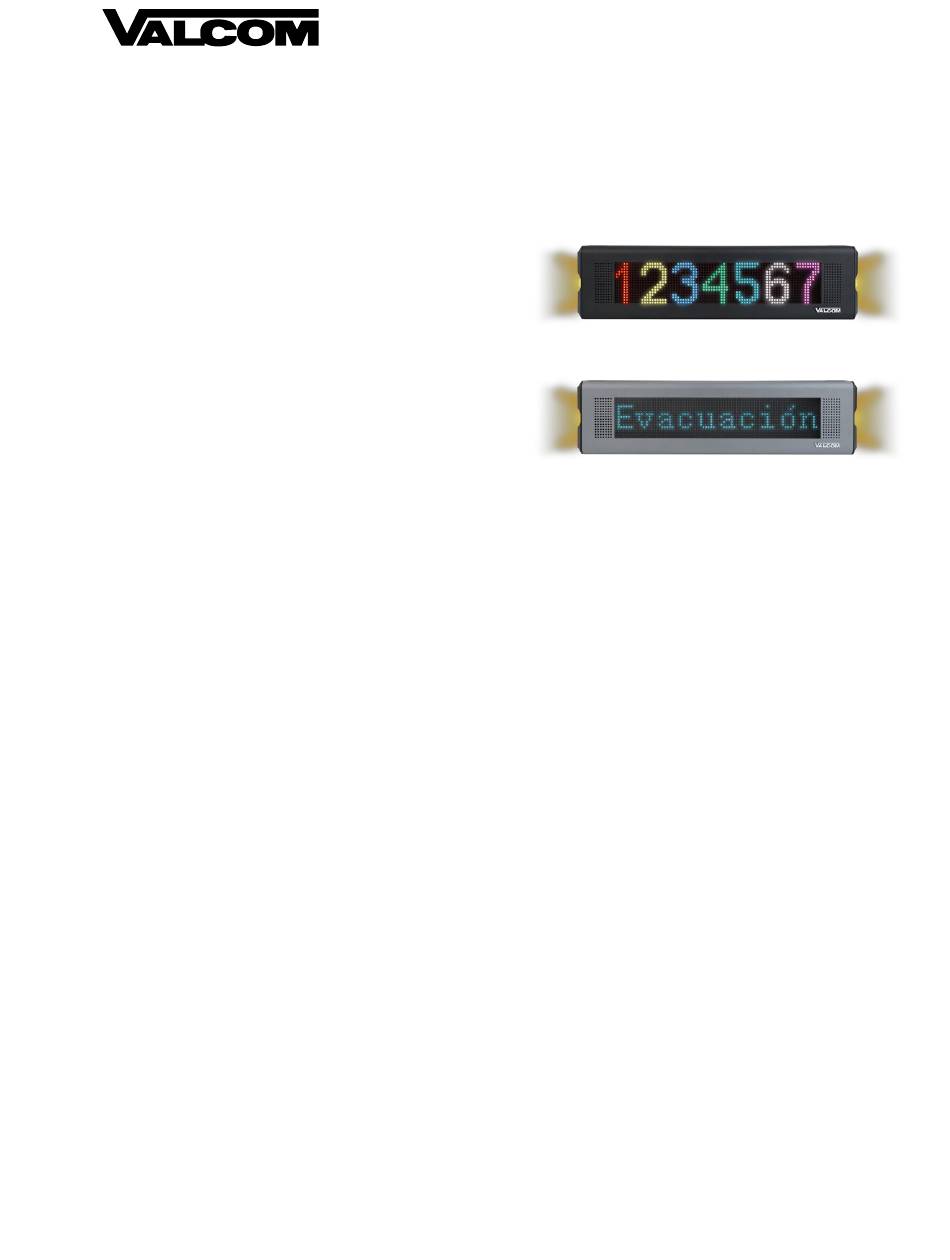

Valcom VL520BK-F-FC Installation Manual

IP COMPACT SPEAKER WITH TEXT
INTRODUCTION

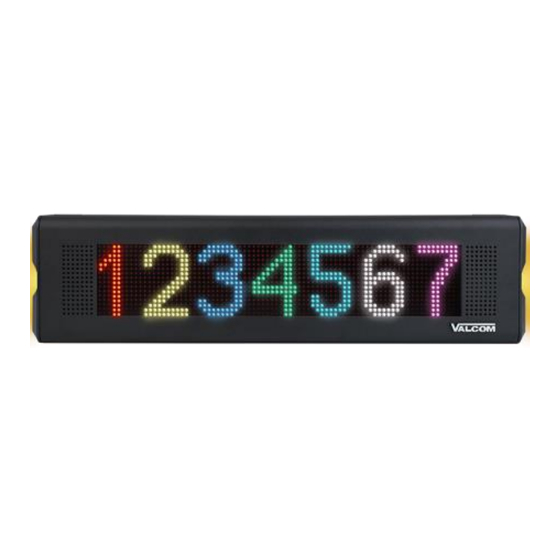

The VL520-F-FC IP Compact Speaker with Text
provides highly visible message output and
audio paging over an Ethernet network. Audio
and Text messages are created and delivered
from an Engineered Solutions Application
server, Site Manager server or Interactive
Console. Audio-only messages can be created
from any Valcom IP Paging source.
SIP (Session Initiation Protocol) compatibility
allows flexibility for talkback/intercom
connections. An optional call switch can be
used to initiate intercom calls from the VL520-F-
FC to a Valcom or SIP destination.
SPECIFICATIONS
Features
•
SIP compatible
•
Easy to read, high visibility
•
Font size options
•
Seven LED color options
•
English and Spanish text support
•
Power over Ethernet:
(PoE) 802.3af, or
(PoE+) 802.3at compatible
•
Speaker output and LED display can be
activated together or separately
•
Display can operate as a clock or provide
other message during idle periods
•
Text modes include adjustable-speed
scrolling or static display
•
Contact Closure input connection for
optional Call switch
•
Relay output connection for optional
equipment
•
Bright LED flashers can be activated based
on page priority
•
UL Listed
Dimensions / Weight
•
20.5" W x 5.5" H x 2.5" D
(52.1cm W x 14.0cm H x 6.4cm D)
•
3.9 lb. (1.8 kg)
Nominal Power Requirements
•
802.3af (PoE)
•
802.3at (PoE+)
VL520BK-F-FC, VL520M-F-FC
Class 3
Class 4
Black (BK)
Metallic (M)
Environment
Temperature:
Humidity:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Precautionary Designations
:
•
WARNING To Reduce The Risk Of Fire
Or Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
•
AVERTISSEMENT: Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système
à la pluie ou à l'humidité.
•
Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases, shall
be placed on the apparatus.
•
L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et
aucun Objet Rempli de liquide, comme
vase, ne doit être placé sur l'appareil.
1
Issue 1
0 to +40° C
0 to 85% non-precipitating
