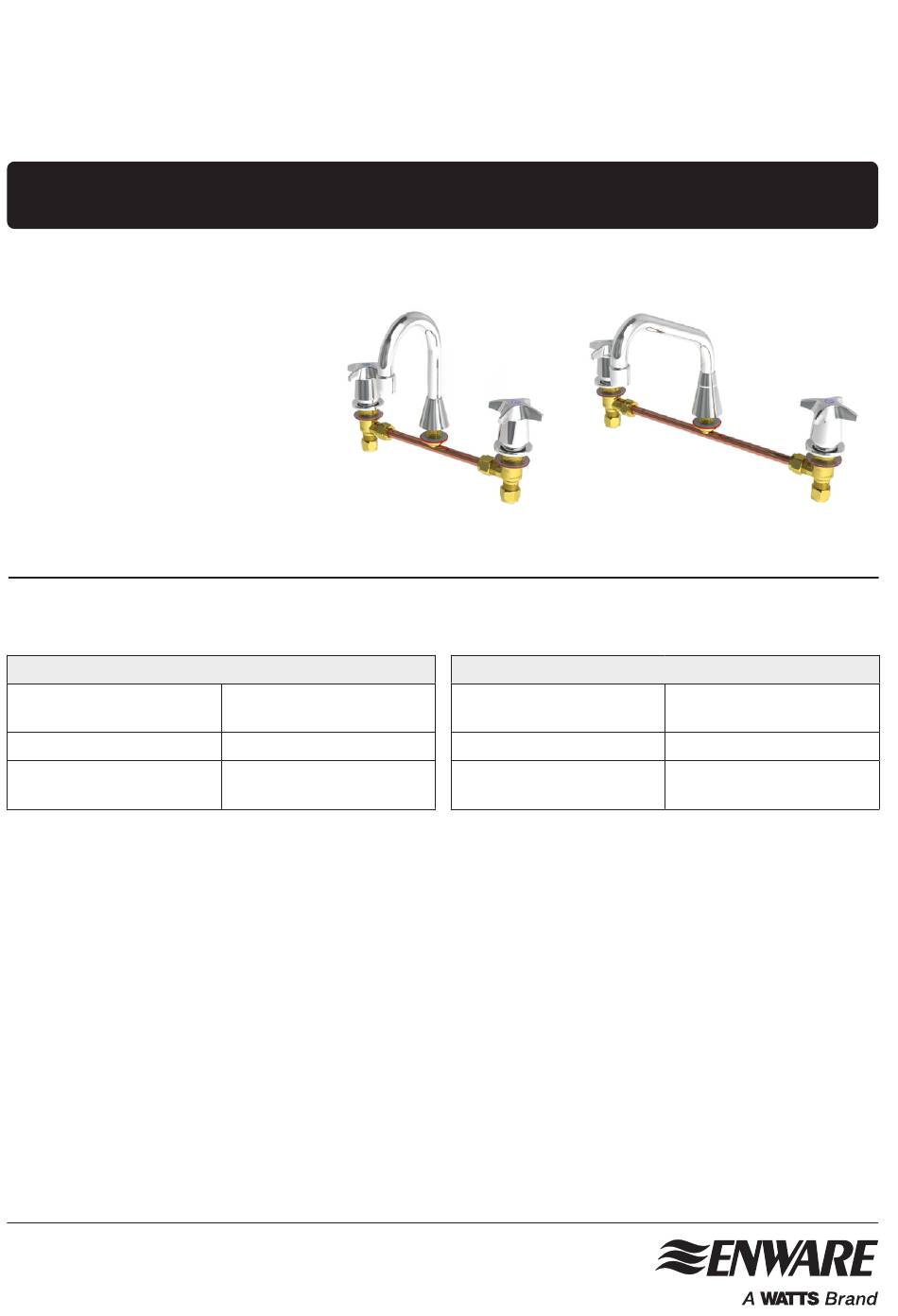

Concealed Spindle Basin / Sink Set
Installation and Maintenance Instructions
CS306
CS307
CSQ306
technical data
Jumper Valve
Working Pressure Range
Maximum Static Pressure 1200 kPa
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00523_20 Dec 2023
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
95°C
Ceramic Disc
Working Pressure Range
Maximum Static Pressure 800 kPa
Maximum Working
Temperature
Min 50 kPa
Max 500 kPa
85°C
Advertisement
Table of Contents
Related Manuals for Watts ENWARE CS306
Summary of Contents for Watts ENWARE CS306
- Page 1 Concealed Spindle Basin / Sink Set Installation and Maintenance Instructions CS306 CS307 CSQ306 technical data Jumper Valve Ceramic Disc Working Pressure Range Min 50 kPa Working Pressure Range Min 50 kPa Max 500 kPa Max 500 kPa Maximum Static Pressure 1200 kPa Maximum Static Pressure 800 kPa 95°C 85°C...
- Page 2 Top Assembly (Hot) Spout - Swivel pictured (spout will vary depending on model) O-ring Grub Screw Hob Base (for Swivel Spout) Clear Washer (fit top side of basin/sink) Aerator Red Fibre Washer Top Assembly (Cold) (fit bottom side of basin) Basin Flange Back Nut Clear Washer (fit top...
-
Page 3: Installation
installation • All supply lines must be flushed thoroughly to remove debris prior to the installation of this product, as per AS/NZS 3500.1. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements. - Page 4 Jumper Valve Ceramic Disc Top Assembly Top Assembly Circlip Circlip Insert Insert Skirt] Skirt] Dome SBA Spindle Locknut Dome SBA Spindle IMAGE 04 IMAGE 05 5. Assemble tap bodies onto tee piece, measure the centres, and compare this to the centres of tap holes on bench. Cut the tee piece to the required length using tube cutters.
- Page 5 8. Fit dome onto SBA. SEE IMAGE 08 9. Place the skirt onto the spindle. Place insert onto the spindle, and then place Dome the circlip into the groove (second groove from spline) on the spindle. SEE IMAGE 09 10. Place the handle onto the spline of the spindle, then use the spanner key provided to secure the insert with the bottom of the handle.
-
Page 6: Maintenance
maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface. -
Page 7: Troubleshooting
troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet Jumper valve / SBA spindle Remove SBA and inspect. has debris caught in the Remove debris and clean. Water dripping and does mechanism. Install an inline strainer. not shut off Tap seat is damaged Refurbish tap seat using a reseating tool. -
Page 8: Product Warranty Statement
- WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
