Concealed Spindle Dual Mixer
Installation and Maintenance Instructions
CS370
technical data
Jumper Valve
Working Pressure Range
Maximum Static Pressure 1200 kPa
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00528_15 Feb 2024
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
95°C (Jumper Valve)
Advertisement
Table of Contents
Related Manuals for Watts ENWARE CS370
Summary of Contents for Watts ENWARE CS370

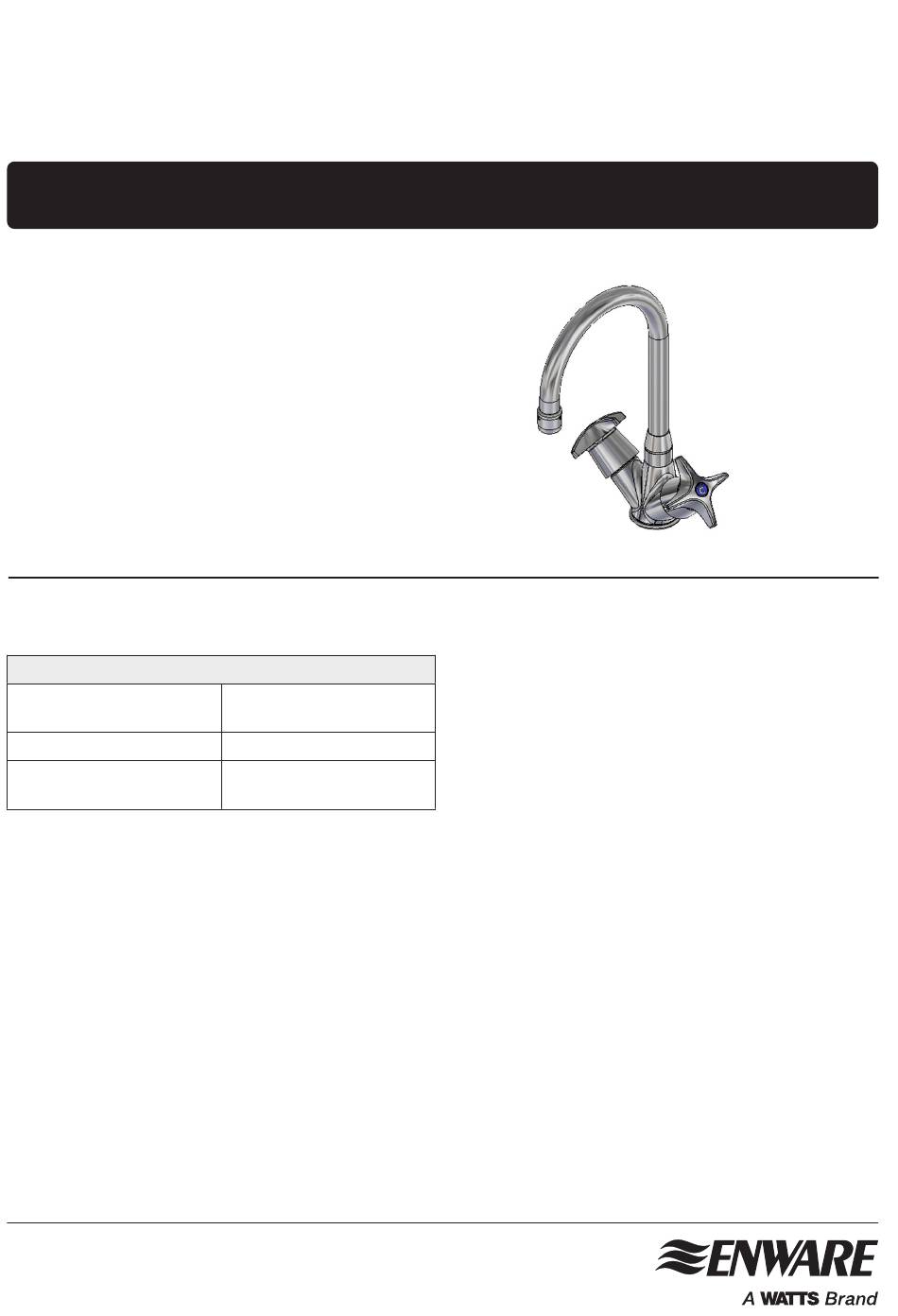

- Page 1 Concealed Spindle Dual Mixer Installation and Maintenance Instructions CS370 technical data Jumper Valve Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 1200 kPa 95°C (Jumper Valve) Maximum Working Temperature Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
-
Page 2: Installation Procedure
installation Ensure all supply lines are flushed thoroughly to remove debris prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. A pressure reduction valve may be required to comply with the recommended maximum supply pressure requirements. - Page 3 6. Remove grub screw from the tap base. Use a 2.5mm Allen key to unscrew. SEE IMAGE 02-3 7. Fit spout onto the tap base. To do this, firstly align the joints straight, then gently but firmly push the male double O-ring spigot into the female connection, taking care not to pinch or damage the O-rings while doing so.
-
Page 4: Maintenance
maintenance ACCESS TO SBA SPINDLE Turn off the water supply and turn on the tap Skirt handle to drain water from the tap bodies Unscrew and remove the skirt from the insert by hand. SEE IMAGE 04 Remove the insert from the handle by using the spanner key, then remove the handle. - Page 5 AERATOR Spout aerator should be checked and cleaned periodically for debris. Unscrew aerator housing on the spout to access the aerator. Inspect and reverse rinse aerator under running water to clear any debris. Replace aerator if necessary. IMAGE 08 CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water.
-
Page 6: Spare Parts
spare parts PART ENWARE SALES CODE SBA - CS Bib / Pillar Jumper Valve CS380 Top Assembly - Bib / Pillar (handle, SBA & dome) CS390 CS handle (incl. circlip, handle insert, skirt, colour indicator, Anti- CS378 Vandal handle key) Anti-vandal handle key MIS590 Colour indicator button (stick-on, Cold, Warm and Hot included) -
Page 7: Troubleshooting
troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet Jumper valve / SBA spindle Remove SBA and inspect. has debris caught in the Remove debris and clean. Water dripping and does mechanism. Install an inline strainer. not shut off Tap seat is damaged Refurbish tap seat using a reseating tool. -
Page 8: Product Warranty Statement
- WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
