Concealed Spindle
Cistern / Hose / Washing Machine / Bib Taps
Installation and Maintenance Instructions
CS303
CS305FDC
CS305M
CS313
CS322F
CS325F
technical data
Jumper Valve
Working Pressure Range
Maximum Static Pressure 1200 kPa
Maximum Working
Temperature
Inlet Connection
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00527_20 Dec 2023
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
95°C
1/2" BSP
Advertisement
Related Manuals for Watts ENWARE CS303
Summary of Contents for Watts ENWARE CS303

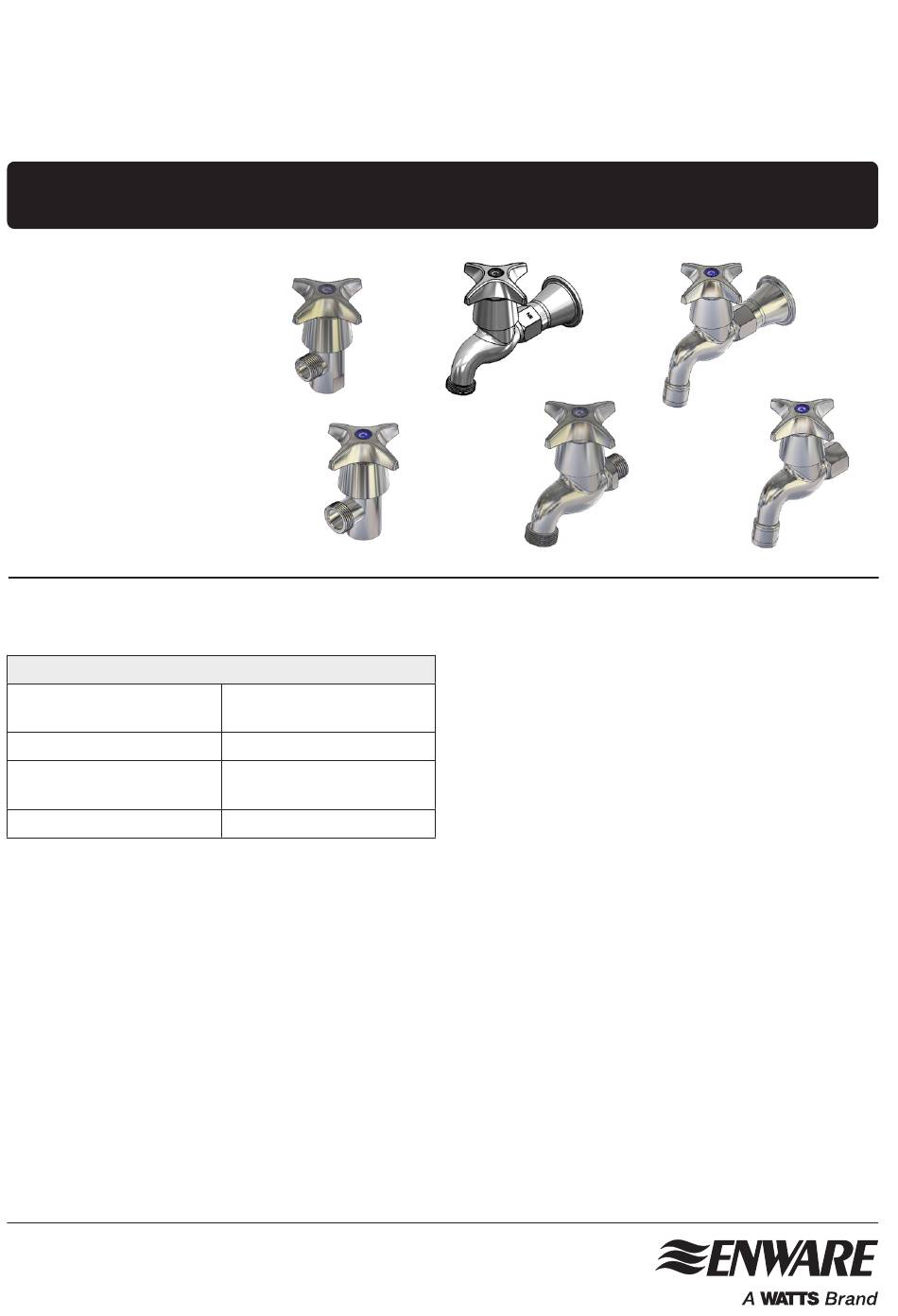

- Page 1 Concealed Spindle Cistern / Hose / Washing Machine / Bib Taps Installation and Maintenance Instructions CS303 CS305FDC CS305M CS313 CS322F CS325F technical data Jumper Valve Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 1200 kPa 95°C Maximum Working Temperature Inlet Connection...
- Page 2 installation Ensure all supply lines are flushed thoroughly to remove debris prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. A pressure reduction valve may be required to comply with the recommended maximum supply pressure requirements.
- Page 3 maintenance ACCESS TO SBA SPINDLE Turn off the water supply and turn on the tap Skirt handle to drain water from the tap bodies Unscrew and remove the skirt from the insert by hand. SEE IMAGE 04 Remove the insert from the handle by using the spanner key, then remove the handle.
- Page 4 AERATOR Spout aerator should be checked and cleaned periodically for debris. For Anti-Vandal Aerator, use aerator key to unscrew spout aerator. Inspect and reverse rinse aerator under running water to clear any debris. Replace aerator if necessary. IMAGE 08 CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water.
- Page 5 spare parts PART ENWARE SALES CODE SBA - CS Bib / Pillar Jumper Valve CS380 Top Assembly - Bib / Pillar (handle, SBA & dome) CS390 CS handle (incl. circlip, handle insert, skirt, colour indicator, Anti- CS378 Vandal handle key) Anti-vandal handle key MIS590 Colour indicator button (stick-on, Cold, Warm and Hot included)
- Page 6 troubleshooting PROBLEM CAUSE RECTIFICATION Water leaking from outlet Jumper valve / SBA spindle Remove SBA and inspect. has debris caught in the Remove debris and clean. Water dripping and does mechanism. Install an inline strainer. not shut off Tap seat is damaged Refurbish tap seat using a reseating tool.
- Page 7 - WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
- Page 8 1300 369 273 info@enware.com.au enware.com.au...
