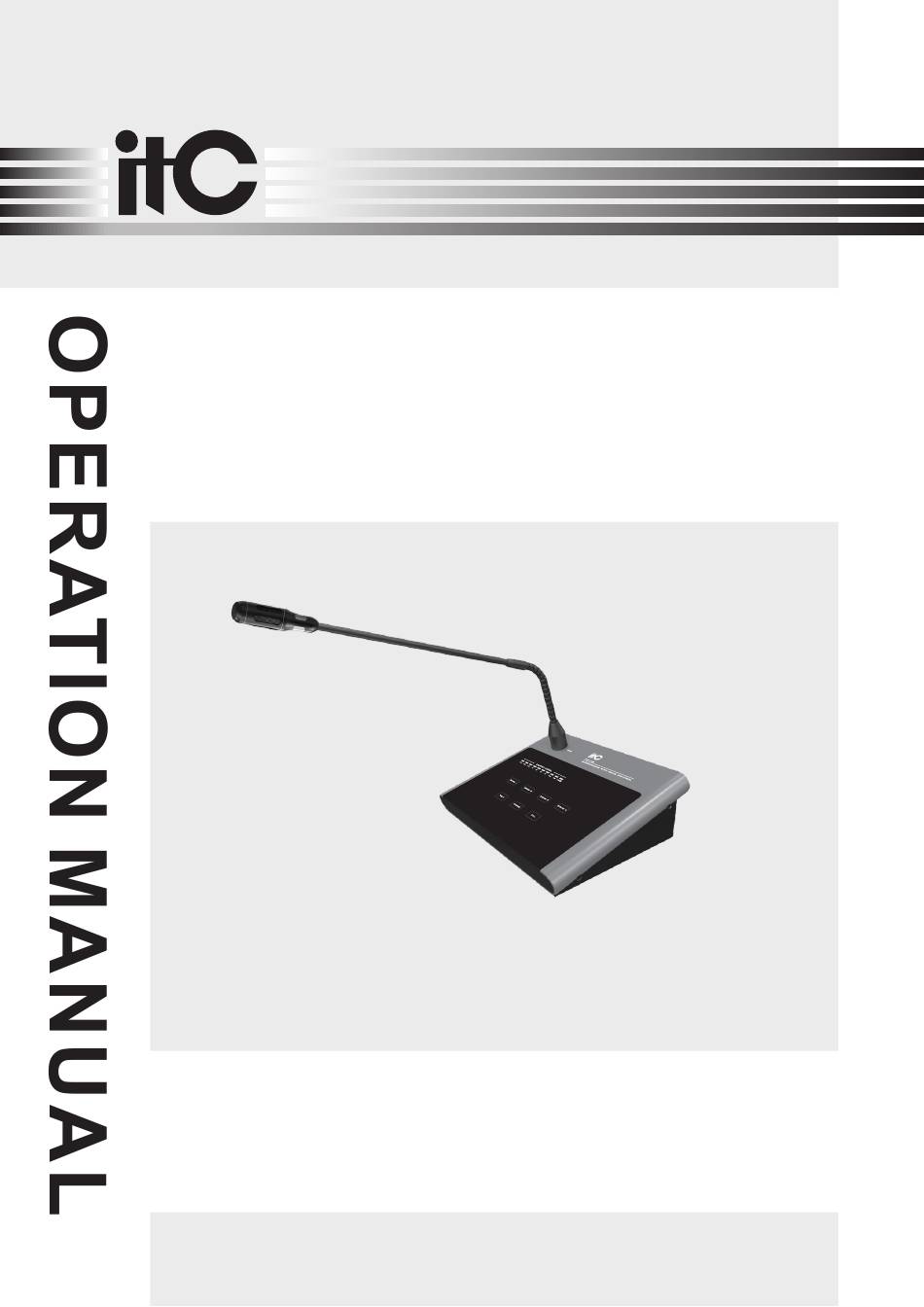

- Page 1 PUBLIC ADDRESS SYSTEM T-214B MICROPHONE WITH ZONE CONTROL Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................1 2. FEATURES .......................3 3. NOMENCLATURE AND FUNCTIONS 3.1 Front Panel ......................4 3.2 Rear Panel ......................4 4. OPERATION ......................5 5. APPLICATIONS .......................9 6. BLOCK DIAGRAM ....................10 7. SPECIFICATIONS ....................11... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or...
-
Page 5: Features
5. Automatic standby function, when the machine does not detect the signal for 1 minute, the call will be automatically closed, and the call button will be extinguished. 6. 24V DC power input. 7. RS485 online port, can cascade 4 T-214B. 8. Adjustment of MIC/chime/main volume. 9. There are 10-segment volume level display on the panel. -
Page 6: Nomenclature And Functions
3. NOMENCLATURE AND FUNCTIONS 3.1 FRONT PANEL T-214B MICROPHONE WITH ZONE CONTROL 3.2 REAR PANEL POWER 0.5A CHIME MASTER LINK CHIME VOL. VOL. VOL. CHIME1 CHIME2 10 11 12 13 1. MIC port; 2. 10-segment volume level display; 3. Zone selection button;... -
Page 7: Operation
OPERATION Power switching POWER 0.5A CHIME MASTER LINK CHIME VOL. VOL. VOL. CHIME1 CHIME2 POWER 0.5A Fig 4.1 When the power switch to "ON", power supply is started, the power indicator light turn on. When the power switch to "OFF", the power is been shut down, the power indicator light turn off. Note: 安... - Page 8 OPERATION Application way of Chime T-214B T-214B MICROPHONE WITH ZONE CONTROL MICROPHONE WITH ZONE CONTROL ① ② Fig 4.3 Press "Chime" on the panel on normal working status to make the indicator light to turn on , then press "Talk" button, the Chime will normally output.
- Page 9 OPERATION MIC input T-214B MICROPHONE WITH ZONE CONTROL T-214B MICROPHONE WITH ZONE CONTROL Fig 4.5 When microphone insertion, the power supply will start-up, then start calling button, can call each separated zones or whole zones. The volume can be adjusted by the controller on the rear panel;...
- Page 10 OPERATION LED display status There are optional and automatic inclusion functions between 1~4 zone selection and ALL zone selection. The red indicator is the currently selected state, and the blue is the default state. The audio level indication is based on 0DB only. 4.10 Queue preemptively set Press the call button of the local handset.
-
Page 11: Applications
5. APPLICATIONS REAR PANEL CONNECTIONS... -
Page 12: Block Diagram
6. BLOCK DIAGRAM VOLUME MIC-INPUT MASTER VOLUME LINK CHIME VOLUME CHIME CHIME 1 CHIME 2 LEVEL DISPLAY DISPLAY TOUCH... -
Page 13: Specifications
7. SPECIFICATIONS Model T-214B MicrophoneType Condenser Microphone CommunicationWay RS-485 Control Capacity 4 Zones OutputLevel 1V/600Ω FrequencyResponse 80Hz-16KHz (+1/-3dB ) ≤1% PowerConsumption 1KM (when ≥50m, a separate 24V external power CommunicationDistance adapter is required) InputPower DC 24V Size 170x142x54mm Weight 960g... -
Page 14: Public Address System
PUBLIC ADDRESS SYSTEM Version 0.2...
