Summary of Contents for ITC T-216

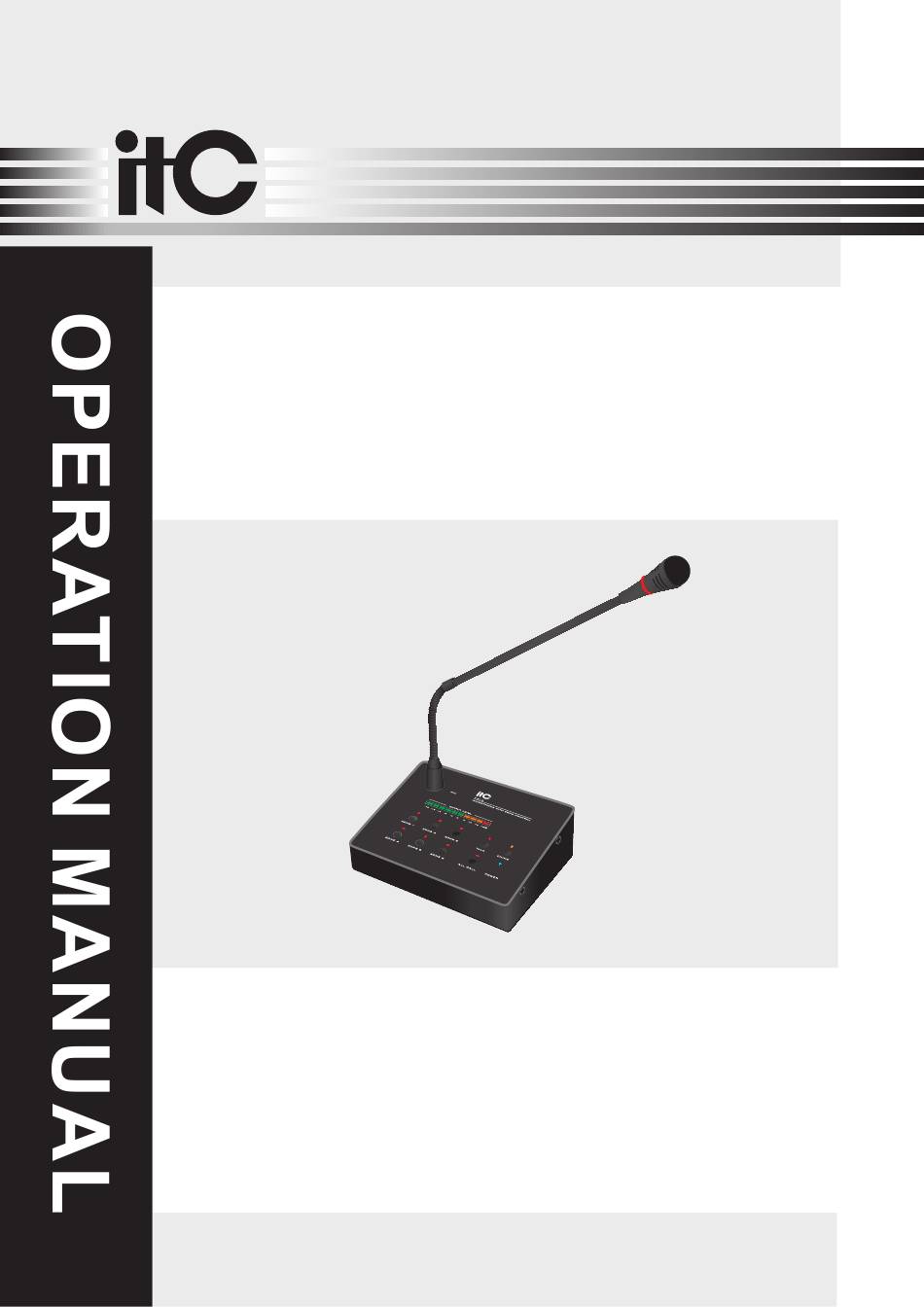

- Page 1 PUBLIC ADDRESS SYSTEM T-216 MICROPHONE WITH ZONE CONTROL Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
- Page 2 TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................1 2. FEATURES .......................3 3. NOMENCLATURE AND FUNCTIONS 3.1 Front Panel ......................4 3.2 Rear Panel ......................4 4. OPERATION ......................5 5. APPLICATIONS .......................9 6. BLOCK DIAGRAM ....................10 7. SPECIFICATIONS ....................11...
- Page 3 1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
- Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or...
- Page 5 2. FEATURES You can select any calling from zone 1 to zone 6 or for all zones manually. It is available online and with priority queue function. There are two RS485 online interfaces Independent power switch with LED indicator on the panel. Chime function: both choices of 2 tones and 4 tones MIC/Chime/Main Volume Control Panel with 10-segment volume level display...
- Page 6 3. NOMENCLATURE AND FUNCTIONS 3.1 FRONT PANEL T-216 MICROPHONE WITH ZONE CONTROL OUTPUT LEVEL -18 -15 -12 +6 +9dB ZONE 1 ZONE 2 ZONE 3 TALK CHIME ZONE 5 ZONE 4 ZONE 6 ALL CALL POWER 3.2 REAR PANEL POWER...
- Page 7 4. OPERATION 4.1 Power switching POWER 500mA LINK CHIME CHIME MASTER VOL. VOL. VOL. 4 TONE 2 TONE POWER 500mA Fig 4.1 When the power switch to "ON", power supply is started, the power indicator light turn on. When the power switch to "OFF", the power is been shut down, the power indicator light turn off. Note: 安...
- Page 8 OPERATION 4.3 Application way of Chime T-216 T-216 MICROPHONE WITH ZONE CONTROL MICROPHONE WITH ZONE CONTROL OUTPUT LEVEL OUTPUT LEVEL -18 -15 -12 +6 +9dB -18 -15 -12 +6 +9dB ZONE 1 ZONE 2 ZONE 3 TALK CHIME ZONE 1...
- Page 9 OPERATION 4.5 MIC input T-216 MICROPHONE WITH ZONE CONTROL OUTPUT LEVEL -18 -15 -12 +6 +9dB ZONE 1 ZONE 2 ZONE 3 TALK CHIME ZONE 4 ZONE 5 ZONE 6 ALL CALL POWER Fig 4.5 When microphone insertion, the power supply will start-up, then start calling button, can call each separated zones or whole zones.
- Page 10 ZONE 5 ZONE 6 ALL CALL POWER ALL CALL POWER ALL CALL POWER first second sixth Note: one main unit can only connect with 6 units of T-216 and make sure to set up different ID number in every unit.
- Page 11 5. APPLICATIONS REAR PANEL CONNECTIONS...
- Page 12 6. BLOCK DIAGRAM...
- Page 13 7. SPECIFICATIONS Model T-216 Condenser microphone Communication Mode RS-485 Capacity 6 zone Input Sensitivity 10mV ± Frequency response 80-16KHz ( 3dB) Harmonic Distortion Power Consumption 1Km(Configurate 24V External power supply is needed Transmission distance when distance more than 50m) DC 24V/500mA...
- Page 14 PUBLIC ADDRESS SYSTEM VersionV0.1...
