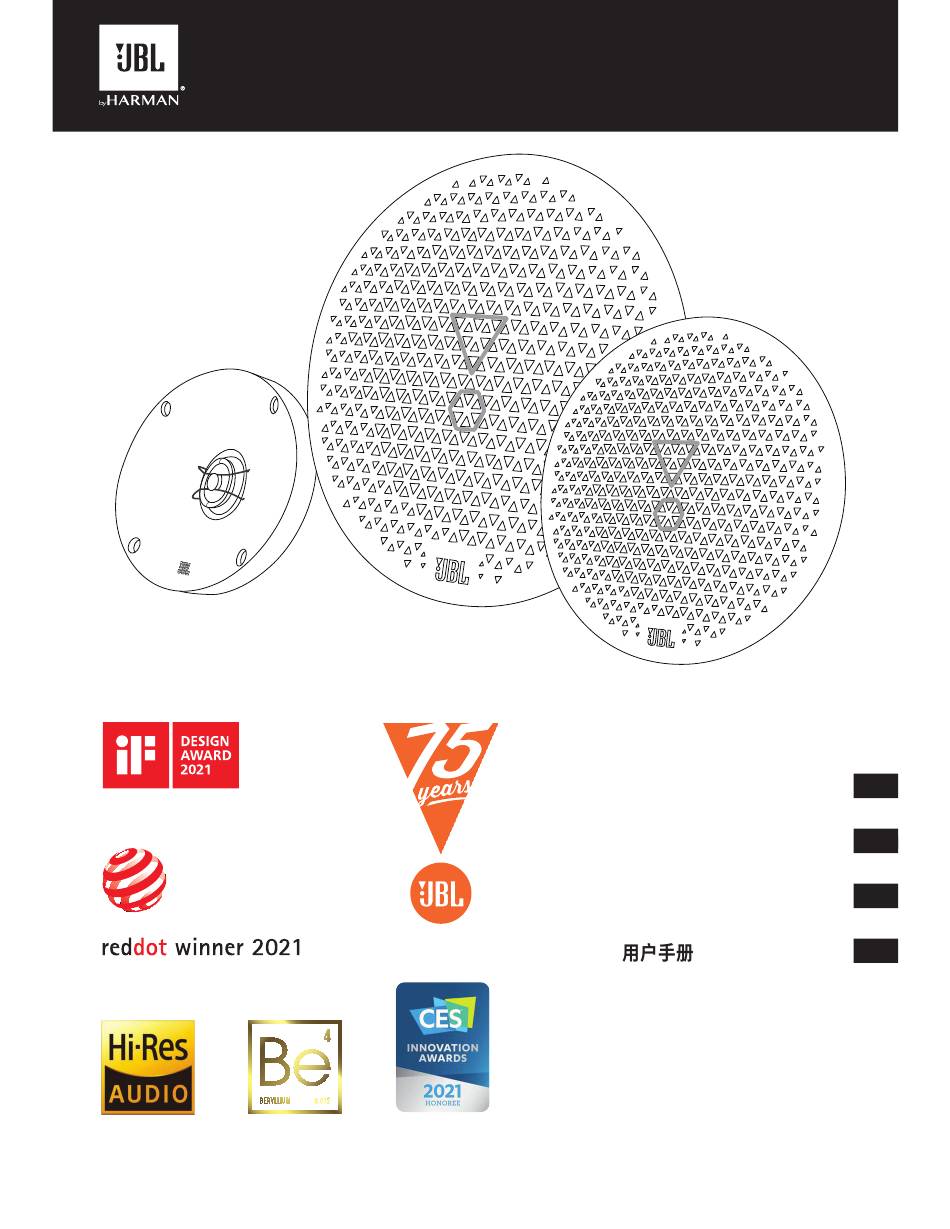

- Page 1 JBL Arena X Component System Owner's Manual Mode d’emploi Manual de propietario ZH-CN...
- Page 2 PRODUCT OVERVIEW The JBL Arena X is our 75th Anniversary flagship automotive loudspeaker and is the recipient of the 2021 CES Innovation Award. It is a 3-way system designed to be part of an active DSP system. The attractive magnetic grilles and innovative mounting rings allow for seamless, elegant installation with no visible fasteners.
- Page 3 JBL Arena X Component System WHAT’S IN THE BOX • Using your vehicle’s factory midrange locations, if it has them, and the drivers will fit in those locations. • Mounting the near the top of the doors or on the A-pillar in a custom enclosure (wood or fiberglass, for example) that you...
- Page 4 • Connect each driver – tweeter, midrange, and woofer – directly to its own channel on the amplifier(s). IMPORTANT: Because of the lower impedance of the JBL Arena X drivers, do not wire two or more of them in parallel on the same amplifier channel;...
- Page 5 HARMAN International Industries, © 2021 HARMAN International Industries, Incorporated. All rights reserved. Incorporated 8500 Balboa Boulevard, JBL is a trademark of HARMAN International Industries, Incorporated, Northridge, CA 91329 USA registered in the United States and/or other countries. Features, specifications www.jbl.com and appearance are subject to change without notice.
- Page 6 The Ultimate Music Experience. Dare to Listen! Features 1-inch Edge-Driven Pure Beryllium The JBL Arena X is the flagship automotive loudspeaker from our Arena Series. It includes Dome Tweeter a 25mm (1-inch) beryllium tweeter driven by a powerful neodymium motor structure for the ultimate in lightweight performance.
- Page 7 It makes your loudspeakers stand out among crowd. Magnetic absorption technology makes installation a breeze. © 2021 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN HARMAN International Industries, Incorporated International Industries, Incorporated, registered in the United States and/or other countries. Features, specifcations 8500 Balboa Boulevard, Northridge, CA 91329 USA www.jbl.com...
