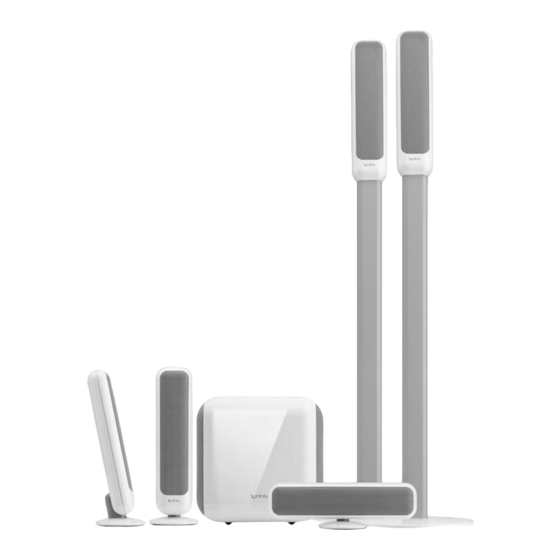

PHI 5.1 / 230
PHI 2.1 / 230
Compact Movie and Music Systems
SYSTEM CONTENTS
BASIC SPECIFICATIONS
2.1 PACKAGE LIST AND PARTS
5.1 PACKAGE LIST AND PARTS
SATELLITE EXPLODED VIEW / PARTS
Released EU2010
CONTENTS
CENTER EXPLODED VIEW / PARTS
2
SUB EXPLODED VIEW / PARTS
3
FLOOR STAND EXPLODED VIEW / PARTS
4
PARTS LIST
5
SUBWOOFER SYSTEM DIAGRAM
6
SUBWOOFER SCHEMATIC DIAGRAM
Harman Consumer Group, Inc.
8500 Balboa Boulevard
Northridge, California 91329
PHI / 230 service Manual
Service Manual
Rev 0, 03/2010
7
8
9
10
15
16
Page 1 of 16
Advertisement
Related Manuals for Harman Infinity PHI 5.1 / 230
Summary of Contents for Harman Infinity PHI 5.1 / 230
- Page 1 2.1 PACKAGE LIST AND PARTS PARTS LIST 5.1 PACKAGE LIST AND PARTS SUBWOOFER SYSTEM DIAGRAM SATELLITE EXPLODED VIEW / PARTS SUBWOOFER SCHEMATIC DIAGRAM Released EU2010 Harman Consumer Group, Inc. Rev 0, 03/2010 8500 Balboa Boulevard Page 1 of 16 Northridge, California 91329...
-
Page 2: Planning Your System
Infinity PHI / 230 service Manual NTRODUCTION LANNING YSTEM Before deciding where to best place your speakers, survey your room an Infinity PHI Series study Figures 1 and 2. The illustrations depict how to position the PHI 51 The PHI Series of loudspeakers continues Infinity’s longstanding system. -
Page 3: Specifications
Infinity PHI / 230 service Manual PECIFICATIONS PHI Satellite and Center Enclosure type: Closed Frequency Range: 200Hz-22kHz(±3dB) Recommended Amp Power Range: 25-100Watts Sensitivity (2.83V @ 1meter): 84dB Nominal Impedance: 4 ohms Crossover Frequency: 2500Hz, 12dB/Octave Midrange Driver (S): 4 x 50mm (2 inch) neodymium woofer (Magnetically Shielded) 19mm (3/4 inch) soft dome tweeter (Magnetically Shielded) High-Frequency Driver: Dimensions (HxWxD):... - Page 4 PHI / 230 service Manual Infinity Frank 08.04.29 17 18 19 Infinity PHI 2.1 Package List and Parts CARTON ICCA00128-0001 Carton Serial label YLAB07015-0003 Serial label SAT YLBA07015-0001 一一一一 Back label YLBA05086-0001 L56.5*W35.4 COPPER PAPER 一一一一 Trash can Label YLBA24030-0001 L20.4*W8.7 COPPER PAPER Date label YLBA21001-0001...
- Page 5 Infinity PHI / 230 service Manual Frank 08.04.29 Infinity PHI 5.1 Package List and Parts Carton Serial label YLAB07015-0003 Serial label CEN 一一一一 YLBA07015-0004 CARTON ICCA00128-0001 Date label YLBA21001-0001 Serial label SUB L20.4*W8.7 COPPER PAPER YLBA05088-0001 一一一一 Serial label SAT YLBA07015-0002 PE BAG L700*W620*T=0.038...
- Page 6 PHI / 230 service Manual Infinity Frank 08.04.28 Infinity PHI Satellite Exploded View Hexagon nut L10*W6 M4.0 HOT002021-0001 Screw FM6.0*L12 P1.0 HSF053133-1120 Inset nut Ø8.6*10.0 M6.0 HOT005007-0001 Speaker Terminal L30*W32.5*H62.1 ABS BPVA00017-0002 Terminal Cover L29.7*W13.4*H62.0 ABS BPVA00017-0001 BINDING POST(RED) HOT008032-0002 L22.5*Ø`10 M4.0 Brass BINDING POST(BLK) HOT008032-0001...
- Page 7 Infinity PHI / 230 service Manual Frank 08.04.28 19 20 21 CEN GRILLE L324.5*W64.5*H13.5 T=0.5 SPCC 1 GSNA05003-0002 NON-WEAVE IVSA10021-0002 L290.0*W6.0*T=0.3 BLACK NON-WEAVE IVSA10021-0001 L39.0*W6.0*T=0.3 BLACK CEN OUT BAFFLE L345.0*W85.0*H21.0 T=1.2 AL-1100 1 ASLA00242-0003 Screw FT3.5*L14 P1.41 HSF050073-4140 CEN BAFFLE BPFA00038-0001 L342.0*W82.2*H24.0 ABS EVA PAD...
- Page 8 Infinity PHI / 230 service Manual Frank 08.04.29 Infinity PHI Subwoofer Exploded View ASLA00224-0002 NET CLOTH IVNA00017-0001 L382*W382 RC-265-31 Screw NST855051-8200 BT4.0*L18 P1.58 8 INCH WOOFER ASLA00124-0001 Acoustic Absorb IVMA50005-0001 L250.0*W230 T35 Yellow FOOT BRFA00033-0001 Ø25*12.2 SI stand off 外外外外 DSS100038-0001 EVA PAD IVEA00116-0001...
- Page 9 PHI / 230 service Manual Infinity Frank 08.04.29 Infinity PHI Floor Stand Exploded View Screw HSB053123-4150 BM5.0*L15 P0.8 Stand Top Fitting L60*W57.4*H79.4 ABS BPCA00005-0001 Screw HOT008034-0001 BM6.0*L62 P1.0 Stand Column GALA00179-0001 L800*W60.0*T1.5 AL-6063 BASE COVER BPBA00016-0001 Ø270*H14.0 ABS Stand Base Weight GSPA00081-0001 Ø264.5*T6.0 冷冷冷...
- Page 10 Infinity PHI / 230 service Manual INFINITY PHI 5.1 and 2.1 SPEAKER SYSTEM WITH STANDS Electrical and mechanical parts list Component No. Description Size/Dimensions UOM Qty. PHI 8" ACTIVE BASS REFLEX SUBWOOFER APEA00431-0002 MAIN PCB ASS'Y 21 51 PHI SUB (Digital Amp) 1.000,00 APEA00432-0002 CONTROL PCB ASS'Y 21 51 PHI SUB Input PCB)
- Page 11 Infinity PHI / 230 service Manual Component No. Description Size/Dimensions UOM Qty. PHI 8" ACTIVE BASS REFLEX SUBWOOFER RHI007915-1001 IC 3 PIN AN7915T SAMSUNG REGULATOR 1.000,00 CCN250000-0106 GP CONNECTOR B6B-XH-A 6 PIN POST BASE TOP P=2.5 1.000,00 VWA300011-0002 C/W 3P 260mm 1015#22 RED-WHITE-BLACK A=3.96MM B=3.96SDN 1.000,00 VWT130121-0420...
- Page 12 Infinity PHI / 230 service Manual Component No. Description Size/Dimensions UOM Qty. PHI 8" ACTIVE BASS REFLEX SUBWOOFER HSP053083-3080 SCREW M3.0x0.5PxL8mm PAN HEAD BLK TYPE B 4.000,00 HSP040053-3080 GP SCREW T3.0x1.06PxL8mm PAN HEAD BLK B 3.000,00 DKN001004-0001 VR KNOB RUBBER+ABS OD16xH15 BLACK 2.000,00 MSW108001-0015 LEVER SW W/"-"MARK LIGHT COUNTRY...
- Page 13 Infinity PHI / 230 service Manual Component No. Description Size/Dimensions UOM Qty. MAIN SPEAKER FOR PHI SATELLITE QHE505000-1890 RESISTOR 1.8 OHM 5W 5% AXIAL L22XW10XD10MM WHITE 4.000,00 QHE505000-3390 RESISTOR 3.3 OHM 5W 5% AXIAL L22XW10XD10MM WHITE 4.000,00 PLE339370-3391 COND ELECT 3.3uF 50V 5% -40-85' 10x16 NON-POLAR DF<4%@1KHZ BLUE 4.000,00 PLE339370-8090...
- Page 14 Infinity PHI / 230 service Manual Component No. Description Size/Dimensions UOM Qty. MAIN SPEAKER FOR PHI CENTER PLE339370-1500 COND ELECT 15uF 50V 5% -40'-85' 10x16 NON-POLAR DF<6%@1KHZ BLUE 1.000,00 SIL017021-7510 COMMON COIL 0.75mH 5% D0.4mm DCR0.6 OHM 10% 10X35X30 1.000,00 SIL017020-1010 COMMON COIL 0.1mH 5% D0.9mm DCR 0.2 OHM 10% C30XB15XA35...
- Page 15 Infinity PHI / 230 service Manual PD125 Analog Subwoofer Amplifier Control PCBA Power PCBA Analog Phase Volume order Limiter Power Stage Speaker Input, 2 RCA, 2 Toggle Control variable (Philips (4 Ohm) signal Speaker level Switch cutoff & TDA8920B), order 125 W @ 1% Power Stage...
- Page 16 Infinity PHI / 230 service Manual Page 16 of 16...
