Soundweb
London
TM
BLU-100
Installation Guide
5033738-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSS Soundweb London BLU-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman BSS Soundweb London BLU-100

Summary of Contents for Harman BSS Soundweb London BLU-100

  • Page 1 Soundweb London BLU-100 Installation Guide 5033738-E...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: READ THESE INSTRUCTIONS. KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS. FOLLOW ALL INSTRUCTIONS. The symbols shown above are internationally accepted symbols that warn DO NOT USE THIS APPARATUS NEAR WATER. of potential hazards with electrical products. The lightning flash with arrowpoint in an equilateral triangle means that there are dangerous CLEAN ONLY WITH A DRY CLOTH.

  • Page 4: Electromagnetic Compatibility

    WARNING: IF THE GROUND IS DEFEATED, CERTAIN FAULT CONDITIONS IN THE UNIT OR IN THE SYSTEM TO WHICH IT IS CONNECTED CAN RESULT IN FULL LINE VOLTAGE BETWEEN CHASSIS AND Harman Professional Inc. 10653 S. River Front Parkway, Suite 300 EARTH GROUND.

  • Page 5: Consignes De Sécurité Importantes

    CONSIGNES DE SÉCURITÉ IMPORTANTES AVERTISSEMENT POUR VOTRE SÉCURITÉ LIRE ATTENTIVEMENT : LIRE CES CONSIGNES. CONSERVER CES CONSIGNES. RESPECTER TOUS LES AVERTISSEMENTS. SUIVRE TOUTES LES CONSIGNES. NE PAS UTILISER CET APPAREIL PRÈS DE L’EAU. Les symboles illustrés ci-dessus sont des symboles acceptés internationalement qui avertissent des dangers potentiels relatifs à...

  • Page 6: Compatibilité Électromagnétique

    VERT ATTENTION : UN DÉFAUT DE MISE À LA TERRE PEUT PROVOQUER CERTAINS DYSFONCTIONNEMENTS Harman Professional Inc DE L'APPAREIL OU DU SYSTÈME AUQUEL IL EST RELIÉ, POUVANT SE TRADUIRE PAR UNE TENSION COM- 10653 S. River Front Parkway, Suite 300 POSÉE ENTRE LA MASSE ET LA PRISE DE TERRE.

  • Page 7: Product Registration/Warranty

    Product Registration/Warranty To register your product, please visit http://bssaudio.com/en-US/support/warranty_registration. For warranty information, please visit http://bssaudio.com/en-US/support/warranty_policy. Mechanical Installation If the unit is likely to undergo extreme vibration through extensive road trucking and touring, the unit must be supported at the rear and/or sides to lessen the stress on the front mounting flange. Rear rack supports are provided to reduce stress on front mounting flange.

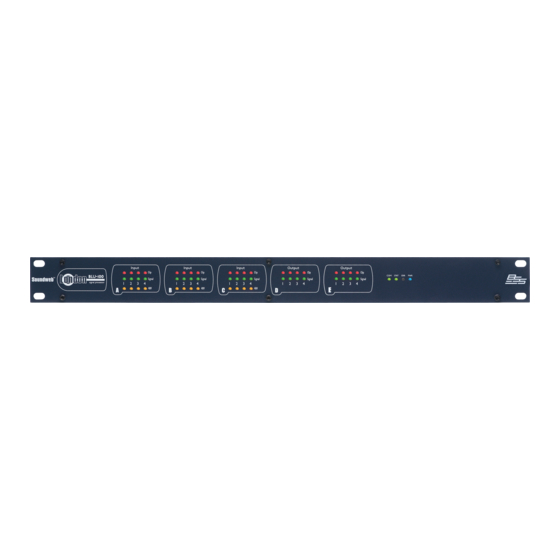

  • Page 8: Front Panel

    Front Panel Input/Output Channel Monitoring Each channel has the following LED indicators: Clip Indicates clipping in the analogue domain for each input or output channel. The LED will illuminate at +18.5dB. Signal The Signal LED will illuminate for each input or output channel when the signal reaches or exceeds the signal threshold of -20dB.
  • Page 9 Audio Cable Wiring All audio and GPIO connections to the BLU-100 are via Klippon pluggable terminal block connectors (also known as BL, Phoenix or Combicon). 12-way female Klippon connectors are supplied for making these connections. Audio Input and Output Wiring Convention Soundweb products provide cable shielding ‘back from the destination’...

  • Page 10: Rear Panel

    Rear Panel AC Mains AC Mains input to the universal switched-mode power supply, operates over a wide range of AC input voltages from 100V to 240V, 50/60Hz. Locate Pressing the Locate switch on the rear of the unit will illuminate the PWR LED on the front and identify the device within London Architect.
  • Page 11 2-Wire Mode In this mode the twelve CONTROL INPUTS are internally ‘pulled up’ to +5V DC via a 4.7kOhm resistor. Therefore, no external voltage source is needed to create contact closure to ground for switches such as mute buttons or, resistance to ground (for other multi-state or continuous controls such as Parameter Presets or faders).
  • Page 12 OPTO Output In addition to the six standard LOGIC OUTPUTS, there is an isolated output, which fails safe (open circuit) if the unit becomes faulty. 47kOhm 10K-100kOhm linear potentiometer potentiometer unconnected ladder ladder switch switch 2 wire mode 3 wire mode +supply voltage relay...

  • Page 13: Technical Specifications

    Technical Specifications FRONT PANEL LED INDICATORS: Signal Clip, Signal Present, 48V (input only) Other: Control link status and activity for Ethernet and RS-232 connections (COM); Device configuration status (STAT); Error (ERR); Power/Locate (PWR) ANALOGUE INPUTS: 12 electronically balanced on Phoenix/Combicon removable screw connectors Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to +48dB,...
  • Page 14 WATCHDOG OUTPUT: Phoenix/Combicon connector for failsafe control Opto Output Current: 14mA maximum Withstanding Voltage: 80V maximum (Off) Series Impedance: 220 Ohms (isolated) CONTROL NETWORK Connectors: RJ45 Ethernet connector Maximum Cable Length: 100m/300ft on Category 5 cable between device and Ethernet switch Maximum Number of Nodes: BLU link AUDIO NETWORK Connectors:...
  • Page 16 Phone: (801) 566-8800 Website: bssaudio.com Support: bssaudio.com/en-US/support BSS Audio is a registered trademark of HARMAN © 2017 HARMAN All rights reserved Printed in Malaysia...
