- Page 1 APPLICATION GUIDE...
- Page 2 JBL Commercial CS SERIES Generic Copper Wire Application Guide Mic/Line Cable The JBL Commercial CS (Commercial Solutions) Series consists of paging microphones (CSPM), mixers (CSM), remotes (CSR), amplifiers (CSA), transformers (CST), and speakers (CSS)—all designed to work optimally with one another as a true system solution.

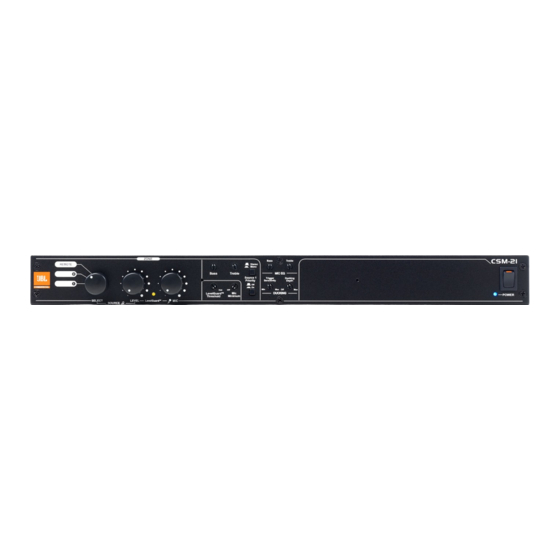

- Page 3 JBL Commercial CS SERIES Application Guide Rack EON 315 EON 315 C 544 L CSM‐21 Front Panel View YOGA STUDIO Page 2...
- Page 4 Cat 5 Cable JBL Commercial CS SERIES Generic Copper Wire Application Guide Mic/Line Cable Speaker Cable CSR‐2SV CSPM‐1 MP3 Player Fire Alarm Relay Satellite Music Receiver CSM‐21 CSA‐2120 CSS‐1S/T CSS‐1S/T Coffee Shop Zone This small coffee shop has one zone. Employees use the CSR‐2SV remote to adjust volume and to select Satellite Music or their own MP3 player as the source.
- Page 5 JBL Commercial CS SERIES Application Guide CSS- CSS- CSR-2SV 1S/T 1S/T Rack CSPM-1 CSA‐2120 Front Panel View COFFEE SHOP Page 4...
- Page 6 Cat 5 Cable JBL Commercial CS SERIES Generic Copper Wire Application Guide Mic/Line Cable Speaker Cable Jukebox CSR‐V CSR‐3SV Satellite Music CSPM‐2 Music On Hold Fire Alarm Receiver Relay / Sounder CSM‐32 CSA‐2120 CSS‐8004 CSS‐8004 CSS‐8004 CSS‐8004 CSS‐8004 CSS‐8004 Dining Area Zone CST‐2120 CSS‐8008 CSS‐8008...
- Page 7 = CSS‐8004 JBL Commercial CS SERIES Application Guide = CSS‐8008 CSR-3SV DINING AREA Rack CSA‐2120 DIP Switch View CSR-V CSPM-2 RECEPTION It is possible to “clip” the amplifier signal if, for example, the receptionist were to yell into the mic. Not only does clipping sound bad, it can damage the high‐frequency drivers in speakers.
- Page 8 Cat 5 Cable JBL Commercial CS SERIES Generic Copper Wire Application Guide Mic/Line Cable Speaker Cable CSPM‐4 Music On Hold Satellite Music Satellite Music Satellite Music Fire Alarm CSR‐3SV Receiver – Receiver – Receiver – Relay / Sounder Kids Tunes Rock CSM‐32 CSM‐32...
