- Page 1 Soundweb London BLU-BIB Installation Guide 18-0755-A...
- Page 2 DOES NOT break the connection from the mains. As colours of the cores in the mains lead of this appliance may not correspond Harman Music Group MAINS DISCONNECT: The plug shall remain readily operable. For rack- with the coloured markings identifying the terminals in your plug, proceed...

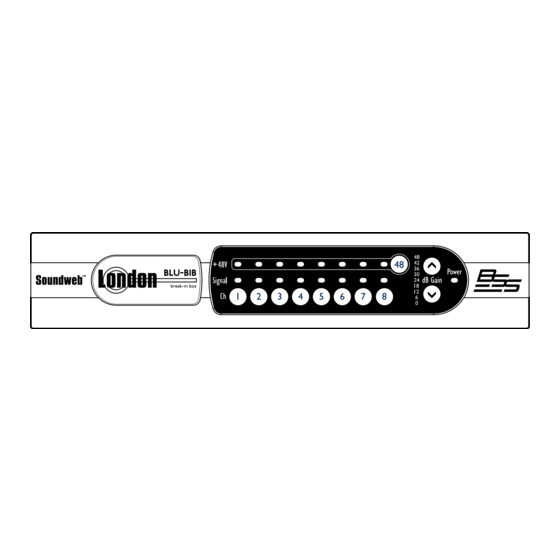

- Page 3 Front panel BLU-BIB +48V The +48V LED illuminates for each channel when the channel is selected. Signal The Signal LED illuminates for each channel where a signal is present. dB Gain The dB Gain LEDs indicate the gain setting for the selected channel. Power The Power LED illuminates when the BLU-BIB device is powered on.
- Page 4 required for assignment to given channels on the Digital Audio Bus, see page 6. The same information is also available on the top lid of the BLU-BIB chassis. Analog Input 1-8 The 8 analog mic/line level inputs utilize the same terminal block connectors as the other members of the Soundweb London family.
- Page 5 To enter Edit Mode (from Normal Mode): • Hold Ch. Buttons 1 + 8 for one second • The Signal LEDs flash GREEN twice • After 60 seconds of inactivity, Normal Mode will automatically be entered To exit Edit Mode (to Normal Mode): •...
- Page 6 T e c h n i c a l S p e c i f i c a T i o n S : front panel leD indicators: Signal Preset/Clip (per input), 48V (per input), Gain (0/6/12/18/24/30/36/42/48dB), and Power analog inputs: 8 electronically balanced on Phoenix/Combicon removable screw connectors Mic/Line Inputs:...
- Page 8 BSS Audio 8760 South Sandy Parkway Sandy, Utah 84070 801-566-8800 www.bssaudio.com Printed in the USA...
