- Page 1 Soundweb London BLU-GPX Installation Guide 5009104-B www.audiovias.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT bE ExPOSED TO DRIPPING OR SPLASHING The symbols shown above are internationally accepted symbols that warn of LIqUID AND NO ObjECT FILLED WITH LIqUID, SUCH AS vASES, SHALL potential hazards with electrical products. - Page 3 Signal Processing 8760 S. Sandy Parkway Sandy, Utah 84070, USA Date: June 12, 2012 European Contact: Your local BSS Audio Sales and Service Office or Harman Professional Inc. 8760 South Sandy Parkway Sandy, Utah 84070 USA Ph: (801) 566-8800 Fax: (801) 568-7583 U.K.
-
Page 4: Regulatory Information
Regulatory Information An example of this equipment has been tested and found to comply with the following European and international Standards for Electromagnetic Compatibility and Electrical Safety: Radiated Emissions (EU): EN55022:2006 Immunity (EU): EN55024:1998 Electrical Safety (EU): IEC60065-01 + AMD2 Important User Information Do not remove covers. -
Page 5: Front Panel

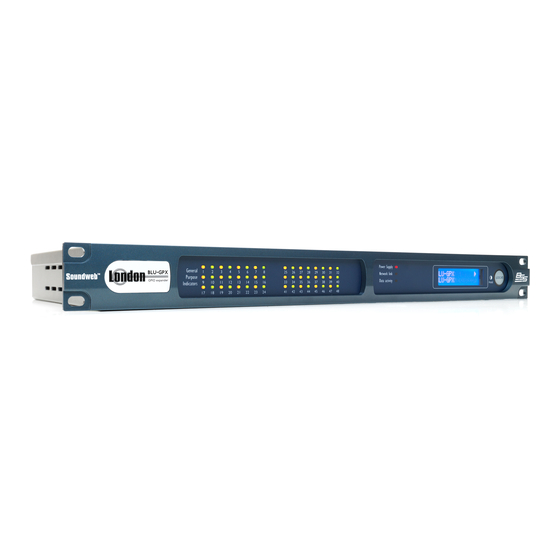

Front Panel General Purpose Indicator LEDs These 48 software-programmable LEDs can be assigned to a control port or can be driven by the Soundweb London Logic system. Each LED is a multi-color indicator capable of red, green, or yellow illumination and can be independently configured within London Architect. -
Page 6: Rear Panel
Rear Panel Primary Power These two PoE-enabled Ethernet ports are used for system communications and for providing primary power to the BLU-GPX. Secondary Power This 12VDC connector is provided for power source backup. The front panel ‘Power Supply’ LED provides convenient indication of power supply status. - Page 7 Relay Outputs 1-8 These 8 integrated RELAY OUTPUTS, each with Normally Open (NO) and Normally Closed (NC) terminals, will open or close in response to HiQnet parameters. They can be connected directly to resistance-controlled electrical components circuits. These RELAY OUTPUTS reduce the need to source and deploy external relays. www.audiovias.com...
-
Page 8: Control Inputs
Control Inputs 2-wire mode In this mode, the CONTROL INPUTS are internally ‘pulled up’ to +5V DC via a 4.7kOhm resistor. Therefore, no external voltage source is needed to create contact closure to ground for switches such as mute buttons or, resistance to ground (for other multi-state or continuous controls such as Parameter Presets or faders). -
Page 9: Relay Outputs
Logic & Opto Outputs Logic & Opto Outputs Logic & Opto Outputs relay relay ground coil ground coil +supply voltage +supply voltage relay relay coil coil Relay Outputs Relay Outputs Relay Outputs relay relay NC = Normally Closed NO = Normally Open NC = Normally Closed C = Common NO = Normally Open... -
Page 10: Technical Specifications
Technical Specifications FRONT PANEL: LED Indicators: 48 Software-Programmable LED Red/Green/Yellow Indicators. Power Supply, Network Link, and Data Activity Other: LCD display, Locate Button CONTROL PORTS: 36 inputs and 23 outputs, 3.5mm Phoenix/Combicon Control Input Voltage: 0 to 4.5v Control Input Impedance: 4.7kΩ... - Page 11 This page intentionally left blank. www.audiovias.com...
