- Page 1 Installation Instructions Universal Tire Carrier Universal Applications S/B8800 For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 2 Introduction Thank you for choosing Smittybilt accessories for your vehicle. If you would like to view our full range of available accessories, please visit us at www.smittybilt.com Winches Defender Platform Roof Rack Kit Waypoint® 55L Dual Zone Fridge Important Notes Before Starting Carefully read through this entire instruction manual thoroughly before attempting to install this part.

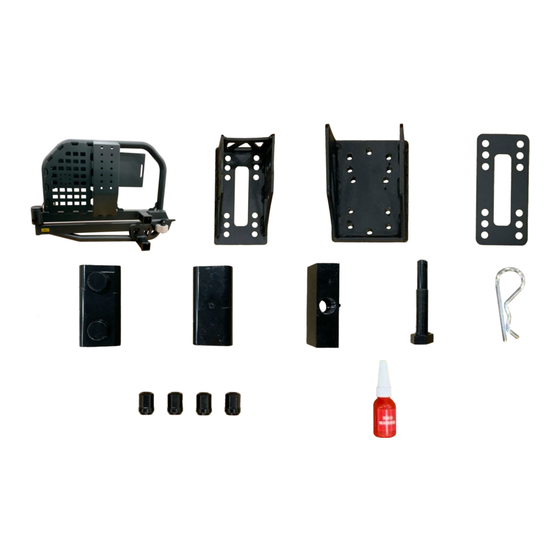

- Page 3 Hitch Pin Clip M12-1.5 Open End Lug Nut Thread Lock For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 *Hardware not actual size. Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 4 Note: You will need to hold this wedge up in place until after the next step. For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025...
- Page 5 Have a helper assist you to install the Universal Tire Carrier into your hitch receiver. For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 6 You can now unlock the handle and open the swingout until it locks in place. For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 7 M12 Flat Washers and (4) M12 Nylon Locking Nuts. Torque hardware to 75ft-lbs. For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 8 See smittybilt.com for more accessories. For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 9 Bolt Pattern Sheet For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 10 Bolt Pattern Sheet For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025 Part # S/B8800...
- Page 11 Use this only as a guide for hardware without a called out torque specification in the instruction manual. For Technical Support / Warranty Information please call 1-800-776-0767 Smittybilt, 1017 W 600 N, Suite 4, Ogden, UT 84404 Universal Tire Carrier Rev 1/10/2025...
- Page 12 5-YEAR FINISH WARRANTY Smittybilt Automotive Products, LLC (SAP) warrants to the original purchaser that (a) the physical components (e.g., metal com- ponents, welds, etc.) of any SAP Universal Tire Carrier will be free of defects in material and workmanship for the lifetime of the product from the date of purchase of the bumper, and (b) the finish will be free of defects in material and workmanship for a period of 5-years from the original date of purchase.
