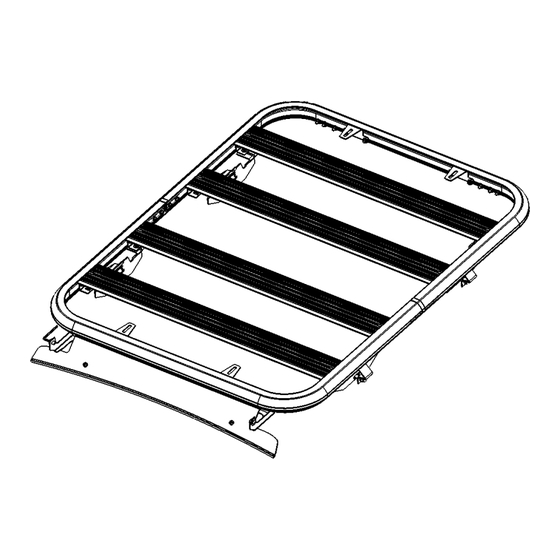

- Page 1 Installation Instructions Defender Platform Mounting Kit 2014 – 2021 Subaru Forester Part #: S/BS03 For Technical Support / Warranty Information please call 800-776-0767 14-21 Subaru Forester Defender Platform Mounting kit Rev 5/23/2023 Part# S/BS03...
- Page 2 Introduction Thank you for choosing Smittybilt accessories for your Subaru Forester. If you would like to view our full range of available accessories, please visit us at www.smittybilt.com Important Notes Before Starting Carefully read through this entire instruction manual thoroughly before attempting to install this part.
- Page 3 Box Contents ID # Description Wind deflector Mounting Bracket A Mounting Bracket B Clamp Bracket Wind deflector trim piece For Technical Support / Warranty Information please call 800-776-0767 14-21 Subaru Forester Defender Platform Mounting kit Rev 5/23/2023 Part# S/BS03...
- Page 4 Installation Instructions Step 1: Installing Wind Deflector Install the wind deflector onto the Defender Platform using 4X pre-installed T bolts. Secure the additional mounting brackets to the Defender Rack using 2X pre-installed T- bolts and secure the wind deflector to the mounting brackets with 2X M6 button heads, flat washers, lock washers and nuts.
- Page 5 Installation Instructions Step 4: Install Mount A 2X Loosely attach mounting bracket A on the rail closest to the drivers side front seat using the Front provided clamp bracket and 2X M8 bolts/nuts. The side closest to the front of the vehicle should be higher than the other.
- Page 6 Bolt Torque Specifications Use this only as a guide for hardware without a called out torque specification in the instruction manual. For Technical Support / Warranty Information please call 800-776-0767 14-21 Subaru Forester Defender Platform Mounting kit Rev 5/23/2023 Part# S/BS03...
- Page 7 5-YEAR FINISH WARRANTY Smittybilt Automotive Products, LLC (SAP) warrants to the original purchaser that (a) the physical components (e.g., metal com- ponents, welds, etc.) of any SAP Jeep JK® Defender Platform Mounting Kit will be free of defects in material and workman- ship for the lifetime of the product from the date of purchase of the Defender Rack Mounting Kit, and (b) the finish will be free of defects in material and workmanship for a period of 5-years from the original date of purchase.
