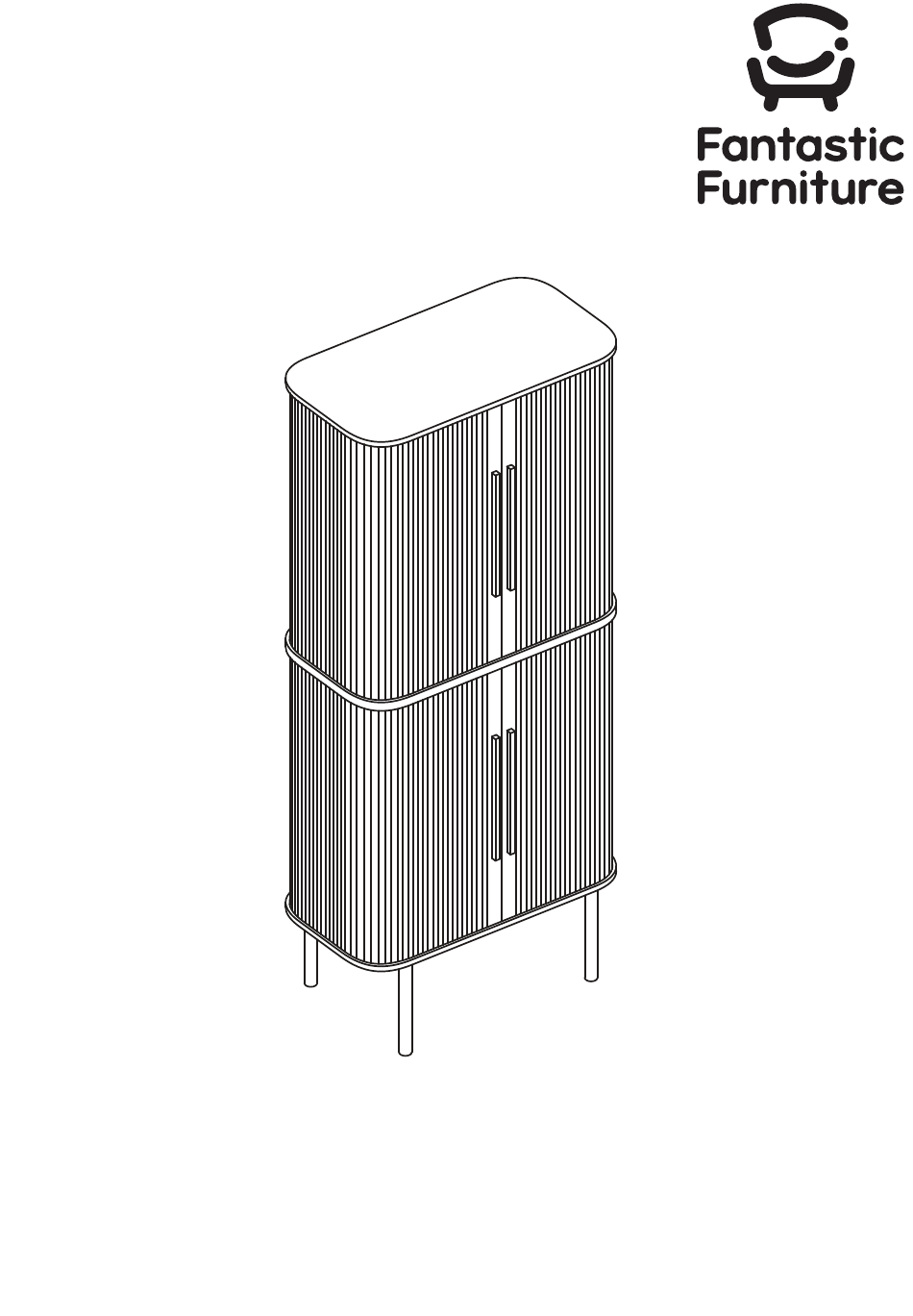

  • Page 1 Version 1.1 Sedona Cabinet 4 Door Light Oak fantasticfurniture.com.au...
  • Page 2 Secure it! Reduce the risk of furniture tip-over accidents Please seek professional advice if you are in doubt of what fixing device to use. Recommended Weight Capacity : 10KG/Shelf • • • Do not • • Wall attachment guide (with available wood stud) (with available wood stud) crew...
  • Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 3...
  • Page 4 Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.
  • Page 5 What you need to assemble the product Centre Shelves Centre Shelves Hardware pack fantasticfurniture.com.au Page 5...
  • Page 6 Step 1 (H6) (H8) (H6) (H6) (H8) (H6) (H8) (H6) (P10) (H8) (H6) (H8) (H6) (P10) Fix 6 x Cam Bolts (H6) into Top Panel (P10), by tightening with a Phillips Head Screwdriver. Insert 4 x Dowels (H8) into Top Panel (P10) as shown. fantasticfurniture.com.au Page 6...
  • Page 7 Step 2 (P4) (P4) (H7) (P3) (P3) (P8) (H7) (H7) (P10) (H7) (H7) (H7) (P4) This is how a cam nut works..(H7) The head of the cam bolt goes into the open mouth of the cam nut. You then (P10) turn the cam nut so it tightens over the...
  • Page 8 Step 3 (P13) (P13) (P4) (P4) (P8) (P3) (P10) Slot in the Back Panel (P13) into the grooves of Panels (P3, P4 & P10) as shown. Ensure the panel is slotted in fully. fantasticfurniture.com.au Page 8...
  • Page 9 Step 4 (H6) (P7) (H6) (H6) (P7) Fix 2 x Cam Bolts (H6) into Centre Shelf (P7), by tightening with a Phillips Head Screwdriver. Repeat process for the remaining Centre Shelf (P7). fantasticfurniture.com.au Page 9...
  • Page 10 Step 5 (P7) (P13) (H7) (H7) (P8) (P7) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the (P8) cam nut. You then turn the cam nut so (H7) it tightens over the bolt.
  • Page 11 Step 6 (H1) (P7) (H1) (H1) (P4) (H1) (P3) (P7) (H1) (P3) Align the holes on the Side Panels (P3 & P4) and Centre Shelf (P7) and secure with 4 x Bolts (H1), by tightening with the Allen Key (H11). fantasticfurniture.com.au Page 11...
  • Page 12 Step 7 (H6) (P7) (H6) (H6) (P7) Fix 2 x Cam Bolts (H6) into Centre Shelf (P7), by tightening with a Phillips Head Screwdriver. fantasticfurniture.com.au Page 12...
  • Page 13 Step 8 (P8) (H7) (P7) (H7) (P8) (H7) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the (P7) cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 14 Step 9 (P13) (P13) (H8) (H8) (H8) (H8) (H8) (P4) (P4) (P3) (P7) Insert 4 x Dowels (H8) into Side Panels (P3 & P4) as shown. Slot in the Back Panel (P13) into the grooves of Panels (P3 & P4) as shown. Ensure the panel is slotted in fully.
  • Page 15 Step 10 (H6) (H6) (H6) (P11) (H6) (H6) (H6) (H6) (P11) Fix 6 x Cam Bolts (H6) into Middle Panel (P11), by tightening with a Phillips Head Screwdriver. fantasticfurniture.com.au Page 15...
  • Page 16 Step 11 (P13) (P11) (H7) (H7) (P11) (H7) (H7) (H7) (H7) (P4) (P8) (P4) (H7) (P3) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 17 Step 12 (H6) (H8) (H8) (H6) (H6) (H6) (P11) (H8) (H6) (H8) (H6) (H8) (H6) (P11) Fix 6 x Cam Bolts (H6) into Middle Panel (P11), by tightening with a Phillips Head Screwdriver. Insert 4 x Dowels (H8) into Middle Panel (P11) as shown. fantasticfurniture.com.au Page 17...
  • Page 18 Step 13 (P9) (P9) (P9) (P11) (P11) Insert 2 x Panels (P9) into grooves of Middle Panel (P11) as shown. fantasticfurniture.com.au Page 18...
  • Page 19 Step 14 (P9) (P9) (H4) (H4) (P4) (H4) (H4) (P9) (H4) (P3) (H4) (H4) (P3) Align the holes on 2 x Panels (P9) and the Side Panels (P3 & P4) and secure with 6 x Bolts (H4), tightening with the Allen Key (H11). fantasticfurniture.com.au Page 19...
  • Page 20 Step 15 (P6) (P5) (P6) (H7) (H7) (H7) (P8) (H7) (H7) (P11) (H7) (H7) (P11) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 21 Step 16 (P13) (P13) (P6) (P6) (P5) (P11) Slot in the Back Panel (P13) into the grooves of Panels (P5, P6 & P11) as shown. Ensure the panel is slotted in fully. fantasticfurniture.com.au Page 21...
  • Page 22 Step 17 (P7) (P13) (H7) (P7) (H7) (P8) (P8) (H7) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 23 Step 18 (P7) (P6) (H1) (H1) (P5) (H1) (P7) (P5) (H1) (H1) Align the holes on the Side Panels (P5 & P6) and Centre Shelf (P7) and secure with 4 x Bolts (H1), tightening with the Allen Key (H11). fantasticfurniture.com.au Page 23...
  • Page 24 Step 19 (P6) (H4) (P5) (H4) (H4) (P9) (P9) (P5) (H4) (H4) (H4) Align the holes on 2 x Panels (P9) and the Side Panels (P5 & P6) and secure with 6 x Bolts (H4), tightening with the Allen Key (H11). fantasticfurniture.com.au Page 24...
  • Page 25 Step 20 (H6) (H6) (H6) (P7) (P7) Fix 2 x Cam Bolts (H6) into Centre Shelf (P7), by tightening with a Phillips Head Screwdriver. fantasticfurniture.com.au Page 25...
  • Page 26 Step 21 (P8) (H7) (P7) (P8) (H7) (H7) (P7) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 27 Step 22 (P13) (P13) (H8) (H8) (H8) (H8) (H8) (P6) (P6) (P5) (P7) Insert 4 x Dowels (H8) into Side Panel (P5 & P6) as shown. Slot in the Back Panel (P13) into the grooves of Panels (P5 & P6 ) as shown. Ensure the panel is slotted in fully.
  • Page 28 Step 23 (H6) (H6) (P12) (H6) (P12) Fix 2 x Cam Bolts (H6) into Bottom Panel (P12), by tightening with a Phillips Head Screwdriver. fantasticfurniture.com.au Page 28...
  • Page 29 Step 24 (P13) (P12) (H7) (P6) (H7) (P8) (P12) (P5) (P8) (H7) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
  • Page 30 Step 25 (H1) (H1) (H1) (P12) (H1) (P6) (P12) (H1) (P5) (P6) Attach the Bottom Panel (P12) to Side Panels (P5 & P6) with 4 x Bolts (H1), tightening with the Allen Key (H11). fantasticfurniture.com.au Page 30...
  • Page 31 Step 26 y l l   t u c   d   b   h     l a fantasticfurniture.com.au Page 31...
  • Page 32 Step 27 (P1) (P2) (H2) (P1) (P2) (P1) (H2) (H2) (P2) Attach the Leg Frame (P2) to the Leg Frame (P1) with 1 x Bolt (H2) by tightening with Allen Key (H11). Do not fully tighten the bolts yet. Repeat process with other set of remaining Leg Frames. fantasticfurniture.com.au Page 32...
  • Page 33 Step 28 (P1) (P12) (H3) (P1) (P12) (H3) (H3) (P1) (H3) (H3) (P2) (P2) Attached the assembled 2 x Leg Frames (P1 & P2) to the Bottom Panel (P12) with 8 x Bolts (H3), by tightening with the Allen Key (H11). fantasticfurniture.com.au Page 33...
  • Page 34 Step 29 With assistance, carefully lift the unit upright. fantasticfurniture.com.au Page 34...
  • Page 35 Step 30 (P14) (P14) (H5) (H5) (P16) (P15) (P15) (H5) (P16) (H5) (P15) (H5) (H5) (P16) Attach the x Door Handles (P16) to the Sliding Doors (P14) with x Screws (H5), by tightening with a Phillips Head Screwdriver. fantasticfurniture.com.au Page 35...
  • Page 36 Step 31 Front of Cabinet Back of Cabinet Insert the 2 x Sliding Doors (P15) into the grooves on the back of the Top Panel (P10) and Middle Panel (P11) and Bottom Panel (P12), then drag to the front of the cabinet according to the arrow direction as shown.
  • Page 37 Step 32 Front of Cabinet Back of Cabinet Insert the 2 x Sliding Doors (P14) into the grooves on the back of the Top Panel (P10) and Middle Panel (P11) and Bottom Panel (P12), then drag to the front of the cabinet according to the arrow direction.
  • Page 38 Step 33 (H10) (H10) (H9) (P10) (H9) (H9) (H10) (P10) Attach 2 x Brackets (H9) to the Top Panel (P10) with 2 x Bracket Screws (H10), tightening with a Phillips Head Screwdriver. fantasticfurniture.com.au Page 38...
  • Page 39 Step 34 Screw and wall plugs are not provided, please use appropriate fixtures for your wall. Seek advice from a qualifified trades person on how to attach this to your specific wall. With assistance, move the cabinet to its final position. Attach Bracket (H9) to the wall.
  • Page 40 Step 35 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 40...
