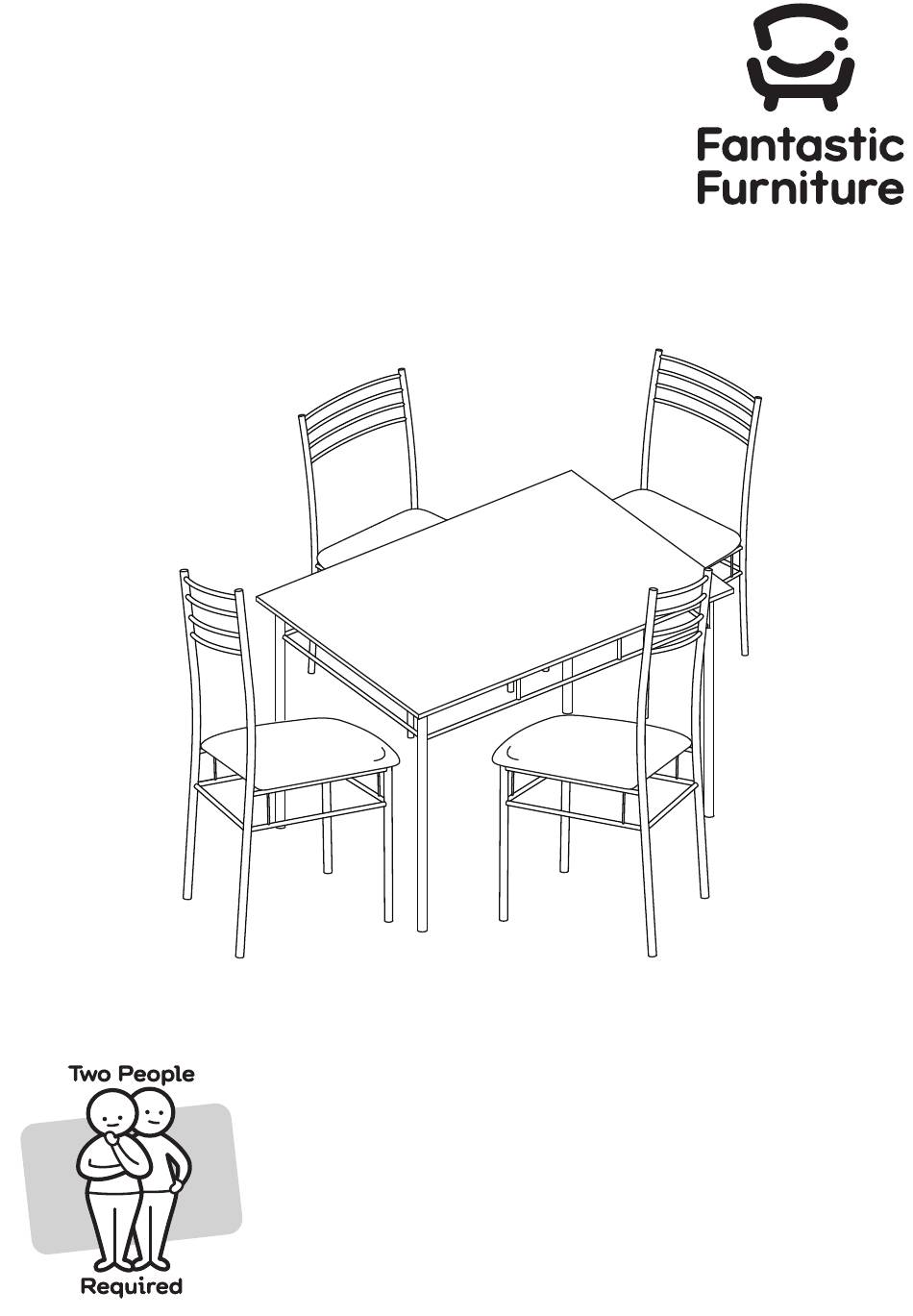

- Page 1 Version 1.0 DINING SET D4 WALNUT fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. - Page 4 What you need to assemble the product Table Top Other tools you need: (P3) Crosshead screwdriver ; Allen key Tube Frame Tube Frame (P2) (P1) Parts list Tube Frame 2x Tube Frame (P1); (P2) 2x Tube Frame (P2); Tube Frame Table Top (P3) (P1) Hardware pack...
- Page 5 Step 1 8 x Short bolts Allen key (H1) (P1) (P2) (H1) (P1) (P2) (P1) (P2) (H1) x 8 Use the Short bolts （H1） to lock the Tube frame (P1) into the Tube frame (P2) with Allen key，then tighten. fantasticfurniture.com.au Page 5...
- Page 6 Step 2 (H2) (P3) (H2) x 8 (P3) Place the table top (P3) on a soft surface (such as carpet or cardboard)， then put the assembled tube frame on the table top (P3). Insert the Screws (H2) into the table top (P3) with Crosshead screwdriver,then tighten. fantasticfurniture.com.au Page 6...
-
Page 7: Job Complete
Step 3 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 7... - Page 8 What you need to assemble the product Other tools you need: Crosshead screwdriver ; Allen key Backrest (P4) Left leg (P6) Parts list Cushion Backrest (P4); (P8) Right leg (P5); Left leg (P6); Support (P7); Right leg Cushion (P8) (P5) Support (P7) Hardware pack...
- Page 9 Step 1 4 x Long bolts Allen key (H3) (P6) (H3) (P4) (P4) (H3) (H3) (P6) (P5) Use the Long bolts （H3） to lock the Right leg (P5) and Left leg (P6) into the Backrest (P4) with Allen key. Don’t completely tighten Bolts until all are screwed in. fantasticfurniture.com.au Page 9...
- Page 10 Step 2 4 x Long bolts Allen key (H3) (P6) (H3) (P7) (P6) (H3) (P7) (P5) (H3) Use the Long botls （H3） to lock the Support (P7) into the Right leg (P5) and the Left leg (P6) with Allen key. Don’t completely tighten Bolts until all are screwed in. fantasticfurniture.com.au Page 10...
- Page 11 Step 3 (H2) x 4 (P8) (H2) (P8) Place the cushion (P8) on a soft surface (such as carpet or cardboard), then put the assembled tube frame on the cushion (P8). Align the frame to the seat cushion. Insert the Screws (H2) into the cushion (P8) with Crosshead screwdriver, then tighten. Tighten all bolts including (H3) for leg support.
- Page 12 Step 4 Place the chair on the flat and hard flooring. Sit on the chair , make sure all legs are level , then fully tighten all bolts on legs. Please keep the Allen Key, all the bolts need to be re-tightened regularly during usage. Job complete! In the interest of our environment please dispose of all packaging thoughtfully.
