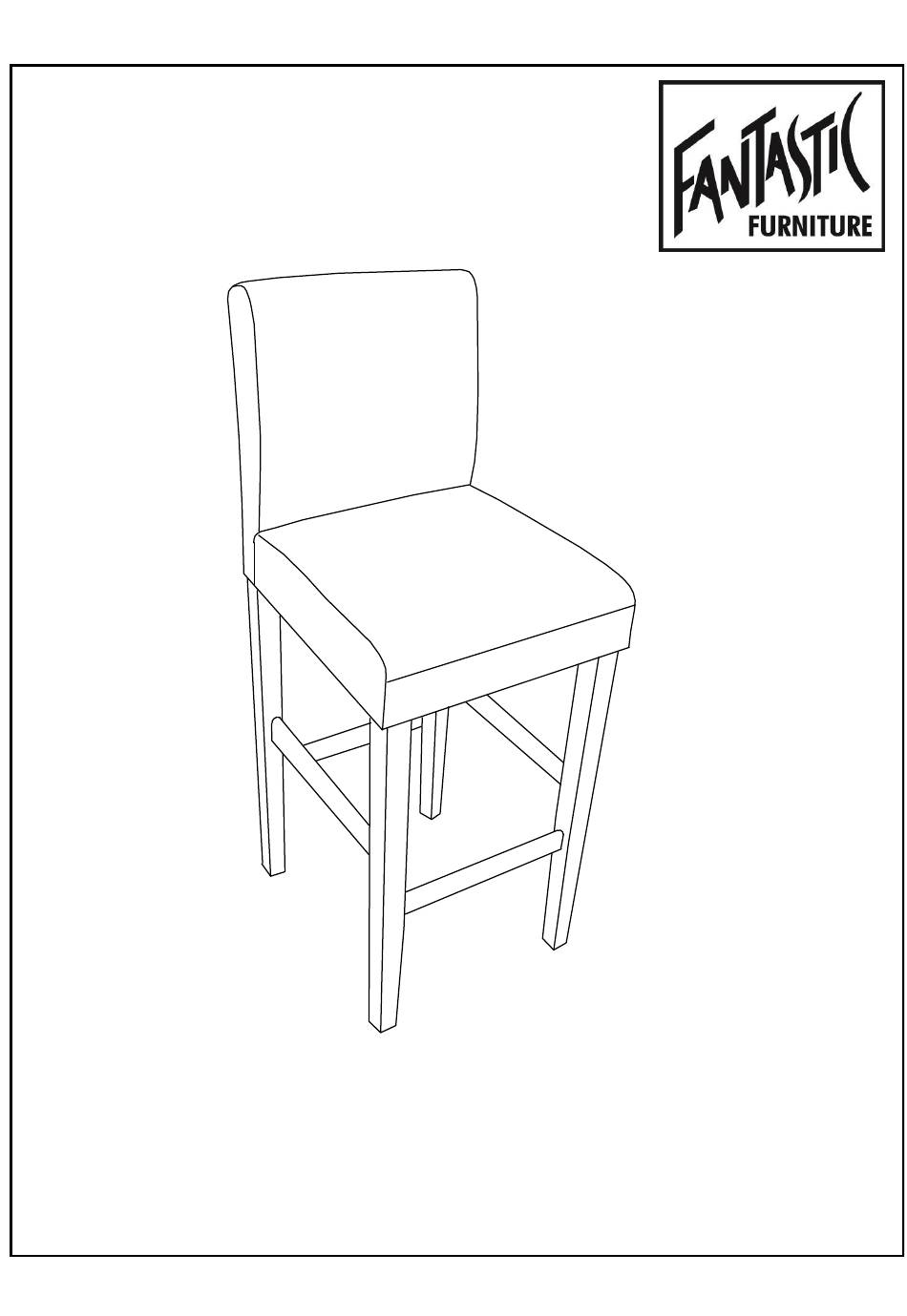

- Page 1 Version 1.0 MADISON Bar stool 1 STR www.fantasticfurniture.com.au...
- Page 2 CAUTION Do not stand on, or use this chair as a step ladder. Use this product for seating one person at a time. This product should be checked periodically to ensure all components are secure and all hardware is tight. RECOMMENDED WEIGHT CAPACITY 120 KG Enjoy Your purchase from...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten screws Identify and lay out all of the components until the item is fully assembled. before you begin assembly. -
Page 4: What You Need
What you need to assemble the product 1 x Front 2 x Side 1 x Back Frame 2 x Front Legs 1 x Seat Frame Rails Rail (P5) (P1) (P3) (P4) (P2) 9 x Medium Bolts 6 x Screws 9 x Washers Allen Key (H1) (H3) - Page 5 Step 1 You will need 6 x Screws Allen key (H2) Insert Front Rail (P5 ) into the corresponding holes in Front legs (P3). Attach using 2 x Screws (H2) . Do not fully tighten screws, leave a little loose at this stage. Step 2 You will need 4 x Washers...
- Page 6 Step 3 You will need 6 x Screws Allen key (H2) Insert Side Rails (P4 ) into the corresponding holes in Back frame (P1). Attach using Do not fully tighten bolts, leave a little loose at this stage. 2 x Screws (H2) . Step 4 You will need 5 x Medium Bolts...
- Page 7 Step 5 You will need 6 x Screws Allen key (H2) Attach side rails (P4) to front legs using 2 x Screw s (H2) . Step 6 You will need Allen key Apply downward pressure on the seat pad to ensure the chair is level before tightening all bolts and screws firmly with Allen Key and Screw D river www.fantasticfurniture.com.au PAGE 7...
-
Page 8: Job Complete
Step 7 Job Complete ! In the interest of our environment Please dispose of all packaging thoughtfully www.fantasticfurniture.com.au PAGE 8...
