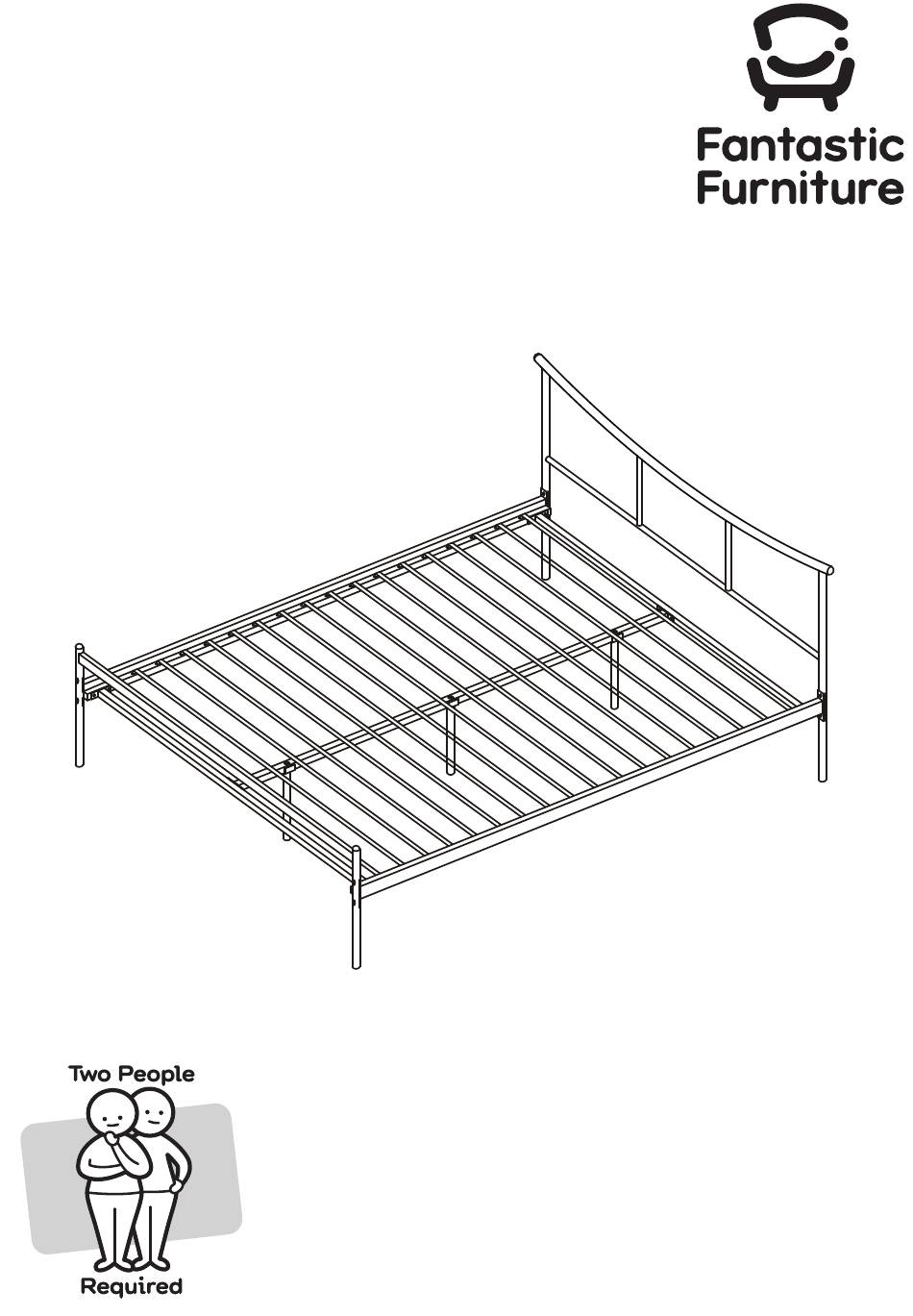

- Page 1 APPROVED LP 10/06/2020 Version 1.0 Scout Bed Double Black fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. - Page 4 What you need to assemble the product Hardware pack fantasticfurniture.com.au Page 4...
- Page 5 Step 1 Attach 1 x side rail (P3) to headboard (P1) with 2 x sleeve nuts (H5), 2 x bolts (H2) and 2 x washers (H4) using 2 x allen keys (H8). Do not fully tighten the bolts. Repeat process for the other side rail (P3). fantasticfurniture.com.au Page 5...
- Page 6 Step 2 Attach 1 x side rail (P3) to the footboard (P2) with 2 x sleeve nuts (H5), 2 x bolts (H2) and 2 x washers (H4) using 2 x allen keys (H8). Do not fully tighten the bolts. Repeat process for the other side rail (P3). fantasticfurniture.com.au Page 6...
- Page 7 Step 3 (P3) (P3) (P3) Threaded hole face inside Attach 2 x head/foot rails (P4) to the side rails (P3) with 8 x bolts (H3) using an allen key (H8). Do not fully tighten the bolts. fantasticfurniture.com.au Page 7...
- Page 8 Step 4 Attach the centre rail (P5) to the 2 x head/foot rails (P4) with 4 x bolts (H3) using an allen key (H8). Do not fully tighten the bolts. fantasticfurniture.com.au Page 8...
- Page 9 Step 5 Attach the 3 x support legs (P7) to the centre rail (P5) with 3 x flat washers (H6) and 3 x bolts (H1), tightening with an allen key (H8). You may now fully tighten all bolts on the bed frame. fantasticfurniture.com.au Page 9...
- Page 10 Step 6 Insert 36 x plastic connectors (H7) into the holes on the 2 x side rails (P3). fantasticfurniture.com.au Page 10...
- Page 11 Step 7 Insert the 18 x slats (P6) into the holes on the plastic connectors (H7) in the side rails (P3). fantasticfurniture.com.au Page 11...
-
Page 12: Job Complete
Step 8 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 12...
