Version 2.0
Seaforth
Bookcase 5 shelf
www.fantasticfurniture.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the Seaforth Bookcase 5 shelf and is the answer not in the manual?

Questions and answers

Related Manuals for fantastic furniture Seaforth Bookcase 5 shelf

Summary of Contents for fantastic furniture Seaforth Bookcase 5 shelf

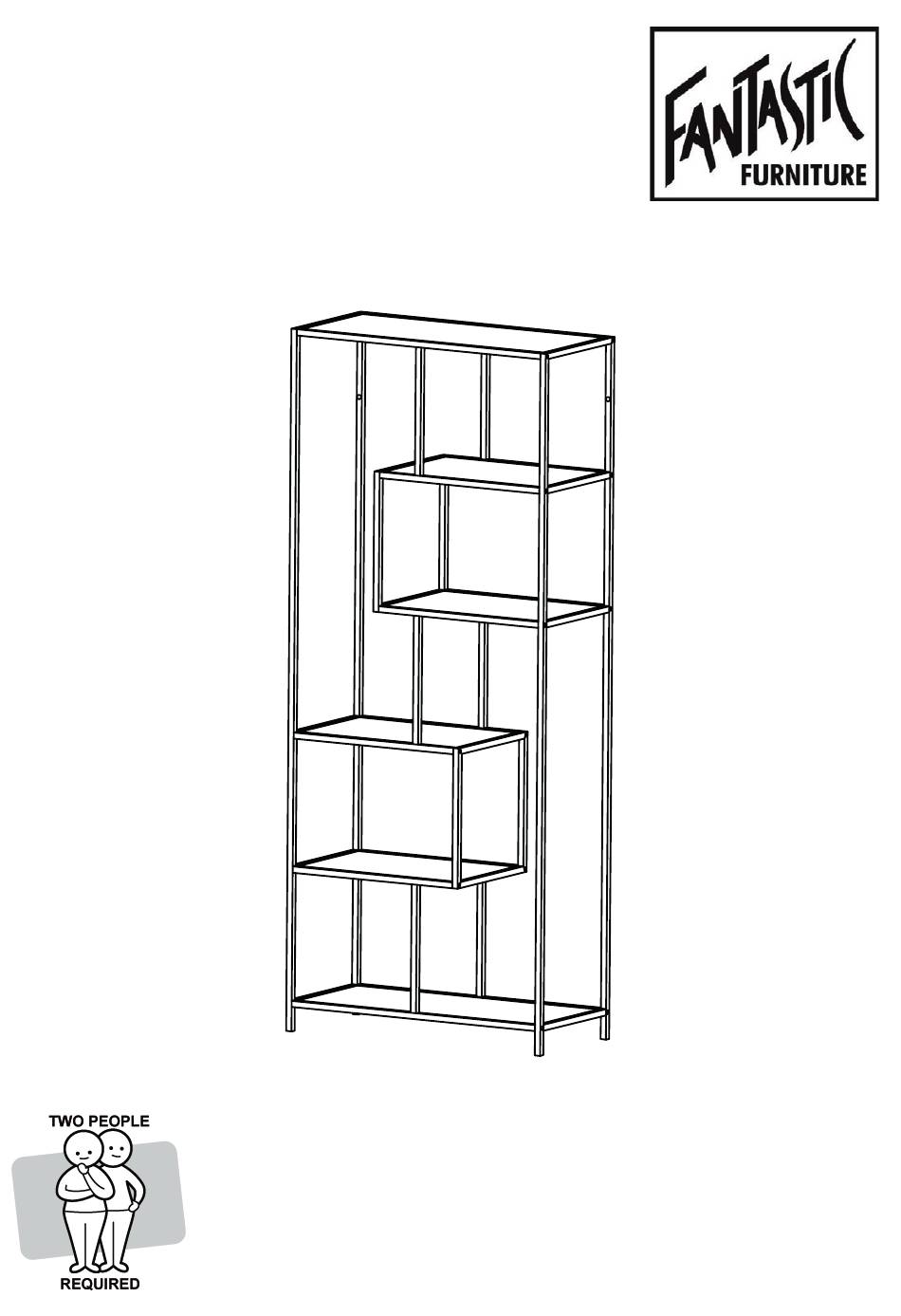

  • Page 1 Version 2.0 Seaforth Bookcase 5 shelf www.fantasticfurniture.com.au...
  • Page 2 RECOMMENDED WEIGHT CAPACITY 15 KG PER SHELF WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY. To avoid any serious or fatal injury, this product has been fitted with a wall strap to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten before you begin assembly. screws until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product Other tools you need Phillips head screwdriver Top/bottom shelf (P10) Top front frame Bar (P3) Shelf Top back frame Bar (P11) (P4) Vertical frame bar (P7) Shelf Horzontal frame bar Square (P11) 4 x (P8) frame bar (P9) Left side frame...
  • Page 5 Step 1 NOTE: Before securing, ensure that the protruding metal screw tabs on the Top and bottom frame bars You will need (P3, P4. P5 and P6) are rotated so the tabs are facing the inside of the bookcase. These will be used to secure and support the Top and bottom shelves (P10).
  • Page 6 Step 2 You will need Frame screw Allen Key 6 × (H2) 1 × (H3) Note: Please ensure the larger screw holes on the Frame Bars (P8 x 2) are facing upwards on all bars before securing. (P1) (P8) (H2) (H2) (H2) (H2)
  • Page 7 Step 3 You will need Note: Please ensure the smaller screw holes on the Frame Bars Frame screw Allen Key (P8 x 2) are facing 2 × (H2) 1 × (H3) upwards on all bars before securing. (P1) (P8) (H2) (H2) Note: Please only tighten the Frame Screws (H2) 80%, when shelves...
  • Page 8 Step 4 You will need Frame screw Allen Key 4 × (H2) 1 × (H3) (P8) (H2) (P9) (H2) (P8) (H2) (H2) Note: Please only tighten the Frame Screws (H2) 80%, when shelves have been added, the frame screws (H2) can be tightened 100% Attach Square Frame (P9) to the end of the Frame Bars (P8 x 4) using Frame Screws (H2) by tightening with the Allen Key (H3).
  • Page 9 Step 5 You will need Frame screw Allen Key 2 × (H2) 1 × (H3) (P7) (P8) (H2) (H2) Note: Please only tighten the Frame Screws (H2) 80%, when shelves have been added, the frame screws (H2) can be tightened 100% Attach Vertical Frame Bars (P7 x 2) to the Horizontal Frame Bars (P8 x 2) using Frame Screws (H2) by tightening with the Allen Key (H3).
  • Page 10 Step 6 You will need (P2) Frame screw Allen Key 4 × (H2) 1 × (H3) (P8) (H2) (H2) (H2) Note: Please ensure the larger screw holes (P7) on the Frame Bars (H2) (P8 x 2) are facing upwards on all bars before securing.
  • Page 11 Step 7 You will need (P2) (P8) Frame screw Allen Key 2 × (H2) 1 × (H3) (H2) Note: Please ensure (H2) the smaller screw holes on the Frame Bars (P8 x 2) are facing upwards on all bars before securing. Note: Please only tighten the Frame Screws (H2) 80%, when shelves have been added, the frame screws...
  • Page 12 Step 8 You will need (P8) Frame screw Allen Key 4 × (H2) 1 × (H3) (H2) (H2) (P9) (P8) (H2) (H2) Note: Please only tighten the Frame Screws (H2) 80%, when shelves have been added, the frame screws (H2) can be tightened 100% Attach Square Frame (P9) to the end of the Frame Bars (P8 x 4) using Frame Screws (H2) by tightening with the Allen Key (H3).
  • Page 13 Step 9 (P4) (P3) (H2) (H2) (P7) You will need (P8) Frame screw Allen Key 4 × (H2) 1 × (H3) (H2) (H2) Note: Please only tighten the Frame Screws (H2) 80%, when shelves have been added, the frame screws (H2) can be tightened 100% Attach Vertical Frame Bars (P7 x 2) to Top Frame Bars (P3 &...
  • Page 14 Step 10 You will need (P10) Allen Key 1 × (H3) 100% (P11) (P11) (P11) (P11) 100% (P10) Place Top and Bottom Shelves (P10 x 2) into the assembled top and bottom shelving frame. Place Shelves (P11 x 4) into the remaining shelving frames. When shelves (P10 x2 and P11 x 4) have been placed, tighten all Frame Screws (H2) 100% by using the Allen Key (H3).
  • Page 15 Step 11 You will need (P10) Shelf screw Phillips Head 28 × (H1) Screwdriver (H1) (H1) (H1) (P11) (H1) (H1) (P11) (H1) (H1) (H1) (P11) (H1) (H1) (H1) (P11) (H1) (H1) (H1) (P10) (H1) (H1) (H1) (H1) Secure all Shelves (P10 x 2 and P11 x 4) to the assembled bookcase with Shelf Screws (H1) using Phillips Head Screwdriver.
  • Page 16 Step 12 We strongly advise that you use the wall straps provided to prevent the unit You will need from toppling Wall Strap 2 x (H4) 2 x (H5) (H6) (H5) (H5) (H4) (H7) (H6) (H4) (H7) Washer Wall Strap 2 x (H6) Screw 2 x (H7) (H5)
  • Page 17 Step 13 Screws and wall plugs are not provided, please use appropriate fixtures for your wall. Seek advice from a qualified trades You will need person on how to attach this to your specific wall. Washer 2 × (H6) (H6) Move furniture to its final position then connect the Wall Strap (H4) to the wall.

  • Page 18: Job Complete

    Step 14 Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. www.fantasticfurniture.com.au PAGE 18...
