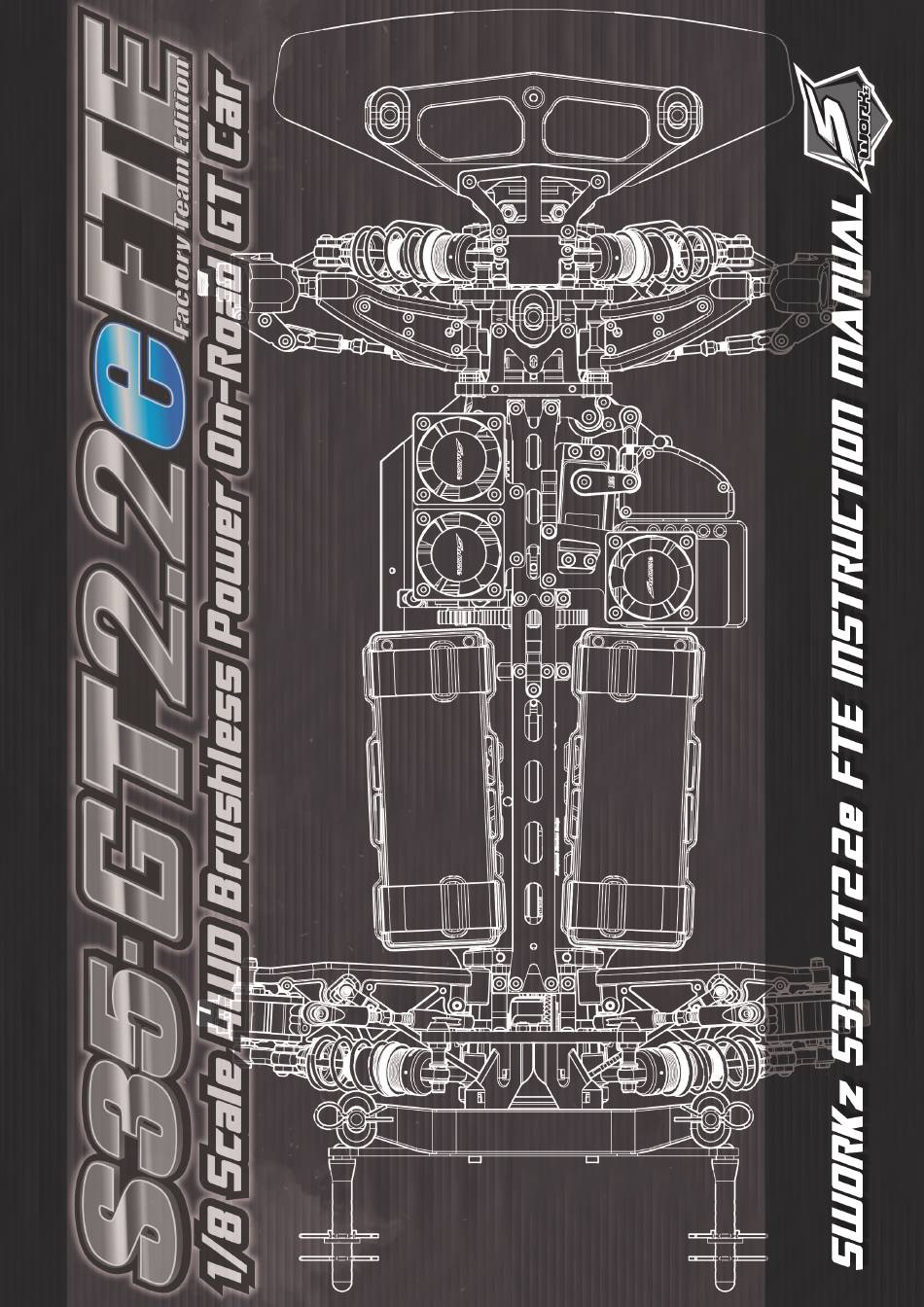

SWorkz S35-GT2.2e FTE Instruction Manual

1/8 scale 4wd brushless power on-road gt car
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the S35-GT2.2e FTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SWorkz S35-GT2.2e FTE

Summary of Contents for SWorkz S35-GT2.2e FTE

  • Page 2 I NT RO D U C T I O N The GT2.2e Factory Team Edition (FTE) is a special project created for the SWORKz GT worlds drivers to compete in the 2023 Australia IFMAR GT World Championships. The target is to be faster, lighter and an easier driving performance.
  • Page 3 Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert...
  • Page 4 Required equipment for operation Operation guide Assembly steps 7-36 Blank set-up sheet 37-38 Race Report S35-GT2.2e FTE Key No. List 40-41 S35-GT2.2e FTE Spare Part List 41-42 S35-GT2.2e FTE Option Part List End cover This radio controlled racing car is not a toy!
  • Page 5 SW-620020-20 SWORKz SST-Pro 2.0mm HEX Wrench Modeling knife SW-620020-25 SWORKz SST-Pro 2.5mm HEX Wrench Instant cement Thread lock Double-sided tape SW-620025 SWORKz SST-Pro Shorty 7.0mm Socket Driver SW-620026 SWORKz SST-Pro Shorty 5.5mm Socket Driver Included items Glow plug wrench Hex wrench 1.5mm Grease 2.5mm...
  • Page 6 The SWORKz S35-GT2.2e FTE is a high performance radio controlled model which needs to be operated with caution and common sense. The S35-GT2.2e FTE Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from the abuse or misuse of this product or any other product required while operating this model.
  • Page 7 610023P 328001 101004 101004 101004 Washer 3.5X10X0.2mm 328001 101004 338025 328001 101004 Fill the differentials with oil up to 80% above the satellite gears. Put the SWORKz Diff. Oil 500000cps for the front Diff. and 50000cps for the rear Diff.
  • Page 8 200709H 108026 M3x5mm FH/ST HEX Screw 339022 108026 330661A 104010 116006C M5x4mm Set Screw (Flat Bottom) 104010 116006C Ball Bearing 8x16x5mm (Red Rubber Case) 330661A 116006C 104010...
  • Page 9 339007FR 338031-B13 116019A 104010 338011 M5x4mm Set Screw (Flat Bottom) 116019A 330661A 106001 M3x8mm Hex Soket OH/TP Screw 106001 339007FL 339009 106002 M3x10mm Hex Soket OH/TP Screw 104010 116019A 106001 Ball Bearing 5x13x4mm (Red Rubber Case) 339006 101018 101018 SHIM 13x16x0.2mm 339004A 338011 S35 series Pinion Gear Stopper (5x7x5.1mm)
  • Page 10 330664 2501667-6 Right 339032 SWORKz S35-GT2.2 FTE Series Shock End Extension Holder Pin-Screws 330134 106003 M3x16mm Hex Soket OH/TP Screw 106003 228005UH-F 106021A M4x10mm Hex Socket OH/TP Screw 339032 Left 330664 106021A SWORKz 1/10 Linkage Ball Stud D5.5mm x L10mm)
  • Page 11 339011 108010 228001DG M4x10mm FH/ST HEX Screw (#5 #6 #7) 338056 S35-4 Series Lower Arm Hinge Pin (68.5mm) 338056 339010 228001DG(#5 #6 #7) 108010 108010 108010 M4x10mm FH/ST HEX Screw 108010...
  • Page 12 104004 M3x3mm Set Screw 116009 Flange Ball Bearing 5x8x2.5mm 104004 116009 339008 339023 224007L3.5-6 OPTION: SW-119001-2.3 S35-GT2.2 FTE Front Sway Bar 2.3mm SW-119001-2.4 S35-GT2.2 FTE Front Sway Bar 2.4mm SW-119001-2.6 S35-GT2.2 FTE Front Sway Bar 2.6mm 119001-2.5 SW-119001-2.8 S35-GT2.2 FTE Front Sway Bar 2.8mm SW-119001-3.0 S35-GT2.2 FTE Front Sway Bar 3.0mm 104004 Note:...
  • Page 13 S35-3 Front Upper Arm Adjust Insert (1.1mm) 2503260-4 228009 S35-3 Front Upper Arm Adjust Insert (2.0mm) 330664 2501667-6 339032 SWORKz S35-GT2.2 FTE Series Shock End Extension Holder Pin-Screws Left 330134 103004 M2.5mm Nut Lock 339001 106003 228015U M3x16mm Hex Soket OH/TP Screw...
  • Page 14 349001 108003 M3x10mm FH/ST HEX Screw 108003 339012 228001DG(#5 #6 #7) 108010 M4x10mm FH/ST HEX Screw 338056 S35-4 Series Lower Arm Hinge Pin (68.5mm) 338056 339013 228001DG(#5 #6 #7) 108010 108010 108010 M4x10mm FH/ST HEX Screw 108010...
  • Page 15 104004 M3x3mm Set Screw 116009 Flange Ball Bearing 5x8x2.5mm 104004 224007L3.5-6 116009 104004 339008 339023 OPTION: SW-119002-2.5 S35-GT2.2 FTE Rear Sway Bar 2.5mm SW-119002-2.6 S35-GT2.2 FTE Rear Sway Bar 2.6mm SW-119002-2.7 S35-GT2.2 FTE Rear Sway Bar 2.7mm SW-119002-3.0 S35-GT2.2 FTE Rear Sway Bar 3.0mm 119002-2.8 108006 106007...
  • Page 16 108003 108003 108003 M3x10mm FH/ST HEX Screw 108010 M4x10mm FH/ST HEX Screw Front 108010 Top View Rear 106002 106002 349011 M3x10mm Hex Socket OH/TP Screw Right 330115 Steering Knuckle Pivot Ball Turnbuckle 330115 330116 2503260-04 330118A Left 2503264A 330115 330118A 330116 Screw and adjust 330118A Knuckle 2503260-04...
  • Page 17 Right 104010 M5x4mm Set Screw (Flat Bottom) 330124 Pin M3.0x16.8mm 116006C 116006C Ball Bearing 8x16x5mm (Red Rubber Case) 218007D 101018 Left 101018 116006C 338080 SHIM 13x16x0.2mm Note: 101018SHIM 13x16x0.2mm Please use 13x16x0.2mm shims to adjust the 104010 gap between the wheel hub and wheel knuckles. Standard suggestion is 1pc shim on the outside 330124 between 8x16x5mm ball bearing and knuckle.
  • Page 18 330117A 103001 103001 M3 Nut Lock 330782 330782 Rear Hub Carriers Hing Pin with Nut 2503260 (#5 #6 #7)
  • Page 19 330779-AL 330123A Rear Upper Sus. Arm Turnbuckles 228006-5 228006-5 330123A 338070A 20.9mm 101026 S102 Aluminum Washer 3X6X1.5mm 104009 M3x16mm Set Screw 106002 M3x10mm Hex Soket OH/TP Screw 104009 106002 101026 NOTE:...
  • Page 20 106022 220017 103001 220016 106009 220015 103001 220017 220016 M3 Nut Lock 103001 106010 106022 106022 M2.5x14mm Hex Soket OH/TP Screw 220017 106010 106010 M3x6mm Hex Soket OH/TP Screw 220017 106009 M3x25mm Hex Soket OH/TP Screw 106006 106017 M3x20mm Hex Soket OH/TP Screw 106017 M3x14mm Hex Soket OH/TP Screw 103001...
  • Page 21 106022 220017 220017 106002 M3x10mm Hex Soket OH/TP Screw 106002 106022 220017 M2.5x14mm Hex Soket OH/TP Screw 108003 220017 106022 349003 106022 220017 M2.5x14mm Hex Soket OH/TP Screw 220017 106022 220015 106010 220017 M3x6mm Hex Soket OH/TP Screw 106010 108003 M3x10mm FH/ST HEX Screw 106010 108010...
  • Page 22 108006 103005 349006 103005 M4 Nut Lock 108006 M3x8mm FH/ST HEX Screw 108011 M4x12mm FH/ST HEX Screw 108011 105020 104011 338128 3mm hole 4mm hole 106008 338117-19 M3x12mm Hex Socket OH/TP Screw 106008 106008 104011 M4x4mm Set Screw (Flat Bottom) 228007-2 106024 750 BL Motor...
  • Page 23 339021-106 106008 M3x12mm Hex Socket OH/TP Screw 339021-86.5 106008 108011 M4x12mm FH/ST HEX Screw 228018-2 108011 106002 106002 106008 349010 M3x10mm Hex Socket OH/TP Screw 106003 106006 106003 106006 M3x16mm Hex Soket OH/TP Screw 349009 106006 349008 M3x20mm Hex Socket OH/TP Screw 228018-3 106008 M3x12mm...
  • Page 24 103005 103005 108010 228020 M4x10mm FH/ST HEX Screw 103005 M4 Nut Lock 228020 108010 108010 330126A Steering Turnbuckle Right 2503270-03 330779-AL 330779-AL 330126A 2503270-03 20.8mm 20.8mm...
  • Page 25 Servo is not included in the kit. 106002 M3x10mm Hex Socket OH/TP Screw 348009 228018 228021 228021 (25T) (23T) OPTION: SW-338078-25 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 25T SW-338078-23 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 23T...
  • Page 26 106007 106007 M3x12mm Hex Socket OH/TP Screw (HT) 108013 M4x8mm FH/ST HEX Screw 103001 M3xNut Lock 103001 108013 108013 1/8 ESC is not included 108013 M4x8mm FH/ST HEX Screw 228019 108013...
  • Page 27 106013 Receiver is not included 228019 108007 228019 228019 104004 108006 M3x3mm Set Screw 200193 108006 M3x8mm FH/ST HEX Screw 104004 108007 M3x6mm FH/ST HEX Screw 106013 M2.5x8mm Hex Socket OH/TP Screw...
  • Page 28 106001 106008 228019 349007-E40x1 106001 106010 M3x6mm Hex Soket OH/TP Screw 106001 M3x10mm Hex Soket OH/TP Screw 349007-M40x2 228019 106010 106008 M3x12mm Hex Socket OH/TP Screw 103007 M3mm Nut Lock 103007 106003 106003 106003 Electric fans are not included 103007 M3mm Nut Lock 106003 M3x16mm Hex Soket OH/TP Screw...
  • Page 29 228016-1.2-8(F) 103004 228016-1.3-8(R) F/R 330798 338099 F/R 338099 S35GT BBS System Shock Shaft (F/R) 400020 228016-Seal 101011 228016-Seal 400006 103004 M2.5mm Nut Lock 330557 228016-Seal Shock Seal Washer 3.5X7X1.0mm 228006 228016-Seal Shock Seal Washer 3.6X7X2.5mm 101011 M2.6x6xT0.6mm 338067 108029 400024M 400006 Shock Seal O-Ring 400020...
  • Page 30 338068 338068 101010A 105006A M3x28mm Cap Screw 101010A 338068 101010A 101010A 105006A 105006A 106008 103003A 103003A 106008 103003A Flange M3 Nut Lock 106008 M3x12mm Hex Soket OH/TP Screw 106008 103003A 103003A 106008...
  • Page 31 330122A Wheel Nut Tires and wheels are not included in the kit. 330122A 330122A Lipo Batteries Lipo Batteries are not included are not included...
  • Page 32 115019 106021 105006A 349014 M3x28mm Cap Screw 228023 106021 M4x10mm Hex Socket OH/TP Screw 228023 228023 105006A 228023 106021 115019 S35-GT2.2e FTE Pro-composite Carbon Lower Arm Holder Spacer (3mm) Assembly Note 108011 M4x12mm FH/ST HEX Screw 349016 349016 108011 108011...
  • Page 33 Race time / Lap: SET-UP SHEET Best lap: Diff. Oil Track Conditions Name: Size: Open Med. Tight Front: Date: Traction: High Med. Center: Track: Med. Bumpy Surface: Smooth Rear: Electric System Tire Motor Gear/Spur Gear: Front Rear ESC Type: Type: Type: A: Standard Pack Battery Type...
  • Page 34 Race time / Lap: SET-UP SHEET Best lap: Rear Suspension SWC-218007A S35 Series Evolution-CVA Drive Shaft Set 92.5mm SWC-218007D S35 Series Advance-CVD Drive Shaft Set 92.5mm Body: SW-210046 S350 Series LDS Universal Cross Drive Shaft Set 92.5mm Wing: Camber angle Lay Down Body Shell Post Non-use Wheel Hub Note:...
  • Page 36 S35-GT2.2FTE Series Pro-composite Carbon Lower Arm Holder Spacer (3mm) 2 SW-349016 228016-1.2-8 SWORKz 1/8 BBS Precision Plastic Shock Piston(1.2X8Holes) 2 SW-228016-1.2-8 349007-M30x1 S35-GT2.2e FTE E Series Pro-composite Carbon Electric Motor Fan Holder (30mmx1) 1 SW-349007-M30x1 228016-1.3-8 SWORKz 1/8 BBS Precision Plastic Shock Piston(1.3X8Holes) 2 SW-228016-1.3-8 349007-M40x2 S35-GT2.2e FTE E Series Pro-composite Carbon Electric Motor Fan Holder (40mmx2) 1 SW-349007-M40x2...
  • Page 37 SW-228016-1.3-8 SWORKz 1/8 BBS Precision Plastic Shock Piston(1.3X8Holes)(2PC) 108011 M4x12mm FH/ST HEX Screw 6 SW-108011 SW-228016-Seal SWORKz 1/8 BBS Precision Plastic Shock Seal Part (4 Sets) 108013 M4x8mm FH/ST HEX Screw 6 SW-108013 SW-228018 S35-4e EVO Electric Series Steering Servo Mount & Rear Upper Deak Holder...
  • Page 38 S35-GT2.2 FTE Series Pro-composite Carbon Front Lower Bumper Nut Holder SW-108013 M4x8mm FH/ST HEX Screw SW-349007-E40x1 S35-GT2.2e FTE E Series Pro-composite Carbon Electric ESC Fan Holder (40mmx1) SW-108026 M3x5mm FH/ST HEX Screw SW-349007-M30x1 S35-GT2.2e FTE E Series Pro-composite Carbon Electric Motor Fan Holder (30mmx1) SW-108029 M2.0x4.6mm FH/ST HEX Screw (1.5mm HexHead)
  • Page 39 S35-4/E Series Pro-composite Carbon Front Lower Arm Cover (1.5mm)(2PC) SW-340022-20 S35-4/E Series Pro-composite Carbon Front Lower Arm Cover (2mm)(2PC) SW-348003-10 SWORKz S35-4 Series Pro-composite Carbon Arched-Bridge-System Rear Lower Arm Cover(1.0mm)(2PC) SW-348003-15 SWORKz S35-4 Series Pro-composite Carbon Arched-Bridge-System Rear Lower Arm Cover(1.5mm)(2PC) SW-348003-20 SWORKz S35-4 Series Pro-composite Carbon Arched-Bridge-System Rear Lower Arm Cover(2.0mm)(2PC)
