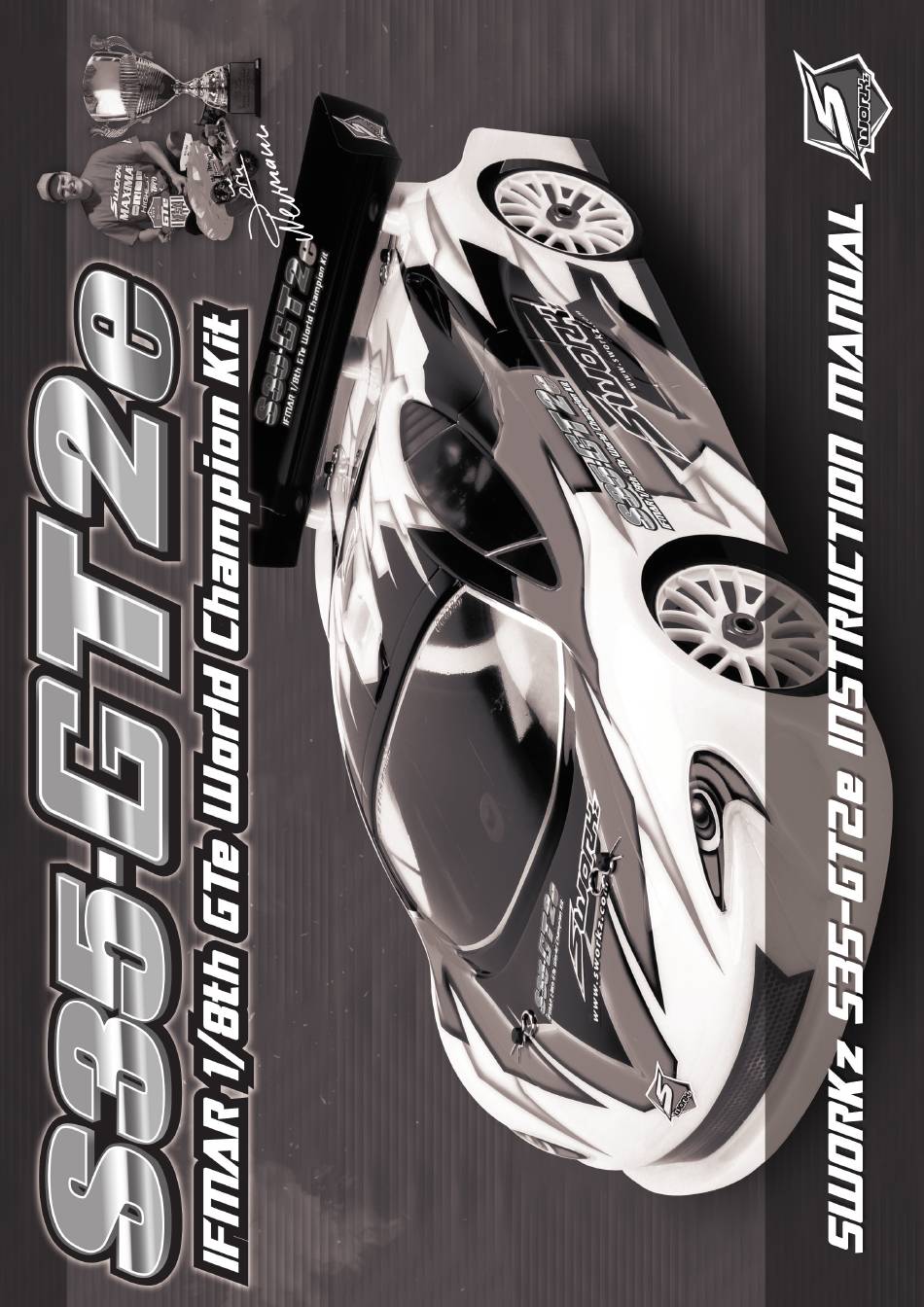

SWorkz S35-GT2e Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the S35-GT2e and is the answer not in the manual?

Questions and answers

Related Manuals for SWorkz S35-GT2e

Summary of Contents for SWorkz S35-GT2e

  • Page 2 The wishbone brackets, included with square inserts, allow the axle geometry of your SWORKz S35-GT2e to be adapted to any track layout. The front and rear wishbones are made of a newly developed composite material. The side pans have also been redesigned.
  • Page 3 Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert...
  • Page 4 Index Required equipment for operation Operation guide Assembly steps 7-32 Set-up sheet Blank set-up sheet 34-35 S35-GT2e Key No. List 36-37 S35-GT2e Spare Part List 37-38 S35-GT2e Option Part List Explosion view with spare parts number 40-43 End cover This radio controlled racing car is not a toy!
  • Page 5 R e q u i re d Equ ip me nt fo r O p erat io n Radio Gear Stick Type Receiver ESC system Steering servo Wheel & Trigger Type Breshless Motor Charger and LiPo Battery Tools Recommended Long nose pliers Side cutter 1.5mm Paint...
  • Page 6 The SWORKz S35-GT2e is a high performance radio controlled model which needs to be operated with caution and common sense. The S35-GT2e Pro Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from the abuse or misuse of this product or any other product required while operating this model.
  • Page 7 610023 328001 101004 101004 101004 Washer 3.5X10X0.2mm 328001 101004 338025 328001 101004 Fill the differentials with oil up to 80% above the satellite gears. Put the SWORKz Diff. Oil 500000cps for the front Diff. and 50000cps for the rear Diff.
  • Page 8 M3x12mm FH/ST HEX Screw 338025 S35-3W Bevel Gear Shaft 610020 101004 101004 Washer 3.5X10X0.2mm 101004 328001 330025 328001 101004 Fill the differentials with oil up to 101004 above the satellite gears. Put the SWORKz Diff. Oil 500000cps for the center Diff.
  • Page 9 Pro Tip: Before installing the M5x4 set screw (104010), remember to clean the set screw and center driver joint (330661A) first. Then apply TLC on the set screw. 338023 106019R 338011 106019R 104010 M5x4mm Set Screw (Flat Bottom) 228001(#8 #9 #10) 330661A 2503261A 108001...
  • Page 10 Pro Tip: Before installing the M5x4 set screw (104010), remember to clean the set screw 338023 and center driver joint (330661A) first. Then apply TLC on the set screw. 106019R 338011 330661A 108001 106019R M3x12mm FH/ST HEX Screw 228001(#2 #3 #4) 104010 338082 2503261A...
  • Page 11 108008 M3x35mm FH/ST HEX Screw 101020A 3mm Countersunk Washers (GM) 228001(#5 #6 #7) 338056 338058 108008 228001(#5 #6 #7) 101020A 338056 S35-4 Series Lower Arm Hinge Pin (68.5mm) 2503261A Pop in the Stabilizer Guide. 104004 M3x3mm Set Screw 104004 104004 115008A (2.3mm) 115035A (2.2mm)
  • Page 12 104005 M3x4mm Set Screw 106013 M2.5x8mmH ex Socket OH/TPScrew 106013 104005 Note: The aluminum front upper arm holder (338057) can offer either 0° or + -1° kick-up for your front upper arm suspension. You may use the inserts 228001(#13) to get 0° kick-up or 228001(#12) to get +-1°...

  • Page 13: Bag E1

    PRO TIP: The S35-GT2/2e Front Upper Arm Adjust Inserts can give different steering adjustments (Ackerman). Put all inserts behind the front upper arms, you will get faster steering response. Otherwise put all inserts in front of the upper arms, you will get more stable steering response. 108001 228009 Try to use 2503260-1 or 2503260-3 to adjust the front upper arm position.
  • Page 14 PRO TIP: The S35-4 Aluminum Rear Lower Fully Adjustable Toe-In Block (338014) can use 3 types of square inserts to get 1.0/2.0/3.0 3 different toe in angles. Also plus 3 different rear lower arm kick up degrees. 338056 228001(#2 #3 #4) 338056 330770 108008...

  • Page 15: M3X4Mm Set Screw

    104005 106013 104005 M3x4mm Set Screw 104005 106013 106013 M2.5x8mm Hex Socket OH/TP Screw 116004R 106007 101021 338043 103001 106014 M3 Nut Lock 117003 610019 101021 101021 M3x8xT1mm 338053 115004A 117003 116004R 117003 338052 Ball Bearing 6x10x3mm (Red Rubber Case) 117003 116004R Flange Ball Bearing 3x6x2.5mm...

  • Page 16: M3X10Mm Fh/St Hex Screw

    108003 108003 M3x10mm FH/ST HEX Screw 108003 116004R Ball Bearing 6x10x3mm (Red Rubber Case) 101019 SHIM 6.0x10.0x0.2mm 101019 116004R 338048 106002 106002 M3x10mm Hex Socket OH/TP Screw Right 338051 330252 2503260-04 330118A Left 330118A 2503264A 330252 Screw and adjust 330118A Knuckle 2503260-04 Pivot Ball Nut so as the pivot ball can be moved smoothly.
  • Page 17 104010 Left M5x4mm Set Screw (Flat Bottom) 330124 Pin M3.0x16.8mm 116006R 116006R Ball Bearing 8x16x5mm (Red Rubber Case) 210046 116006R 330124 Right 101018 SHIM 13x16x0.2mm 104011 Note: 101018SHIM 13x16x0.2mm Please use 13x16x0.2mm shims to adjust the 101018 gap between the wheel hub and wheel knuckles. Standard suggestion is 1pc shim on the outside between 8x16x5mm ball bearing and knuckle.
  • Page 18 330117A 330117A 2503260 (#5 #6 #7) 2503260 103001 (#5 #6 #7) 330782 103001 103001 M3 Nut Lock 330782 330782 Rear Hub Carriers Hing Pin with Nut 2503260 (#5 #6 #7)
  • Page 19 330777A 330123A Rear Upper Sus. Arm Turnbuckles 228006-5 228006-5 330123A 338070 22.1mm 104009 M3x16mm Set Screw 106002 M3x10mm Hex Soket OH/TP Screw 104009 106002 101026 S102 Aluminum Washer 3X6X1.5mm NOTE: 101026...
  • Page 20 106022 103001 220017 (#6) 220016 (#3) 106009 220015 (#4) 103001 220017 (#6) M3 Nut Lock 103001 106010 220016 (#2) 106022 106022 M2.5x14mm Hex Soket OH/TP Screw 220017 (#5) 106010 106010 M3x6mm Hex Soket OH/TP Screw 220017 (#5) 106009 M3x25mm Hex Soket OH/TP Screw 106003 106006 M3x20mm Hex Soket OH/TP Screw...
  • Page 21 108007 108007 108007 108007 338064 228004 M3x6mm FH/ST HEX Screw 108007 108007 108007 108007 228004 108007 108007 106022 220017 220017 106002 106008 M3x10mm Hex Soket OH/TP Screw 106002 106008 106008 M3x12mm Hex Soket OH/TP Screw Front 220017 Top View Rear 108003 M3x10mm FH/ST HEX Screw 108010...
  • Page 22 106002 220015 (#1) 106022 106002 106022 220017 (#6) M2.5x14mm Hex Soket OH/TP Screw 220017 (#6) 106010 220015 (#2) 106022 106010 M3x6mm Hex Soket OH/TP Screw 220017 (#5) 106010 106002 M3x10mm Hex Soket OH/TP Screw 220017 (#5) 108010 M4x10mm FH/ST HEX Screw 220015 (#3) 610021L 108010...
  • Page 23 108012 108003 M4x16mm FH/ST HEX Screw 108003 M3x10mm FH/ST HEX Screw 340015 108012 108012 106002 750 BL Motor is not included 106006 106002 104011 3mm hole M3x10mm Hex Socket OH/TP Screw 106006 4mm hole 340018 106008 106008 106008 M3x12mm Hex Socket OH/TP Screw 228007 338065 228007...
  • Page 24 330697 330699B 108003 M3x10mm FH/ST HEX Screw 228007 108010 M4x10mm FH/ST HEX Screw 108010 108003 228006-5 338038A 106001 228006-5 338070 M3x10mm Hex Socket OH/TP Screw 338070 1.0mm 228006-5 108003 M3x10mm FH/ST HEX Screw 338070 228006-5 104014 101020A 3mm Countersunk Washers (GM) 108003 338070 108003...
  • Page 25 The 2503221BK Battery Stoper must be suit for different Lipo Battery style. 108006 M3x8mm FH/ST HEX Screw 540001 108006 2503221BK 2503221BK 540001 2503221BK 108006 108006 108006 M3x8mm FH/ST HEX Screw...
  • Page 26 Right 2503270 (#3) 330126A Steering Turnbuckle 330777A 330126A 330777A 2503270 (#3) 20.8mm 106002 M3x10mm Hex Socket OH/TP Screw 106002...
  • Page 27 330134 228006 108006 101012 M3x8mm FH/ST HEX Screw OPTION: SW-338078-25 108003 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 25T M3x10mm FH/ST SW-338078-23 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 23T 101012 M3x6xT0.6mm 228007 Servo is not included in the kit.
  • Page 28 108003 M3x10mm FH/ST 1/8 ESC is not included 2503221BK 400013 400013 108003 108003 106010 106010 M3x6mm Hex Socket OH/TP Screw 2503221 108007 M3x6mm FH/ST HEX Screw 200193 108007 108007 Receiver is not included 2503221BK...
  • Page 29 101011 103004 F/R 330798 F/R 338099 338099 S35GT/GT2 Series Teflon Coated Durable Shock Shaft 400020 (45.5mm) 350002A(F) 210058 350003A(R) 210058 210058 210058 103004 M2.5mm Nut Lock 330557 210058 Shock Seal Washer 3.5X7X1.0mm 228006 210058 Shock Seal Washer 3.6X7X2.5mm 101011 M2.6x6xT0.6mm 338067 108029 400022AS...
  • Page 30 M3x28mm Cap Screw 101010A 101010A 101010A 101010A 105006A 105006A 103003 103003A Flange M3 Nut Lock 103003A 330243 (Anti-Clockwise) (Silver) 330243 (Black) 103003A 330243 (Anti-Clockwise) (Silver) 103003A 330243 SWORKz 3x16mm Shock Hex Screw Clockwise 330243 SWORKz 3x16mm Shock Hex Screw Anti-Clockwise 330243 (Black)
  • Page 31 330122A Wheel Nut Tires and wheels are not included in the kit. 330122A 330122A...
  • Page 32 Lipo Batteries are not included...
  • Page 33 Race time / Lap: SET-UP SHEET Best lap: Diff. Oil Track Conditions Name: Jörn Neumann Size: Open Med. Tight 2 Million Front: Date: 18.01.2020 1 Million Traction: High Med. Center: Track: Surface: Smooth Med. Bumpy Homestead Rear: 50000 Electric System Tire 20/47 Motor Gear/Spur Gear:...
  • Page 34 Race time / Lap: SET-UP SHEET Best lap: Diff. Oil Track Conditions Name: Size: Open Med. Tight Front: Date: Traction: High Med. Center: Track: Surface: Smooth Med. Bumpy Rear: Electric System Tire Motor Gear/Spur Gear: Front Rear ESC Type: Type: Type: A: Standard Pack Battery Type...
  • Page 35 Race time / Lap: SET-UP SHEET Best lap: Diff. Oil Track Conditions Name: Size: Open Med. Tight Front: Date: Traction: High Med. Center: Track: Surface: Smooth Med. Bumpy Rear: Electric System Tire Motor Gear/Spur Gear: Front Rear ESC Type: Type: Type: A: Standard Pack Battery Type...
  • Page 36 1 SW-220016 340017 S35-4 Series Pro-composite Carbon Steering Bellcrank Plate 1 SW-340017 220017 SWORKz 1/8 S35GT/E Plastic Body Post and Mount Set 1 SW-220017 340018 S35-4E Series Pro-composite Carbon Center Diff. Plate 1 SW-340018 228001 S35-4 Series Plastic Inserts Set...
  • Page 37 M2.0x4.6mm FH/ST HEX Screw (1.5mm HexHead) 4 SW-108029 SW-220016 SWORKz 1/8 S35GT/E Wing Mount Set SW-220017 SWORKz 1/8 S35GT/E Plastic Body Post and Mount Set SW-228001 S35-4 Series Plastic Inserts Set (2Set) SW-228002-1 S35-4 Series Plastic Rear Wheel Hub (R=L)(2pc)
  • Page 38 S35 Series BBS System Shock Piston 1.3mmX8 Straight Holes (BK) SW-400002 O-ring S5 4.8X1.5 SW-400005 Shock Spring Adjust Nut O-Ring SW-400013 SWORKz Shock Seal O-ring 2x2.7mm (8PC) SW-400019 S350 New BBS System Shock Spring Adjust Nut O-Ring (4pc) SW-400020 S350 New BBS System Shock Seal O-Ring (4pc) SW-400023...
  • Page 39 S35-4 Series T7 Aluminum Rear Wheel Hub (R=L)(2PC) SW-338070A S35 Series Rear Upper Arm Aluminum Ball Stud (2PC) SW-338078-25 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 25T SW-338078-23 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 23T SW-340027-15 S35-GT2/E Pro-composite Carbon Front Upper Arm Cover (1.5mm)(2PC)
  • Page 40 Par t s No. L is t Expl o de d View Shock Absorbers 108029 2501121C 338067 400022AS 330798 350002A(F) 103004 350003A(R) 400019 330560 101011 F/R 338099 210058 400020 330557 SWC-115148A 228006 330134 Differential Center 101004 338027 338028 328001 116006R 330025 116006R 108001...
  • Page 41 Front Suspension 108006 108003 106007 101021 2503221BK 117003 228006 106002 106008 330694A 106008 338053 330134 117003 104009 116004R 101012 116004R 106014 338043 2501122B 228007 330122A 610019 116004R 115004A 338052 106002 338051 2503270(#3) 103001 330124 338048 2501122B 106007 340027-10 108003 330126A 106020 108006 108010...
  • Page 42 Par t s No. L is t Expl o de d View Center Transmission 540001 108006 108006 2503221BK 108003 338070 106006 106002 2503221BK 101020A 104014 106010 106006 106002 2503221BK 106001 228006-5 340018 338070 2503221BK 228006-5 108007 106008 338038A 400013 108003 105020 108003 104011...
  • Page 43 Rear Suspension 330122A 106022 330777A 103001 228006-5 340026 106010 220017 220017 228002 330123A 101018 106022 330124 228006-5 220015 106002 101026 220017 106009 115005 (2.8mm) 104009 106001 228009 338070 115006 (2.6mm) 220016 106010 104010 2503260 (#5 #6 #7) 330782 338080 104004 103001 116006R 106003...
