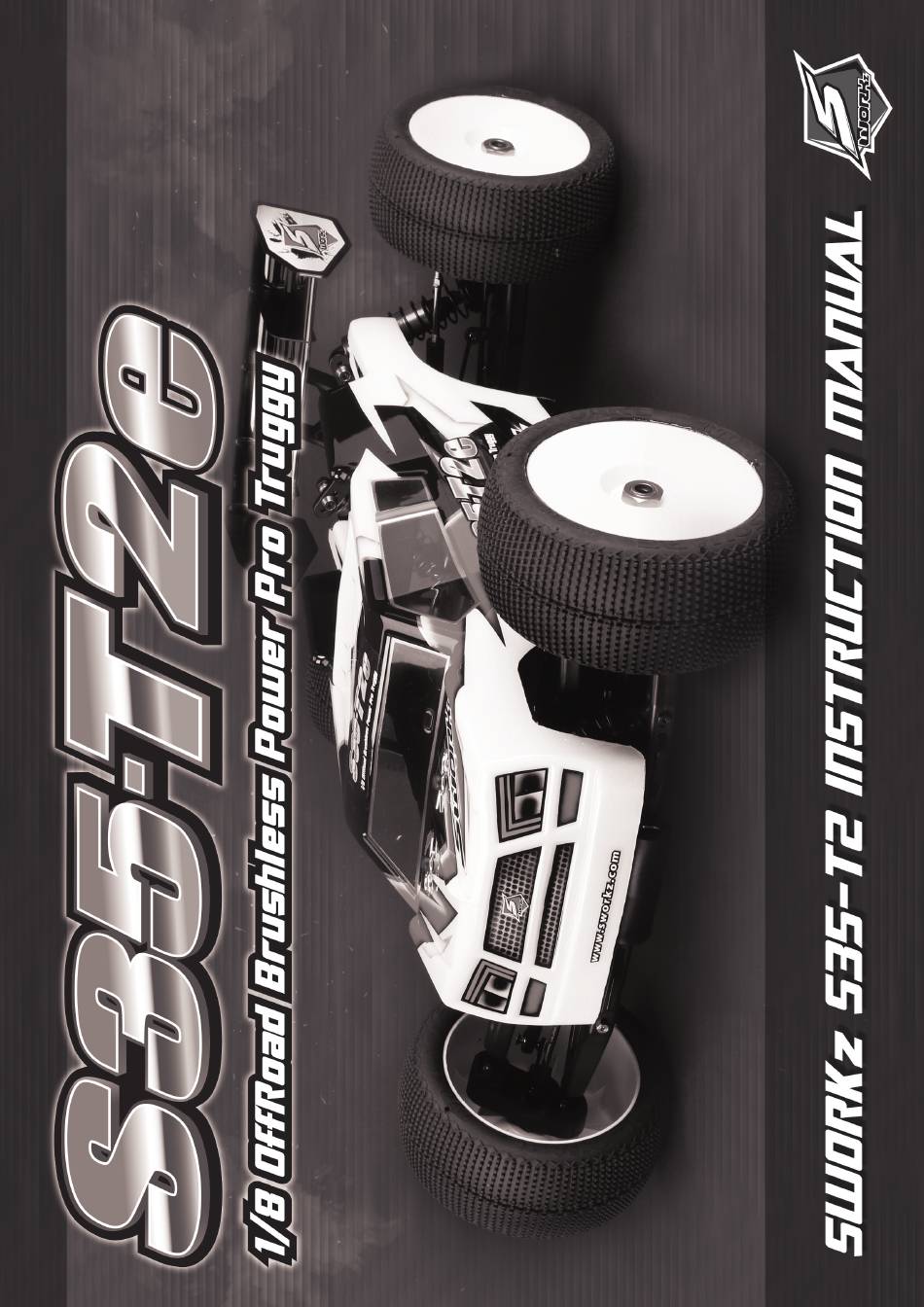

  • Page 1 S35-T2E 說明書...

  • Page 2: Instruction

    The newly developed Truggy HET differentials are included and provide traction that was not possible before. The new S35-T2e comes with a longer shock layout in the front and rear. The construction of the shocks is adapted to that new optimized layout. The smart holder for shock spring plates makes it almost impossible to lose them anymore.

  • Page 3: Warranty

    Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert...

  • Page 4: Table Of Contents

    Assembly Steps 7-34 Set-up Sheet Blank Set-up Sheet S35-T2e Key No.List S35-T2e Spare Part List S35-T2e Option Part List End cover This radio controlled racing car is not a toy! This high-performance R/C model is recommended for ages 14 and older.

  • Page 5: Required Equipment For Operation

    R e q u i re d Equ ip me nt fo r O p erat io n Radio Gear Stick Type Receiver ESC system Steering servo Wheel & Trigger Type Brushless Motor Charger and LiPo Battery Tools Recommended Long nose pliers Side cutter 1.5mm Paint...

  • Page 6: Operation Guide

    The SWORKz S35-T2e is a high performance radio controlled model which needs to be operated with caution and common sense. The S35-T2e Pro Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from the abuse or misuse of this product or any other product required while operating this model.

  • Page 7: Assembly Steps

    610023 328001 101004 101004 101004 Washer 3.5X10X0.2mm 328001 101004 338025 328001 101004 Fill the differentials with oil up to 80% above the satellite gears. Put the SWORKz Diff. Oil 7000cps for the front Diff. and 3000cps for the rear Diff.
  • Page 8 M3x12mm FH/ST HEX Screw 108001 338025 S35-3W Bevel Gear Shaft 101004 Washer 3.5X10X0.2mm 610020 101004 101004 328001 328001 338025 101004 Fill the differentials with oil up to 101004 above the satellite gears. Put the SWORKz Diff. Oil 7000cps for the center Diff.
  • Page 9 Pro Tip: Before installing the M5x4 set screw (104010), remember to clean the set screw and center driver joint (330661A) first. Then apply TLC on the set screw. 338045 106019R 338011 106019R 104010 M5x4mm Set Screw (Flat Bottom) 228001(#8 #9 #10) 330661A 2503261A 108001...
  • Page 10 Pro Tip: Before installing the M5x4 set screw (104010), remember to clean the set screw 338045 and center driver joint (330661A) first. Then apply TLC on the set screw. 106019R 338011 330661A 108001 106019R M3x12mm FH/ST HEX Screw 228001(#2 #3 #4) 104010 338049 2503261A...
  • Page 11 338056 S35-4 Series Lower Arm Hinge Pin (68.5mm) 108008 338056 M3x35mm FH/ST HEX Screw 228001(#5 #6 #7) 338058 101020A 338056 108008 228001(#5 #6 #7) 101020A 3mm Countersunk Washers (GM) 2503261A Pop in the Stabilizer Guide. 104004 M3x3mm Set Screw 104004 104004 118001-24 118001-26...
  • Page 12 104005 106013 104005 104005 106013 M3x4mm Set Screw 106013 M2.5x8mmH ex Socket OH/TPScrew Note: The aluminum front upper arm holder (338057) can offer either 0° or + -1° kick-up for your front upper arm suspension. You may use the inserts 228001(#13) to get 0° kick-up or 228001(#12) to get +-1°...
  • Page 13 PRO TIP: 2502040 The S35-4 Front Upper Arm Adjust Inserts can g i v e d i ff e r e n t s t e e r i n g adjustments (Ackerman). Put all inserts behind the f r o n t u p p e r a r m s , y o u will get faster steering 108001 response.
  • Page 14 228006 (#4) 108001 M3x12mm FH/ST HEX Screw 338086 108005 M3x14mm FH/ST HEX Screw 106002 M3x10mm Hex Socket OH/TP Screw 108001 106002 108001 PRO TIP: The S35-4 Aluminum Rear Lower Fully Adjustable Toe-In Block (338014) can use 3 types of square inserts to get 1.0/2.0/3.0 3 different toe in angles.
  • Page 15 2503261A Pop in the Stabilizer Guide. 104004 104004 M3x3mm Set Screw 104004 118002-26 118002-28 104005 M3x4mm Set Screw 106013 M2.5x8mmH ex Socket OH/TPScrew 104005 104005 106013...
  • Page 16 106002 106002 M3x10mm Hex Socket OH/TP Screw Right 338051 330252 2503260-04 330118A Left 330118A 2503264A 330252 2503260-04 Screw and adjust 330118A Knuckle Pivot Ball Nut so as the pivot ball can be moved smoothly. Left 116006R Ball Bearing 8x16x5mm (Red Rubber Case) 218018 330124 330124...
  • Page 17 330117A 116004R 106007 101021 338043 103001 106014 M3 Nut Lock 117003 610019 101021 101021 M3x8xT1mm 338053 115004A 117003 117003 Flange Ball Bearing 3x6x2.5mm 117003 338052 106007 116004R M3x12mm Hex Socket OH/TP Screw(HT) 117003 2501122B 116004R Ball Bearing 6x10x3mm (Red Rubber Case) 330114A 106014 103001...
  • Page 18 108003 108003 M3x10mm FH/ST HEX Screw 116004R Ball Bearing 6x10x3mm (Red Rubber Case) 101019 SHIM 6.0x10.0x0.2mm 101019 116004R 338048 116004R 338048 Right 103001 M3 Nut Lock 218018 104010 M5x4mm Set Screw (Flat Bottom) 228002-1 330124 116006R 106009 340016 Pin M3.0x16.8mm Left 106009 M3x25mm Hex Socket OH/TP Screw...
  • Page 19 2503260 2503260 (#5 #6 #7) (#5 #6 #7) 103001 330782 103001 103001 M3 Nut Lock 330782 330782 Rear Hub Carriers Hing Pin with Nut 2503260 2503260 (#5 #6 #7) (#5 #6 #7) 2501121C 330458 338070 2501121C 330458 S350T Rear Upper Arm Turnbuckle M5x72mm 330125 55.3mm...
  • Page 20 106002 M3x10mm Hex Socket OH/TP Screw 106002 106009 M3x25mm Hex Socket OH/TP Screw 103001 M3 Nut Lock 228001 106009 103001 108019 228003A(#3) 103001 228003A 228003A(#3) 106003 M3x16mm Hex Socket OH/TP Screw 228003A 103001 M3 Nut Lock 108019 M2.6x6mm Flat Head Screw - Hex Socket 228003A 106003...
  • Page 21 108007 338088 228004 108007 M3x6mm FH/ST HEX Screw 108007 228004 108007 108003 M3x10mm FH/ST HEX Screw 108010 M4x10mm FH/ST HEX Screw Front Top View 108012 Rear M4x16mm FH/ST HEX Screw 2501097B 108012 108010 108012 108003...
  • Page 22 108001 108001 M3x12mm FH/ST HEX Screw 340015 108012 M4x16mm FH/ST HEX Screw 108012 108012 106002 750 BL Motor is not included 106006 106002 104011 3mm hole M3x10mm Hex Socket OH/TP Screw 106006 4mm hole 340018 106008 106008 106008 M3x12mm Hex Socket OH/TP Screw 228007 338065 228007...
  • Page 23 338090 108003 M3x10mm FH/ST HEX Screw 330699B 228007 108010 M4x10mm FH/ST HEX Screw 108010 108003 338070 338091 228006-5 228006-5 106001 M3x8mm Hex Socket OH/TP Screw 338070 228006-5 338038A 108003 228006-5 338070 M3x10mm FH/ST HEX Screw 338070 108003 101020A 108003 3mm Countersunk Washers (GM) 101020A 108003 101020A...
  • Page 24 The 2503221BK Battery Stoper must be suit for different Lipo Battery style. 108006 108006 M3x8mm FH/ST HEX Screw 2503221BK 2503221BK 540001 2503221BK 540001 108006 108006 M3x8mm FH/ST HEX Screw 108006...
  • Page 25 338089 Steering Linkage Turnbuckle M4x80mm 2503270-03 338089 330777A 2501121C (#3) 330777A 63.9mm 106002 106002 M3x10mm Hex Socket OH/TP Screw 106002...
  • Page 26 330134 228006 108006 101012 M3x8mm FH/ST HEX Screw OPTION: SW-338078-25 108003 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 25T M3x10mm FH/ST SW-338078-23 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 23T 101012 M3x6xT0.6mm 228007 Servo is not included in the kit.
  • Page 27 1/8 ESC is not included 108003 M3x10mm FH/ST 2503221BK 400013 400013 108003 106010 106010 M3x6mm Hex Socket OH/TP Screw 200193 2503221BK 108007 M3x6mm FH/ST HEX Screw 108007 Receiver is not included 108007 2503221BK...
  • Page 28 103004 Front 338634(S) Front 330636(S) Rear 338633(L) Rear 330635(L) 330635(L) S350 New BBS System +5.5mm Shock Shaft ( L) 400020 330562A 330563A 330636(S) 101011 S350 New BBS System +1.3mm Shock Shaft ( S) 210058 103004 M2.5mm Nut Lock 330557 228006 210058 Shock Seal Washer 3.5X7X1.0mm Front 400010(S)
  • Page 29 103004 Front 338634(S) Front 330636(S) Rear 338633(L) Rear 330635(L) 330635(L) S350 New BBS System +5.5mm Shock Shaft ( L) 400020 330562A 330563A 330636(S) 101011 S350 New BBS System +1.3mm Shock Shaft ( S) 210058 103004 M2.5mm Nut Lock 330557 228006 210058 Shock Seal Washer 3.5X7X1.0mm Front 400010(S)
  • Page 30 M3x28mm Cap Screw 101010A 101010A 105013A M3x25mm Cap Screw 105006A 105013A 103003A 103003A 103003 Flange M3 Nut Lock 330243 (Anti-Clockwise) 330243 SWORKz 3x16mm Shock Hex Screw Clockwise 330243 330243 SWORKz 3x16mm Shock Hex Screw Anti-Clockwise 103003A 103003A 330243 (Anti-Clockwise) 330243...
  • Page 31 105005 228008BK 106025 228008BK 106025 228008BK 105005 M3x12mm Cap Screw 106025 39mm 39mm 106025 M2.5x8mm Hex Socket OH/TP Screw PRO TIP: Attention! 228008BK Please do not follow the wing hole markings to drill. Please drill both holes 0.5mm inwards. 330122A Wheel Nut Tires and wheels are not included...
  • Page 32 Attention! The S35-T2e body post positions are different as of the body shell's. Please check the “RED DOTs” marked on the body shell. Or follow the manual's instructions for the actual body posts positions. 250049A 10mm Use body scissors to cut along the body lines.
  • Page 33 Lipo Batteries are not included...
  • Page 34 115019 115019 115019 115019...

  • Page 35: Set-Up Sheet

    Race time / Lap: SET-UP SHEET Best lap: Diff. Oil Track Conditions Name: Size: Open Med. Tight Front: Date: Traction: High Med. Center: Track: Med. Bumpy Surface: Smooth Rear: Electric System Tire Motor Gear/Spur Gear: Front Rear ESC Type: Type: Type: A: Standard Pack Battery Type...

  • Page 36: Blank Set-Up Sheet

    Toe angle ° Sway bar Rebound stop None Steening Ackerman Rear Suspension Notes: Rear Toe-In Front Ride Height Chassis Ground Bladder Emulsion SWORKz RS3 Body: Cap: Soft material Wing: Standard Medium material Spacer: Wing Position Oil: #700 1.4x6H Wing Angle: Pistons: °...

  • Page 37: S35-T2E Key No.list

    S35-4E Buggy Series Steering Servo Mount/Center Diff Mount Plastic Parts 1 SW-228007 610019 S35-3 Series Servo Saver Spring Dusty Protect Sponge 1 SW-610019 228008BK SWORKz 1/8 Off Road Formula 2.0 Race Wing (BK) 1 SW-228008BK 610020 S35-3 Series Center Big Bore Plastic Diff. Case Gasket 1 SW-610020 228010-F...

  • Page 38: S35-T2E Spare Part List

    S35-4E Buggy Series Steering Servo Mount/Center Diff Mount Plastic Parts SW-610020 S35-3 Series Center Big Bore Plastic Diff. Case Gasket (3pc) SW-228008BK SWORKz 1/8 Off Road Formula 2.0 Race Wing (BK) SW-610023 S35-4 HET Diff. Gasket (0.4T)(4pc) SW-228010-F S35-T2 Series Front Lower Arm (1PC)

  • Page 39: S35-T2E Option Part List

    S35-4 Plastic Center Big Bore HET Diff Case (Hard) SW-210091H S35-4 Plastic Front/Rear Big Bore HET Diff Case (Hard) SW-228008WH SWORKz 1/8 Off Road Formula 2.0 Race Wing (WH) SW-228008FY SWORKz 1/8 Off Road Formula 2.0 Race Wing (FY) SW-300049...
