SWorkz S350 EVO II Instruction Manual

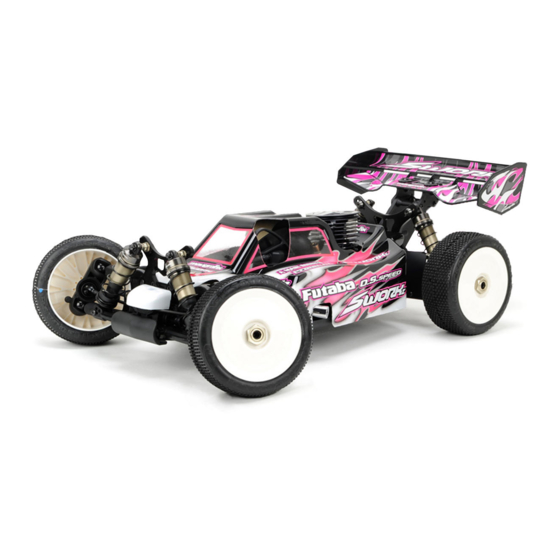

1/8 off road nitro racing buggy
Hide thumbs Also See for S350 EVO II:

Advertisement

Quick Links

Download this manual
SWORKz S350 EVO II INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the S350 EVO II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SWorkz S350 EVO II

Summary of Contents for SWorkz S350 EVO II

  • Page 1 SWORKz S350 EVO II INSTRUCTION MANUAL...

  • Page 2: Specification

    SWORKz RC Face Book, so check often. As always, if you should ever have any questions or need help with your S350 EVO II, please feel free to contact our official SWORKz dealers and distributors, as they will be glad to help you.

  • Page 3: Warranty

    WAR RAN TY Your SWORKz S350 EVO II kit warranty covers workmanship and manufacturing defects of the original and unmodified parts. Warranty claims resulting from crashes, abuse, improper operation, improper mounting, improper adjustment or lack of maintenance will not be honored.

  • Page 4: End Cover

    Operation Guide Assembly Steps 16-45 Blank Set-up Sheet Set-up Sheet S350 EVO II Key No. List S350 EVO II Spare Part List S350 EVO II Option Part List S350 EVO II Kit Features End cover This radio controlled racing car is not a toy!
  • Page 5 R e q u i re d Equ ip me nt fo r O p erat io n Radio Gear Nitro fuel Receiver batteries Stick Type We recommend that you use fuel containg 20~25% nitro. Throttle servo On/Off Switch Receiver Wheel &...
  • Page 6 104001 106007 M5x4mm Set Screw x4 M3x12mm Hex Socket OH/TP Screw(HT) 104004 106008 M3x3mm Set Screw x12 M3x12mm Hex Socket OH/TP Screw x8 104005 M3x4mm Set Screw x4 106009 M3x25mm Hex Socket OH/TP Screw x4 104007 M4x8mm Set Screw x4 106010 M3x6mm Hex Socket OH/TP Screw 104008...
  • Page 7 103001 101004 330117A M3 Nut Lock Washer 3.5X10X0.2mm x12 Knuckle Pivot Ball Washer 330561 103004 S350 New BBS System Shock M2.5mm Nut Lock 101010A Seal Washer 3.6X7X2.5mm M3 Countersunk Washer x4 (GM) 330567 S350 New BBS System Shock 103003A Flange M3 Nut Lock (GM) x5 Seal Washer 3.5X7X1.0mm 101011 M2.6x6xT0.6mm x4...
  • Page 8 115003 330252 Tornado Clutch Spring x3 Steering Knuckle Pivot Ball Turnbuckle 115011 Pipe Spring x1 330123A S350 EVO Rear Upper Sus. Arm x2 115019 Body Clip x2 Turnbuckles M5x38mm 115005 Rear Sway Ball 2.8mm x1 330126A S350 EVO Steering Turnbuckle 330106 M4x40mm Brake Cam...
  • Page 9 330127 Steering Linkage 320003 Ball Stud 7mm Diff. Bevel Gear 18T 330407A S350 series PSP Aluminum Throttl x1 Linkage Arm Plate(GM) 330134 Shock Ball Stud x10 320004 Diff. Bevel Gear 10T x12 330408A S350 series PSP Aluminum Throttl Linkage Arm Holder(GM) 330136 Sway Bar Ball Stud 330009...
  • Page 10 Shock Tower(Standard) Pivot Ball Nut(GM) Shock Cap x4 330164 300017 Crown Gear 43T Brake Disc 330008A 330018 SWORKz Tornado Fly 46T SPUR GEAR 330401 Wheel Set (GM) Rear Hub Carriers Hing Pin with Nut 330435 High Performance Matel 330399A Brake Calipers 2.0 A Side...
  • Page 11 SW-2501093B S350 EVO I/II BBS Front Lower Arm Set (L&R) SW-2501113 S350 Front Upper Arm Set (L&R) SW-2501098A S350 Front Steering Knuckle Set (Also for LDS) (L&R) SW-2501121 S350 Ball End Set with Shock Plastic Parts (2 Set) SW-2501114 S350 Gear Box Set (F&R) SW-2501096 S350 Full Arm Holder Set...
  • Page 12 SW-2501123 SW-2501667 S350 Side Guard Set S350 Power Steering Servo Savor (L&R) Arm Plastic SW-210002 Center Diff. Mount (Lower)(Upper) SW-210002A Diff. Case SW-210033A Fuel Tank x1 SW-2501122 S350 Settring Bellcrank Set with Servo Horn Set Side View Top View SW-2501100 S350 Pivot Ball Cup Caster Insert Set...
  • Page 13 SW-2501094B S350 EVO I/II BBS Rear Lower Arm Set (L&R) SW-2501095A S350 Rear Hub Carrier Set x1 (Also for LDS) (L&R) SW-2501115 S350 Rear Lower Arm Dusty Cover with Fuel Sprinkle Guard SW-2501097 S350 Wing Stay Set with Bumper SW-2501099 S350 R/F Insert x2 SW-2501116 Brake...
  • Page 14 SW-2501666 S350 Power Steering Radio Tray SW-2502036 S350 Series Rear Changable Plastic Lower Arm Plate with insert SW-2501529 S350 BX1/BR1 Plastic Chassis Brace Set SW-2501668 S350 Series Plastic Insert Set...

  • Page 15: Thread Locking Compound

    The SWORKz S350 EVO II is a high performance radio controlled model which needs to be operated with caution and common sense. The S350 EVO II Pro Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from the abuse or misuse of this product or any other product required while operating this model.
  • Page 16 Bevel Gear Shaft 101004 Washer 3.5X10X0.2mm 610002 101004 101004 320004 330013 101004 320004 101004 Fill the differentials with oil up to 80% above the satellite gears. Put the SWORKz Diff. Oil 7000cps for the front Diff. and 3000cps for the rear Diff.
  • Page 17 M3x10mm FH/ST HEX Screw 330013 Bevel Gear Shaft 101004 610002 Washer 3.5X10X0.2mm 101004 101004 320004 330013 320004 101004 101004 Fill the differentials with oil up to above the satellite gears. Put the SWORKz Diff. Oil 7000cps for the center Diff.
  • Page 18 2501114 104011 200574 M4x4mm Set Screw (Flat Bottom) 2501529 200574 106010 M3x6mm Hex Socket OH/TP Screw 116016 108001 106010 M3x12mm FH/ST HEX Screw 330160A 116016 Ball Bearing 5x11x4mm 104011 2501096 210045 108001 The standard front lower arm holder (200102) can offer 0°...
  • Page 19 2501114 104011 200574 M4x4mm Set Screw (Flat Bottom) 2501529 200574 106010 M3x6mm Hex Socket OH/TP Screw 330160A 116016 108001 106010 M3x12mm FH/ST HEX Screw 116016 Ball Bearing 5x11x4mm 104011 330267A 210047 108001 101018 101018 SHIM 13x16x0.2mm Please use the SHIM 13x16x0.2mm to adjust when the play was bigger between the crown gear and pinion gear.
  • Page 20 2501100 2501099 330103 2501099 2501100 Front/Rear Lower Arm HingPin 330103 Use a 2mm Hex Wrench and slowly tighten the 2.0mm Hinge Pins. 2501114 Pop in the Stabilizer Guide. 104004 M3x3mm Set Screw 104004 104004 115008...
  • Page 21 104005 M3x4mm Set Screw 105004 M2.6x6mm Cap Screw 104005 105004 104005 108003 M3x10mm FH/ST HEX Screw 2501098A 108003 Right 330226 330227 330252 2501100 Left 330118A 2501098A 330118A Screw and adjust 330118A Knuckle 330252 Pivot Ball Nut so as the pivot ball can be moved smoothly.
  • Page 22 104001 M5x4mm Set Screw Left 330124 Pin M3.0x16.8mm 210046 116006 Ball Bearing 8x16x5mm 330124 116006 116006 Right 330121A 104001 2501099 330210A 106002 108003 108003 M3x10mm FH/ST HEX Screw 2501099 330091 106002 M3x10mm Hex Socket OH/TP Screw 108003 108003 2501097...
  • Page 23 2501113 330119 108001 M3x12mm FH/ST HEX Screw 2501100 330119 Front Upper Arm HingPin 2501100 330119 330507B 2501099 2501113 108001 330117A Knuckle Pivot Ball Washer 330117A 330117A...
  • Page 24 106003 106004 106003 330135A 101012 117003 115004 103001 101012 M3 Nut Lock 117003 330249A 330423A 101012 M3x6xT0.6mm 117003 101012 117003 117003 2501122 Flange Ball Bearing 3x6x2.5mm 106004 101012 116004 Ball Bearing 6x10x3mm 2501122 103001 106003 330114A M3x16mm Hex Socket OH/TP Screw 103001 108003 108003...
  • Page 25 330136 104007 104007 M4x8mm Set Screw 2501121 106005 330134 M3x15mm Hex Socket OH/TP Screw 106005 2501094B 108015 106002 M3x10mm Hex Socket OH/TP Screw 108015 330399A M3x16mm FH/ST HEX Screw 330508B 2501097 106002 108015 108015...
  • Page 26 2501099 2501100 2501099 The rear lower arm holder insert can offer 1.0, 2.0 and 3.0 rear kick-up for your rear lower suspension. 200108 R/F Insert (1 degree) 200109 R/F Insert (0 degree) 2501100 330103 2502036 2502036A 330103 2502036 108008 108008 M3x35mm FH/ST HEX Screw The new rear changeable plastic lower arm plate with 2 inserts which can offer 2.0~3.5 rear toe-in for your...
  • Page 27 104005 M3x4mm Set Screw 105004 M2.6x6mm Cap Screw 104005 105004 104005 104001 M5x4mm Set Screw 330124 Pin M3.0x16.8mm 210046 116006 2501095A Ball Bearing 8x16x5mm 116006 116006 2501095 Right 330121A Left 330124 104001...
  • Page 28 2501100(3mm) 103001 2501100(1mm) 2501100(3mm) 2501100(1mm) 103001 330401 103001 M3 Nut Lock 330401 2501100(1mm) 330401 Rear Hub Carriers Hing Pin with Nut 2501100(1mm) 2501121 330123A Rear Upper Sus. Arm Turnbuckles 330125 2501121 330123A 330125 14.2mm...
  • Page 29 106003 103001 M3 Nut Lock 103001 105011 105011 M3x23mm Cap Screw 106003 M3x16mm Hex Socket OH/TP Screw 103001 103001 105011 103001 Our suggestion is to assemble the rear wing mount s y s t e m b e f o r e 106010 going to the next M3x6mm Hex Socket OH/TP Screw...
  • Page 30 104004 330106 108006 108006 106007 108006 M3x12mm Hex Socket OH/TP Screw(HT) 2501666 104004 106007 M3x3mm Set Screw 106007 108006 104004 M3x8mm FH/ST HEX Screw 210043 330105 115051 210043 330104 330106 2501124 106009 106009 106009 106009 M3x25mm Hex Socket OH/TP Screw 108006 M3x8mm FH/ST HEX Screw 300016...
  • Page 31 106010 108014 2501123 330268 106010 M3x6mm Hex Socket OH/TP Screw 108014 108014 M3x3mm FH/ST HEX Screw 2501123 108014 106010 108014 108001 108001 M3x12mm FH/ST HEX Screw 108003 M3x10mm FH/ST HEX Screw 2501097 2501529 108012 108010 M4x10mm FH/ST HEX Screw 108012 M4x16mm FH/ST HEX Screw 108012 108001...
  • Page 32 108011 M4x12mm FH/ST HEX Screw 108011 2501529 108001 M3x12mm FH/ST HEX Screw 106006 108012 M4x16mm FH/ST HEX Screw 103001 106006 M3x20mm Hex Socket OH/TP Screw 103001 M3 Nut Lock 108012 108012 108001...
  • Page 33 Right 330126A Steering Turnbuckle 2501121 330127 330126A Left 330127 2501121 23.6mm 103001 M3 Nut Lock 108009 103001 M3x20mm FH/ST HEX Screw 108009 108009 103001...
  • Page 34 106005 106008 106005 106008 M3x12mm Hex Soket OH/TP Screw 106008 Servos are not included in the kit. 106005 M3x15mm Hex Soket OH/TP Screw 2501667 2501666 2501667 106010 M3x6mm Hex Socket OH/TP Screw Receiver and switch are not included in the kit. ※Come with radio My Laps transponder is not included in the kit.
  • Page 35 105004 105004 108006 108006 M3x8mm FH/ST HEX Screw 108006 108006 2501666 105004 330408A M2.6x6mm Cap Screw 330407A 2501667 108022 108022 M3x25mm FH/ST HEX Screw 108006 M3x8mm FH/ST HEX Screw Battery is not 108006 included in the kit. 2501666 200193...
  • Page 36 108006 M3x8mm FH/ST HEX Screw 108006 108006 108006 106005 106005 M3x15mm Hex Soket OH/TP Screw 2501122 330134 103001 M3 Nut Lock 2501121 330155 Steering Servo Turnbuckle (M3x30mm) 330134 103001 330155 2501121 12mm...
  • Page 37 106007 SW-330423A S350 PSP System 106007 M3x12mm Hex Socket Aluminum Settring Bellcrank Upper (A 2H ) OH/TP Screw(HT) Assembly Note 108006 M3x8mm FH/ST HEX Screw 108006 Position A Position B 103001 M3 Nut Lock If servo saver arms are not included use this: Position A: Standard steering response location.
  • Page 38 108003 M3x10mm FH/ST HEX Screw 108003 108003 105005 101013 105005 105005 101013 M3x12mm Cap Screw 101013 101013 3mm Spring Washer 330012 330008A 330009 330100A 330101A...
  • Page 39 105001 115003 M3x8mm Cap Screw 330006 101012 M3x6xT0.6mm 330137 330006 101015 116010 M5x8xT0.4mm 105001 116010 101021 115003 116010 101015 Ball Bearing 5x10x4mm 330006 101015 115003 105007A M4x8mm I-Head Screw 105007A 104008 104008 M4x4mm Set Screw 330140A 108013 M4x8mm FH/ST HEX Screw 115011 Not included 108013...
  • Page 40 115018 104004 106007 104004 104004 330157A 105004 M3x3mm Set Screw 115016 2501099 105004 330156A 2501099 104004 M2.6x6mm Cap Screw 117003 330156A 115018 115017 330155 104004 Steering Servo Turnbuckle (M3x30mm) 2501667 2501099 117003 330157A 106007 M3x12mm Hex Socket OH/TP Screw(HT) 2501121 2501667 330155 117003...
  • Page 41 103004 Front 330559(S) Front 330556(S) Rear 330558(L) 330558(L) S350 New BBS System Shock Shaft (L) Rear 330555(L) 330562(F) 400020 330559(S) 330563(R) S350 New BBS System Shock Shaft (S) 330567 101011 330561 330561 103004 M2.5mm Nut Lock 400006 330557 330567 Shock Seal Washer 3.5X7X1.0mm 2501121 330561 Front 400010(S)
  • Page 42 330138A 105013 105013 330138A M3x25mm Cap Screw 101010A 101010A 101010A 105013 105013 103003A 103003A 103003 Flange M3 Nut Lock 106005 M3x15mm Hex Socket OH/TP Screw 106005 106005 103003A 103003A 106005 106005...
  • Page 43 106008 2501097 2501097 103001 103001 103001 M3 Nut Lock 106008 106008 2501097 2501097 M3x12mm Hex Soket OH/TP Screw 103001 106008 2501097 106006 106006 M3x20mm Hex Soket OH/TP Screw 106003 M3x16mm Hex Socket OH/TP Screw 106003 105005 2501116 2501116 105005 M3x12mm Cap Screw 200141...
  • Page 44 2501126 108006 108006 610004 M3x8mm FH/ST HEX Screw 610005 540003 410023 2501126 540003 420011 420011...
  • Page 45 330122A Wheel Nut Not included Not included 330122A 330122A 250041 115019 106010 M3x6mm Hex Socket OH/TP Screw 106010 115019...

  • Page 46: Set-Up Sheet

    SET-UP SHEET Race time / Lap: w w w. s w o r k z . c o m Best lap: Track Conditions Size: Open Med. Tight Traction: High Med. Surface: Smooth Med. Bumpy Diff. Oil Engine Name: Front: Date: Center: Type: Track:...
  • Page 47 Plug: Fuel: Tire Front Rear Pro-Line Pro-Line Clutch Type: Type: Brockade Brockade Clutch shoes: SWORKz Tornado Clutch Shoes Foam: Foam: Pro-Line Pro-Line Spring: Front Suspension 13/46T Clutch bell / Spur gear: Front in-Board Toe √ Front Roll Center Track width √...
  • Page 48 12 SW-320004 F/Up Insert (1 degree) 330006 Tornado Clutch Shoes 3 SW-330006 Brake Linkage Holder 330008A SWORKz Tornado Fly Wheel Set (GM) 1 SW-330008A Throttle Linkage Holder 330009 Tornado Fly Wheel Center Nut 1 SW-330008A Throttle Linkage Holder (Done) 330012...
  • Page 49 S350 Ball End Set with Shock Plastic Parts (2 Set) 510063 S350 Falcon 2 Clean Body Shell Window Mask 1 SW-250041 510062 S350 EVO II Body Decal Sheet 1 SW-250041 SW-2501122 S350 Settring Bellcrank Set with Servo Horn Set 610005...
  • Page 50 Ball Bearing 8x16x5mm SW-400021 S350 New BBS System Shock Bladder (Soft)(4pc) SW-116004 Ball Bearing 6x10x3mm SW-510053 SWORKz Speed Logo Sticker (Standard)(BK) (2pc) SW-210059 S350 New BBS System Shock Spring Set (Soft)(Pink) SW-510053-PWH SWORKz Speed Logo Sticker (PushBar)(WH)(2pc) SW-115019 Body Clip...
  • Page 52 2803356...
