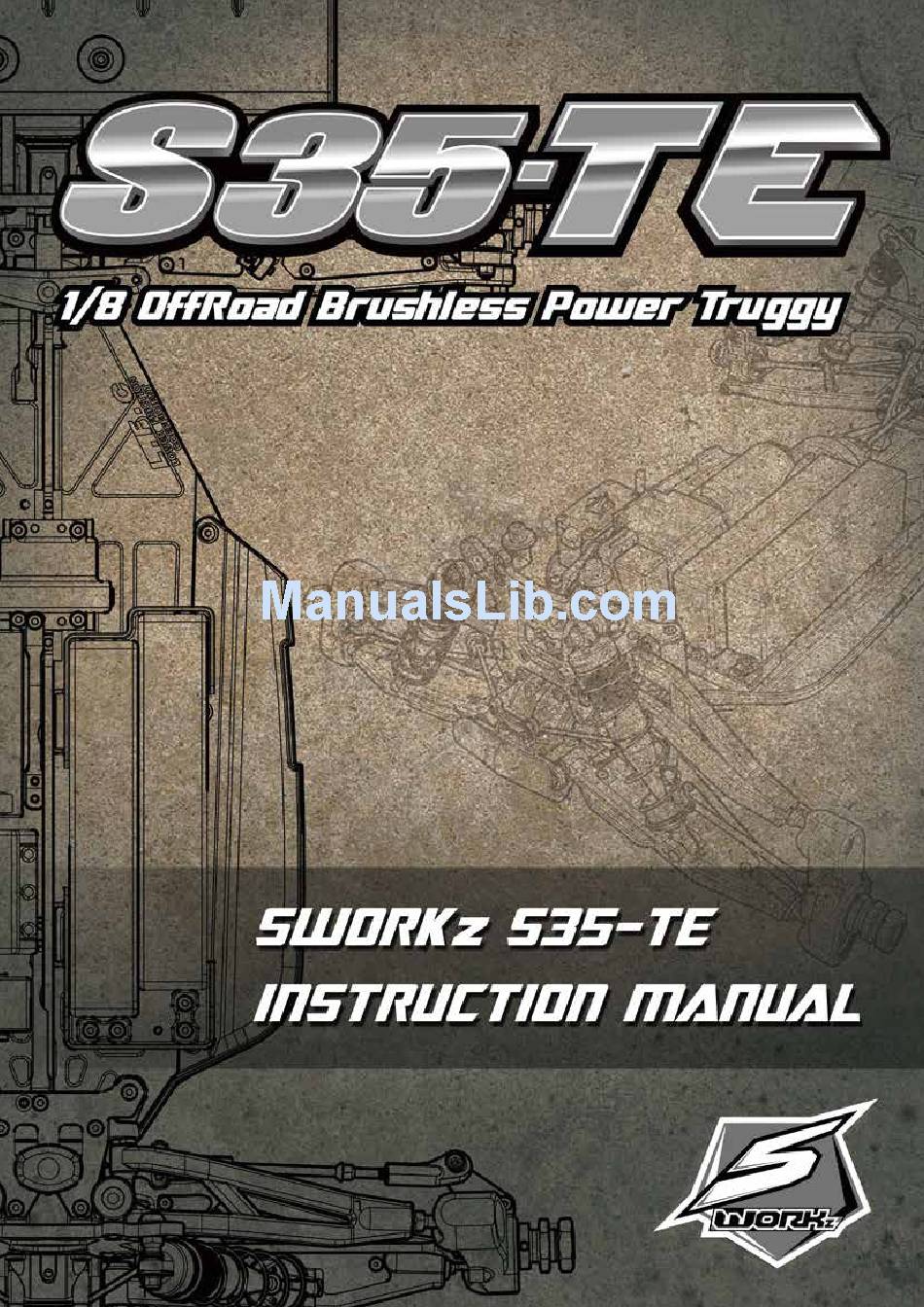

SWorkz S35-TE Instruction Manual

1/8 offroad brushless power truggy
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the S35-TE and is the answer not in the manual?

Questions and answers

Related Manuals for SWorkz S35-TE

Summary of Contents for SWorkz S35-TE

  • Page 2: Specification

    Truggy. Updates, setups, and product news will be posted on our website (www.sworkz.com), so check often. As always, if you should ever have any questions or need help with your S35-TE, please feel free to contact our official SWORKz dealers and distributors, as they will be glad to help you. You may also contact us at any time for the most up to date information and support.

  • Page 3: Warranty

    Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert...

  • Page 4: Required Equipment For Operation

    7-34 Blank Set-up Sheet 35-36 S35-TE Key No.List 37-38 S35-TE Spare Part List 38-39 S35-TE Option Part List End cover This radio controlled racing car is not a toy! This high-performance R/C model is recommended for ages 14 and older.
  • Page 5 R e q u i re d Equ ip me nt fo r O p erat io n Radio Gear Stick Type Receiver ESC system Steering servo Wheel & Trigger Type Breshless Motor Charger and LiPo Battery Tools Recommended Long nose pliers Side cutter 1.5mm Paint...

  • Page 6: Thread Locking Compound

    The SWORKz S35-3E is a high performance radio controlled model which needs to be operated with caution and common sense. The S35-TE Pro Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from the abuse or misuse of this product or any other product required while operating this model.
  • Page 7 Bevel Gear Shaft 101004 Washer 3.5X10X0.2mm 610002 101004 101004 320004 330013 101004 320004 101004 Fill the differentials with oil up to 80% above the satellite gears. Put the SWORKz Diff. Oil 7000cps for the front Diff. and 3000cps for the rear Diff.
  • Page 8 Bevel Gear Shaft 108007 610002 101004 Washer 3.5X10X0.2mm 2501469-01 (45T) 101004 2501469-02 (46T) 2501469-03 (47T) 108007 101004 320004 330013 320004 101004 101004 Fill the differentials with Oil up to 80% full. Use SWORKz Diff. Oil 7000cps for the center Diff.
  • Page 9 Pro Tip: Before installing the M5x4 set screw (104010), remember to clean the set screw and center driver joint (330661A) first. Then apply TLC on the set screw. 104010 M5x4mm Set Screw (Flat Bottom) 116016 108001 M3x12mm FH/ST HEX Screw 330650 116016 116016...
  • Page 10 Pro Tip: 106016 Before installing the M5x4 set screw 104010 (104010), remember to clean the set screw M5x4mm Set Screw (Flat Bottom) and center driver joint (330661A) first. Then apply TLC on the set screw. 106016 108001 M3x12mm FH/ST HEX Screw 330769 330650 330661A...
  • Page 11 330103 Front/Rear Lower Arm HingPin 108008 M3x35mm FH/ST HEX Screw 2503260-3 101020A 2503260-24.25 3mm Countersunk Washers (GM) 330103 330642 2503260-3 2503260-24.25 101020A 118008 Use a 2mm Hex 2.0mm Wrench and slowly tighten the Hinge Pins. 2503261-1 104004 Pop in the Stabilizer Guide. M3x3mm Set Screw 104004 104004...
  • Page 12 106013 106013 104005 M3x4mm Set Screw 106013 M2.5x8mmH ex Socket OH/TPScrew 104005 104005 Note: The aluminum front upper arm holder (330786) can offer either 0° or + -1° kick-up for your front upper arm suspension. You may use the inserts 2503260-18 to get 0° kick-up 108003 or 2503260-11 to get +-1°...
  • Page 13 Pro Tip: The S35-3 Front Upper Arm Adjust Inserts can give different steering adjustments (Ackerman). Put all inserts behind the front upper arms, you will get faster steering response. Otherwise put all inserts in front of the upper arms, 2503260-1 you will get more stable steering response.
  • Page 14 108005 108009 M3x20mm FH/ST HEX Screw 330669A 2502040-02 108005 330399B M3x14mm FH/ST HEX Screw 106002 M3x10mm Hex Socket OH/TP Screw 103001 M3 Nut Lock 106002 101021 M3x8xT1mm 108009 108009 Pro Tip: The 330770 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) can use 3 types of square inserts to get 1.0/2.0/3.0 3 different toe in angles.
  • Page 15 2503261-1 104004 M3x3mm Set Screw Pop in the Stabilizer Guide. 104004 104004 115008A 104005 M3x4mm Set Screw 106013 M2.5x8mmH ex Socket OH/TPScrew 104005 104005 106013...
  • Page 16 106007 106004 106007 101021 117003 330135A 103001 101021 M3 Nut Lock 610019 117003 330632 101021 M3x8xT1mm 117003 115004 117003 2501667-8 117003 Flange Ball Bearing 3x6x2.5mm 106004 2501122A 116004 2501122A Ball Bearing 6x10x3mm 103001 106007 M3x12mm Hex Socket OH/TP Screw(HT) 103001 330114A 108003 108003...
  • Page 17 2503264A 106002 M3x10mm Hex Socket OH/TP Screw Right 106002 330826 330252 330826 2503260 Left 330118A 2503264A 330118A 330252 2503260-8 Screw and adjust 330118A Knuckle Pivot Ball Nut so as the pivot ball can be moved smoothly. Right 104010 M5x4mm Set Screw (Flat Bottom) 330124 Pin M3.0x16.8mm Be sure that M5x4 set screw must touch the flat side from pin.
  • Page 18 Be sure that M5x4 set screw must touch the flat side from pin. 104010 M5x4mm Set Screw (Flat Bottom) 210074 Right 33124A Pin M3.0x16.8mm 330124A 116006 116006 330651L Ball Bearing 8x16x5mm Left 116006 330551 104010 2502040-02 106002 106002 M3x10 mm Hex Socket OH/TP Screw 330117A...
  • Page 19 2503260-7 103001 2503260-6 2503260-7 330782 103001 2503260-7 103001 M3 Nut Lock 330782 Rear Hub Carriers Hing Pin with Nut 2503260-6 330782 2503260-7 2501121C-4 330125 2501121C-9 330458 330458 S350T Rear Upper Arm Turnbuckle M5x72mm 330125 48mm...
  • Page 20 103001 M3 Nut Lock 105011 M3x12mm Cap Screw 106003 106003 M3x16mm Hex Socket OH/TP Screw 105011 103001 103001 2501097 106008 2501097 103001 103001 106008 2501097 103001 106008 103001 2501097 M3 Nut Lock 106008 M3x12mm Hex Soket OH/TP Screw...
  • Page 21 106006 106006 M3x20mm Hex Soket OH/TP Screw 106005 M3x15mm Hex Soket OH/TP Screw 106005 108007 108007 M3x6mm FH/ST HEX Screw 2501123 108007 2501123...
  • Page 22 108003 M3x10mm FH/ST HEX Screw 108010 M4x10mm FH/ST HEX Screw 108012 M4x16mm FH/ST HEX Screw 2501097 108012 108012 108003 108010 106002 108003 2503220BK M3x10mm FH/ST HEX Screw 106002 M3x10 mm Hex Socket OH/TP Screw 108003...
  • Page 23 108003 M3x10mm FH/ST HEX Screw 108012 M4x16mm FH/ST HEX Screw 106006 M3x20mm Hex Socket OH/TP Screw 103001 M3 Nut Lock 106006 103001 2503220BK 108012 108012 108003...
  • Page 24 106002 106002 2503220BK 106002 M3x10mm Hex Soket OH/TP Screw 2501471A 104011 M4x4mm Set Screw (Flat Bottom) 105012 M3x10mm Cap Screw 104011 750 BL Motor is not included 101010A 330693 330568 330245(15T) 105012 108006 330678 M3x8mm FH/ST HEX Screw 330399B 108003 M3x10mm FH/ST HEX Screw 108006 108003...
  • Page 25 The 2503221BK Battery Stoper must be suit for different Lipo Battery style. 108006 108006 M3x8mm FH/ST HEX Screw 2503221 2503221BK 540001 2503221BK 540001 108006 108006 108006 M3x8mm FH/ST HEX Screw...
  • Page 26 Right 330459 Steering Linkage Turnbuckle M4x75mm 2501121C-2 330459 330777 2501121C-3 330127 55.5mm 106002 M3x10mm Hex Socket OH/TP Screw 108009 M3x20mm FH/ST HEX Screw 103001 103001 M3 Nut Lock 108009 106002...
  • Page 27 330134 104009 M3x16mm Set Screw 106001 M3x10mm Hex Soket OH/TP Screw 2501121C-7 330762 2501121C-7 104009 108006 M3x8mm FH/ST HEX Screw 330694 101012 108003 106001 M3x10mm FH/ST 101012 M3x6xT0.6mm 101012 108006 106001 108003 2503221BK 108006 M3x8mm FH/ST HEX Screw 106008 106008 M3x12mm Hex Soket OH/TP Screw 103001 M3xNut Lock...
  • Page 28 1/8 ESC is not included 108003 M3x10mm FH/ST 2503221BK 400013 400013 108003 106010 106010 M3x6mm Hex Socket OH/TP Screw 108007 M3x6mm FH/ST HEX Screw 200193 2503221BK 200193 108007 108007 2503221BK...
  • Page 29 103004 Front 330636(S) Front 330634(S) Rear 330635(L) 330635(L) S350 New BBS System +5.5mm Shock Shaft ( L) Rear 330633(L) 330562(F) 400020 330563(R) 330636(S) 330567 S350 New BBS System +1.3mm 101011 330561 Shock Shaft ( S) 330561 400006 103004 M2.5mm Nut Lock 330557 330567 2501121C-8...
  • Page 30 330138B 330138B 101010A 330138B 105013A M3x25mm Cap Screw 101010A 101010A 101010A 105013A 105013A 103003A 103003A 106005 103003 Flange M3 Nut Lock 106005 106005 M3x15mm Hex Socket OH/TP Screw 103003A 103003A 106005 106005...
  • Page 31 105005 2501116 2501116 105005 M3x12mm Cap Screw SW-220014BK 330122A Wheel Nut Tires and wheels are not included in the kit. 330122A 330122A...
  • Page 32 Use body scissors to cut along the body lines. 250049 Use water/washing solution to clean body. Apply window masks as shown. 510100 Paint body.
  • Page 33 Lipo Batteries are not included...
  • Page 34 115019 115019 115019...

  • Page 35: Set-Up Sheet

    SET-UP SHEET Race time / Lap: w w w. s w o r k z . c o m Best lap: Track Conditions Size: Open Med. Tight Traction: High Med. Surface: Smooth Med. Bumpy Diff. Oil Electric System Name: Front: Date: Center: ESC Type:...
  • Page 36 SET-UP SHEET Race time / Lap: w w w. s w o r k z . c o m Best lap: Track Conditions Size: Open Med. Tight Traction: High Med. Surface: Smooth Med. Bumpy Diff. Oil Electric System Name: Front: Date: Center: ESC Type:...
  • Page 37 S35-T T7075 Aluminum Rear Shock Tower 1 SW-330669A S35-3 Series Rear Front Lower Suspension Plate Inserts (+/-1 degree) 2 330678 S35-TE Steel Center Front Drive Shaft 68mm 1 SW-330678 S35-3 Series Rear Front Lower Suspension Plate Inserts (0 degree) 2 330693...

  • Page 38: Spare Part List

    S35-T Pinion Gear 10T (Only Fit for SW-330502A) SW-330661A S35-T/S35 Series Competition Center Drive Join (5mm set screw) SW-330669A S35-T T7075 Aluminum Rear Shock Tower SW-330678 S35-TE Steel Center Front Drive Shaft 68mm SW-330693 S35-2E Center Motor Mount SW-330694 6mm Ball Stud SW-330699B...
  • Page 39 SWORKz 1/8 Off Road Speed Wing (WH) SW-330823 S35-TE T7075 Lightened Main Chassis SW-220018BK SWORKz 1/8 Off Road Formula Race Wing with brand sticker (BK) SW-400002 O-ring S5 4.8X1.5 SW-220018WH SWORKz 1/8 Off Road Formula Race Wing with brand sticker (WH)
