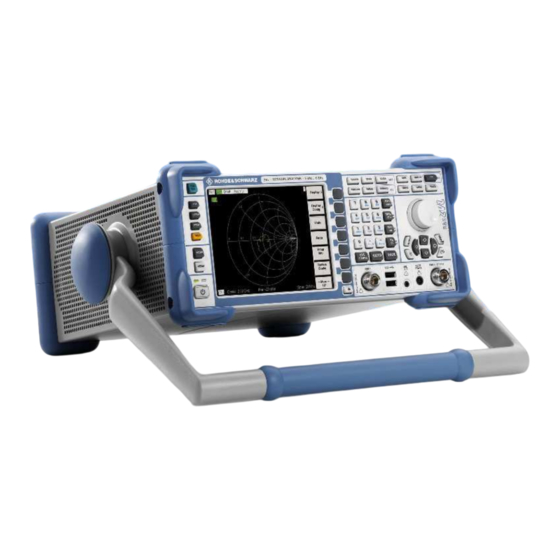

Rohde & Schwarz R&S ZVL Service Manual

Vector network analyzer

Hide thumbs

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

page of 170

/ 170
Bookmarks

Quick Links

Download this manual

Service Manual Instrument

Vector Network Analyzer

R&S ZVL

Test and Measurement

1303.6580.82-06

www.valuetronics.com

Need help?

Do you have a question about the R&S ZVL and is the answer not in the manual?

Questions and answers

Summary of Contents for Rohde & Schwarz R&S ZVL

Page 1 Service Manual Instrument Vector Network Analyzer R&S ZVL Test and Measurement 1303.6580.82-06 www.valuetronics.com...
Page 2 Dear Customer, ® throughout this manual, the Vector Analyzer R&S ZVL is abbreviated as R&S ZVL. ® R&S is a registered trademark of Rohde & Schwarz GmbH & Co. KG Trade names are trademarks of the owners www.valuetronics.com...
Page 3 R&S ZVL Tabbed Divider Overview Tabbed Divider Overview Index Safety Instructions Certificate of Quality Spare Parts Express Service List of R&S Representatives Contents of Manuals for Spectrum Analyzer R&S ZVL Service and Repair Tabbed Divider Chapter 1: Performance Test Chapter 2: Adjustment Chapter 3: Repair...
Page 4 www.valuetronics.com...
Page 5 R&S ZVL Index Index Installing the New Fan and Completing the Instrument...............3.52 Installing the New Flash Card and Completing the Instruments ..........3.18 Adjustment Installing the New Flexible Switchboard frequency accuracy..........2.1 and Completing the Instrument ........3.31 functions ..............2.1 Installing the New Front Connector and measuring equipment and accessories ....
Page 6 Index R&S ZVL Performance Test Replacing the Fan............3.51 Display Linearity............1.4 Replacing the Flexible Switchboard in Frequency accuracy........1.3, 1.10 the Front Module ............3.29 Level Accuracy ............1.8 Replacing the Front Connector in the Front Module..3.36 Level linearity ............1.9 Replacing the IEC/IEEE Bus Board Report R&S ZVL ............
Page 7 Basic Safety Instructions Always read through and comply with the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standards of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment they require are designed, built and tested in accordance with the safety standards that apply in each case.
Page 8 Basic Safety Instructions Tags and their meaning The following signal words are used in the product documentation in order to warn the reader about risks and dangers. indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Page 9 Basic Safety Instructions Electrical safety If the information on electrical safety is not observed either at all to the extent necessary, electric shock, fire and/or serious personal injury or death may occur. 1. Prior to switching on the product, always ensure that the nominal voltage setting on the product matches the nominal voltage of the AC supply network.
Page 10 Basic Safety Instructions 14. Use suitable overvoltage protection to ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product. Otherwise, the person operating the product will be exposed to the danger of an electric shock. 15.
Page 11 Basic Safety Instructions Repair and service 1. The product may be opened only by authorized, specially trained personnel. Before any work is performed on the product or before the product is opened, it must be disconnected from the AC supply network.
Page 12 Informaciones elementales de seguridad 2. Handles on the products are designed exclusively to enable personnel to transport the product. It is therefore not permissible to use handles to fasten the product to or on transport equipment such as cranes, fork lifts, wagons, etc. The user is responsible for securely fastening the products to or on the means of transport or lifting.
Page 13 Informaciones elementales de seguridad Se parte del uso correcto del producto para los fines definidos si el producto es utilizado conforme a las indicaciones de la correspondiente documentación del producto y dentro del margen de rendimiento definido (ver hoja de datos, documentación, informaciones de seguridad que siguen). El uso del producto hace necesarios conocimientos técnicos y ciertos conocimientos del idioma inglés.
Page 14 Informaciones elementales de seguridad Palabras de señal y su significado En la documentación del producto se utilizan las siguientes palabras de señal con el fin de advertir contra riesgos y peligros. PELIGRO identifica un peligro inminente con riesgo elevado que provocará...
Page 15 Informaciones elementales de seguridad Seguridad eléctrica Si no se siguen (o se siguen de modo insuficiente) las indicaciones del fabricante en cuanto a seguridad eléctrica, pueden producirse choques eléctricos, incendios y/o lesiones graves con posible consecuencia de muerte. 1. Antes de la puesta en marcha del producto se deberá comprobar siempre que la tensión preseleccionada en el producto coincida con la de la red de alimentación eléctrica.
Page 16 Informaciones elementales de seguridad 12. Si un producto se instala en un lugar fijo, se deberá primero conectar el conductor de protección fijo con el conductor de protección del producto antes de hacer cualquier otra conexión. La instalación y la conexión deberán ser efectuadas por un electricista especializado. 13.
Page 17 Informaciones elementales de seguridad 5. Ciertos productos, como p. ej. las instalaciones de radiocomunicación RF, pueden a causa de su función natural, emitir una radiación electromagnética aumentada. Deben tomarse todas las medidas necesarias para la protección de las mujeres embarazadas. También las personas con marcapasos pueden correr peligro a causa de la radiación electromagnética.
Page 18 Informaciones elementales de seguridad 6. En caso de falta de estanqueidad de una celda, el líquido vertido no debe entrar en contacto con la piel ni los ojos. Si se produce contacto, lavar con agua abundante la zona afectada y avisar a un médico.
Page 19 Safety Instructions - Informaciones de seguridad Safety Instructions for Units with Removable Cabinet Danger of injuries When removing the rear feet, the unit can slip out of the cabinet. Put the unit onto the front handles, before removing the rear feet and taking off the cabinet.
Page 20 Safety Instructions - Informaciones de seguridad Informaciones de seguridad para aparatos con tubo de quita y pon Peligro de heridas Al sacar los piés de la pared posterior puede deslizarse el aparato fue- ra de la caja. Posicionar el aparato de manera segura sobre las asas delanteras, antes de sacar los piés de la pared posterior y entonces sacar la caja.
Page 21 Instructions - Instrucciones Instructions for Electrostatic Discharge Protection Risk of damaging electronic components To avoid damage of electronic components, the operational site must be protected against electrostatic discharge (ESD). Wrist strap with cord Floor mat Heel strap Ground connection of operational site The following two methods of ESD protection may be used together or separately: , Wrist strap with cord to ground connection...
Page 22 Instructions - Instrucciones Instrucciones para la protección contra descargas electroestáticas Riesgo de avería de los componentes electrónicos Para evitar averías en los componentes electrónicos, el área de trabajo tiene que estar protegido contra descargas electroestáticas ESD (elec- trostatic discharge). Muñequera con cordón Estera Talonera Conexión a tierra del...
Page 23 Procedure in Case of Service and Ordering of Spare Parts This section contains information on shipping an instrument to your service center and ordering spare parts. Please contact your local Rohde & Schwarz service center if you need service or repair work of your equipment or to order spare parts.
Page 24 Ordering Spare Parts To deliver spare parts promptly and correctly, we need the following information: ● Stock number (see list of spare parts in chapter "Documents") ● Designation ● Component number according to list of spare parts ● Number of pieces ●...
Page 25 R&S ZVL Service and Repair Contents of Manuals for Spectrum Analyzer R&S ZVL Service Manual - Instrument The service manual - instrument informs on how to check compliance with rated specifications, on instrument function, repair, troubleshooting and fault elimination. It contains all information required for repairing the R&S ZVL by the replacement of modules.
Page 26 www.valuetronics.com...
Page 27 R&S ZVL Contents - Performance Test Contents - Chapter 1 "Performance Test" 1 Performance Test....................1.1 Test Instructions..........................1.1 Measurement Equipment and Accessories appropriate for ZVL3, ZVL3-75 and ZVL6 .....1.1 Measurement Equipment and Accessories appropriate for ZVL3, ZVL3-75, ZVL6, ZVL13 ..1.2 Additional Equipment and Accessories for ZVL3-75 ..............1.2 Performance Test R&S ZVL......................1.3 Checking the frequency accuracy ....................1.3...
Page 28 www.valuetronics.com...
Page 29 R&S ZVL Test Instructions 1 Performance Test Test Instructions To ensure proper conditions for the performance check and prevent setting errors, the instrument must be prepared as follows: Allow for a minimum warm-up time of 30 minutes at ambient temperature. •...
Page 30 Equipment and Accessories for ZVL3, ZVL3-75, ZVL6 and ZVL13 R&S ZVL Measurement Equipment and Accessories appropriate for ZVL3, ZVL3-75, ZVL6, and ZVL13 Item Type of Specifications recommended Equipment R&S Order equipment recommended Signal generator Frequency: Frequency response 10 MHz to 13.6 GHz Frequency accuracy of Uncertainty of frequency: 0.1 reference oscillator...
Page 31 R&S ZVL Performance Test R&S ZVL Performance Test R&S ZVL Checking the frequency accuracy Test equipment: - Signal generator (refer to section "Measurement Equipment and Accessories", item 1) ® R&S ZVL3-75 additional: ® - R&S RAM, item 10) H male/male, item 12) - Through 75 ®...
Page 32 Performance Test R&S ZVL R&S ZVL Checking the display linearity Test equipment: - Signal generator (refer to section "Measurement Equipment and Accessories", item 1) - Power sensor (refer to section "Measurement Equipment and Accessories", item 3) - 6-dB power splitter (refer to section "Measurement Equipment and Accessories", item 6) ®...
Page 33 R&S ZVL Performance Test R&S ZVL ® R&S ZVL settings: - [ PRESET ] - [ MEAS : S12 ] (when measuring Port1) - [ SETUP : More : Service : Service Function 4.0.1.0.1 ] (when Port1) - [ MEAS : S21 ] (when measuring Port2) - [ SETUP : More : Service : Service Function 4.0.1.0.4 ] (when Port2) - [ ENTER ] - [ ESC ]...
Page 34 Performance Test R&S ZVL R&S ZVL Evaluation: ® :Read out the value of the R&S ZVL Trace Statistics Mean: ® R&S ZVL and The difference between the level inaccuracy of the is the uncertainty of the display linearity: 0dBm ® ®...
Page 35 R&S ZVL Performance Test R&S ZVL Signal generator settings: - Frequency ® ® ® only R&S ZVL3, R&S ZVL6 and R&S ZVL13: - Level Sig_Lev + 6 dB ® only R&S ZVL3-75: - Level Sig_Lev + 11.8 dB Refer to table under “Performance Test Report” for values of {Sig_Lev}. Determine the output power of the signal generator with the power meter.
Page 36 Performance Test R&S ZVL R&S ZVL Source power accuracy Test equipment: - Power sensor (refer to section "Measurement Equipment and Accessories", item 3) ® R&S ZVL3-75 additional: ® - R&S RAM, item 10) H male/male, item 12) - Through 75 ®...
Page 37 R&S ZVL Performance Test R&S ZVL Source power linearity Test equipment: 2x N male Short, refer to section "Measurement Equipment and Accessories", ® ® ® only R&S ZVL3, R&S ZVL6 and R&S ZVL13: item 8 and 9 ® only R&S ZVL3-75: item 13 and 14 Test setup:...
Page 38 Performance Test R&S ZVL R&S ZVL Checking the dynamic range of test ports Test equipment: 2x N male Short, refer to section "Measurement Equipment and Accessories", ® ® ® only R&S ZVL3, R&S ZVL6 and R&S ZVL13: item 8 and 9 ®...
Page 39 R&S ZVL Performance Test Report R&S ZVL Performance Test Report R&S ZVL Table 1-1 Performance Test Report ROHDE & SCHWARZ Performance Test Report Network Analyzer Version 19. Februar 2007 Model (R&S ZVL3 / 3-75 / 6 / 13): Order number: 1303.6509 Serial number: Test person:...
Page 40 Performance Test Report R&S ZVL R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Measurement uncertainty Display linearity -30 to -50 dB RF ATT: 30 dB Port # : 100 MHz Sig_Lev : -10 dBm Reference -15 dBm -0.2 ________ +0.2...
Page 41 R&S ZVL Performance Test Report R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Measurement uncertainty R&S ZVL13: Display linearity 0 to -30 dB RF ATT: 10 dB Port # : 5990 MHz Sig_Lev : Reference 0 dBm -0.2 ________ +0.2...
Page 42 Performance Test Report R&S ZVL R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Measurement uncertainty R&S ZVL13: Source power linearity Port # : 9.9 MHz 0 dBm +9.2 ________ +10.8 -10 dBm Reference -20 dBm -10.8 ________ -9.2 -30 dBm...
Page 43 R&S ZVL Performance Test Report R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Measurement uncertainty R&S ZVL6 / 13: Source power linearity Port # : 5990 MHz 0 dBm +9.2 ________ +10.8 -10 dBm Reference -20 dBm -10.8 ________ -9.2...
Page 44 Performance Test Report R&S ZVL R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Measurement uncertainty R&S ZVL3 / 6: Dynamik range 18°C-28°C Port # ________ 9 kHz ________ 300 kHz ________ 990 kHz ________ -105 6.99 MHz ________ -115 19.99 MHz...
Page 45 R&S ZVL Performance Test Report R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Measurement uncertainty R&S ZVL3 to 75: Dynamik range 18°C-28°C Port # ________ 9 kHz ________ 300 kHz ________ 990 kHz ________ -105 6.99 MHz ________ -110 19.99 MHz...
Page 46 Performance Test Report R&S ZVL R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Measurement uncertainty R&S ZVL13: Dynamik range 18°C-28°C Port # fGEN : ________ 9 kHz ________ 299 kHz ________ 990 kHz ________ 9,99 MHz ________ -100 19,99 MHz...
Page 47 R&S ZVL Performance Test R&S ZVL-K1 Performance Test R&S ZVL-K1 Checking Level Accuracy and Frequency Response Test equipment: - Signal generator (refer to section "Measurement Equipment and Accessories", item 1) - Power sensor (refer to section "Measurement Equipment and Accessories", item 3) - 6-dB power splitter (refer to section "Measurement Equipment and Accessories", item 6) R&S®...
Page 48 Performance Test R&S ZVL-K1 R&S ZVL settings: R&S ZVL - [ PRESET ] - [ MODE : Spectrum Analyzer ] - [ AMPT : RF Atten Manual : 10 dB ] - [ AMPT : -10 dBm ] - [ SPAN : 30 kHz ] - [ BW : Res BW Manual : 10 kHz ] - [ TRACE : Detector Manual Select : RMS : ENTER ] - [ FREQ : Center : 65.833 MHz ]...
Page 49 R&S ZVL Performance Test R&S ZVL-K1 settings: R&S ZVL - [ PRESET ] - [ MODE : Spectrum Analyzer ] - [ AMPT : RF Atten Manual : RF_Att *) ] - [ AMPT : -10 dBm ] - [ SPAN : 100 kHz ] - [ BW : Res BW Manual : 10 kHz ] - [ TRACE : Detector Manual Select : RMS : ENTER ] - [ FREQ : Center : {f...
Page 50 Performance Test R&S ZVL-K1 R&S ZVL Checking RF Attenuator Test principle: The RF attenuator of the R&S ZVL can be switched from 0 to 30 dB in 5 dB increments. Test equipment: - Signal generator (refer to section "Measurement Equipment and Accessories", item 1) - Power sensor (refer to section "Measurement Equipment and Accessories", item 3)
Page 51 R&S ZVL Performance Test R&S ZVL-K1 Reference measurement: Set the marker to the peak of the signal. : Peak ] - [ MKR-> The signal level L is displayed by the level reading of the marker. ® ® ® only R&S ZVL3, R&S ZVL6 and R&S ZVL13...
Page 52 Performance Test R&S ZVL-K1 R&S ZVL Checking Noise Display Test equipment: N male Load, refer to section "Measurement Equipment and Accessories", ® ® ® only R&S ZVL3, R&S ZVL6 and R&S ZVL13 N male Load 50 H item 4 ® only R&S ZVL3-75: item 15...
Page 53 R&S ZVL Performance Test R&S ZVL-K1 Checking Phase Noise Test equipment: - Signal generator (refer to "Measurement Equipment", item 1) Frequency 500 MHz Level + 5 dBm Phase noise at 500 MHz: < -96 dBc/Hz @ 10 kHz < -96 dBc/Hz @ 100 kHz <...
Page 54 Performance Test R&S ZVL-K1 R&S ZVL Checking Third Order Intercept Point Test equipment: - 2x signal generators, refer to "Measurement Equipment", items 1 & 2. - 6-dB power splitter (refer to section "Measurement Equipment and Accessories", item 6) ® R&S ZVL3-75 additional: ®...
Page 55 R&S ZVL Performance Test Report R&S ZVL-K1 Performance Test Report R&S ZVL-K1 Table 1-2 Performance Test Report ROHDE & SCHWARZ Performance Test Report Spectrum Analyzer R&S ZVL Version 11-Okt-05 Model (R&S ZVL3 / 3-75 / 6 / 13): Order number: 1303.6509 Serial number: Test person:...
Page 56 Performance Test Report R&S ZVL-K1 R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Tolerance Frequency response RF attenuation 5 dB RF Preamp = Off fresp 10 MHz -0.5 ________ +0.5 -0.5 ________ +0.5 100 MHz 500 MHz -0.5 ________ +0.5...
Page 57 R&S ZVL Performance Test Report R&S ZVL-K1 Characteristic Included in Min. value Actual value Max. value Unit Tolerance Frequency response RF attenuation 10 dB RF Preamp = Off fresp 10 MHz -0.5 ________ +0.5 -0.5 ________ +0.5 100 MHz 500 MHz -0.5 ________ +0.5...
Page 58 Performance Test Report R&S ZVL-K1 R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Tolerance Frequency response RF attenuation 20 dB RF Preamp = Off fresp 10 MHz -0.5 ________ +0.5 -0.5 ________ +0.5 100 MHz 500 MHz -0.5 ________ +0.5...
Page 59 R&S ZVL Performance Test Report R&S ZVL-K1 Characteristic Included in Min. value Actual value Max. value Unit Tolerance Frequency response RF attenuation 10 dB RF Preamp = On fresp 10 MHz -0.5 ________ +0.5 -0.5 ________ +0.5 100 MHz 500 MHz -0.5 ________ +0.5...
Page 60 Performance Test Report R&S ZVL-K1 R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Tolerance R&S ZVL3 / 3-75 / 6: Noise display in 1 kHz RF Preamp = Off noise ________ 9 kHz ________ 95 kHz ________ 1005 kHz ________...
Page 61 R&S ZVL Performance Test Report R&S ZVL-K1 Characteristic Included in Min. value Actual value Max. value Unit Tolerance R&S ZVL13: Noise display in 1 kHz RF Preamp = Off noise ________ 9 kHz ________ 95 kHz ________ 1995 kHz ________ 19.99 MHz ________ 50.01 MHz...
Page 62 Performance Test Report R&S ZVL-K1 R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Tolerance R&S ZVL3 / 3-75 / 6: Noise display in 1 kHz RF Preamp = On noise 9 kHz ________ ________ 95 kHz ________ 1005 kHz ________...
Page 63 R&S ZVL Performance Test Report R&S ZVL-K1 Characteristic Included in Min. value Actual value Max. value Unit Tolerance R&S ZVL13: Noise display in 1 kHz RF Preamp = On noise 9 kHz ________ ________ 95 kHz ________ 1995 kHz ________ -110 19.99 MHz ________...
Page 64 Checking Third Order Intercept Point R&S ZVL Characteristic Included in Min. value Actual value Max. value Unit Tolerance R&S ZVL13: Noise display in 1 kHz RF Preamp = On noise 9 kHz ________ 95 kHz ________ ________ 1995 kHz ________ -110 19.99 MHz ________...
Page 65 R&S ZVL Adjustment 2 Adjustment ATTENTION The adjustment should be carried out by qualified personnel only since any change considerably influences the measurement accuracy of the instrument. Any unauthorized adjustment will void warranty! Measuring Equipment Table 2-1 Measuring Equipment and Accessories for Manual Adjustment of the R&S ZVL Reference Oscillator Item Type of...
Page 66 Troubleshooting R&S ZVL Adjustment: Note: Before the following measurement, the FSL must warm up for at least 30 minutes to heat up the reference oscillator. Start automatic adjustment by entering service function [ MODE : Spectrum Analyzer ] [ SETUP : MORE : SERVICE : SERVICE FUNCTION : 2.3.12 ] The instrument is performing the automatic adjustment.
Page 67 R&S ZVL Contents - Repair Contents - Chapter 3 "Repair" 3 Repair ........................3.1 Instrument Design and Function Description of ZVL3/3-75/6 ............3.1 Block Diagram ..........................3.1 Description of Block Diagram....................3.2 R&S ZVL-Frontend......................3.2 R&S ZVL-Bridge......................3.5 Instrument Design and Function Description of ZVL13 ...............3.7 DC Power Supply (Option R&S FSL-B30) ..............3.8 Battery Pack (Option R&S FSL-B31) ................3.8 OCXO Reference (Option R&S FSL-B4) ...............3.8...
Page 68 Contents - Repair R&S ZVL Replacing the Front Connector in the Front Module ..............3.36 Opening the Instrument and Removing the Front Module ...........3.36 Removing the Front Connector..................3.37 Installing the New Front Connector and Completing the Instrument ......3.38 Replacing the Screened Filter Glass in the Front Module............3.39 Opening the Instrument and Removing the Front Module ...........3.39 Removing the Screened Filter Glass ................3.40 Installing the New Screened Filter Glass and Completing the Instrument....3.41...
Page 69 R&S ZVL Contents - Repair Replacing the Additional Interface (Option R&S FSL-B5) ............3.69 Removing the Additional Interface ................3.69 Installing the New Additional Interface and Completing the Instrument.......3.69 Replacing the IEC/IEEE Bus Board (Option R&S FSL-B10)..........3.70 Removing the IEC/IEEE Bus Board ................3.70 Installing the New IEC/IEEE Bus Board and Completing the Instrument ....3.70 Replacing the DC Power Supply (Option R&S FSL-B30)............3.71 Removing the DC Power Supply..................3.71...
Page 70 www.valuetronics.com...
Page 71 R&S ZVL Instrument Design and Function Description of ZVL3/3-75/6 3 Repair This chapter describes the design of the R&S ZVL, simple measures for repair and troubleshooting and, in particular, the replacement of modules. For troubleshooting and diagnostics, a self test is available for polling diagnostic voltages of the modules and detecting limit violations.
Page 72 Instrument Design and Function Description of ZVL3/3-75/6 R&S ZVL Description of Block Diagram The R&S FSL is a triple-conversion heterodyne receiver for the frequency range from 9 kHz to 3 GHz or 6 GHz, depending on the instrument model. After signals are received, they are processed by the frontend to a digital IF of approx.
Page 73 R&S ZVL Instrument Design and Function Description of ZVL3/3-75/6 The mixer is followed by a low-noise IF amplifier, which compensates for the loss due to mixing. The signal then passes a filter with a 3 dB bandwidth of approximately 500 MHz for filtering the first intermediate frequency.
Page 74 Instrument Design and Function Description of ZVL3/3-75/6 R&S ZVL Fig. 3-4 ZVL-Frontend: Generation of second and third local oscillator frequencies 1303.6580.82 www.valuetronics.com...
Page 75 R&S ZVL Instrument Design and Function Description of ZVL3/3-75/6 R&S ZVL-Bridge The R&S ZVL-Bridge includes two internal bridges, two step attenuators, one switch able preamplifier and one tracking generator. If the R&S ZVL is switched to network analyzer mode, the R&S ZVL-Bridge is used to measure all four S-Parameters of the DUT.
Page 76 Instrument Design and Function Description of ZVL3/3-75/6 R&S ZVL Fig. 3-6 R&S ZVL-Bridge: Switch able bridges with attenuator and preamp 1303.6580.82 www.valuetronics.com...
Page 77 R&S ZVL Instrument Design and Function Description of ZVL13 Fig. 3-7 R&S ZVL-Bridge: Tracking generator Instrument Design and Function Description of ZVL13 ZVL13_Frontend: Below 6 GHz the ZVL13 works like ZVL6. Above 6 GHz and additional MW-Converter on ZVL13_Frontend converts the signal. The PreAmp is on the ZVL13_Frontend ZVL13-Bridge: The ZVL13-Bridge works like ZVL_Bridge.
Page 78 Instrument Design and Function Description of ZVL13 R&S ZVL Fig. 3-8 RF-Connections between R&S ZVL13_Frontend and R&S ZVL13_Bridge DC Power Supply (Option R&S FSL-B30) With the DC power supply option, the R&S FSL can be operated from a DC voltage of 10 V to 28 V. A DC/DC converter transforms the input voltage to the same voltages as the AC power supply does.
Page 79 R&S ZVL Instrument Design and Function Description of ZVL13 Front Panel The front panel consists of an aluminum case panel (part of the R&S ZVL frame) and a mounting plate which accommodates the LCD, the backlight inverter, the keyboard mat with the membrane and the rotary knob.
Page 80 Module Replacement R&S ZVL Module Replacement This section describes the service concept and contains the spare parts list and the basic documents for the overall R&S ZVL instrument. Note: The numbers indicated in brackets refer to the position in the list of mechanical parts in chapter 5.
Page 81 R&S ZVL Module Replacement Overview of the Modules Table 3-1 Overview - module replacement Module Required tests and adjustments after replacement Function tests and Adjustment Other system error correction Controller SYSTEM MESSAGES/ BIOS update SELFTEST / CAL Flash disk SYSTEM MESSAGES/ Cold boot/ EEPROM update SELFTEST / CAL using service function /...
Page 82 Module Replacement R&S ZVL Replacing the Controller A90 (See chapter 5, spare parts list, item 162, and explosion drawings 1300.2525.01 sheet 3+4) Opening the Instrument and Removing the Controller Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear). Push the enclosure (600) with handle (610) backwards and remove it.
Page 83 R&S ZVL Module Replacement Disconnect cable DVI board (370), cable 10pin (210), cable LVO-LPC (380) and LAN cable (349) at the controller (162). Unscrew six combination screws (200) at the component side of the controller (162). Remove the controller (162) to the bottom of the instrument. Note: The force needed to disconnect the controller connector of the motherboard is high.
Page 84 Module Replacement R&S ZVL Putting into Operation Connect the instrument to the mains and switch on the instrument power switch. The instrument is now in standby mode. BIOS Update: You can receive the BIOS image from your service representative or from the R&S support center. Follow the instructions in the PDF file supplied with the image on how to create the boot CD ROM.
Page 85 R&S ZVL Module Replacement Replacing the Lithium Battery on the Controller (See chapter 5, spare parts list, item 169, and explosion drawings 1300.2525.01 sheet 3+4.) The lithium battery is accommodated on the controller. WARNING Danger of injury Lithium batteries must not be exposed to high temperatures or fire. Keep away from children.
Page 86 Module Replacement R&S ZVL Carefully push contact springs of the battery holder up and remove battery (169). Installing the New Battery and Completing the Instrument Carefully push contact springs of the battery holder up and insert battery into the holder beneath the springs.
Page 87 R&S ZVL Module Replacement Replacing Flash Card A60 (See chapter 5, spare parts list, item 171, and explosion drawings 1300.2525.01 sheet 3+4.) The spare part is already formatted for the R&S ZVL and contains the complete software. Note: Do not replace the flash card and the motherboard at the same time. If the service function cannot be performed, for example because the R&S ZVL application does not boot up, do not replace also the motherboard.
Page 88 Module Replacement R&S ZVL Remove the flash card (171) from the controller (162). Installing the New Flash Card and Completing the Instruments Insert the new flash card (171) into the controller (162). Remount the cover (232) to the bottom of the instrument. Screw the nine combination screws (240) at the bottom of the instrument, three combination screws (240) at the left-hand side and two combination screws (240) at the right-hand side.
Page 89 R&S ZVL Module Replacement Replacing the TFT Display (See chapter 5, spare parts list, items 760, and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 90 Module Replacement R&S ZVL Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 91 R&S ZVL Module Replacement Removing the LCD Unscrew the four combination screws (770) at the display (760) and remove it. Installing the New LCD and Completing the Instrument When mounting the LVO Displayconnector (940) to the display (760), make sure it is free of mechanical stress.
Page 92 Module Replacement R&S ZVL Replacing the LVO Displayconnector in the Front Module (See chapter 5, spare parts list, items 940, and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 93 R&S ZVL Module Replacement Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 94 Module Replacement R&S ZVL Installing the New LVO Displayconnector and Completing the Instrument When mounting the LVO Displayconnector (940) to the display (760), make sure it is free of mechanical stress. Pull on the two plugs of the display lighting to the LVO Displayconnector (940). Reconnect the LVO Displayconnector (940) to the display (760).You must hear the connection engage.
Page 95 R&S ZVL Module Replacement Replacing the Push-Button Board Set in the Front Module (See chapter 5, spare parts list, items 720, and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 96 Module Replacement R&S ZVL Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 97 R&S ZVL Module Replacement Unscrew the two die-cast screws (840) at the encoder board (830) and remove it. Unscrew the nine die-cast screws (750) at the keyboard panel (741) and remove it. Remove the flexible switchboard (730). Remove the push-button board set (720). Installing the New Push-Button Board Set and Completing the Instrument Mount the new push-button board set (720) onto the front cover.
Page 98 Module Replacement R&S ZVL Check the Push-Button Board Set Connect the instrument to the mains, switch on the instrument power switch and switch on the instrument with the ON/STANDBY key. Starting the key test tool: - [ SETUP : MORE : SERVICE : ENTER PASSWORD : 894129 ENTER ] - [ SETUP : MORE : SERVICE : SERVICE FUNCTION : 2.0.14.0 ENTER ] After the first pressing of a key the corresponding button changes its color from yellow to green: If the key is pressed a second time, the corresponding button changes its color from green to red.
Page 99 R&S ZVL Module Replacement Replacing the Flexible Switchboard in the Front Module (See chapter 5, spare parts list, items 730, and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 100 Module Replacement R&S ZVL Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 101 R&S ZVL Module Replacement Unscrew the two die-cast screws (840) at the encoder board (830) and remove it. Unscrew the nine die-cast screws (750) at the keyboard panel (741) and remove it. Remove the flexible switchboard (730). Installing the New Flexible Switchboard and Completing the Instrument Mount the new flexible switchboard (730).
Page 102 Module Replacement R&S ZVL Check the Flexible Switchboard Connect the instrument to the mains, switch on the instrument power switch and switch on the instrument with the ON/STANDBY key. Starting the key test tool: - [ SETUP : MORE : SERVICE : ENTER PASSWORD : 894129 ENTER ] - [ SETUP : MORE : SERVICE : SERVICE FUNCTION : 2.0.14.0 ENTER ] After the first pressing of a key the corresponding button changes its color from yellow to green: If the key is pressed a second time, the corresponding button changes its color from green to red.
Page 103 R&S ZVL Module Replacement Replacing the Encoder Board in the Front Module (See chapter 5, spare parts list, items 830, and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 104 Module Replacement R&S ZVL Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 105 R&S ZVL Module Replacement Installing the New Encoder Board and Completing the Instrument Mount the new encoder board (830) with two die-cast screws (840). Connect the flat cable to the encoder board (830). Mount the knob (860) to the encoder board at the front. Replace the front panel and pull on the cables to front connector (870) and flexible switchboard (730).
Page 106 Module Replacement R&S ZVL Replacing the Front Connector in the Front Module (See chapter 5, spare parts list, items 870, and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 107 R&S ZVL Module Replacement Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 108 Module Replacement R&S ZVL Installing the New Front Connector and Completing the Instrument Mount the new front connector (870) with three die-cast screws (880). Reconnect flat cable to front connector (870). Replace the front panel and pull on the cables to front connector (870) and flexible switchboard (730).
Page 109 R&S ZVL Module Replacement Replacing the Screened Filter Glass in the Front Module (See chapter 5, spare parts list, items 710, and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 110 Module Replacement R&S ZVL Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 111 R&S ZVL Module Replacement Installing the New Screened Filter Glass and Completing the Instrument Mount the new screened filter glass (710). Note: Remove the green foil (inside unit) and the white foil (at front of unit) of the new screened filter glass (710).
Page 112 Module Replacement R&S ZVL Replacing RF Cable W1 or RF Cable W2 (MOD03, 06) (See chapter 5, spare parts list, items 510, 530 and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 113 R&S ZVL Module Replacement Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 114 Module Replacement R&S ZVL Installing the New RF Cable W1 or RF Cable W2 and Completing the Instrument Mount the new RF cable W1 (510) or RF cable W2 (530) onto the front module with four die-cast screws (520 or 540). Replace the front panel and pull on the cables to front connector (870) and flexible switchboard (730).
Page 115 R&S ZVL Module Replacement Replacing Adaptor X1 or Adaptor X2 (MOD13) (See chapter 5, spare parts list, items 511, 535 and explosion drawings 1300.2525.01 sheet 3+4 and 1300.2531.01.) Opening the Instrument and Removing the Front Module Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 116 Module Replacement R&S ZVL Remove the front panel to the front of the instrument. Note: Be aware that the cables are still connected to the motherboard. Pull off the connecting cables to front connector (870) and flexible switchboard (730). Note: When pulling off the connecting cables, be careful with the flexible switchboard (730).
Page 117 R&S ZVL Module Replacement Installing the New RF Cable W1 or RF Cable W2 and Completing the Instrument Mount the new Adaptor X1 (511) or Adaptor X2 (535) onto the front module with four die-cast screws (520 or 540). Connect RF cable W1 (515) or RF cable W2 (538) at the Adaptor X1 (511) or Adaptor X2 (535). Replace the front panel and pull on the cables to front connector (870) and flexible switchboard (730).
Page 118 Module Replacement R&S ZVL Replacing Testport Adapter Insert 75D (only ZVL3 - 75D) (See chapter 5, spare parts list, items 999. Removing the Testport Adapter Insert Switch off the instrument and disconnect the power plug. Remove the Testport Adapter head by using a spanner wrench size 13 mm.
Page 119 R&S ZVL Module Replacement Replacing the Power Supply (See chapter 5, spare parts list, item 250, and explosion drawings 1300.2525.01 sheet 3+4) Opening the Instrument and Removing the Power Supply Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear). Push the enclosure (600) with handle (610) backwards and remove it.
Page 120 Module Replacement R&S ZVL Installing the New Power Supply Mount the new power supply (250) with four combination screws (270) into the holder (260) Connect cables (310, 321, 332) to the power supply (250). Mount the power supply (250) with holder (260) and cables into the instrument with four screws (280) at the rear of the instrument.
Page 121 R&S ZVL Module Replacement Replacing the Fan (See chapter 5, spare parts list, item 105/106, and explosion drawings 1300.2525.01 sheet 3+4) Opening the Instrument and Removing the Power Supply Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear). Push the enclosure (600) with handle (610) backwards and remove it.
Page 122 Module Replacement R&S ZVL Installing the New Fan and Completing the Instrument Connect the fan cable at the motherboard connector X35 (FAN). Insert the new fan (105/106) and mount it to the frame with the rubber studs. Note: Please note the direction of the airflow printed on the fan. The fan must blow the cold air into the instrument.
Page 123 R&S ZVL Module Replacement Replacing the DVI Board A95 (See chapter 5, spare parts list, item 370, and explosion drawings 1300.2525.01 sheet 1, 2, 4) Opening the Instrument and Removing the DVI Board Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 124 Module Replacement R&S ZVL Installing the New DVI Board and Completing the Instrument Mount the new DVI board (370) with two lockingscrews (375) into the instrument frame. Connect cable DVI board (370) to controler (162) Remount the cover (232) to the bottom of the instrument. Screw the nine combination screws (240) at the bottom of the instrument, three combination screws (240) at the left-hand side and two combination screws (240) at the right-hand side.
Page 125 R&S ZVL Module Replacement Replacing the R&S ZVL-Bridge A200 (See chapter 5, spare parts list, item 440/442 and explosion drawings 1300.2525.01 sheet 3+4) Opening the Instrument and Removing the Board Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear). Push the enclosure (600) with handle (610) backwards and remove it.
Page 126 Module Replacement R&S ZVL Installing the new R&S ZVL-Bridge board and completing the Instrument Plug the new R&S ZVL-Bridge board into the instrument and reconnect data cable W10 (450) to the board. Connect RF cable W8 (470) to R&S ZVL-Bridge (440/442). Mount the locking plate (420) with one screw (430).
Page 127 R&S ZVL Module Replacement Replacing the R&S ZVL-Frontend A100 (See chapter 5, spare parts list, item 406 and explosion drawings 1300.2525.01 sheet 3+4) Opening the Instrument and Removing the Board Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear). Push the enclosure (600) with handle (610) backwards and remove it.
Page 128 Module Replacement R&S ZVL Installing the new R&S ZVL-Frontend board and completing the Instrument Plug the new R&S ZVL-Frontend board into the instrument and reconnect data cable W4 (410) to the frontend board (406/409) and data cable W10 (450) to the R&S ZVL-Bridge board (440/442). Connect RF cable W8 (470) to R&S ZVL-Frontend (406/409).
Page 129 R&S ZVL Module Replacement Replacing the Motherboard A10 (See chapter 5, spare parts list, item 112, and explosion drawings 1300.2525.01 sheet 3+4) Note: Do not replace the motherboard and the flash card at the same time. If the instrument does not allow you to enter the service function, do not replace also the flash card.
Page 130 Module Replacement R&S ZVL Removing LPC Cover Unscrew the nine combination screws (240) at the bottom of the instrument, three combination screws 240) at the left-hand side and two combination screws (240) at the right-hand side. Remove the cover (232) to the bottom of the instrument. Removing the R&S ZVL-Bridge board and R&S ZVL-Frontend board Unscrew one screw (430) and remove the locking plate (420).
Page 131 R&S ZVL Module Replacement Removing the Front Module Unscrew and remove the two front-panel feet (620, 630) (designation: BW2-shock mount.front). Note: Foot (620) is only for the left-hand side, and foot (630) is only for the right-hand side of the instrument.
Page 132 Module Replacement R&S ZVL Disconnecting Cables Disconnect the fan cable at the motherboard connector X35 (FAN) Disconnect the LAN cable RJ45 (349) at the rear panel coupler (340). Disconnect both cable W3 (360) and power supply cable (332) at the motherboard. Disconnect cable DVI board (370) and displaycable (380) at controler (162).
Page 133 R&S ZVL Module Replacement Unscrew 15 combination screws (150) and remove the LPC shielding box (142) from motherboard. Disconnect and remove cable 10pin (210), data cable W10 (450) and data cable W4 (410) from motherboard. Unscrew 3 combination screws (200) and remove 3 spacer (190). Installing the New Motherboard Mount the 3 spacer (190) with 3 combination screws (200).
Page 134 Module Replacement R&S ZVL Mount the locking plate (420) with one screw (430). Connect RF cable W6 (460), W7 (465/467), W12 (480) (only ZVL13) to R&S ZVL-Frontend (406/409) and R&S ZVL-Bridge (440/442). Connect ribbon cable (380) to LVO Displayconnector (940) at front panel. Replace the front panel and pull on the cables to front connector (870) and flexible switchboard (730).
Page 135 R&S ZVL Module Replacement Replacing the Battery Adapter Board (See chapter 5, spare parts list, item 120, and explosion drawings 1300.2525.01 sheet 3+4) Opening the Instrument and Removing the Battery Adapter Switch off the instrument and disconnect the power plug. Unscrew and remove the two rear-panel feet (640) (designation: BW2-shock mount.rear).
Page 136 Module Replacement R&S ZVL Installing the New Battery Adapter and Completing the Instrument Mount the new battery adapter (120) with two combination screws (130). Mount the battery pack option back into the instrument. Replace the enclosure (600) with handle (610) and push it back to the instrument. Mount and screw in the two rear-panel feet (640).
Page 137 R&S ZVL Module Replacement Replacing the Swivel Handle (See chapter 5, spare parts list, item 610, and explosion drawings 1300.2525.01 sheet 3) Removing the Handle Switch off the instrument and disconnect the power plug. Remove the blue cover on both sides. Unscrew and remove the swivel handle (610).
Page 138 Module Replacement R&S ZVL Replacing the OCXO Board (Option R&S FSL-B4) (See chapter 5, spare parts list, item 1000, and explosion drawings 1300.2502.01.) Removing the OCXO Board Switch off the instrument and disconnect the power plug. Unscrew four screws (60) and remove the OCXO board (1000) to the rear of the instrument. Installing the New OCXO Board and Completing the Instrument Mount the new OCXO board (1000) with four screws (60) to the rear of the instrument.
Page 139 R&S ZVL Module Replacement Replacing the Additional Interface (Option R&S FSL-B5) (See chapter 5, spare parts list, item 1100, and explosion drawings 1300.2502.01.) Removing the Additional Interface Switch off the instrument and disconnect the power plug. Unscrew four screws (60) and remove the additional interface (1100) to the rear of the instrument. Installing the New Additional Interface and Completing the Instrument Mount the new additional interface (1100) with four screws (60) to the rear of the instrument.
Page 140 Module Replacement R&S ZVL Replacing the IEC/IEEE Bus Board (Option R&S FSL-B10) (See chapter 5, spare parts list, item 1200, and explosion drawings 1300.2502.01.) Removing the IEC/IEEE Bus Board Switch off the instrument and disconnect the power plug. Unscrew four screws (60) and remove the IEC/IEEE bus board (1200) to the rear of the instrument. Installing the New IEC/IEEE Bus Board and Completing the Instrument Mount the new IEC/IEEE bus board (1200) with four screws (60) to the rear of the instrument.
Page 141 R&S ZVL Module Replacement Replacing the DC Power Supply (Option R&S FSL-B30) (See chapter 5, spare parts list, item 1300, and explosion drawings 1300.2502.01.) Removing the DC Power Supply Switch off the instrument and disconnect the power plug. Unscrew four screws (60) and remove the DC power supply (1300) to the rear of the instrument. Installing the New DC Power Supply and Completing the Instrument Mount the new DC power supply (1300) with four screws (60) to the rear of the instrument.
Page 142 Module Replacement R&S ZVL Replacing the Battery Pack (Option R&S FSL-B31) (See chapter 5, spare parts list, item 1400, and explosion drawings 1300.2502.01 Removing the Battery Pack Switch off the instrument and disconnect the power plug. Unscrew two thumbscrews and remove the battery pack (1400) to the rear of the instrument. Installing the new Battery Pack and completing the Instrument Mount the new battery pack (1400) with two thumbscrews to the rear of the instrument.
Page 143 R&S ZVL Functional test Functional test ® After repair or installing new hardware, we recommend to check basic functions of the R&S ZVL. After starting the instrument, check whether the option is listed in table hardware info: - [ SETUP : MORE : SYSTEM INFO : HARDWARE INFO ] Start self test and check results: ( only with Option R&S ZVL-K1 ) - [ MODE : Spectrum Analyzer ] - [ SETUP : MORE : SERVICE : SELFTEST ], then [SELFTEST RESULTS ]...
Page 144 Functional test R&S ZVL Connect short standard of the calibration kit ( e.g. R&S ZV-Z21 ) to PORT 2 - [ PRESET ] - [ PWR BW : Meas Bandwidth :1 kHz ] - [ MEAS : S11 ] - [ SCALE : Scale/Div : 1 dB ] Tolerance of measured value 300 kHz to 6 GHz: 0 dB ±...
Page 145 R&S ZVL Troubleshooting Troubleshooting Malfunctions may have simple causes but also may be caused by faulty components. These troubleshooting instructions enable you to locate error causes down to board level and make the instrument ready for use again by means of board replacement. We recommend that the instrument be shipped to our experts in the service centers (see address list) for module replacement and further error elimination.
Page 146 Troubleshooting R&S ZVL Troubleshooting Start-up Problems Error: R&S ZVL cannot be switched on. Check power-on switch at the rear. If the power switch is OFF: Switch on power supply. Measure voltages on the power supply connector, if the power supply starts, but the screen remains dark: Pin 1 rated value: +12 V...
Page 147 R&S ZVL Troubleshooting Troubleshooting Problems with Boot Process Error: R&S ZVL does not start the measurement application. Following switch-on, the R&S ZVL first boots the computer BIOS. After successful initialization of the computer, the Windows XP operating system starts up. Subsequently, the test application is loaded as start-up program.
Page 148 Troubleshooting R&S ZVL The contents partly depend on the hardware provided: Award Software, Inc. System Configurations CPU Type Intel Pentium III Base Memory CPU ID/ucode 068A/00 Extended Memory CPU Clock 400 MHz Cache Memory Diskette Drive A 1.44M, 3.5 in. Display Type EGA/VGA Diskette Drive B...
Page 149 R&S ZVL Troubleshooting If the operating system on the flash disk has been destroyed and cannot be loaded correctly, Windows XP reacts by displaying a "blue screen". This blue screen contains all essential information on the internal states of the computer (see the following example). Windows XP and the instrument firmware must be updated from the back-up partition (for details refer to the user manual)...
Page 150 www.valuetronics.com...
Page 151 R&S ZVL Firmware Update/Installation of Options Chapter 4 "Firmware Update/Installation of Optons" The update of the R&S ZVL firmware is described in chapter 1 of the Quick Start Guide. Installation instructions for R&S ZVL options are available for download on the internet. Please visit our homepage at http://www.rohde-schwarz.com.
Page 152 www.valuetronics.com...
Page 153 R&S ZVL Contents - Documents Contents - Chapter 5 "Documents" 5 Documents ............................5.1 Spare Parts............................5.1 Available Power Cables......................5.1 Spare Parts List ..........................5.3 Mechanical Drawings ........................5.3 List of R&S ZVL parts including spare parts ................5.5 Block Circuit Diagram ........................5.10 Figures Tables Table 5-1 List of power cables available ...................5.1 Table 5-2...
Page 154 www.valuetronics.com...
Page 155 R&S ZVL Available Power Cables Documents This chapter contains the spare parts list and the documents for the complete R&S ZVL unit. For general information about spare parts for our products please refer to the sheet “Procedure in Case of Service and Ordering of Spare Parts”...
Page 156 www.valuetronics.com...
Page 157 Spare Parts List Mechanical Drawings 1303.6580.82 www.valuetronics.com...
Page 158 www.valuetronics.com...
Page 159 R&S ZVL List of R&S ZVL parts including spare parts List of R&S ZVL parts including spare parts The R&S ZVL is constructed in accordance with R&S design 2000. Overall dimension: W x H x L, 408.8 x 158.1 x 465.3 Overall dimension without handle: W x H x L, 342.3 x 158.1 x 367.0...
Page 160 List of R&S ZVL parts including spare parts R&S ZVL Number Electrical Recommended Position Designation Stock No. designation spare parts 1330 CONNECTOR 3 PINS (R&S FSL-B30) 0520.5048.00 1400 BATTERY PACK (R&S FSL-B31) 1300.6420.00 Drawing 1300.2525.01 sheet 3, sheet 4 (Basic Unit) FRAME R&S ZVL WITH DVI 1303.6896.00 FAN 80x80x25 (R&S ZVL3/6/3 –...
Page 161 R&S ZVL List of R&S ZVL parts including spare parts Number Electrical Recommended Position Designation Stock No. designation spare parts CABLE TIE 0015.9038.00 POWER SUPPLY CABLE 12 PINS 1300.3773.00 RJ45 COUPLER JACK STRAIGHT 1093.9122.00 SILICONE CORD RD 4x8MM 1130.0164.00 PATCHCABLE CAT 6 0.5M 0041.9283.00 CABLE HOLDER 1130.0941.00...
Page 162 List of R&S ZVL parts including spare parts R&S ZVL Number Electrical Recommended Position Designation Stock No. designation spare parts RF CABLE W1 (R&S ZVL3 – 75 OHM) 1303.7292.00 RF CABLE W1 (R&S ZVL13) 1303.7534.00 DIE-CAST SCREW 2.5x6 1300.4457.00 RF CABLE W2 (R&S ZVL3/6) 1300.2760.00 ADAPTOR (R&S ZVL13) 0343.0257.00...
Page 163 R&S ZVL List of R&S ZVL parts including spare parts Number Electrical Recommended Position Designation Stock No. designation spare parts COLLAR 0852.1105.00 KNOB 0852.1086.00 FRONT CONNECTOR 1300.3838.02 DIE-CAST SCREW 2.5x6 1300.4457.00 SHROUD 9.6x13.9 0852.1234.00 SPRING STRIP 1300.3438.00 COMBINATION SCREW M2.5x6-A2 1148.3059.00 LVO DISPLAYCONNECTOR OPTREX 1303.7063.00...
