Summary of Contents for Foamit SP-BP-5N

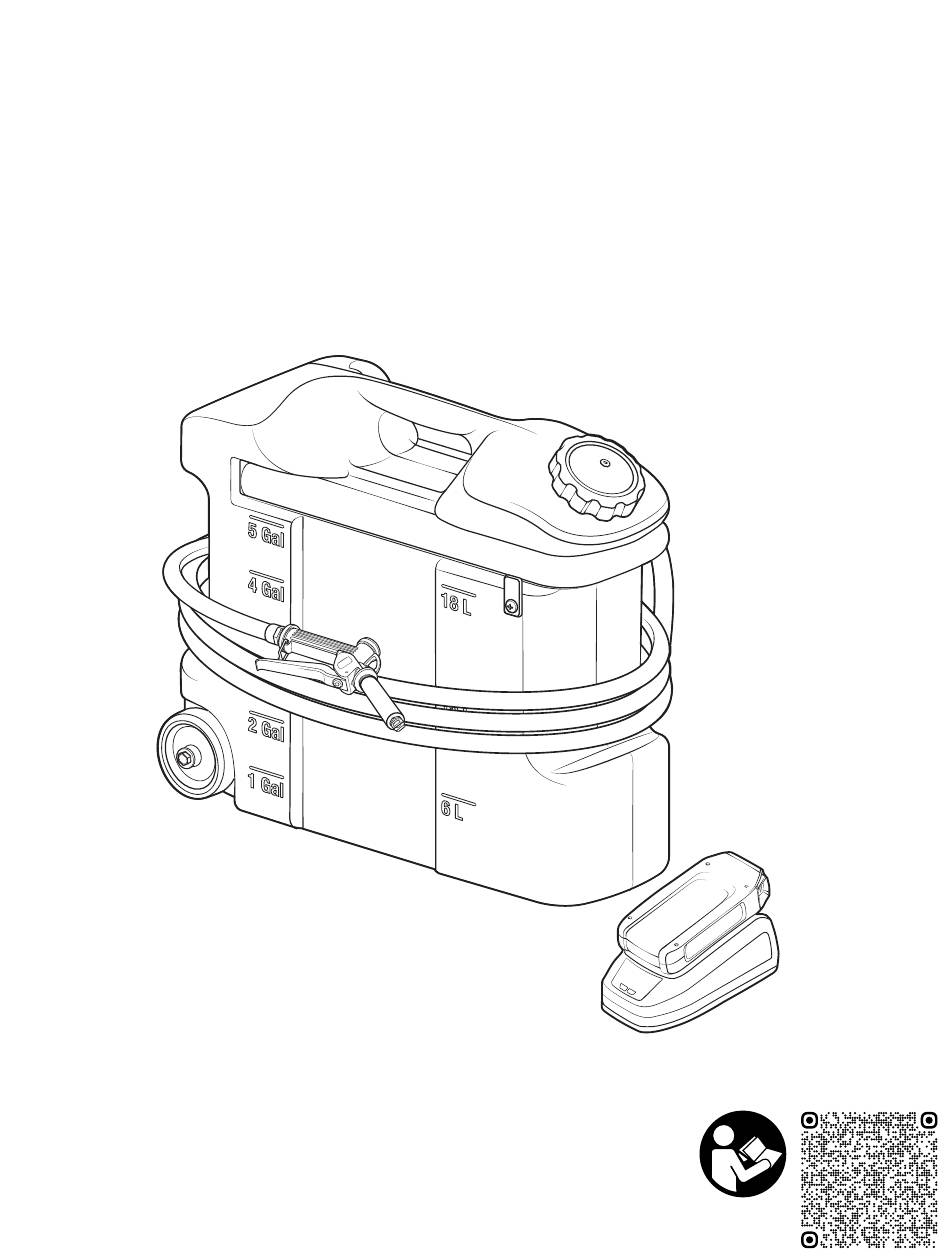

- Page 1 5 Gallon Battery Powered Spray Unit Operation Manual SP-BP-5N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
- Page 2 When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To prevent premature battery failure, do not store battery in a depleted state for long periods of time. Model: SP-BP-5N V20240604 • Page 2 of 8...
-
Page 3: State Of California Proposition 65 Warning
Protect the Environment Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: SP-BP-5N V20240604 • Page 3 of 8... -
Page 4: Product Overview
Flow rate* 0.7 gal/min (2.7 l/min) Pump seals Santoprene diaphragm, Viton check seals Wheel type Two 4 inch (10.2 cm) non-marking wheels *Flow rates given are based on chemical with viscosity of water. Model: SP-BP-5N V20240604 • Page 4 of 8... -
Page 5: Product Components
Product Components Get to know the SP-BP-5N components that you will need to use, adjust or assemble. Back plate assembly • Inside view 1. In-line strainer 2. Electric fluid pump 3. Relay controller 4. Pressure switch 5. Back plate thumb nuts Model: SP-BP-5N V20240604 •... -
Page 6: Tank Assembly
Tank Assembly Front view Back view 6. Handle 7. Solution tank 8. Cap 9. Discharge wand 10. Trigger gun 11. Discharge hose 12. Power button 13. Battery 14. Battery box Model: SP-BP-5N V20240604 • Page 6 of 8... -
Page 7: Using Your Unit
Activate unit until all solution has been flushed from the system. 7. Press power button to turn off unit. Squeeze trigger handle to relieve remaining pressure. 8. Before using unit with another chemistry, thoroughly flush with water. Model: SP-BP-5N V20240604 • Page 7 of 8... -
Page 8: Maintenance
To service your unit, refer to the service manual which includes: • Troubleshooting procedures. • Detailed parts breakdowns and illustrations. • Part numbers of serviceable components and assemblies. Scan this code for service manual Model: SP-BP-5N V20240604 • Page 8 of 8...
