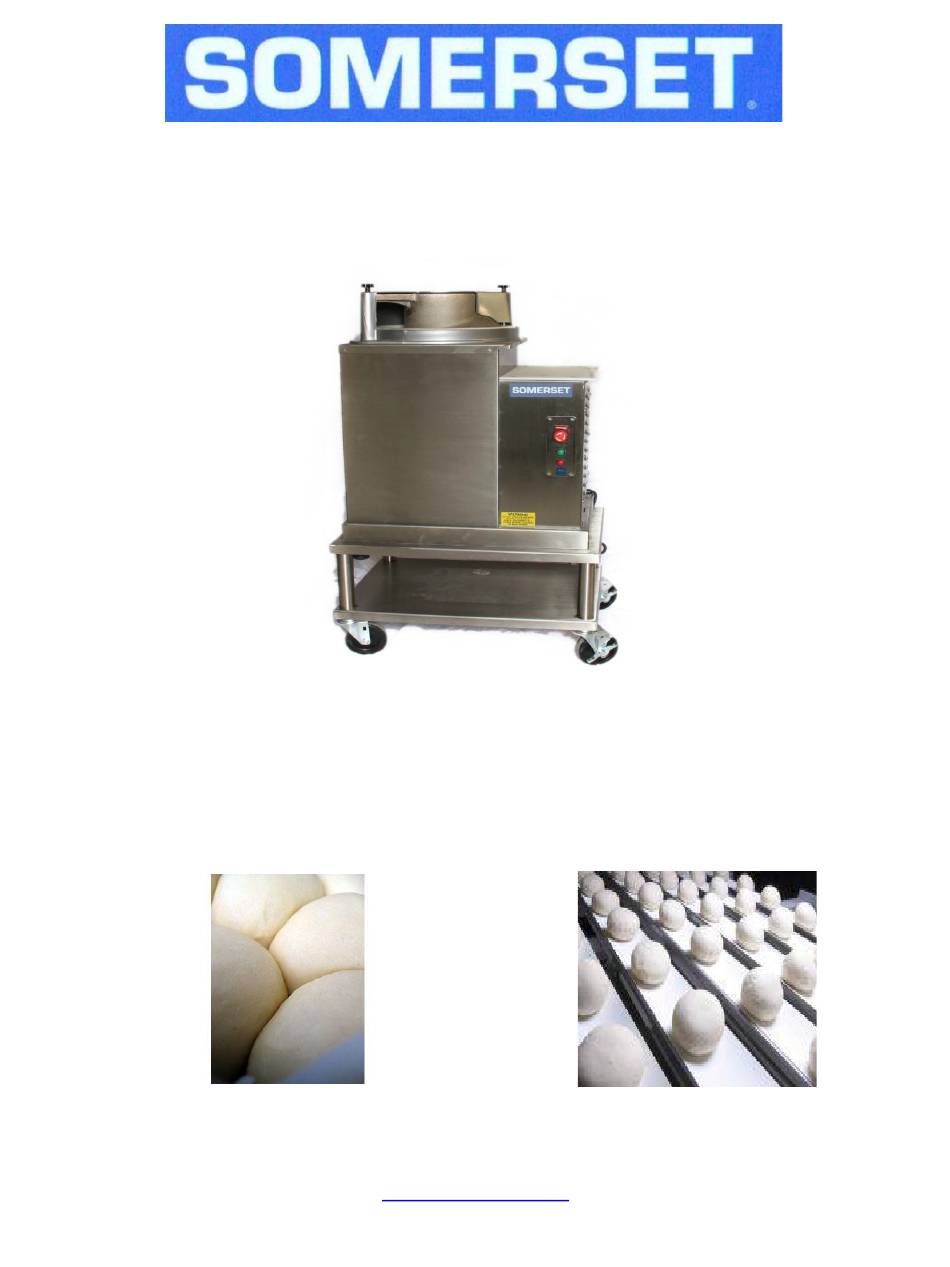

- Page 1 SDR-400 OPERATIONS MANUAL SOMERSET INDUSTRIES 137 PHOENIX AVE • LOWELL, MA 01852 • USA • +1- 978-667-3355 • somerset@smrset.com L020-090 REV E – DEC 2022...
- Page 2 THIS PAGE LEFT INTENTIONALLY BLANK...
- Page 3 SET UP a. Place the Auger Cover on top (Fig. 1) and secure with 2 thumbscrews. b. The SDR-400 can process dough, from 2 oz (56 grams) to 2 lbs (910 grams), automatically without any adjustments. Fig. 1 REV E – DEC 2022...
- Page 4 To START the machine PRESS The GREEN button To STOP the machine PRESS The RED button SDR-400 OPERATION For tight and perfect round shaped dough balls, spray a small amount of food oil on the inside surface of the drum.
- Page 5 WARNING !! DISCONNECT POWER CORD BEFORE CLEANING DAILY CLEANING All parts that have been in contact with dough should be cleaned immediately after use. DO NOT power wash this unit. Do not use chemicals, scouring pads or sharp objects to clean this unit.
- Page 6 SDR-400 MANUAL DE OPERACIÓN SOMERSET INDUSTRIES 137 PHOENIX AVE • LOWELL, MA 01852 • USA • +1- 978-667-3355 • somerset@smrset.com L020-090 REV E – DEC 2022...
- Page 7 CONFIGURACIÓN a. Ponga la Tapa del Taladro sobre la parte superior (Fig. 1) y asegúrela con 2 tuercas. b. La SDR-400 puede procesar masa, desde 2 onzas (56 gramos) hasta 2 libras (910 gramos), automáticamente sin ajustes. Fig. 1 L020-090 PAGE 1 OF 3 REV E –...
- Page 8 Para PONER EN MARCHA la máquina OPRIMA el botón VERDE Para PARAR la máquina OPRIMA el botón ROJO SDR-400 OPERACIÓN Para bolas de masas firmes y perfectamente redondas, rocíe la superficie interior del tambor con un poco de aceite comestible.
- Page 9 ¡¡ AVISO !! DESENCHUFE EL CABLE DE CORRIENTE ANTES DE LIMPIAR LIMPIEZA DIARIA Todas last piezas que estuvieron en contacto con la masa deben ser limpiadas inmediatamente después de usar. NUNCA lave a presión esta máquina. No use productos químicos, estropajos u objetos filosos para limpiar esta máquina.
- Page 10 ITEM #18 INCLUDES 2 EACH 4000-408 KNOBS ITEM #27 INCLUDES 1 EACH: 5000-150 RELAY FOR 110/120VAC MODELS 5000-151 RELAY FOR 208/240VAC MODELS L065-090 : SDR-400 PARTS LIST REV B – 30 NOV 2022...
- Page 11 SPROCKET 41B16H X 3/4 W/ KEY 44 5000-125 GEARMOTOR, BISON, 2/3 HP, 50/60HZ, 115230VAC, 2 1 5000-225 SENSOR, REED SWITCH 5000-276 STRAIN RELIEF, 90 DEG, BLACK 5000-312 LABEL, "SOMERSET" L065-090 : SDR-400 PARTS LIST REV B - 30 NOV 2022...
