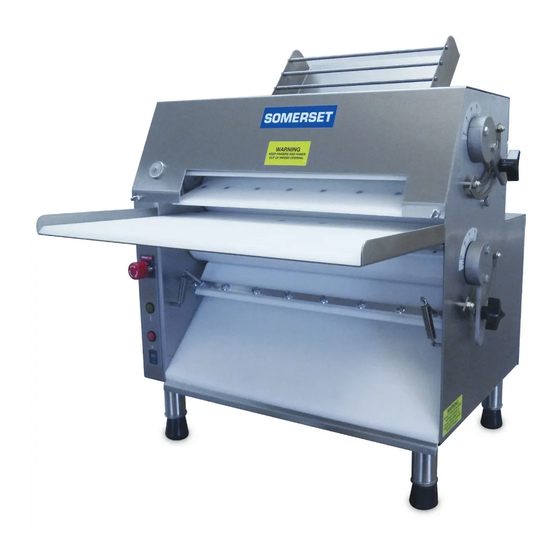

CDR-2000 & CDR-1550
Front Operated Dough Roller
OPERATIONS MANUAL
WARNING!!!
DO NOT CLEAN OR SERVICE THE MACHINE WITHOUT
PRESSING THE RED BUTTON AND UNPLUGGING THE ELECTRICAL CORD
FROM THE POWER SUPPLY. KEEP YOUR FINGERS AND HANDS FROM THE
ROLLER AREA WHEN OPERATING OR SERVICING THE MACHINE. DO NOT
OPERATE THE MACHINE WITHOUT THE GUARDS IN PLACE. IF THE
MACHINE
KEEPS
RUNNING
WITH
SAFETY
GUARDS
REMOVED,
IMMEDIETLY PRESS THE STOP BUTTON AND REMOVE THE PLUG FROM
THE POWER SOURCE. CALL THE FACTORY OR A QUALIFIED SERVICE
REPRESENTATIVE. DO NOT ATTEMPT TO OPERATE THE MACHINE UNTIL
PERMITTED BY THE SERVICE TECHNICIAN.
SOMERSET INDUSTRIES
1-3 ESQUI RE RD. • N. BI LLERI CA, MA 01862 • USA • 978-667-3355
Email:
somerset@smrset.com
Web: www.smrset.com
Advertisement
Table of Contents
Related Manuals for Somerset CDR-2000
Summary of Contents for Somerset CDR-2000
- Page 1 CDR-2000 & CDR-1550 Front Operated Dough Roller OPERATIONS MANUAL WARNING!!! DO NOT CLEAN OR SERVICE THE MACHINE WITHOUT PRESSING THE RED BUTTON AND UNPLUGGING THE ELECTRICAL CORD FROM THE POWER SUPPLY. KEEP YOUR FINGERS AND HANDS FROM THE ROLLER AREA WHEN OPERATING OR SERVICING THE MACHINE. DO NOT OPERATE THE MACHINE WITHOUT THE GUARDS IN PLACE.
- Page 2 MACHINE INSTALLATION Cut off the Fastener wrapped around the machine and the base. Lift the machine straight up out of the wooden base. Install the machine in its final position or temporarily secure it to a solid surface. Wipe off any dirt that may have accumulated during shipping.
- Page 3 DOUGH P REP ARATION For best results, the dough to be rolled should be at room temperature. The size and shape of the dough ball affects the size and shape of the finished crust. For round crusts, take a round piece of dough and flatten it slightly. Dust the dough pieces with flour before putting them in the machine.
- Page 4 !!WARNING!! Never operate the machine without the guards, safety cover, or scrapers in place! Keep your hands and fingers away from the chute! Never force the dough down into the chute with your hands! If the dough gets stuck: 1.
- Page 5 Removing & Installing scrapers !! CAUTION !! DISCONNECT THE POWER CORD OF THE MACHINE BEFORE Open the safety cover by loosening the two thumb screws. All scrapers are readily removable. Scraper # 1 #1 is located behind the rollers in the back of the machine.
- Page 6 Quick Tips & Troubleshooting Never use the emergency stop as an on and off switch. The emergency stop is to be used only in emergency situations. Clean the rolls with a dry cloth. (NEVER USE WATER) Install the scrapers in the opposite order of their removal. ...
- Page 7 DWG. NO. 2000-PART DRAWING AND ASSOCIATED CAD DATA SEE NOTES CHECKED FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH WHOLE, OR SENT TO ANY OTHER VENDOR, MFG APPR.
- Page 8 DRAWING AND ASSOCIATED CAD DATA 2000-316 DISC MIDDLE COMPLETE SEE NOTES CHECKED FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH WHOLE, OR SENT TO ANY OTHER VENDOR, MFG APPR.
- Page 9 DWG. NO. 1550-PART DRAWING AND ASSOCIATED CAD DATA SEE NOTES CHECKED FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH WHOLE, OR SENT TO ANY OTHER VENDOR, MFG APPR.
- Page 10 DWG. NO. 1550-PART DRAWING AND ASSOCIATED CAD DATA SEE NOTES CHECKED FILES IS THE SOLE PROPERTY OF SOMERSET INDUSTRIES. IT MAY NOT ENG APPR. BE REPRODUCED IN PART, OR AS A FINISH WHOLE, OR SENT TO ANY OTHER VENDOR, MFG APPR.
