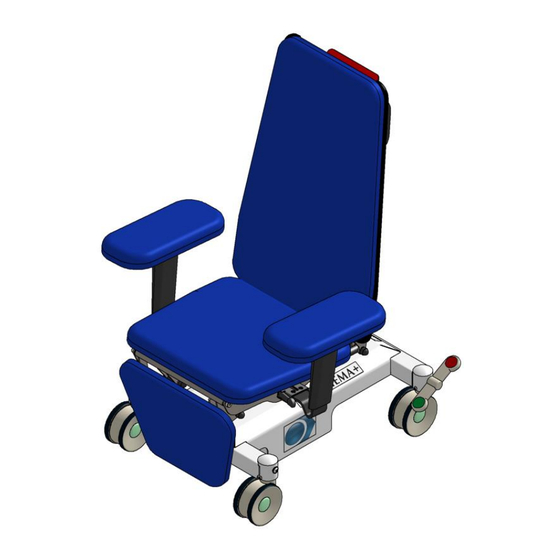

- Page 1 OPERATION MANUAL-HEMA+ OPERATION MANUAL Revision: R1 TREATMENT CHAIR HEMA+ , 230, boul. Nilus-Leclerc, L’Islet, QC, G0R 2C0, Canada Umano Medical Inc. Tél.: 1-877-247-7494 ● ● www.umanomedical.com information@umanomedical.com...
- Page 2 NVIRONMENTAL CONDITIONS 8.4 C .......................22 ERTIFICATION WARRANTY ........................23 10. WASTE DISPOSAL ......................24 11. MAINTENANCE ........................25 12. TROUBLESHOOTING ......................26 13. SPARE PARTS .........................27 , 230, boul. Nilus-Leclerc, L’Islet, QC, G0R 2C0, Canada Umano Medical Inc. Tél.: 1-877-247-7494 ● ● www.umanomedical.com information@umanomedical.com...
- Page 3 This information is available on the label located on the base of the chair. Phone 1-877-247-7494 418-247-3986 Email information@umanomedical.com www.umanomedical.com Address Umano Medical Inc. 230, boul. Nilus-Leclerc L’Islet, QC G0R 2C0 Canada © Copyright Umano Medical Inc. 2023 Page 3 of 28 905-9001-ENG R1...
- Page 4 In accordance with directive on waste electrical and electronic equipment (WEEE), HEMA+ electrical system and accessories should not be disposed as unsorted municipal waste. Check with your local authorities for disposal of these components. © Copyright Umano Medical Inc. 2023 Page 4 of 28 905-9001-ENG R1...
- Page 5 WARNING. Do not use HEMA+ chair for any purpose other than the intended use. WARNING. Do not modify this equipment without Umano Medical’s authorization. WARNING. Do not use in oxygen rich environment. WARNING. Do not use in MRI environment.
- Page 6 WARNING. Defective or damaged batteries may leak acid and proper precautions must be taken during handling and transportation. WARNING. Never open the battery case, as the cell or circuit may be damaged and excessive heat may develop. © Copyright Umano Medical Inc. 2023 Page 6 of 28 905-9001-ENG R1...
- Page 7 Class II equipment (double electrical insulation) Obligation to read the operation manual Required voltage (120V), alternating current Frequency (60Hz), maximum amperage (3.9A) Maximum activation time followed by minimum deactivation time © Copyright Umano Medical Inc. 2023 Page 7 of 28 905-9001-ENG R1...
- Page 8 1. Once the chair is unpacked and positioned in the desired location, install all accessories (armrests, shelf if applicable). © Copyright Umano Medical Inc. 2023 Page 8 of 28 905-9001-ENG R1...
- Page 9 4. Remove any remaining packaging from the product. Example: Protective plastic on the hand control cable. 5. Connect the power cord to a wall socket. 6. Perform a test run to make sure that everything is working properly. © Copyright Umano Medical Inc. 2023 Page 9 of 28 905-9001-ENG R1...
- Page 10 • Red: all 4 casters are locked; • Neutral: all casters are unlocked; • Green: 1 caster is locked in the axis of the chair and 3 are unlocked. © Copyright Umano Medical Inc. 2023 Page 10 of 28 905-9001-ENG R1...
- Page 11 WARNING. Never use the chair if the power supply cable or any other cable is damaged. Commande à main Bouton Fonction Simultaneous movements: raise backrest and lower leg section. Simultaneous movements: lower backrest and raise leg section. Raise chair Lower chair © Copyright Umano Medical Inc. 2023 Page 11 of 28 905-9001-ENG R1...
- Page 12 WARNING. Always take appropriate measures to avoid injuries when handling accessories (shelf, armrest, etc.). Use the small lever under the armrest to adjust the height. Lever located underneath armrest. © Copyright Umano Medical Inc. 2023 Page 12 of 28 905-9001-ENG R1...
- Page 13 OPERATION MANUAL-HEMA+ To remove the armrest, rotate the lever at the base of the armrest to unlock it. Remove the entire armrest. Lever to lock/unlock armrest. © Copyright Umano Medical Inc. 2023 Page 13 of 28 905-9001-ENG R1...
- Page 14 To activate the emergency position (Trendelenburg), press the corresponding button on the hand control. This function lowers the backrest and raises the leg section simultaneously. © Copyright Umano Medical Inc. 2023 Page 14 of 28 905-9001-ENG R1...
- Page 15 To activate the emergency position (Trendelenburg), engage the red lever located at the rear of the backrest and lower the backrest slowly. This function allows the backrest to be lowered and leg section to be raised simultaneously. Emergency lever © Copyright Umano Medical Inc. 2023 Page 15 of 28 905-9001-ENG R1...
- Page 16 1. Lift side shelf slightly. 2. Gently fold down the shelf. 3. Raise shelf 90 degrees and lock it in the open position. It should drop slightly to lock into place. © Copyright Umano Medical Inc. 2023 Page 16 of 28 905-9001-ENG R1...
- Page 17 The battery can be used when connected to the power supply without risk of damage. • When the battery beeps, it means that it is low and needs to be recharged. © Copyright Umano Medical Inc. 2023 Page 17 of 28 905-9001-ENG R1...
- Page 18 Always test the cleaning product in an inconspicuous place to verify its effect on the surface being cleaned. • Always follow the cleaning products manufacturer’s recommendations. • Clean spills as soon as possible to prevent penetration and becoming a permanent stain. © Copyright Umano Medical Inc. 2023 Page 18 of 28 905-9001-ENG R1...
- Page 19 NOTE: In case of a major spill, it is possible to dismantle all the cushions for complete cleaning. Please contact Umano Medical for further details. 3. Clean the armrests. 4. Clean all parts that may be contaminated and/or that are in contact with the patient, i.e., the shelf, handles, chair base, etc.
- Page 20 • NFPA 260 • UFAC Class 1 Umano Medical Inc. reserves the right to change specifications without notice. 1 May vary depending on options. 2 If cleaning instructions are followed. © Copyright Umano Medical Inc. 2023 Page 20 of 28...
- Page 21 Lifting column: IPX6 Hand control: IPX4 Battery: IPX6 Duty cycle Intermittent 2/18 Max 2 minutes on 18 minutes off Umano Medical Inc. reserves the right to change specifications without notice. 8.3 Environmental conditions Conditions Temperature Relative humidity Pressure Normal condition...
- Page 22 8.4 Certification CSA SPE 3000 This product is certified according to standard for electrical medical device except contrary indication. The label is located on the base of the product. © Copyright Umano Medical Inc. 2023 Page 22 of 28 905-9001-ENG R1...
- Page 23 Medical’s obligation under this warranty is expressly limited to supplying replacement parts and/or service for, or replacing, at its option, any product that is, in the sole discretion of Umano Medical, found to be defective. In addition, Umano Medical warrants for life to the original purchaser that the welds on its products will be free from structural defects.
- Page 24 Actuators, lifting column, control box, controls, cables and other Electronic scrap electronic components Metal structure Scrap metal Battery pack Batteries Plastic parts Plastic Waste Mattress Scraps of foam, textiles, wood © Copyright Umano Medical Inc. 2023 Page 24 of 28 905-9001-ENG R1...
- Page 25 OPERATION MANUAL-HEMA+ 11. MAINTENANCE See service manual. © Copyright Umano Medical Inc. 2023 Page 25 of 28 905-9001-ENG R1...
- Page 26 Make sure there is power in control box. wall socket the electrical outlet. If the defective. problem persists, the control box is defective. © Copyright Umano Medical Inc. 2023 Page 26 of 28 905-9001-ENG R1...
- Page 27 OPERATION MANUAL-HEMA+ 13. SPARE PARTS See service manual. © Copyright Umano Medical Inc. 2023 Page 27 of 28 905-9001-ENG R1...
- Page 28 OPERATION MANUAL-HEMA+ UMANO MEDICAL INC. 230, BOUL NILUS-LECLERC L’ISLET, QC G0R 2C0 CANADA T: (418) 247-3986 T: (877) 247-7494 www.ibiom.com © Copyright Umano Medical Inc. 2023 Page 28 of 28 905-9001-ENG R1...
