FL36
FL36-SC
User manual
2 0 2 4 / 0 8 | 7 4 - 3 6 1 2 3 - E N G R 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ook snow FL36 and is the answer not in the manual?

Questions and answers

Related Manuals for Umano Medical ook snow FL36

Summary of Contents for Umano Medical ook snow FL36

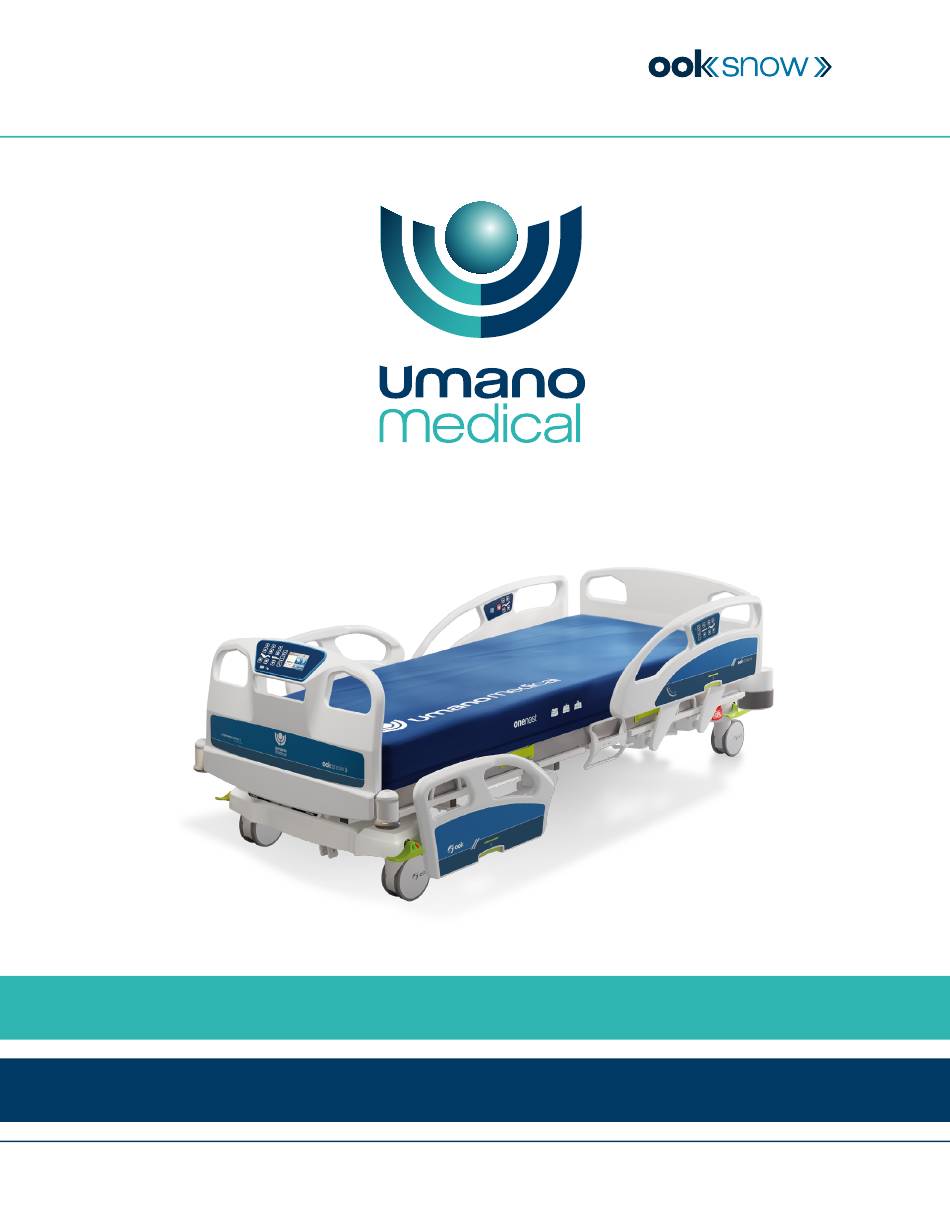

  • Page 1 FL36 FL36-SC User manual 2 0 2 4 / 0 8 | 7 4 - 3 6 1 2 3 - E N G R 6...
  • Page 2 Copyright 2024 Umano Medical Inc. All Rights Reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or using electronic or mechanical methods, without the prior written permission of the publisher, except in the case of brief quotations embodied in critical reviews and certain other noncommercial uses permitted by copyright law.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Bumpers ..........32 INTRODUCTION ........Head bumpers (optional) ....... 32 Product description ........Bumpers with side view lights (optional) Product intended use ........ Fifth wheel (optional) ......32 Contact ............Pilot Drive motorized wheel system (optional) ..........33 Product illustration ........
  • Page 4 TABLE OF CONTENTS Bed exit detection levels ......51 Mattress, mattress extension and siderail pads cleaning and care ....93 SMART SCREEN DISPLAY ..52 WARRANTY ..........95 Shipment receipt ........95 ACCESSORIES ........69 Product return ........95 Mattress extension for bed extender - Limited warranty ........

  • Page 5: Introduction

    INTRODUCTION This manual includes instructions and information that are necessary for a normal and secure use of the ook<snow>> bed, model FL36 and FL36-SC. Reading and understanding of instructions and information included in this manual, or other documents supplied with the product, are required prior to usage, or prior to perform maintenance on the equipment.

  • Page 6: Contact

    The user and/or patient should report any suspected serious incident related to the device by informing the manufacturer and the competent authority of the member state in which the serious incident has occurred. Umano Medical Inc. 230 boulevard Nilus-Leclerc, L’Islet QC G0R 2C0 CANADA...

  • Page 7: Product Illustration

    INTRODUCTION Product illustration Item Description Item Description Headboard Backrest section CPR release handle (optional) Nurse call plug (optional) Power cord Siderail control Angle indicator Brake, neutral and steer pedal Drainage bag support Siderail release handle Patient siderail control Footboard Footboard control Bumper Frame control (optional) Bed extender handle (optional)

  • Page 8: Product Illustration - With Pilot Drive

    INTRODUCTION Product illustration - with Pilot Drive Item Description Item Description Right handle with controls for motorized wheel Left handle for motorized wheel system system Centralized fifth wheel Motorized wheel sub assembly Powered drive neutral release handle Urinal holder (optional) USER MANUAL —...

  • Page 9: Technical Specifications

    INTRODUCTION Technical specifications Weights and dimensions Bed weight (based on features) 375 lb to 450 lb 170 kg to 204 kg Bed weight (with Pilot Drive motorized wheel system option) 590 lb 267.6 kg Safe working load (including patient, mattress and accessories) 600 lb 272.5 kg Maximum mattress weight...
  • Page 10 INTRODUCTION Recommended mattress Foam mattress length 80" 203.2 cm extended length 84" / 90" 213.4 cm / 228.6 cm width 35" 88.9 cm maximum thickness (with standard siderails) 6" 15.24 cm maximum thickness (with optional higher siderails) 8" 20.32 cm ILD perimeter Specialty or therapeutic mattress Use foam mattresses recommendations to orient the choice of a therapeutic mattress.

  • Page 11: Emc Information

    INTRODUCTION Umano Connect Technology Electrical specifications USB type C input 5 V DC, 1A max (for configuration and/or software update only) Wi-Fi / Ethernet / Bluetooth specifications Chipset ESP32-WROOM-32E Wi-Fi IEEE 802.11 b/g/n; 2.4 GHz; HT20/40, up to 150 Mbps Ethernet IEEE 802.3 Bluetooth...
  • Page 12 INTRODUCTION Guidance and manufacturer’s declaration – immunity The “FL36 Medical Bed” is intended for use in the electromagnetic environment specified below. The customer or user of the “FL36 Medical Bed” should ensure that it is use in such an environment. Electromagnetic Immunity test IEC 60601 test level...

  • Page 13: Symbols And Definitions

    INTRODUCTION Symbols and definitions Different symbols are used on the product and in this manual. Their purpose is to inform the user on functional details or on safety related measures. Indicates the need for the user to consult the instructions for use for Indicates the medical device cautionary information such as manufacturer...
  • Page 14 INTRODUCTION Indicates the total maximum charge Indicates the patient maximum weight for a safe use of equipment for a safe use of the equipment Indicates the need for the user to consult instructions for use or electronic instructions for use Indicates the need for the user to according to the eIFU indicator follow instructions for use...

  • Page 15: Pictograms And Definitions

    INTRODUCTION Pictograms and definitions Different pictograms are used on the product and in this manual. Their purpose is to facilitate the reading and the understanding of the different functionalities to the user. If bed is equipped with screen, additional pictograms may be displayed in different menus.
  • Page 16 INTRODUCTION Illustration indicating Illustration indicating the selection of bed exit control recommended mattress degree of detection for thickness Detection 2 - BED EXITING Illustration indicating selection of/activated bed exit control Illustration indicating the degree of detection for recommended mattress width 35'' Detection 3 - MOVEMENT Illustration indicating location of...
  • Page 17 INTRODUCTION Illustration indicating Illustration indicating that the bed international auxiliary power is connected to internet by cable 2A 220-240V outlet 50/60Hz Illustration indicating that the bed Illustration indicating that the bed is disconnected from the internet is connected to the connectivity connection by cable application Illustration indicating that the...

  • Page 18: Safety Measures

    INTRODUCTION Safety measures Terms DANGER, WARNING, ATTENTION and IMPORTANT are used in this manual to indicate important measures to take for use or maintenance of the equipment. The gradation, the definitions and safey measures shall be carefully reviewed and understood before use. Gradation and definition of safety measures DANGER Indicates an imminent hazardous situation, which if not avoided, will result in serious injury or death.
  • Page 19 INTRODUCTION WARNING • Grounding reliability can be achieved only when the bed is connected to a supply mains with protective ground or to a hospital grade outlet that is protectively grounded. • To avoid risk of electric shock hazard, bed must only be connected to a supply mains with protective ground or to a hospital grade outlet that is protectively grounded.
  • Page 20 • System shall be connected to a proper UL1069 certified system to transmit nurse call requests and priority signals. • If a Pilot Drive battery cable fuse replacement is required, always contact the Umano Medical technical service. If replacement is not performed by trained personnel, situation could generate risk of injury.
  • Page 21 INTRODUCTION • No modification to this equipment is allowed unless it is first approved by the manufacturer, performed by trained personnel, and then inspected and tested to ensure its continued safety. • If a replacement is required, always use original new parts supplied by manufacturer. If not avoided, situation could generate adverse effects and could affect the warranty.

  • Page 23: Getting Started

    Bed must be properly installed and verified prior to be put in service. Refer to the list below to ensure proper set up. Steps list for set up Perform a complete visual inspection of the bed. Contact Umano Medical or local representative if there are any damages or missing item.

  • Page 24: Zeroing Procedures

    GETTING STARTED 20. If bed is equipped with bed exit detection, perform a zero procedure on the bed after all equipment has been installed. 21. If bed is equipped with the connectivity option, perform the configuration steps for network and server connection settings with the Umano Connect Configurator tool.
  • Page 25 GETTING STARTED Zeroing procedure for a bed with scale option Cancellation of zeroing process can be done at any time by pressing the “Cancel” button. Procedure: Bed is electrically powered up. Ensure sleep surface is completely flat and put the bed elevation system at intended height Scale November 1st I 12:00 of use.

  • Page 26: Configuration Steps For Server Connection Settings (Optional)

    Configurator tool to perform a configuration of all advanced settings. IMPORTANT Only Umano Medical representatives are authorized to perform a system update with an approved software. Umano Medical takes no responsibility for malicious activity that may result from lack of current, appropriate IT security practices.

  • Page 27: Operating Instructions

    OPERATING INSTRUCTIONS IMPORTANT Read and understand all information covered in this manual before operating the equipment. Users shall be knowledgeable about inherent hazards related to use of electric beds. Power up and modes of operation If a power failure occurs, bed will automatically fall in sleep mode and initiate the battery-powered mode. If the bed operates on batteries, the patient and caregiver controls for bed-motion will remain functional.
  • Page 28 OPERATING INSTRUCTIONS Battery powered mode: Battery powered mode is activated if power failure occurs or if the bed power cord is unplugged from wall outlet ; it will first fall in sleep mode. Under the battery‑powered mode, an armed bed exit control system will send a signal to the nurse call communication system to inform of battery‑powered mode;...

  • Page 29: System Signals And Messages

    OPERATING INSTRUCTIONS System signals and messages The hospital bed FL36 can issue a signal or a message to inform the user that an action is required. It can be visual and/or audible and/or textual if the bed is equipped of the display screen. Visual sign A visual signal may take the form of flashing LEDs on the membrane of the footboard for a bed equipped of a bed exit system.

  • Page 30: Base, Frame And Litter

    OPERATING INSTRUCTIONS BASE, FRAME AND LITTER IMPORTANT The bed is equipped with base covers at head and foot ends of the bed. Base covers must be kept in place while bed is in use to preserve electrical and mechanical components. Brake, neutral and steer Brake, neutral and steer can be activated manually with one of the 4 pedals located at each corner of the bed.

  • Page 31: Foot Control System (Optional)

    OPERATING INSTRUCTIONS Foot control system (optional) The foot control option is situated on each side of the bed, on the frame; refer to Product illustration (page 7) for localization. The option is intended to activate the elevation system and the backrest section with a foot. This allows the caregivers to attend to the patients while being able to move the bed and facilitate their intervention.

  • Page 32: Bumpers

    OPERATING INSTRUCTIONS Bumpers Bumpers are located at each corner of bed to preserve wall. Each bumper offers a 3/4" socket to support IV poles. Head bumpers (optional) Two optional bumpers can be installed at head end of the bed for additional protection of the walls. Bumpers with side view lights (optional) Bumpers with integrated side view light system are located at both foot end corners of the bed.

  • Page 33: Pilot Drive Tm Motorized Wheel System (Optional)

    OPERATING INSTRUCTIONS Pilot Drive motorized wheel system (optional) The bed can be equipped with a motorized wheel system as an option to ease patient transportation. Before using the Pilot Drive, ensure there are no obstructions under or around the bed. The powered drive system offers variable speed capabilities which can be configured through the maintenance settings.
  • Page 34 OPERATING INSTRUCTIONS Forward function To use the Pilot Drive forward function with one drive handle: Press the trigger on the right handle to start moving the bed forward. The speed is controlled by the trigger; the more pressure applied on the trigger, the faster the bed will move. Release the trigger to stop the bed from moving.

  • Page 35: Battery Indicators

    OPERATING INSTRUCTIONS Once bed is moved to the proper destination and the Pilot Drive function no longer needs to be used: Apply the brakes on the bed. Lower the handles in theirs sockets to disable the Pilot Drive system. Plug the bed into a hospital grade wall outlet. Battery indicators →...

  • Page 36: Patient Restraint Location

    OPERATING INSTRUCTIONS Patient restraint location Different locations are available to attach the patient restraint straps. Anchors are situated as follows; refer to the illustrations for localization: • the two mattress retainers on each side of the seat section (A) • the rod at the center of the bed, under the patient sleep surface (B) •...

  • Page 37: Control On Frame (Optional)

    OPERATING INSTRUCTIONS Control on frame (optional) An optional control located on the frame, at the foot end of the bed, offers complementary functions to siderail controls in case the bed footboard is removed; • lockouts of head or foot section motion MEMBRANE WITHOUT BED EXIT SYSTEM •...

  • Page 38: Electric Cpr (Optional)

    OPERATING INSTRUCTIONS Electric CPR (optional) An additional electric CPR functionnality can be available on the bed’s caregiver siderail controls. If the bed is equipped with the electric CPR functionnality, the CPR release handle is also available for use as a CPR release. Operation: To activate, press on the electric CPR pictogram on the caregiver siderail controls and hold to flatten all sections of patient sleep surface.

  • Page 39: Nightlight (Optional)

    OPERATING INSTRUCTIONS Nightlight (optional) Two nightlights are located on each side of the bed frame, under the seat section, to illuminate the floor area where the patient will get in or out of the bed. Light intensity can be controlled if the bed is equipped with display screen; refer to the footboard control section (page 49).

  • Page 40: Line Management (Optional)

    OPERATING INSTRUCTIONS Line management (optional) The line management option is designed to offer support to the medical tubing and to optimize its organization, in any position of the backrest section of the bed. WARNING • The line management option must not be used to hang or support any other elements then those for which the option is intended, such as clothing, bags or backpacks, IV bags, electrical cords for the bed, or other.

  • Page 41: Umano Connect Technology (Optional)

    OPERATING INSTRUCTIONS Umano Connect Technology (optional) The Umano Connect Technology option is a smart communication system that sends bed information through Wi-Fi or Ethernet to Umano Connect. It also acts as an integrated tag equipped with Ultra Wideband (UWB) and infrared (IR) technology that has the ability to detect and calculate precise location using the UmanoLocation anchors.

  • Page 42: Connectors, Ports And Outlets

    OPERATING INSTRUCTIONS CONNECTORS, PORTS AND OUTLETS The bed can be equipped with different types of connectors, ports or outlets. Refer to the Product illustration (page 7) localization. Nurse call connector (optional) If the bed is equipped with the optional nurse call system, the connector selected when ordered will be located at the head end of the bed, on the frame.

  • Page 43: Auxiliary Power Outlets And Usb Port (Optional)

    OPERATING INSTRUCTIONS Auxiliary power outlets and USB port (optional) Optionally, bed can be equipped with 120V or 230V auxiliary power outlets and USB port intended to be used as convenient power source for patient and caregiver use to energize low power devices. Power outlets are limited to 600VA (5A to 120V or 2A to 230V), with protective earth terminal.

  • Page 44: Head And Foot Ends Siderails

    OPERATING INSTRUCTIONS HEAD AND FOOT ENDS SIDERAILS WARNING • Siderails are designed to prevent patient of inadvertently fall from the bed. • Siderails are not designed nor intended for patient restraint. If not avoided, situation could result in patient injury. •...

  • Page 45: Higher Siderails (Optional)

    OPERATING INSTRUCTIONS Higher siderails (optional) The bed can be equipped with the optional higher siderails to allow the use of mattresses up to 8" thick. This option is only available when bed is equipped with the head and foot end siderails. A location for a urinal holder is also available on the middle of the foot end siderails;...

  • Page 46: Patient Siderail Controls

    OPERATING INSTRUCTIONS Patient siderail controls Patient siderail controls are located on the inside of each head siderail. Do not use sharp or small pointed objects on membranes to avoid permanent damages. Pictograms inform the user of positioning possibilities and features. ATTENTION •...

  • Page 47: Caregiver Siderail Controls

    OPERATING INSTRUCTIONS Caregiver siderail controls Caregiver siderail controls are located on the outside of each head siderail. Do not use sharp or small pointed objects on membranes to avoid permanent damages. Pictogram informs the user of positioning possibilities and features. IMPORTANT Refer to the pictograms and definitions...

  • Page 48: Patient Control (Optional)

    OPERATING INSTRUCTIONS Patient control (optional) Patient control can be used to allow patient or healthcare personnel to activate certain bed functions. Do not use sharp or small pointed objects on membranes to avoid permanent damages. Pictograms inform the user of positioning possibilities and features.

  • Page 49: Headboard And Footboard

    OPERATING INSTRUCTIONS HEADBOARD AND FOOTBOARD A choice of headboards and footboards is available in various materials which present different features to adapt to the customer’s needs and/or environment. Option of plastic boards, MDF boards or wood boards is available. Built-in transport handles Headboard and footboard are both equipped of built-in pull-push handles to ease transportation.

  • Page 50: Standard Configuration

    OPERATING INSTRUCTIONS Standard configuration Bed motion lockout for controls situated on the siderails can be set with one of the 3 closed padlock pictogram press buttons with integrated LED. A solid amber LED ON indicates that bed motion illustrated below is locked in the siderails, the bed motions can still be activated from the footboard controls.

  • Page 51: Bed Exit Detection Levels

    OPERATING INSTRUCTIONS Bed exit detection levels There are three bed exit control levels of detection available. Ensure to select the right level of detection according to the patient’s condition. Detection 1 (out-of-bed) is designed to monitor a patient getting out of the bed. This level is the less sensitive of the three levels.

  • Page 52: Smart Screen Display

    SMART SCREEN DISPLAY [ Images in the following section represent the 3.1 and 4.0 software display; display may vary according to the software version of the bed. ] USER MANUAL — 74-36123-ENG R6...
  • Page 53 SMART SCREEN DISPLAY Home screen Screen informs the user of the height and the angulations of patient sleep surface. User can return to the Home screen menu at any time by pressing on the Home pictogram. IMPORTANT The bed height is rounded up. The angulations accuracy of backrest section is +/- 2°.
  • Page 54 SMART SCREEN DISPLAY Home screen with integrated scale (optional) The functions Arm (Disarm), Auto Arm, Patient Risk management and Preference of a bed configurated with the scale option operate as detailed in the Home screen section (page 53). Refer to this section if needed. IMPORTANT The bed height is rounded up.
  • Page 55 SMART SCREEN DISPLAY Care Pause When the bed exit detection is armed, press the Disarm Detection button to apply a Care Pause and give the caregiver 5 minutes to provide any care to the patient without disactivating the bed exit system and without generating a bed exit detection audible sign.
  • Page 56 SMART SCREEN DISPLAY Patient risk management screen The Premium interface displays all bed options. The selected bed exit control level of detection will be highlighted. WARNING • The bed exit detection system must be used with patients with minimum weight of 50 lb/22.6 kg and the auto-arm function must be used with patient with minimum weight of 70 lb/31.8 kg.
  • Page 57 Once a new patient is installed on the bed, the in-bed time monitoring begins and data is recorded over the last 4, 8 or 12 hours. For more than 12 hours of data monitoring, information can be available with Umano Connect solution. Contact a Umano Medical representative for more information on this feature. Select: •...
  • Page 58 SMART SCREEN DISPLAY If a power loss occurs, statistics will be reset and last data recorded before power loss will be available under Event button. Once power is back on, an orange band will appear on the in-bed time screen and the Event button will turn blue. Select: •...
  • Page 59 SMART SCREEN DISPLAY Bed status management screen (optional) The bed status management menu offers the possibility to set the brakes, siderails, brackrest and/or elevation system position for bed status monitoring. The menu also includes the activation and deactivation of the monitoring and the possibility to set the audible signal’s volume and tone.
  • Page 60 SMART SCREEN DISPLAY Patient risk management log screen The Patient risk management log offers a log listing up to 100 entries Risk Management Log related to activation and deactivation of features. Entries related November 1st I 12:00 to bed exit control are highlighted in green to indicate activation and highlighted in orange to indicate an alarm.
  • Page 61 SMART SCREEN DISPLAY • Color chart button to get to the Color codes screen, select Color codes November 1st I 12:00 1, 2 or 3 colors, and to display selected colors on the screen Preview: saver. Select Color • START to display the screen saver with selected settings. •...

  • Page 62: Advanced Settings

    SMART SCREEN DISPLAY Preferences screen Select: • Tools pictogram (Maintenance menu) to access the errors Preferences log, load cell values, calibration, factory settings, software November 1st I 12:00 version and interface settings. If PIN protected, contact maintenance for access or refer to Maintenance Manual for Advanced instructions.
  • Page 63 SMART SCREEN DISPLAY Language screen Select: • Français to set French language menus. Advanced Settings Languages November 1st I 12:00 • English to set English language menus. English Français • Español to set Spanish language menus. Password Units • Português to set Portuguese language menus. Español Português Date/Time...
  • Page 64 SMART SCREEN DISPLAY New patient screen The New patient menu offers the possibility to erase the data and settings saved for a patient. This procedure is designed to be used before a new patient is integrated in the bed. It is possible to configure the different information to reset. Select: •...
  • Page 65 SMART SCREEN DISPLAY Min. Height Adjustment The minimum height adjustment screen offers to set minimum bed height depending on the needs of the caregiver or of the patient. When the bed’s lowest height is reached, a “min. height” indication will appear on the Home Screen. Select: •...
  • Page 66 SMART SCREEN DISPLAY Alarm management screen The Alarm management menu offers the possibility to set the different alarms of the bed. The settings offer a selection of 10 different tones and a range of 4 volume levels including mute. Select: •...
  • Page 67 SMART SCREEN DISPLAY Scale screen For proper use of scale related features, ensure bed is not interfering with any item of the environment or in contact with wall, and ensure brakes are applied. Do not touch bed. ATTENTION • A zeroing procedure must be performed each time new accessories are installed or removed from the bed, or each time a new patient is admitted in the bed.
  • Page 68 SMART SCREEN DISPLAY Zero screen A zero can be performed on the bed through the Zero screen. ATTENTION • A zeroing procedure must be performed each time new accessories are installed or removed from the bed, or each time a new patient is admitted in the bed. Failure to perform the zeroing, or a zeroing that is not performed correctly, may render the bed exit detection system non-functional and increase the risk of a patient fall.

  • Page 69: Accessories

    ACCESSORIES WARNING • Always ensure precautions are taken when using compatible accessories in the foot section accessory sockets. The foot section accessory sockets are attached to the moving part of the frame. If that section needs to be actuated, the accessories will follow the foot section angle and will be tilted or moved away from patient.

  • Page 70: Mattress Extension For Bed Extender - Dm64505 And Dm64506

    ACCESSORIES Mattress extension for bed extender - DM64505 and DM64506 Cushions DM64505 and DM64506 can be used with the optional bed extender to make sleep surface longer. IMPORTANT Remove patient from surface before extending the bed and installing cushion. Mattress extension DM64505 (35" x 10" x 6") Use DM64505 in conjunction with a mattress of 80”...

  • Page 71: Siderail Pads - Dm64515 And Dm64516

    ACCESSORIES Siderail pads - DM64515 and DM64516 Siderail pads DM64515 and DM64516 can be used on the siderails to cover the openings or to help avoid inappropriate intentional or unintentional usage by the patient towards oneself. ATTENTION • If the siderail pads accessories are installed on the head end siderails, ensure to properly lock the patient siderails controls.
  • Page 72 ACCESSORIES Mobilisation helper pads - DM64516 Use DM64516 when bed is equipped with patient mobilisation helper. Installation and operation: 1. Properly lock the siderails controls. Refer to the Standard configuration in the Headboard and footboard section (page 50). 2. Completely raise the head end siderails. 3.

  • Page 73: Seizure Pads - Dm64517 And Dm64518

    ACCESSORIES Seizure pads - DM64517 and DM64518 Seizure pads DM64517 and DM64518 can be used on the siderails to add a thicker protection for the patient or to help avoid inappropriate intentional or unintentional usage by the patient towards oneself. ATTENTION •...
  • Page 74 ACCESSORIES Patient mobilization helper seizure pads - DM64518 Use the patient mobilization helper seizure pads DM64518 when bed is equipped with the plastic patient mobilization helper. Installation and operation: 1. Properly lock the siderails controls. Refer to the Standard configuration in the Headboard and footboard section (page 50).

  • Page 75: Fixed Iv Pole 3/4" Diameter - Fa64506

    ACCESSORIES Fixed IV pole 3/4" diameter - FA64506 The fixed IV pole FA64506 is equipped of 2 hanging hooks. Each hanging hook has a capacity of 11 lb/5 kg for a total maximum safe working load of 22 lb/10 kg. ATTENTION •...

  • Page 76: Folding Iv Pole 3/4" Diameter - Fa64507

    ACCESSORIES Folding IV pole 3/4" diameter - FA64507 The folding IV pole FA64507 is equipped of 2 hanging hooks. Each hanging hook has a capacity of 11 lb/5 kg for a total maximum safe working load of 22 lb/10 kg. ATTENTION •...

  • Page 77: 1" Fixed Iv Pole For 3/4" Socket - Fa64522

    ACCESSORIES 1" fixed IV pole for 3/4" socket - FA64522 The fixed IV pole FA64522 is equipped of 2 hanging hooks. Each hanging hook has a capacity of 20 lb/9 kg for a total maximum safe working load of 40 lb/18 kg. ATTENTION •...

  • Page 78: 1" Fixed Iv Pole For 1" Socket - Fa64508

    ACCESSORIES 1" fixed IV pole for 1" socket - FA64508 The fixed IV pole FA64508 is equipped of 2 hanging hooks. Each hanging hook has a capacity of 20 lb/9 kg for a total maximum safe working load of 40 lb/18 kg. ATTENTION •...

  • Page 79: Left 1" Folding Iv Pole For 1" Socket - Fa64521

    ACCESSORIES Left 1" folding IV pole for 1" socket - FA64521 The folding IV pole FA64521 is equipped of 2 hanging hooks. Each hanging hook has a capacity of 15 lb/6.8 kg for a total maximum safe working load of 30 lb/13.6 kg. The left folding IV pole FA64521 can be combined to the right folding IV pole FA64523 for additional hooks.

  • Page 80: Right 1" Folding Iv Pole For 1" Socket - Fa64523

    ACCESSORIES Right 1" folding IV pole for 1" socket - FA64523 The folding IV pole FA64523 is equipped of 2 hanging hooks. Each hanging hook has a capacity of 15 lb/6.8 kg for a total maximum safe working load of 30 lb/13.6 kg. The left folding IV pole FA64521 can be combined to the right folding IV pole FA64523 for additional hooks.

  • Page 81: 1/2" Iv Pole Adapter - Fa64514

    ACCESSORIES 1/2" IV pole adapter - FA64514 The 1/2" IV pole adapter FA64514 is 15" long with a diameter of 1" and can be installed in one of the 3/4" accessory sockets of the bed. It is designed to hold an IV pole with a 1/2" diameter. It has a maximum safe working load of 40 lb/18 kg.

  • Page 82: Removable Pump Holder - Fa64513

    ACCESSORIES Removable pump holder - FA64513 The removable pump holder FA64513 is intended to be installed on the footboard to support pumps. It has a maximum safe load capacity of 70 lb/31 kg ATTENTION • Remove accessory when not in use. Installation and removal 1.

  • Page 83: Oxygen Bottle Holder - Fa64505

    ACCESSORIES Oxygen bottle holder - FA64505 The vertical oxygen bottle holder is designed to support an oxygen bottle. It can be installed at the bed head end; it has a maximum safe load capacity of 35 lb/16 kg. Installation and operation 1.

  • Page 84: Oxygen Bottle Holder With Clamp - Fa64527

    ACCESSORIES Oxygen bottle holder with clamp - FA64527 The oxygen bottle holder with clamp is designed to hold an oxygen bottle. It can be installed at the head end of the bed, in the corner bumpers sockets. The clamp situated on the oxygen bottle holder is designed to hold on a pole of 3/4"...

  • Page 85: Patient Helper - Fa64504

    ACCESSORIES Patient helper - FA64504 The patient helper is intended to provide support to the patient for repositioning when in bed. It is not designed to support patient when getting in or out of bed. The maximum load capacity of the patient helper is 170 lb/77 kg. WARNING •...

  • Page 86: Removable Patient Control 2 Functions - Fa64511

    ACCESSORIES Removable patient control 2 functions - FA64511 The two functions patient control is intended to allow patient or healthcare professionnals to adjust the backrest section and foot section of the bed. Pictograms inform the user of positioning possibilities and features. Do not use sharp or small pointed objects on membranes to avoid permanent damages.

  • Page 87: Removable Patient Control 5 Functions - 299-0152

    ACCESSORIES Removable patient control 5 functions - 299-0152 IMPORTANT If the bed is configured without controls on footboard, the patient control is not the same. The control is then necessary to activate the bed’s functions and will be used as unique bed control. The plugging is done differently; refer to the maintenance department for the replacement of the control.

  • Page 88: Urinal Holder - Fa64525

    ACCESSORIES Urinal holder - FA64525 The urinal holder is designed to support a urinal bottle reachable by the patient. It can be installed at either one of the head end siderails or patient mobilization helper. The maximum safe load capacity is of 20 lb/9 kg. IMPORTANT The urinal installed on the support could come in contact with the ground if the bed is at minimum height and siderails are completely lowered.

  • Page 89: Transport Shelf - 299-0523P

    If not, the situation could result in moderate to severe injuries to the patient. • Always ensure that the transport shelf is used with a compatible Umano Medical bed only. If not, situation could result in moderate to severe injuries and damages to product and/or environment.
  • Page 90 ACCESSORIES Operation: 1. Ensure transport shelf is properly fixed and that there is no obstruction around the shelf before usage. 2. Flip the shelf over the foot section of the bed, towards the head of the bed. 3. Properly place any necessary equipment on the shelf, then, once stable, secure it with the straps attached to the transport shelf.

  • Page 91: Preventive Maintenance

    PREVENTIVE MAINTENANCE A preventive maintenance is required annually for this equipment. This maintenance program is based on a normal use. Preventive maintenance frequency shall be increased if required. A minimum of one (1) annual verification of all items of the Preventive maintenance annual checklist (page 92) is recommended.

  • Page 92: Preventive Maintenance Annual Checklist

    PREVENTIVE MAINTENANCE Preventive maintenance annual checklist Use copy of this sheet for your records. Note if adjustment or repair were required. Keep on file. Serial Number and Location : Date of preventive maintenance: Preventive maintenance perfomed by: ̉ Overall condition ̉...

  • Page 93: Cleaning

    CLEANING WARNING • A potential of electric shock hazard exists with a power supplied bed. Ensure to unplug power cord of power outlet before cleaning. Do not put water or solution directly in or on connectors. If applicable, secure any bed section that would have to be lifted during cleaning procedures. This bed and compatible accessories are not designed to be steam cleaned, hosed off or ultrasonically cleaned.

  • Page 95: Warranty

    WARRANTY The Umano Medical beds are designed for a 15-year service life under normal use, conditions, and with periodic maintenance as recommended in Maintenance Manual. Shipment receipt The purchaser should examine the shipment upon receipt. Umano Medical must be notified by the purchaser within 30 days of invoice of any short shipment, or any order-mistake.

  • Page 96: Index

    INDEX Footboard 7, 37, 49 Product description 5 Footboard control 7, 28, 49, 50 Product illustration 7, 8 Angle indicator 7 Frame control 7 Product intended use 5 Auxiliary power outlet 7, 10, 23, 43 Headboard 7, 49 Scale 10, 23, 28, 30, 67 Backlight 15 Siderail release handle 44 Backrest 9, 44, 46, 48, 50, 64...
  • Page 98 Emergo Consulting (UK) Limited c/o Cr360 - UL International Compass House, Vision Park Histon U m a n o M e d i c a l i n c . Cambridge CB24 9BZ United Kingdom 2 3 0 b o u l e v a r d N i l u s - L e c l e r c EMERGO EUROPE L’...

This manual is also suitable for:

Ook snow fl36-sc

Table of Contents
