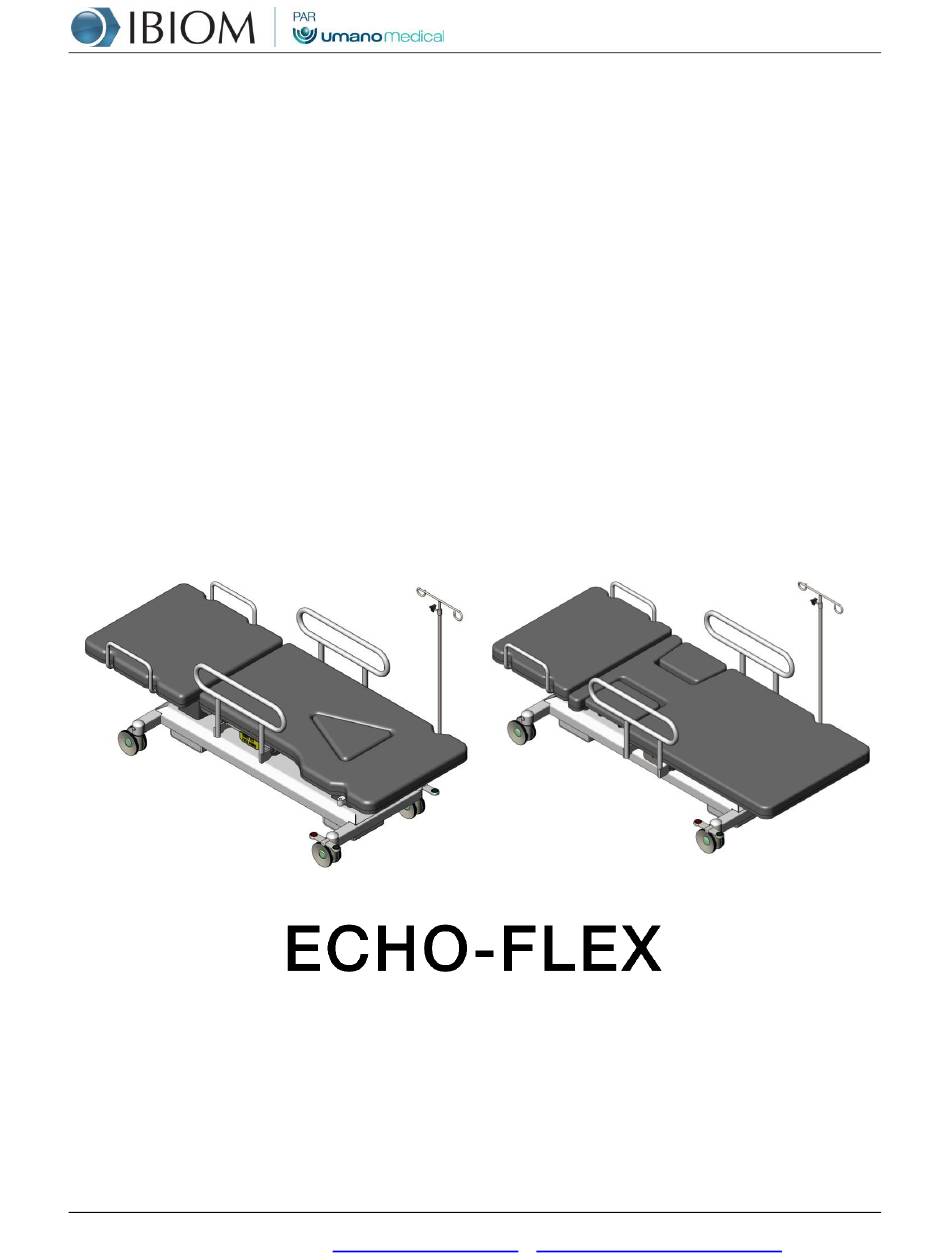

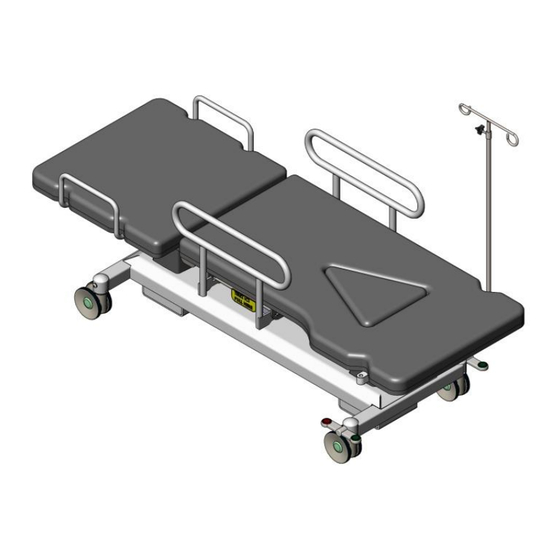

- Page 1 OPERATION MANUAL-ECHO-FLEX™ 5002 OPERATION MANUAL Revision: R1 Serial # 1020121 and + ECHO-FLEX™ 5002 5002 , 230, boul. Nilus-Leclerc, L’Islet, QC, G0R 2C0, Canada Umano Medical Inc. Tél.: 1-877-247-7494 ● ● www.umanomedical.com information@umanomedical.com...
- Page 2 Product specifications ....................23 Electrical specifications ....................24 Environmental conditions ....................24 Certification .........................25 WARRANTY ........................26 10. WASTE DISPOSAL ......................27 11. MAINTENANCE ........................28 12. TROUBLESHOOTING ......................29 13. SPARE PARTS LIST ......................30 © Copyright Umano Medical Inc. 2023 Page 2 of 31 903-9001-ENG R1...
- Page 3 This information is available on label located on base of the table. Phone 1-877-247-7494 418-247-3986 Email information@umanomedical.com www.umanomedical.com Address Umano Medical Inc. 230, boul. Nilus-Leclerc L’Islet, QC G0R 2C0 Canada © Copyright Umano Medical Inc. 2023 Page 3 of 31 903-9001-ENG R1...
- Page 4 According to the WEEE (Waste from Electrical and Electronic Equipment), the electrical system and accessories should not be disposed of as unsorted municipal waste. Check with your local authorities for disposal of these components. © Copyright Umano Medical Inc. 2023 Page 4 of 31 903-9001-ENG R1...
- Page 5 WARNING. Never use the central locking system while the table is in motion. WARNING. Do not use ECHO-FLEX™ table for any purpose other than the intended use. WARNING. Do not modify this equipment without Umano Medical’s authorization. WARNING. Do not use in oxygen-rich environment. WARNING. Do not use in MRI environment.
- Page 6 WARNING. Defective or damaged batteries may leak acid and proper precautions must be taken during handling and transportation. WARNING. Never open the battery case, as the cell or circuit may be damaged and excessive heat may develop. © Copyright Umano Medical Inc. 2023 Page 6 of 31 903-9001-ENG R1...
- Page 7 Double electrical insulation Mandatory to read the operation manual Required voltage (120V), alternating current Current frequency (60Hz), maximum amperage (3.9A) Maximum activation time followed by minimum deactivation time © Copyright Umano Medical Inc. 2023 Page 7 of 31 903-9001-ENG R1...
- Page 8 ALL POSITIONS. Dimensions show maximum space needed. Dimensions may be less than the one indicated below depending on options. © Copyright Umano Medical Inc. 2023 Page 8 of 31 903-9001-ENG R1...
- Page 9 OPERATION MANUAL-ECHO-FLEX™ 5002 © Copyright Umano Medical Inc. 2023 Page 9 of 31 903-9001-ENG R1...
- Page 10 4. Remove any remaining packaging from the product. Example: Protective plastic on the hand control cable. 5. Connect the power cord. 6. Perform an operation test to ensure that everything is working properly. © Copyright Umano Medical Inc. 2023 Page 10 of 31 903-9001-ENG R1...
- Page 11 Red: all 4 casters are locked. • Neutral: all casters unlocked and free to roll. • Green: 1 caster is aligned to the axis of the chair and 3 are unlocked. © Copyright Umano Medical Inc. 2023 Page 11 of 31 903-9001-ENG R1...
- Page 12 Raise the backrest (tilt) Move down table Lower the backrest (tilt) Trendelenburg Trendelenburg Reverse trendelenburg Reverse Trendelenburg Simultaneous mouvements : lower the backrest and activate trendelenburg (emergency position) © Copyright Umano Medical Inc. 2023 Page 12 of 31 903-9001-ENG R1...
- Page 13 1 flashing light + beep sound: 10% or less of capacity 0 light: battery discharged or without battery Service light (see troubleshooting section) Light to indicate that the table is powered by a wall outlet. © Copyright Umano Medical Inc. 2023 Page 13 of 31 903-9001-ENG R1...
- Page 14 Raise the backrest (tilt) Lower the backrest (tilt) Triple foot control Button Function Move up table Move down table Raise the backrest (tilt) Lower the backrest (tilt) Trendelenburg Reverse Trendelenburg © Copyright Umano Medical Inc. 2023 Page 14 of 31 903-9001-ENG R1...
- Page 15 To lower security rail, pull handle with one hand and hold security rail with other hand. • To move up security rail, lift up rail and it will engage automatically. Always make sure it is securely locked. © Copyright Umano Medical Inc. 2023 Page 15 of 31 903-9001-ENG R1...
- Page 16 OPERATION MANUAL-ECHO-FLEX™ 5002 Cardiac cutout opened. Security rail lowered down. Cardiac cutout opened. Security rail lowered down. © Copyright Umano Medical Inc. 2023 Page 16 of 31 903-9001-ENG R1...
- Page 17 To lower cushion, pull handle and lower down cushion to horizontal position and release handle. It will lock automatically. Make sure it is well lock in place before using with patient. © Copyright Umano Medical Inc. 2023 Page 17 of 31 903-9001-ENG R1...
- Page 18 WARNING. Never exceed safe working load of 25lb or 11kg on IV pole. • To remove IV pole, simply remove from hanger. • IV pole hanger. © Copyright Umano Medical Inc. 2023 Page 18 of 31 903-9001-ENG R1...
- Page 19 If battery is not used every day, charge as needed. • The battery can be used when connected to the power supply without risk of damage. • Battery light functions: see section 6.3. © Copyright Umano Medical Inc. 2023 Page 19 of 31 903-9001-ENG R1...
- Page 20 To open cardiac cutout, pull handle located under mattress and pivot cutout. • To close cardiac cutout, pull handle located under mattress, pivot cutout to closed position. It will lock automatically. Make sure it is locked properly. © Copyright Umano Medical Inc. 2023 Page 20 of 31 903-9001-ENG R1...
- Page 21 WARNING. Always inspect mattress to ensure its integrity. A damaged mattress can absorb contaminated liquids. In case of tear or wear, contact Umano Medical to immediately replace the damaged mattress. WARNING. Do not pressure wash or steam clean.
- Page 22 NOTE: In case of major spill, it is possible to remove all mattresses for a complete cleaning. Please contact Umano Medical for further details. 3. Clean all parts that may be contaminated and/or that are in contact with the patient, such as security rails, IV pole, handles, table base, etc.
- Page 23 BIFMA Class A • NFPA 260 • UFAC Class 1 Umano Medical reserves the right to change specifications without notice. * May vary depending on options. ** If cleaning instructions are followed. © Copyright Umano Medical Inc. 2023 Page 23 of 31...
- Page 24 Triple foot switch: IP20 Button controller: IPX0 Battery: IPX6 Duty cycle Intermittent 2/18 Max 2 minutes on 18 minutes off Umano Medical reserves the right to change specifications without notice. 8.3 Environmental conditions Conditions Temperature Relative humidity Pressure Normal condition...
- Page 25 8.4 Certification This products is certified according to CSA SPE 3000 standards for electrical medical equipment unless otherwise specified. Label is located on the base of the product. © Copyright Umano Medical Inc. 2023 Page 25 of 31 903-9001-ENG R1...
- Page 26 Medical’s obligation under this warranty is expressly limited to supplying replacement parts and/or service for, or replacing, at its option, any product that is, in the sole discretion of Umano Medical, found to be defective. In addition, Umano Medical warrants for life to the original purchaser that the welds on its products will be free from structural defects.
- Page 27 Actuators, lifting column, control box, controls, cables and other Electronic waste electronic components Metal structure Scrap metal Battery pack Battery waste Plastic parts Plastic waste Mattress Foam, textiles, wood © Copyright Umano Medical Inc. 2023 Page 27 of 31 903-9001-ENG R1...
- Page 28 OPERATION MANUAL-ECHO-FLEX™ 5002 11. MAINTENANCE See service manual. © Copyright Umano Medical Inc. 2023 Page 28 of 31 903-9001-ENG R1...
- Page 29 Umano Medical. Yellow light flashing Service light Duty cycle 2min on. / 18 Wait 18 minutes before slowly audible min. off exceeded. using the equipment. alarm. © Copyright Umano Medical Inc. 2023 Page 29 of 31 903-9001-ENG R1...
- Page 30 OPERATION MANUAL-ECHO-FLEX™ 5002 13. SPARE PARTS LIST See service manual. © Copyright Umano Medical Inc. 2023 Page 30 of 31 903-9001-ENG R1...
- Page 31 OPERATION MANUAL-ECHO-FLEX™ 5002 UMANO MEDICAL INC. 230, BOUL NILUS-LECLERC L’ISLET, QC G0R 2C0 CANADA T: (418) 247-3986 T: (877) 247-7494 www.ibiom.com © Copyright Umano Medical Inc. 2023 Page 31 of 31 903-9001-ENG R1...
