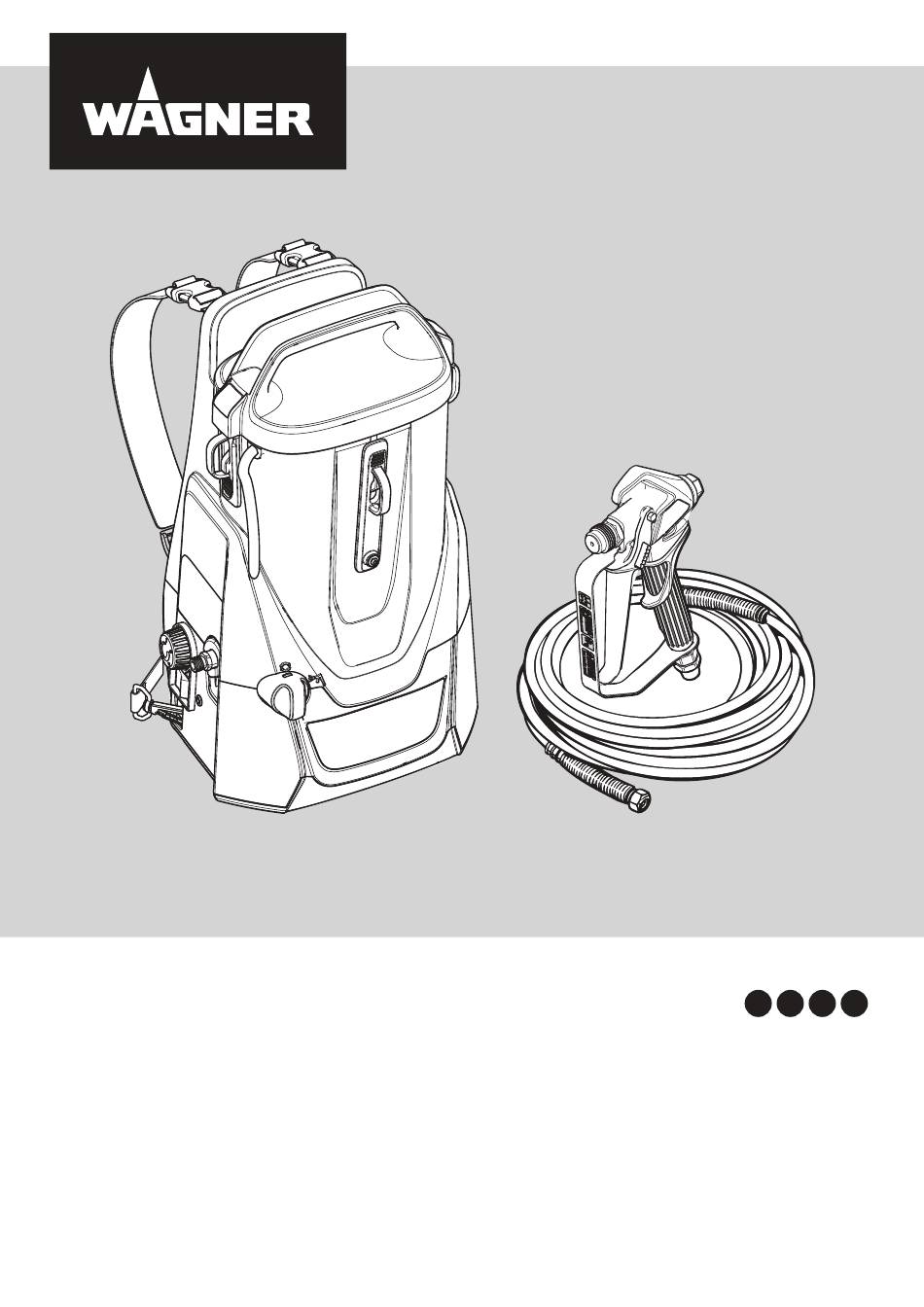

- Page 1 SPRAYPACK 18V DE EN SPRAYPACK 18V SELECT HIGH PERFORMANCE AIRLESS SPRAYER ORIGINALBETRIEBSANLEITUNG wagner-group.com...
- Page 2 SprayPack 18V Translation of the original operating instructions Warning! Attention: Danger of injury by injection! Airless units develop extremely high spraying pressures. Danger Never put your ngers, hands or any other parts of the body into the spray jet! Never point the spray gun at yourself, other persons or animals.
- Page 3 SprayPack 18V Congratulations for the purchase of your plugs with earthed (grounded) power tools. WAGNER Airless high pressure spray gun. Unmodified plugs and matching outlets will reduce risk of electric shock. Read this manual carefully before the initial use of this equipment and observe the safety instructions.
- Page 4 SprayPack 18V g) If devices are provided for the connection of dust b) Use power tools only with specifically designated extraction and collection facilities, ensure these are battery packs. Use of any other battery packs may connected and properly used. Use of dust collection create a risk of injury and fire.
- Page 5 SprayPack 18V • Flammable materials Do not operate the charger on easily combustible surfaces (e.g. paper, textiles, etc.) or in combustible environments. There is a risk of fire due to the heating of Do not use the spray guns to spray flammable substances.
- Page 6 197 kΩ/m (60 kΩ/ft.). Unsuitable materials For reasons of function, safety and durability, only use genuine WAGNER • Materials that contain highly abrasive components, high-pressure hoses and spray nozzles.
- Page 7 SprayPack 18V Technical data* Rechargeable battery (ProCore 18 Li-Ion, 18 V V, 4.0 Ah): 4.0 Ah Charger (AL 1810 CV): Input voltage 220-240 V , 50-60 Hz; Output voltage 10.8-18 V Charging current 4000 mA Charging time (rechargeable approx. 48 min battery 18 V, 4.0 Ah):...
- Page 8 COMPONENTS / DESCRIPTION SprayPack 18V Handle Tip holder Inlet lter (inside of hopper) Hopper lid Hopper Return tube Flow regulator Hose holder ON/OFF switch Spray gun PRIME Pressure gauge Tip guard PRIME/SPRAY knob SPRAY Swivel Z* Elbow Charger* Trigger lock...
- Page 9 ASSEMBLY SprayPack 18V Tools needed for assembly If the appliance will be carried like • a rucksack, open the hose holder Two adjustable wrenches. and hook in the rolled-up hose. WARNING Only insert the battery when the device is fully assembled.
- Page 10 IMPORTANT INFORMATION SprayPack 18V Preparing the paint Pressure relief procedure To avoid rapid blockage of the nozzle and filter, we WARNING recommend stirring and sieving the paint well before spraying. Follow the material manufacturer's instructions. Be sure to follow the pressure relief procedure when shutting the unit off FOR ANY PURPOSE.
- Page 11 Preparation of the Coating Material Before connecting to the mains, make sure that the mains Using SprayPack 18V interior wall paints, varnishes and voltage corresponds to the specification on the charger‘s glazes can be applied by spraying without diluting them, or rating plate.
- Page 12 PREPARATION SprayPack 18V 10) Reinsert the return hose into 7) Trigger the gun into the waste container once more to the container. The sealing be sure that no pressure is left in the hose. grommet must be seated 8) Lock the spray gun off.
- Page 13 SPRAYING SprayPack 18V Practice TIP: Keep the spray gun perpendicular to the surface, otherwise one end of the pattern will CAUTION be thicker than the other. Be sure that the paint hose is free of kinks and clear of 25 - 35 cm objects with sharp cutting edges.
- Page 14 SPRAYING TROUBLESHOOTING SprayPack 18V Unclogging the spray gun filter The following is a short list of minor difficulties you might encounter while spraying. If any of these occur, it will reduce the This filter must be cleaned every time you use your flow of material, making your spray pattern poor, or material sprayer.
- Page 15 CLEANUP SprayPack 18V Important cleaning notes Purging the paint hose Rinsing the hopper These steps will allow you to recover 1) Thoroughly rinse out the hopper READ THESE NOTES AND WARNINGS excess paint left over in the paint hose. using the appropriate cleaning...
- Page 16 CLEANUP / MAINTENANCE SprayPack 18V Cleaning the spray gun components Cleaning the inlet valve 1) Perform Pressure Relief Procedure, page 31. Cleaning or servicing the inlet valve may be required 2) Remove filter from spray gun (refer to Unclogging the if the unit has priming problems.
- Page 17 MAINTENANCE / STORAGE SprayPack 18V Replacing the outlet valve Replacing the pulsation damper Replacement of the outlet valve may be necessary if If the spray jet begins to pulsate your spray performance remains poor after having after some time, the pulsation...
- Page 18 STORAGE SprayPack 18V Preparing the sprayer for longterm storage 1) Make sure you have already completed the Cleanup steps on pages 36-37. 2) Remove the inlet filter. You may need to use a screwdriver to pry it loose. Inlet lter 3) Pour approximately 10 ml of light household oil into the inlet valve.
- Page 19 This is normal. Resume painting. 4) There is a problem with the motor. 4) Take sprayer to Wagner Authorized Service Center. B. The sprayer starts but does 1) The unit is not primed. 1) Set the device to PRIME and switch it on until paint flows not draw in paint.
- Page 20 Spare Parts List / Accessories SprayPack 18V SPRAY GUN Item Part # Description 0554410 Tip FineFinish 410 0554408 Tip FineFinish 408 0538040 Spray gun Vector Pro assy. (4 fingers) 2468382 Nozzle seal (5 pack) 0097022 Filter red (10 pack) * Wear parts: Not covered by guarantee...
- Page 21 Some paints may need to be diluted to achieve the best result possible. The experts at Wagner application technology have therefore tested a wide range of materials for you. Their recommendations can be found in the Wagner Spray Guide at sprayguide.
- Page 22 2 weeks following discovery of the defect. The detailed guarantee conditions can be obtained on request from our authorised WAGNER partners (see website or operating instructions) or in text form on our website: https://go.wagner-group.com/pf-warranty-conditions...
