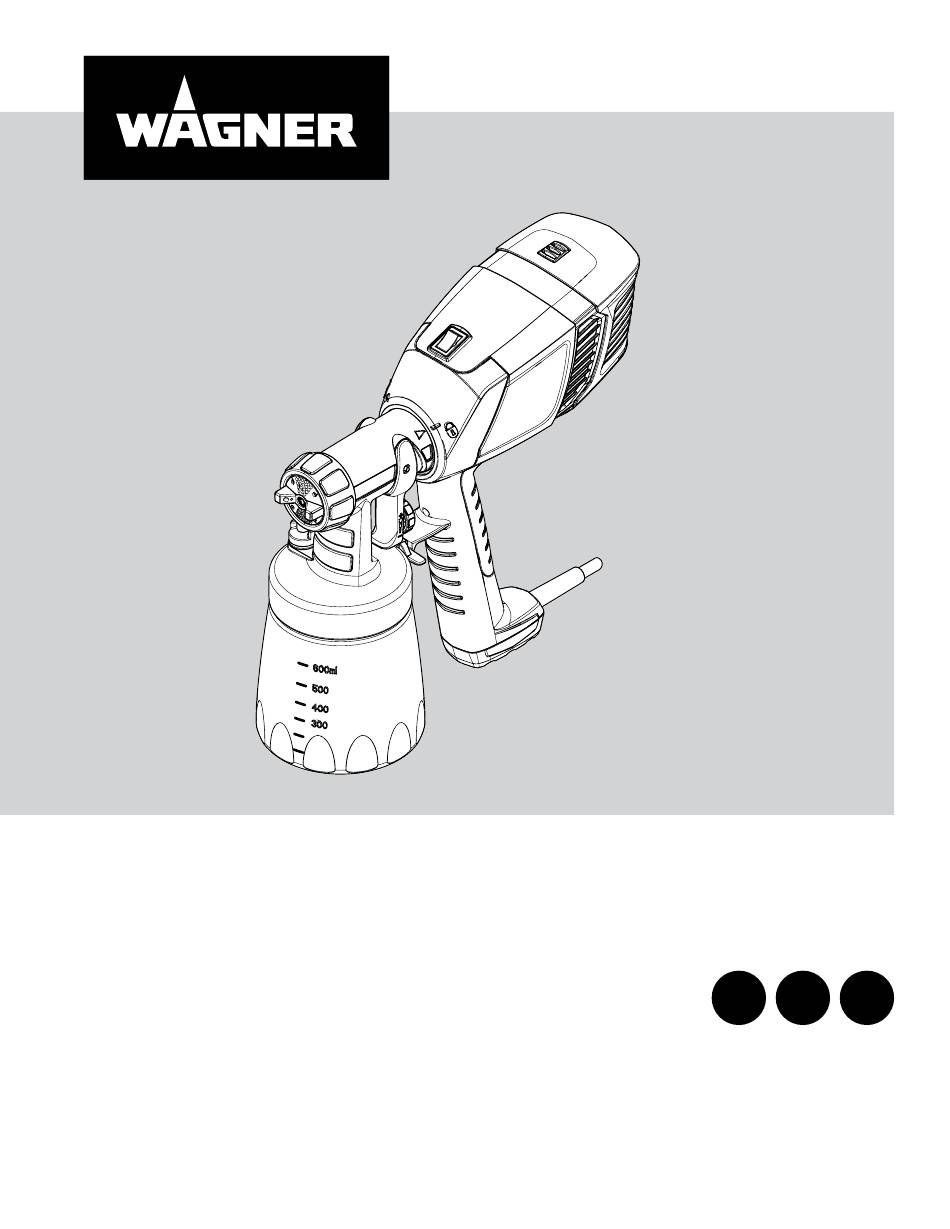

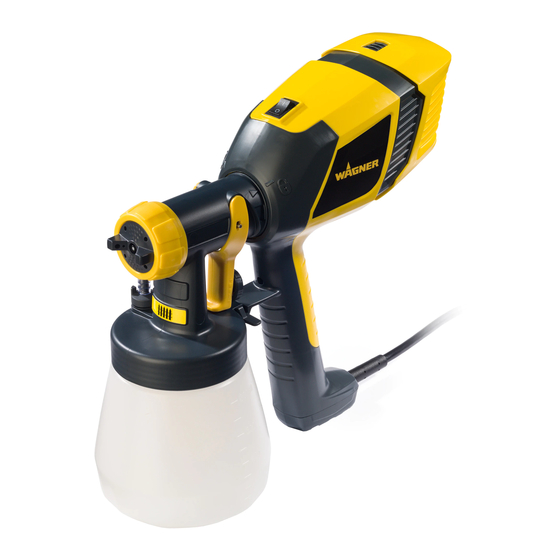

  • Page 1 ™ Owner‘s manual read this manual fOr cOmplete instructiOns franÇais - p. 13 espaÑOl - p. 25 wagner-group.com watch a video manual at www.wagnerspraytech.com/controlspray250 1017 • Form No. 0529627D...
  • Page 2: Table Of Contents

    IMportant saFEty InForMatIon taBlE oF contEnts GroUnDInG InstrUctIons IMPORTANT SAFETY INFORMATION ..........2-3 This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by CONTROLS AND FUNCTIONS ............4-5 providing an escape wire for the electric current. This product SETUP ......................
  • Page 3: Important Safety Information

    IMportant saFEty InForMatIon saFEty hazarDs HAZARD: EXPLOSION OR FIRE HAZARD: gENERAL Flammable vapors, such as solvent and This product can cause severe injury or property paint vapors, in work area can ignite or damage. explode. PREVENTION: PREVENTION: • Always wear appropriate gloves, eye protection, clothing •...
  • Page 4: Controls And Functions

    controls anD FUnctIons Cover release Nozzle Turbine Seal Filter housing Air cap ON/OFF switch Nozzle assembly Filter Lock N Go tab Material flow Seal control Trigger Pickup tube Material container (600 ml)
  • Page 5 controls anD FUnctIons on / oFF swItch The ON/ OFF switch turns the turbine ON (I) and OFF (0). No spray material will be delivered until trigger is pulled. MatErIal Flow control The material flow control knob determines the amount of material that is sprayed from the nozzle assembly.
  • Page 6: Setup

    sEtUp For a video showing how to set up the Control Spray, visit: www.wagnerspraytech.com/controlspray250 MatErIal prEparatIon Material to be sprayed may need to be strained to remove any impurities in the paint which may enter and clog the system. Impurities in the paint will give poor performance and a poor finish.
  • Page 7 sEtUp For a video showing how to set up the Control Spray, visit: www.wagnerspraytech.com/controlspray250 assEMBly NEVER point the spray gun at any part of the body. Make sure the power cord is unplugged. Stir the spraying material thoroughly. Fill the container. Use a strainer to remove any particles. (see Thinning the Material, previous page, if thinning is required).
  • Page 8: Sprayer Controls

    For a video showing Control Spray 250 spraying tips and best practices, visit: www.wagnerspraytech.com/controlspray250 MatErIal Flow control The material flow control will be factory-set at its lowest setting out of the box. Adjust as needed. • Turn the knob out (counterclockwise) for less flow.
  • Page 9: Spraying

    For a video showing Control Spray 250 spraying tips and best practices, visit: www.wagnerspraytech.com/controlspray250 how to spray propErly Even coat throughout • Turn the ON/OFF switch to ON (I) to turn on the turbine. Correct 3 to 6 inches No material will spray until the trigger is activated.
  • Page 10: Cleanup

    For a video showing cleanup of the Control Spray 250, visit: www.wagnerspraytech.com/controlspray250 clEanUp notEs When cleaning, use the appropriate cleaning solution (warm, soapy water for water-based coatings, and mineral spirits for oil-based coatings. Special cleanup instructions for use with flammable solvents (must have a flashpoint above 100ºF (38ºC):...
  • Page 11: Maintenance

    MaIntEnancE clEanInG thE FIltEr prEss IMPORTANT: Before every use, you should inspect the air filter in the turbine to see if it is excessively dirty. If it is dirty, follow these steps to replace it. Never operate your unit without the air filters.
  • Page 12: Troubleshooting

    troUBlEshootInG proBlEM caUsE solUtIon Problem A: Little or no material flow 1. Nozzle clogged. 1. Clean. 2. Suction tube clogged. 2. Clean. 3. Material flow setting too low. 3. Increase material flow setting. 4. Suction tube loose. 4. Remove and replace as tightly as possible. 5.
  • Page 13: Parts List

    Parts List • Liste de Pièces • Lista de Piezas Replacement parts available by calling customer service On peut obtenir des pièces de rechange en appelant le Service à la clientèle. Los repuestos están disponibles llamanado al servicio a clientes. 1-800-328-8251 Part No.
  • Page 14 Parts List • Liste de Pièces • Lista de Piezas Part No. English Français Español Qty. Nº de piéce Description Description Descripción Qte. Pieza No. cant. 0529257 Nozzle assembly (includes Ensemble de buse (inclut des Ensamblaje de boquilla items 1-9) pièces 1 à...
  • Page 15 Este producto, fabricado por la Wagner Spray Tech Corporation (Wagner), está garantizado contra defectos de materiales y de mano de obra por un año a partir de la fecha de compra siempre y cuando se utilice de acuerdo con las recomendaciones e intrucciones impresas de Wagner. Esta garantía no cubre daños ocasionados por el uso incorrecto, accidentes, negligencia por parte del usario o el desgaste normal.
  • Page 16 ™ wagner-group.com...
