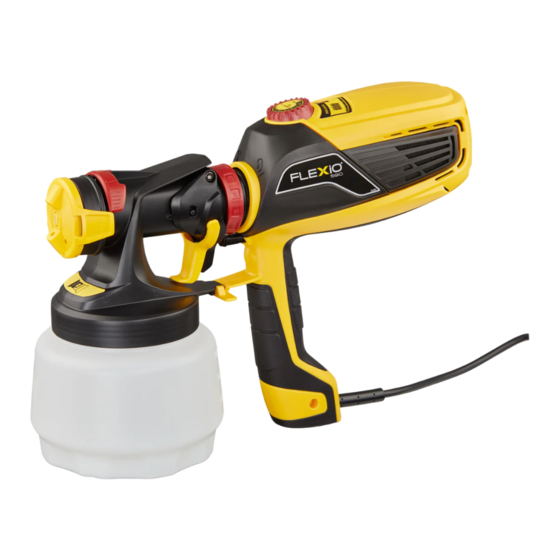

- Page 1 User Manual of Product 1: Wagner Spraytech 0529091 FLEXiO 5000 Stationary HVLP Paint Sprayer, Sprays Unthinned Latex, Includes two Nozzles, iSpray Nozzle and Detail Finish Nozzle, Complete Adjustability for All Needs...
-
Page 2: Table Of Contents
Français (page 17) / Español (página 33) Contents Important Safety Information Controls and Functions Questions? Material Preparation Assembly Call Wagner Technical Service at: Power and Material Controls 1-800-328-8251 Spray Pattern Adjustment Proper Spraying Technique Register your product online at: Cleanup www.wagnerspraytech.com... -
Page 3: Important Safety Information
Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product. Grounded Outlet Grounding Pin Cover for grounded outlet box English © Wagner Spray Tech - All Rights Reserved... - Page 4 100ºF (38ºC). Thank you for your purchase! Thank you for purchasing the Wagner FLEXiO sprayer with best-in-class features that are designed for spraying residential paint, un-thinned, indoors or out. Only the FLEXiO sprayers have the power of the X-Boost® turbine and versatility of the iSpray nozzle that will help you finish projects fast and professionally.
-
Page 5: Controls And Functions
Horizontal pattern the amount of spray (use ‘up and down’ horizontal positions. material that is sprayed spraying motion) from the spray gun. Vertical pattern (use ‘side to side’ spraying motion) English © Wagner Spray Tech - All Rights Reserved... - Page 6 (1 - 9). iSpray Nozzle: FLEXiO sprayer model 570 and 590. Designed to provide a roller-like finish on broad indoor and outdoor surfaces. Sprays un-thinned materials including un-thinned latex. English © Wagner Spray Tech. - All Rights Reserved...
-
Page 7: Material Preparation
Never exceed the thinning advice given by the coating manufacturer. Do not thin with materials that have a flashpoint below 100°F (38°C). The material flashpoint should be shown on the material container. English © Wagner Spray Tech. - All Rights Reserved... -
Page 8: Assembly
5. Insert and twist the nozzle into the turbine toward the “lock” symbol on the turbine. The tab below the trigger will lock the two pieces into place. English © Wagner Spray Tech - All Rights Reserved... -
Page 9: Power And Material Controls
Lacquers (water based) Light min-2 Med/Heavy min-3 Solid stains Polyurethane Med/Heavy Oil enamels Heavy Heavy Latex paints plus primers, Latex Heavy paints Oil or latex primers Heavy 6-max English © Wagner Spray Tech - All Rights Reserved... -
Page 10: Spray Pattern Adjustment
*note: The air cap can be set diagonally on the Detail Finish nozzle only. To achieve a round pattern with the iSpray nozzle, see the “Adjust Spray Width” section. English © Wagner Spray Tech - All Rights Reserved... -
Page 11: Proper Spraying Technique
When you restart, wipe Doing this will help avoid irregularities in the the nozzle with a damp cloth to remove any dried finish (i. e. runs and sags). paint. English © Wagner Spray Tech - All Rights Reserved... - Page 12 • Spray gun movement - moving the gun too quickly will cause the spray pattern to be too thin and excess overspray. Moving the gun too slowly will cause the spray pattern to be too coarse or thick. English © Wagner Spray Tech - All Rights Reserved...
-
Page 13: Cleanup
IMPORTanT: If you cleaned the sprayer using mineral spirits, repeat steps 1-6 using warm, soapy water. Move on to “Cleanup - Cleaning the nozzle”, next page. PULL Empty waste container English © Wagner Spray Tech - All Rights Reserved... - Page 14 (the side with the groove) is occurs, make sure to pull it facing out towards the front of the out. nozzle. Improper installation will cause leakage and damage to the turbine. Groove English © Wagner Spray Tech - All Rights Reserved...
-
Page 15: Reassembly
Make sure the air valve tube is free of paint. If not, clean the air valve tube by following the instructions on the next page. If clean, make sure it is attached securely at both ends (see inset). English © Wagner Spray Tech - All Rights Reserved... -
Page 16: Maintenance
Turning the nozzle upside down will prevent the valve seal from falling out of the valve cover during reinstallation. 4. Place the air tube on the valve cover and on the nipple at the nozzle. English © Wagner Spray Tech. - All Rights Reserved... -
Page 17: Troubleshooting
Have you tried the recommendations above and are still having problems? In the United States, to speak to a customer service representative, call our Technical Service at 1-800-328-8251. See www.wagnerspraytech.com in the “Contact Us” section for Technical Service hours. English © Wagner Spray Tech. - All Rights Reserved... -
Page 18: Parts List
Filtre Filtro 2332974 Filter cover, right Couvercle du filtre, à droite Cubierta del filtro, derecha 2332973 Filter cover, left Couvercle du filtre, à gauche Cubierta del filtro, izquierda Français Español English English © Wagner Spray Tech. - All Rights Reserved... - Page 19 Tube / Joint de clapet Tube / Junta de la válvula 0417474 Seal Joint Sello 0417473 Suction tube Tube d’aspiration Tubo de succión 2303366 Material container Réservoir de liquide Recipiente Français English Español © Wagner Spray Tech - All Rights Reserved...
- Page 20 Container seal Joint d’étanchéité de Sello de recipiente réservoir 0417357 Suction tube Tube d’aspiration Tubo de succión 0414313 Material container (600 ml) Réservoir de liquide (600 ml) Recipiente (600 ml) Français Español English © Wagner Spray Tech - All Rights Reserved...
- Page 21 Detail Finish Nozzle™ Ensemble de buse de Detail Ensamblaje del boquilla de assembly Finish™ Detail Finish™ 2367285 X-Boost® turbine filters Filtres de turbine de X-Boost® Filtros de turbine de X-Boost® Français English Español © Wagner Spray Tech - All Rights Reserved...
- Page 22 Notes • Remarques • Notas Français Español English © Wagner Spray Tech - All Rights Reserved...
- Page 23 (une liste des centres de service après-vente accompagne cet article). Le centre de service après-vente agrée de Wagner vous renverra l’article en port payé, après l’avoir réparé ou remplacé (ce choix étant à la discrétion de Wagner).
- Page 24 CUALQUIER GARANTÍA IMPLÍCITA RFERENTE AL POTENCIAL COMERCIAL O ADAPTABILIDAD pARA UN USO PARTICULAR SE LIMITA A UN AÑO A PARTIR DE LA FECHA DE COMPRA. WAGNER EN NINGÚN CASO SERÁ RESPONSABLE DE CUALQUIER DAÑO DIRECTO O INDIRECTO DE CUALQUIER TIPO, YA SEA POR VIOLACIÓN DE ESTA GARANTÍA O CUALQUIER OTRA RAZÓN.
-
Page 25: Warranty
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO one year FOLLOWING DATE OF PURCHASE. WAGNER SHALL NOT IN ANY EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER FOR BREACH OF THIS WARRANTY OR ANY OTHER REASON.
