Technical Support and E-Warranty Certificate
www.vevor.com/support

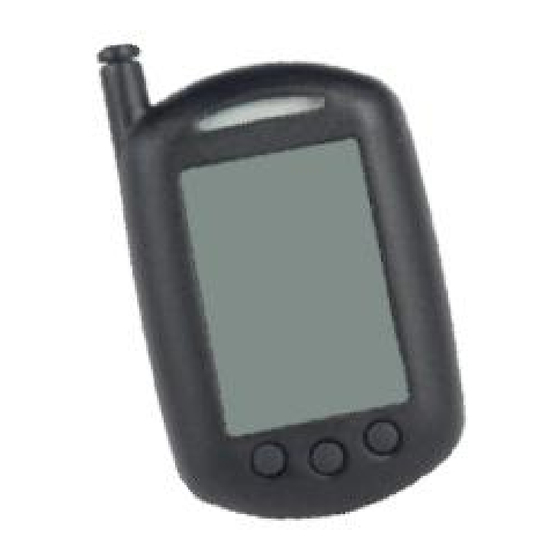

SOLAR TPMS
MODEL: M400C
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us
only represents an estimate of savings you might benefit from buying
certain tools with us compared to the major top brands and does not
necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us
if you are actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR M400C
Summary of Contents for VEVOR M400C
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support SOLAR TPMS MODEL: M400C We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 Technical Support and E-Warranty Certificate www.vevor.com/support This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received.
- Page 3 Instruction Congratulations on purchasing the new TYRE PRESSURE MONITORING SYSTEM(TPMS). This system is a safety system for monitoring vehicle's tyre air pressure and temperature. It consists of extern amounted tyre pressure wireless sensors fitted to the vehicle's ryre valve and a hand-held monitor. The sensor will monitor the tyre's air pressure and temperature.
- Page 4 units of measurement of your choice.The monitor will emit an alarm when a tire pressure or temperature varies markedly from the targeted tire pressure and/or temperature (refer section 4.) The system will detect high or low air pressure as well as high temperature or rapid leakage from the tires.
- Page 5 3. Installation & Operating Instructions The following instructions show the identification of operating buttons of the monitor. - 4 -...
- Page 6 Units Conversion Temperature Units Conversion F=9C/5+32 Note:C=Celsius; F=Fahrenheit Pressure Units Conversion 1 Bar=14.5 psi 1 Bar=100 kPa 1 Bar=1.02 kgf/cm Please ensure the monitor is fully charged and in the tyre alignment mode before installing the tyre sensors. - 5 -...
- Page 7 Before installing sensors and setting the monitor, make sure you have inflated the vehicle's tyres to your required pressures. Tyre alignment mode Hold down the " " and " " buttons simultaneously on the monitor for 5 seconds to enter tyre alignment mode, and press either "...
- Page 8 seconds to check the pressures and temperatures, the monitor will indicate the data of the selected tyre. Click through to ensure all tyre pressures and temperature details are in accordance with your requirements. After your checks are completed, the backlight will go out and the monitor will indicate the tyre pressure of the selected tyre.
- Page 9 2. Please check each tyre valve is not damaged. 3. Check to ensure there are no leaks and the sensors are firmly secured to each tyre valve. Installation of the Monitor The monitor can be mounted using the pedestal or brackets supplied.
- Page 10 quickly press the SET button to scroll through to the next tyre and repeat this sequence to set the remaining tyres. Note: It is recommended to set tyre pressures at those recommended by the manufacturer listed in the vehicle's handbook. After you have completed setting all the tyre pressures, then set your preferred units of temperature and pressure measurement, “kpa", “Bar",“PSl"...
- Page 11 During the standby mode, press " " or " " button to check the air pressure and temperature of the designated tyre. When you press the " " button the monitor will scroll through the current pressure and temperature of each tyre, as graphics A &B below show.
- Page 12 Battery Capacity Indicator of the Monitor and Sensor When the monitor is low on power, the battery icon and “MONTOR" icon on the screen flash, the buzzer gives a 10 second intermittent alarm. The monitor then sounds every 30 seconds within 5 minutes of total discharge. When a tyre sensor has low power, the battery icon and “SENSOR"...
- Page 13 C.The monitor will sound an alarm when fully charged. Graphic C will disappear after 1 second. Note: Please keep the monitor in a cool environment when charging. Sensor battery replacement Replace the corresponding sensor's battery when the monitor indicates a low battery. Unscrew the plastic cap from the sensor, take out the battery and replace with a new button cell battery, (Cr1632).
- Page 14 3. In order to make sure that the battery is replaced correctly, enter tyre alignment mode and delete the alignment of the respective sensor and realign it again. Power up Quickly press SET button to enter into the stand-by mode at the power off state.
- Page 15 button, continue holding down the SET button for a further3 seconds or more to power off the monitor. Note: Whether the monitor is turned on or off, the sensor is always in standby mode. Standby Time The monitor is installed with an intelligent 15 minutes suspension device.
- Page 16 Slow Leakage When the air pressure of a tyre drops more than 0.4 Bar (6psi) within 2~10 minutes, the monitor will give an alarm and the corresponding icon will flash on the monitor's screen to indicate which tyre has the abnormal air pressure and its current air pressure.
- Page 17 the flashing red LED on the monitor and the temperature icon flashing on the screen.as the right graphic shows. - 16 -...
- Page 18 Low Air Pressure Warning: Level 1 When the actual air pressure is equal to or falls below 85%of the set pressure the system will give an alarm and the monitor will indicate the position of the tyre with abnormal air pressure and its current air pressure.
- Page 19 High Air Pressure Warning When the actual air pressure is equal to or greater than120% of the set pressure the system will give an alarm and the monitor will indicate the position of the tyre with abnormal air pressure and its current air pressure. The high air pressure is indicated by icon the flashing red LED on the monitor and the pressure flashing on the screen, as the right graphic shows.
- Page 20 Multi-Warning Indication 1. When one tyre has numerous abnormalities at once, the monitor will indicate all the various abnormalities as the graphic at right shows. 2. When there are abnormalities with two or more tyres at the same time, the respective tyre icons with the abnormalities will flash on the screen.
- Page 21 seconds. The corresponding icon of the abnormal sensor will also flash and indicate with “no S” which indicates there is either a fault the sensor, the sensor is damaged or the sensor is out of range. The system will alarm every 20 minutes if the monitor still can't receive the signal from the sensor,as the graphic at right shows.
- Page 22 If you wish to add further sensors to the monitoring system i.e. fitting sensors to an additional caravan or trailer, etc refer to procedure 3, Installation & Operating Instructions. - 21 -...
- Page 23 5. Technical Specifications Sensor Working Temperature 14°F to 185°F(-10°C to 85°C) Working Humidity 0-95% Dimension 24 x 21 x 21 mm Weight 11 g (±1 g) Battery Voltage 3V DC (Cr1632) Battery Life 1 Year Standby Current 500mA Working Current Pressure Measure Range 0 psi - 232 psi(0 bar - 16 bar) Pressure Measure Precision...
- Page 24 Monitor Working Voltage 3V DC Working -4°F to 140°F(-20°C to 60°C) Temperature Working Humidity 0-90% Standby Current 0.1mA Working Current 15mA Dimension Signal Receiving 433.92MHZ Frequency Color of Backlight White Monitor Size: 82 x 55 x 23 mm Dimensions (JET-M-400C) - 23 -...
- Page 25 TPMS Assembly NOTE: 1. This system can efficiently monitor the air pressure and temperature of the vehicle's tyres. 2. In order to avoid damage to this equipment, please do not attempt to disassemble any assembly. 3. Your TPMS has an automatic monitoring function, so there is no need to press "...
- Page 26 (from receiver to rear tires), extreme cold and battery deterioration. 6.2 Operation Once installed on the tow vehicle or approximate middle of a large Motor coach, no further programming or action is necessary. The VEVOR Booster will automatically pick up the - 25 -...
- Page 27 signals from all transmitters and resend the information to the receiver/monitor. 6.3 Installation Position Although fully weather proof, it is recommended to install the booster in a relatively protected area. The illustration below shows the ideal location for RV, Caravan, trailer and truck use.
- Page 28 6.4 Installation The JET100A VEVOR booster comes with several “wire ties” which may be used to secure it and its power cord wherever. Please mount as securely as possible to minimize vibration. 6.5 Power Supply Model JET-100A requires external DC power: DC 12V or DC 24V.
- Page 29 7. FCC Information: CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This product may cause harmful interference.
- Page 30 However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
- Page 31 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX E-CrossStu GmbH...
- Page 32 Technical Support and E-Warranty Certificate www.vevor.com/support...
