RAB SAGE TILE Instructions

INSTRUCTIONS
SAGE™ TILE INSTALLATION
RAB Lighting is committed to creating high-quality, aff ordable, well-designed and energy-effi cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fi xture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened fi rmly.
Apply weatherproof silicone sealant around the edge of the mounting surface and/or Junction Box. This is especially important
with an uneven surface.
Suitable for Wet locations.
WALL PACK MOUNT

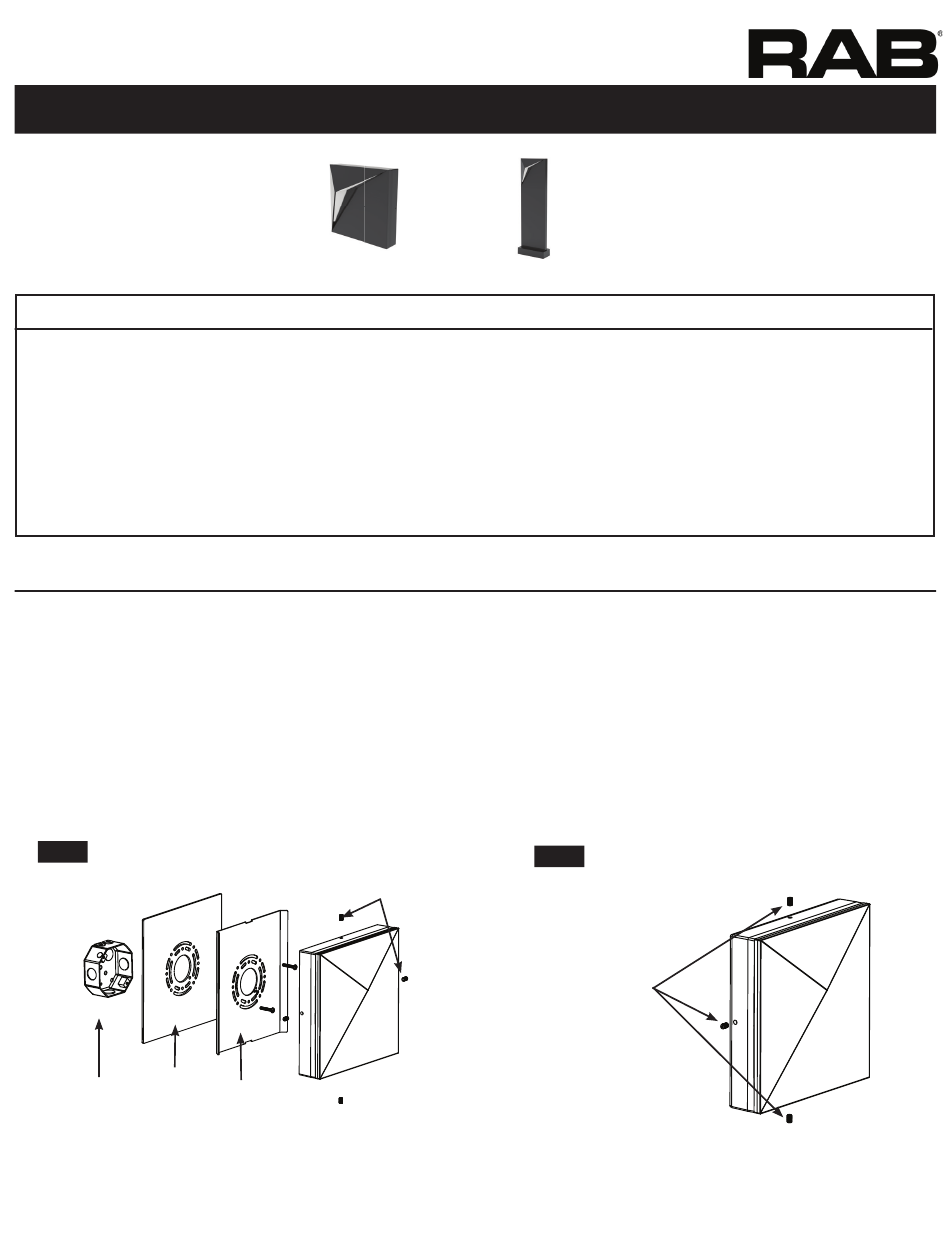

1. Loosen Fixing Screws (4) on Fixture and remove the Mounting Plate as shown in Fig. 1.
2. Feed wires through Gasket and Mounting Plate. Install Mounting Plate with Gasket to Junction Box (by others) using provided Screws
(Gasket and Screws are included).
3. Connect the Fixture to the power supply through the Junction Box, Gasket and Mounting Plate.
4. Complete the wiring to the supply wires and ground. Make electrical connections as shown in wiring diagram (Fig. 8). Use approved
wiring connectors and wire to local NEC codes. Push all wires back into Housing.
5. Be careful not to pinch wires, place Fixture over Mounting Plate. Install and tighten (4) Fixing Screws as shown in Fig. 2.
1
FIG. 1
Gasket
Junction Box
(by others)
Wall Pack
Mounting Plate
Bollard
FIG. 2
Fixing Screws (4)
Fixing Screws (4)
